TRH203L-REMDK (2005)
Toyota Hiace
(0501-1008)2TRFE..ARL,CIS,GCC,GEN,SA,TH ; (0501-1106)2TRFE..TRH213..VN ; (0501-1106
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

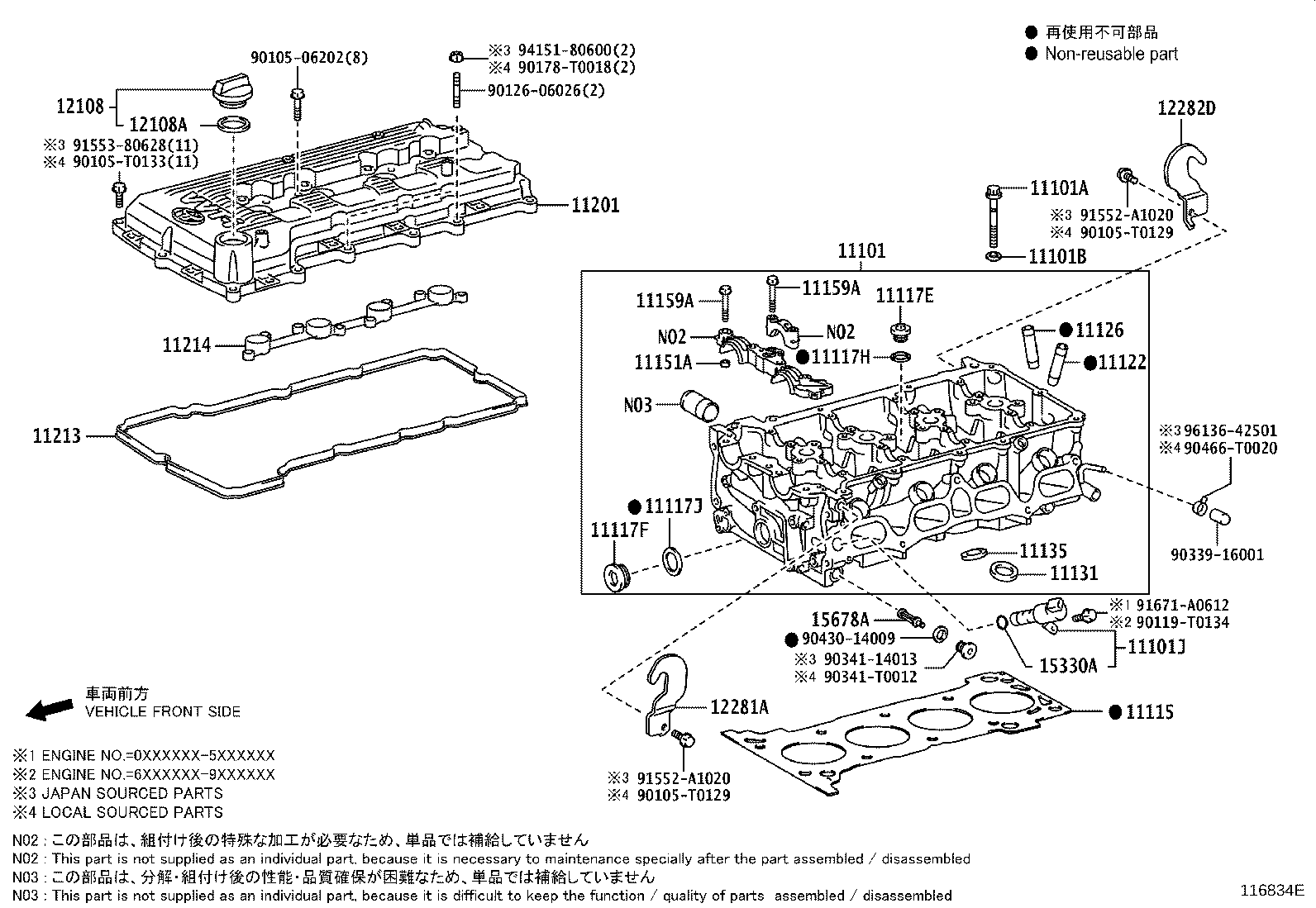

| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-75150 |
2TRFE..TRH203,213..LHD..(15S,16S)..GEN PERU SPEC,*271 |
1 | ||
| 11101-75150 |
2TRFE..TRH203,213..LHD..(15S,16S)..GEN PERU SPEC,*271 |
1 | ||
| 11101-75170 |
2TRFE..TRH201,213..SG..GCC;2TRFE..TRH213..RHD..(10S,16S);2TRFE..TRH221..SP..(GCC,GEN,SA);2TRFE..TRH223..5F..(CIS,GCC,GEN,SA);2TRFE..TRH20#..SRF..(03S,12S,15S)..(GCC,GEN,SA) |
1 | ||
| 11101-75170 |
2TRFE..TRH201,213..SG..GCC;2TRFE..TRH213..RHD..(10S,16S);2TRFE..TRH221..SP..(GCC,GEN,SA);2TRFE..TRH223..5F..(CIS,GCC,GEN,SA);2TRFE..TRH20#..SRF..(03S,12S,15S)..(GCC,GEN,SA) |
1 | ||
| 11101-75240 |
2TRFE..TRH203..LHD..15S..GEN PERU SPEC,*272 |
1 | ||
| 11101-75240 |
2TRFE..TRH203..LHD..15S..GEN PERU SPEC,*272 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02091 |
2TRFE..TRH20#,213,22# |
10 | ||
| 90910-02091 |
2TRFE..TRH20#,213,22# |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11034 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
10 | ||
| 90201-11034 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
10 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-75010 |
2TRFE..TRH201..5D..5F;2TRFE..TRH201..SG..4FC;2TRFE..TRH201,223..4D..SG;2TRFE..TRH203,221..03S,15S;2TRFE..TRH213..(10S,16S)..(GCC,GEN,SA);2TRFE..TRH201,213..(03S,11S)..(ARL,SA,TH) |
1 | ||
| 15330-75010 |
2TRFE..TRH201..5D..5F;2TRFE..TRH201..SG..4FC;2TRFE..TRH201,223..4D..SG;2TRFE..TRH203,221..03S,15S;2TRFE..TRH213..(10S,16S)..(GCC,GEN,SA);2TRFE..TRH201,213..(03S,11S)..(ARL,SA,TH) |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-75050 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 11115-75050 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-20002 |
1TRFE,2TRFE..TRH20#,213,22# |
3 | ||
| 90341-20002 |
1TRFE,2TRFE..TRH20#,213,22# |
3 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-32002 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 90341-32002 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
3 | ||
| 90430-20004 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
3 | ||
| 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-33001 |
2TRFE..TRH203..SRF;2TRFE..TRH201,213,22# |
1 | ||
| 90430-33001 |
2TRFE..TRH203..SRF;2TRFE..TRH201,213,22# |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-75020 |
1TRFE,2TRFE..TRH20#,213,22# STD |
8 | ||
| 11122-75020 |
1TRFE,2TRFE..TRH20#,213,22# STD |
8 | ||
| 11123-75020 |
1TRFE,2TRFE..TRH20#,213,22# O/S 0.05 |
8 | ||
| 11123-75020 |
1TRFE,2TRFE..TRH20#,213,22# O/S 0.05 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-75020 |
1TRFE,2TRFE..TRH20#,213,22# STD |
8 | ||
| 11122-75020 |
1TRFE,2TRFE..TRH20#,213,22# STD |
8 | ||
| 11123-75020 |
1TRFE,2TRFE..TRH20#,213,22# O/S 0.05 |
8 | ||
| 11123-75020 |
1TRFE,2TRFE..TRH20#,213,22# O/S 0.05 |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-75080 |
2TRFE..TRH201,203,213,221;2TRFE..TRH223..12S,13S,14S,16S O/S 0.03 |
8 | ||
| 11132-75080 |
2TRFE..TRH201,203,213,221;2TRFE..TRH223..12S,13S,14S,16S O/S 0.03 |
8 | ||
| 11131-75080 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH201,22#..ARL,CIS,GCC,GEN,SA;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) STD |
8 | ||
| 11131-75080 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH201,22#..ARL,CIS,GCC,GEN,SA;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) STD |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-75100 |
2TRFE..TRH201,203,213,221;2TRFE..TRH223..12S,13S,14S,16S O/S 0.03 |
8 | ||
| 11136-75100 |
2TRFE..TRH201,203,213,221;2TRFE..TRH223..12S,13S,14S,16S O/S 0.03 |
8 | ||
| 11135-75100 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH201,22#..ARL,CIS,GCC,GEN,SA;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) STD |
8 | ||
| 11135-75100 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH201,22#..ARL,CIS,GCC,GEN,SA;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) STD |
8 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) L=7,OD=10 |
2 | ||
| 90253-10006 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) L=7,OD=10 |
2 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07013 |
1TRFE,2TRFE..TRH20#,213,22# |
20 | ||
| 90119-07013 |
1TRFE,2TRFE..TRH20#,213,22# |
20 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07013 |
1TRFE,2TRFE..TRH20#,213,22# |
20 | ||
| 90119-07013 |
1TRFE,2TRFE..TRH20#,213,22# |
20 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-75051 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 11201-75051 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 11201-75052 |
2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 11201-75052 |
2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 11201-75053 |
2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 11201-75053 |
2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 11201-75054 |
1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 11201-75054 |
1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-75040 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 11213-75040 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-75010 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 11214-75010 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 11214-75011 |
2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 11214-75011 |
2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-21010 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 12180-21010 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 12180-28010 |
2TRFE..TRH203..SRF;2TRFE..TRH201,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 12180-28010 |
2TRFE..TRH203..SRF;2TRFE..TRH201,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 90430-37140 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 90430-37004 |
2TRFE..TRH203..SRF;2TRFE..TRH201,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 90430-37004 |
2TRFE..TRH203..SRF;2TRFE..TRH201,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-75050 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 12281-75050 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12281-75050 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 12281-75050 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 90099-14137 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-21010 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 15678-21010 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 90105-06202 | ||||
| 90105-T0129 | ||||
| 90105-T0133 | ||||
| 90119-T0134 | ||||
| 90126-06026 | ||||
| 90178-T0018 | ||||
| 90339-16001 | ||||
| 90341-14013 | ||||
| 90341-T0012 | ||||
| 90430-14009 | ||||
| 90466-T0020 | ||||
| 91552-A1020 | ||||
| 91553-80628 | ||||
| 91671-A0612 | ||||
| 94151-80600 | ||||
| 96136-42501 | ||||
(1008- )2TRFE..ARL,CIS,GCC,GEN,SA,TH ; (1106-)2TRFE..TRH203,213..MA,VN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-75150 |
2TRFE..TRH203,213..LHD..(15S,16S)..GEN PERU SPEC,*271 |
1 | ||
| 11101-75170 |
2TRFE..TRH201,213..SG..GCC;2TRFE..TRH213..RHD..(10S,16S);2TRFE..TRH221..SP..(GCC,GEN,SA);2TRFE..TRH223..5F..(CIS,GCC,GEN,SA);2TRFE..TRH20#..SRF..(03S,12S,15S)..(GCC,GEN,SA) |
1 | ||
| 11101-75240 |
2TRFE..TRH203..LHD..15S..GEN PERU SPEC,*272 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02091 |
2TRFE..TRH20#,213,22# |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11034 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
10 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-75010 |
2TRFE..TRH201..5D..5F;2TRFE..TRH201..SG..4FC;2TRFE..TRH201,223..4D..SG;2TRFE..TRH203,221..03S,15S;2TRFE..TRH213..(10S,16S)..(GCC,GEN,SA);2TRFE..TRH201,213..(03S,11S)..(ARL,SA,TH) |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-75050 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-20002 |
1TRFE,2TRFE..TRH20#,213,22# |
3 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-32002 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
3 | ||
| 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-33001 |
2TRFE..TRH203..SRF;2TRFE..TRH201,213,22# |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-75020 |
1TRFE,2TRFE..TRH20#,213,22# STD |
8 | ||
| 11123-75020 |
1TRFE,2TRFE..TRH20#,213,22# O/S 0.05 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-75020 |
1TRFE,2TRFE..TRH20#,213,22# STD |
8 | ||
| 11123-75020 |
1TRFE,2TRFE..TRH20#,213,22# O/S 0.05 |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-75080 |
2TRFE..TRH201,203,213,221;2TRFE..TRH223..12S,13S,14S,16S O/S 0.03 |
8 | ||
| 11131-75080 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH201,22#..ARL,CIS,GCC,GEN,SA;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) STD |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-75100 |
2TRFE..TRH201,203,213,221;2TRFE..TRH223..12S,13S,14S,16S O/S 0.03 |
8 | ||
| 11135-75100 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH201,22#..ARL,CIS,GCC,GEN,SA;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) STD |
8 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) L=7,OD=10 |
2 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07013 |
1TRFE,2TRFE..TRH20#,213,22# |
20 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07013 |
1TRFE,2TRFE..TRH20#,213,22# |
20 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-75051 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 11201-75052 |
2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 11201-75053 |
2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 11201-75054 |
1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-75040 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-75010 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 11214-75011 |
2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-21010 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 12180-28010 |
2TRFE..TRH203..SRF;2TRFE..TRH201,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 90430-37004 |
2TRFE..TRH203..SRF;2TRFE..TRH201,213,22#..ARL,CIS,GCC,GEN,SA,TH |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-75050 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12281-75050 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-21010 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 90105-06202 | ||||
| 90105-T0129 | ||||
| 90105-T0133 | ||||
| 90119-T0134 | ||||
| 90126-06026 | ||||
| 90178-T0018 | ||||
| 90339-16001 | ||||
| 90341-14013 | ||||
| 90341-T0012 | ||||
| 90430-14009 | ||||
| 90466-T0020 | ||||
| 91552-A1020 | ||||
| 91553-80628 | ||||
| 91671-A0612 | ||||
| 94151-80600 | ||||
| 96136-42501 | ||||
(1312-1501)2TRFE..ARL,GCC,GEN,RUS,SA,TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-06202 | ||||
| 90126-06026 | ||||
| 90339-16001 | ||||
| 90341-14013 | ||||
| 90430-14009 | ||||
| 90466-T0020 | ||||
| 91552-A1020 | ||||
| 91553-80628 | ||||
| 91671-80614 | ||||
| 91672-81025 | ||||
| 94151-80600 | ||||
| 96136-42501 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
