TRH201R-SRPDK (2013)
Toyota Hiace
(1312- )KDH221..GEN ; (1312- )05S,06S..GEN
WITH(STEP)

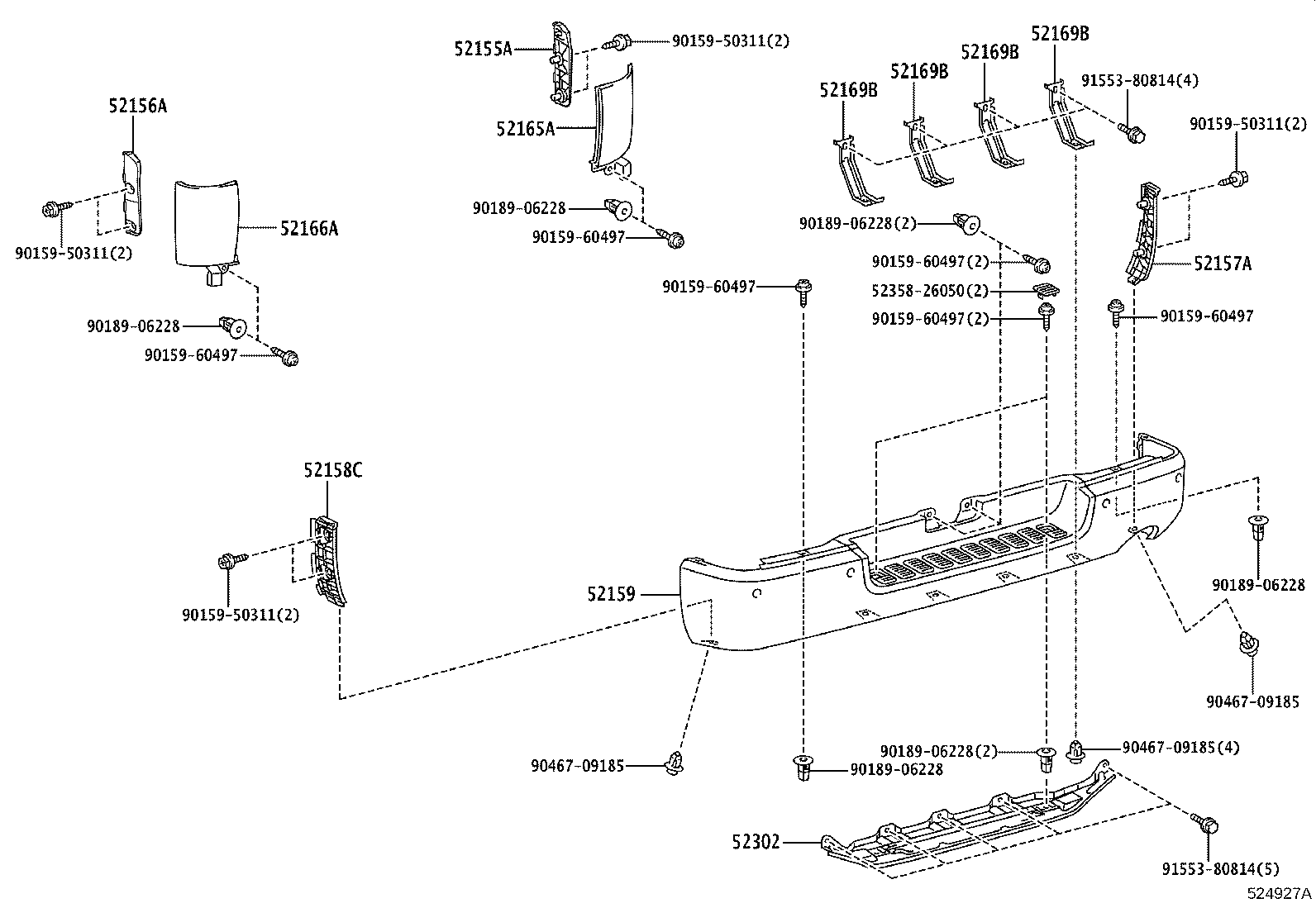

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-26150 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-26010 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-26010 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-26010 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-26490 |
GDH201,KDH201,TRH200,201..(05S,06S)..STD..GEN NO PAINT REQ. |
1 | ||
| 52165A - COVER, REAR BUMPER, UPR RH | ||||
| 52165-26030D0 |
TRH200..4FC;KDH200..GCC,MA;TRH213..LHD..STD;KDH200..LHD..5D..GEN;KDH203,212,LH200,TRH203..4D..5F..(GCC,GEN,MA);GDH201,KDH201,202,213,LH202,212,TRH201..02S,03S,05S,06S,10S,12S,15S,16S BORDEAUX M.M,3R9 |
1 | ||
| 52165-26030B0 |
TRH213..LHD;KDH223..4FC..TH;TRH223..4FC..GL;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH223,TRH201..ARL,GCC,GEN,RUS,SA,VN;TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);KDH220,222,TRH200..(06S,16S)..(4FC,5F)..(GEN,SA);GDH201,KDH201,202,203,21#,220,221,LH202,212,222..(02S,03S,05S,06S,10S,12S,13S,15S,16S)..(ARL,GCC,GEN,MA,TH) SILVER M.M.,1E7 |
1 | ||
| 52165-26030J0 |
KDH223..4FC..TH;TRH223..4FC..GL;KDH220,TRH213..LHD;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH203,212,LH200,TRH203..4D..5F..(GCC,GEN,MA);KDH220,222,TRH200..(06S,16S)..(4FC,5F)..(GEN,SA);KDH223,TRH221..(02S,06S,12S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,213,221,LH202,212,222,TRH201..02S,03S,05S,06S,10S,12S,15S,16S DK.BLUE M.M.,8P4 |
1 | ||
| 52165-26030F1 |
TRH213..LHD..STD;LH200,TRH203..4D..5F;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..STD;KDH220,222,223,TRH200..(06S,12S,14S,16S)..(4FC,5F)..STD..(ARL,GEN,SA) LT.YELLOW,599 |
1 | ||
| 52165-26040A0 |
TRH201;TRH213..LHD;KDH223..4FC..TH;TRH223..4FC..GL;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);KDH220,223,TRH200..(06S,12S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,21#,220,221,LH202,212,222..(02S,03S,05S,06S,10S,12S,13S,15S,16S)..(ARL,GCC,GEN,MA,TH) WHITE,058 |
1 | ||
| 52166A - COVER, REAR BUMPER, UPR LH | ||||
| 52166-26030B0 |
TRH213..LHD;KDH223..4FC..TH;TRH223..4FC..GL;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH223,TRH201..ARL,GCC,GEN,RUS,SA,VN;TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);KDH220,222,TRH200..(06S,16S)..(4FC,5F)..(GEN,SA);GDH201,KDH201,202,203,21#,220,221,LH202,212,222..(02S,03S,05S,06S,10S,12S,13S,15S,16S)..(ARL,GCC,GEN,MA,TH) SILVER M.M.,1E7 |
1 | ||
| 52166-26030D0 |
TRH200..4FC;KDH200..GCC,MA;TRH213..LHD..STD;KDH200..LHD..5D..GEN;KDH203,212,LH200,TRH203..4D..5F..(GCC,GEN,MA);GDH201,KDH201,202,213,LH202,212,TRH201..02S,03S,05S,06S,10S,12S,15S,16S BORDEAUX M.M,3R9 |
1 | ||
| 52166-26030J0 |
KDH223..4FC..TH;TRH223..4FC..GL;KDH220,TRH213..LHD;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH203,212,LH200,TRH203..4D..5F..(GCC,GEN,MA);KDH220,222,TRH200..(06S,16S)..(4FC,5F)..(GEN,SA);KDH223,TRH221..(02S,06S,12S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,213,221,LH202,212,222,TRH201..02S,03S,05S,06S,10S,12S,15S,16S DK.BLUE M.M.,8P4 |
1 | ||
| 52166-26040A0 |
TRH201;TRH213..LHD;KDH223..4FC..TH;TRH223..4FC..GL;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);KDH220,223,TRH200..(06S,12S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,21#,220,221,LH202,212,222..(02S,03S,05S,06S,10S,12S,13S,15S,16S)..(ARL,GCC,GEN,MA,TH) WHITE,058 |
1 | ||
| 52166-26030F1 |
TRH213..LHD..STD;LH200,TRH203..4D..5F;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..STD;KDH220,222,223,TRH200..(06S,12S,14S,16S)..(4FC,5F)..STD..(ARL,GEN,SA) LT.YELLOW,599 |
1 | ||
| 52169B - BRACKET, REAR BUMPER, CENTER | ||||
| 58385-26070 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
4 | ||
| 52169B - BRACKET, REAR BUMPER, CENTER | ||||
| 58385-26070 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
4 | ||
| 52169B - BRACKET, REAR BUMPER, CENTER | ||||
| 58385-26070 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
4 | ||
| 52169B - BRACKET, REAR BUMPER, CENTER | ||||
| 58385-26070 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
4 | ||
| 52302 - STEP SUB-ASSY, BACK | ||||
| 52302-26010 |
KDH221..GEN;GDH201,KDH201,TRH200,201..(05S,06S)..GEN |
1 | ||
| Common parts | ||||
| 52358-26050 | ||||
| 90159-50311 | ||||
| 90159-60497 | ||||
| 90189-06228 | ||||
| 90467-09185 | ||||
| 91553-80814 | ||||
