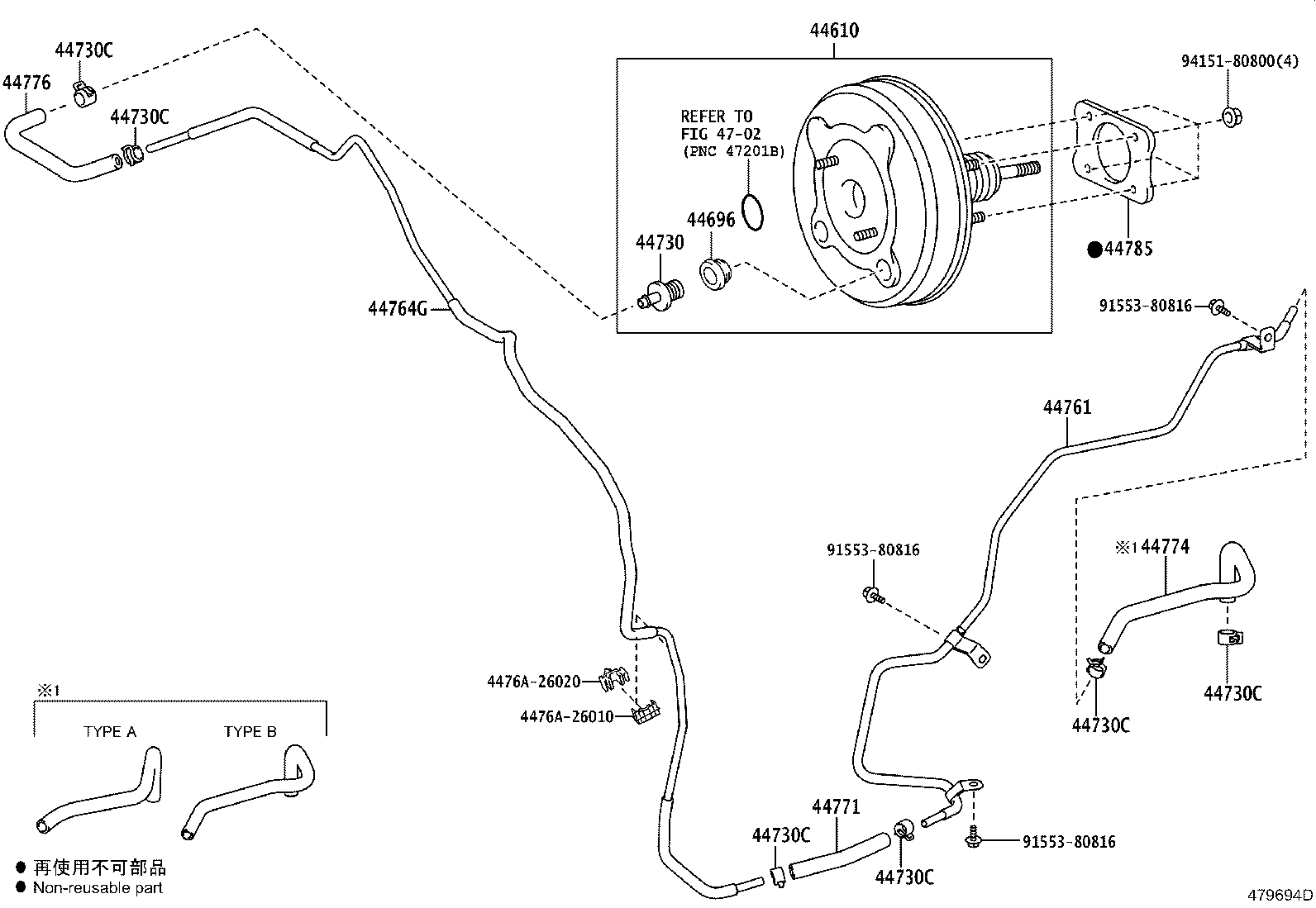

TRH201R-RBMDKQ (2013)
Toyota Hiace
(1312-1501)TRH20#,213,22#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-26661 |
TRH223..ARL,SA;TRH20#,213,221..RHD..(02S,03S,06S,10S,11S) |
1 | ||
| 44610-26790 |
TRH201,203,22#..RHD..(02S,05S,06S,10S,14S,15S)..(ARL,GEN,MA) |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24015 |
TRH201;TRH203..5F;TRH200..4FC;TRH221..GCC;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-28030 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,223,TRH221..GCC,MA,RUS;KDH222..(03S,16S)..(GEN,KEN,SA);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,SA,VN) |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
TRH201;TRH203..5F;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
TRH201;TRH203..5F;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
TRH201;TRH203..5F;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
TRH201;TRH203..5F;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
TRH201;TRH203..5F;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
TRH201;TRH203..5F;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
4 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-26410 |
TRH223..GL..SA;TRH201,221..RHD..5F;TRH203,213..RHD..(SMRF,SRF);TRH223..RHD..5F..(ARL,GEN,TH) |
1 | ||
| 44761-26411 |
TRH223..ARL,TH;TRH221..02S,06S;TRH201,203,213..RHD..(02S,03S,05S,06S,11S,15S) |
1 | ||
| 44764G - TUBE, CONNECTOR TO BRAKE BOOSTER | ||||
| 44764-26151 |
KDH20#,TRH20#..RHD |
1 | ||
| 44764-26180 |
KDH200..MA;GDH201,KDH201,202,203,TRH201,203..RHD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44770-26010 |
KDH223..4FC..TH;TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);KDH212,220,TRH200..RHD..(06S,16S)..(4FC,5F);KDH200,223,TRH213..(03S,11S,14S)..(ARL,MA,TH);GDH201,KDH201,202,203,221,222,TRH201,203..RHD..(02S,03S,05S,06S,10S,12S,15S,16S) |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-26380 |
TRH201..5F;TRH203..15S |
1 | ||
| 44774-26381 |
TRH201,203..SRF..(5F,6FC) |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-26040 |
KDH223..4FC..TH;TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);KDH212,220,TRH200..RHD..(06S,16S)..(4FC,5F);KDH200,223,TRH213..(03S,11S,14S)..(ARL,MA,TH);GDH201,KDH201,202,203,221,222,TRH201,203..RHD..(02S,03S,05S,06S,10S,12S,15S,16S) |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-12040 |
KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH |
1 | ||
| 44785-32010 |
KDH223..ARL,RUS,TH;KDH20#,21#,220,221,222,LH20#,212,222,TRH20#,213,22# |
1 | ||
| Common parts | ||||
| 4476A-26010 | ||||
| 4476A-26020 | ||||
| 91553-80816 | ||||
| 94151-80800 | ||||
(1501- )TRH20#,213,22#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-26661 |
TRH223..ARL,SA;TRH20#,213,221..RHD..(02S,03S,06S,10S,11S) |
1 | ||
| 44610-26790 |
TRH201,203,22#..RHD..(02S,05S,06S,10S,14S,15S)..(ARL,GEN,MA) |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24015 |
TRH201;TRH203..5F;TRH200..4FC;TRH221..GCC;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-28030 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,223,TRH221..GCC,MA,RUS;KDH222..(03S,16S)..(GEN,KEN,SA);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,SA,VN) |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
TRH201;TRH203..5F;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
TRH201;TRH203..5F;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
TRH201;TRH203..5F;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
TRH201;TRH203..5F;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
TRH201;TRH203..5F;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
TRH201;TRH203..5F;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
4 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-26410 |
TRH223..GL..SA;TRH201,221..RHD..5F;TRH203,213..RHD..(SMRF,SRF);TRH223..RHD..5F..(ARL,GEN,TH) |
1 | ||
| 44761-26411 |
TRH223..ARL,TH;TRH221..02S,06S;TRH201,203,213..RHD..(02S,03S,05S,06S,11S,15S) |
1 | ||
| 44764G - TUBE, CONNECTOR TO BRAKE BOOSTER | ||||
| 44764-26151 |
KDH20#,TRH20#..RHD |
1 | ||
| 44764-26180 |
KDH200..MA;GDH201,KDH201,202,203,TRH201,203..RHD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44770-26010 |
KDH223..4FC..TH;TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);KDH212,220,TRH200..RHD..(06S,16S)..(4FC,5F);KDH200,223,TRH213..(03S,11S,14S)..(ARL,MA,TH);GDH201,KDH201,202,203,221,222,TRH201,203..RHD..(02S,03S,05S,06S,10S,12S,15S,16S) |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-26380 |
TRH201..5F;TRH203..15S |
1 | ||
| 44774-26381 |
TRH201,203..SRF..(5F,6FC) |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-26040 |
KDH223..4FC..TH;TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);KDH212,220,TRH200..RHD..(06S,16S)..(4FC,5F);KDH200,223,TRH213..(03S,11S,14S)..(ARL,MA,TH);GDH201,KDH201,202,203,221,222,TRH201,203..RHD..(02S,03S,05S,06S,10S,12S,15S,16S) |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-12040 |
KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH |
1 | ||
| 44785-32010 |
KDH223..ARL,RUS,TH;KDH20#,21#,220,221,222,LH20#,212,222,TRH20#,213,22# |
1 | ||
| Common parts | ||||
| 4476A-26010 | ||||
| 4476A-26020 | ||||
| 91553-80816 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
