TRH201R-RBMDKQ (2013)
Toyota Hiace
(1312- )TRH201,22#..4FC,5F ; (1312- )GDH201,KDH20#,21#,22#,LH20#,212,222,TRH2
4-SPOKE,W(AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

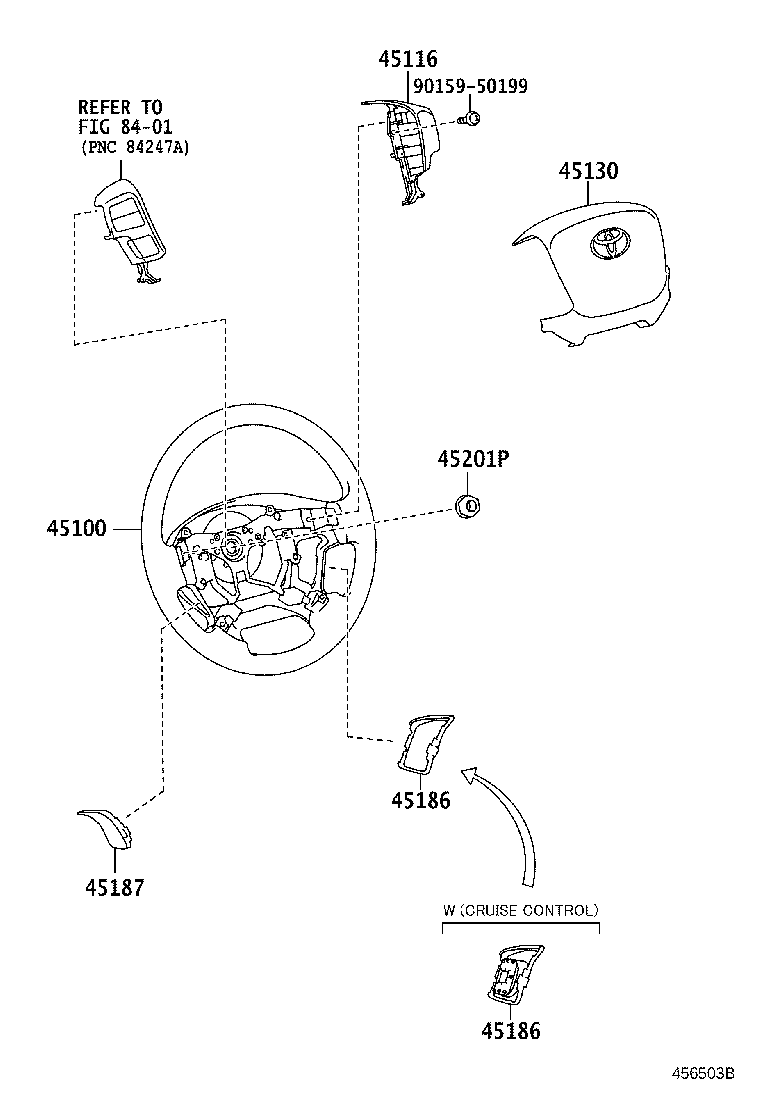

| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-26350B0 |
KDH200..MA;KDH203..15S;KDH201..RHD..03S;KDH203,TRH201..RHD;TRH223..10S,12S,13S;KDH222..STD..(KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA);GDH201,KDH202,212,221,TRH203,213..(02S,03S,06S,10S,11S)..(ARL,GEN,MA,TH);KDH201,213,220,223,TRH200..(02S,05S,06S,10S,11S,12S,13S,14S)..(4FC,5F)..(ARL,GEN,RUS,SA) 4-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-26380B0 |
KDH201..ARL;KDH223..5F..ARL;KDH221,TRH201,221..RHD..(ARL,GEN);KDH201,TRH213,223..SG..(06S,10S,13S,14S)..(ARL,GEN) DK.GRAY,TRIM1# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-60050B0 |
KDH201..SG;KDH201..ARL;KDH223..5F..ARL;KDH221,TRH201,22#..RHD..(02S,03S,05S,06S,14S)..(ARL,GEN) DK.GRAY,TRIM1# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-60020B1 |
KDH200..MA;KDH203..15S;KDH223..4FC..TH;KDH201..RHD..03S;KDH203,TRH201..RHD;TRH223..10S,12S,13S;KDH222..STD..(KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH202,212,221,TRH203,213..(02S,03S,06S,10S,11S)..(ARL,GEN,MA,TH);KDH201,213,220,223,TRH200..(02S,05S,06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) DK.GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
(1312- )KDH213,TRH201,221..02S,05S,06S,11S..ARL,GEN,TH ; (1312- )KDH212,221,2
4-SPOKE,W(AIR BAG & CRUISE CONTROL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-26350B0 |
KDH200..MA;KDH203..15S;KDH201..RHD..03S;KDH203,TRH201..RHD;TRH223..10S,12S,13S;KDH222..STD..(KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA);GDH201,KDH202,212,221,TRH203,213..(02S,03S,06S,10S,11S)..(ARL,GEN,MA,TH);KDH201,213,220,223,TRH200..(02S,05S,06S,10S,11S,12S,13S,14S)..(4FC,5F)..(ARL,GEN,RUS,SA) 4-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-26350B0 |
KDH200..MA;KDH203..15S;KDH201..RHD..03S;KDH203,TRH201..RHD;TRH223..10S,12S,13S;KDH222..STD..(KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA);GDH201,KDH202,212,221,TRH203,213..(02S,03S,06S,10S,11S)..(ARL,GEN,MA,TH);KDH201,213,220,223,TRH200..(02S,05S,06S,10S,11S,12S,13S,14S)..(4FC,5F)..(ARL,GEN,RUS,SA) 4-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45116 - ORNAMENT, STEERING WHEEL, NO.1 | ||||
| 45116-26010 |
KDH201..ARL;KDH223..5F..ARL;KDH221,TRH201,221..RHD..(ARL,GEN);KDH201,TRH213,223..SG..(06S,10S,13S,14S)..(ARL,GEN) |
1 | ||
| 45116-26010 |
KDH201..ARL;KDH223..5F..ARL;KDH221,TRH201,221..RHD..(ARL,GEN);KDH201,TRH213,223..SG..(06S,10S,13S,14S)..(ARL,GEN) |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-26380B0 |
KDH201..ARL;KDH223..5F..ARL;KDH221,TRH201,221..RHD..(ARL,GEN);KDH201,TRH213,223..SG..(06S,10S,13S,14S)..(ARL,GEN) DK.GRAY,TRIM1# |
1 | ||
| 45130-26380B0 |
KDH201..ARL;KDH223..5F..ARL;KDH221,TRH201,221..RHD..(ARL,GEN);KDH201,TRH213,223..SG..(06S,10S,13S,14S)..(ARL,GEN) DK.GRAY,TRIM1# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-60050B0 |
KDH201..SG;KDH201..ARL;KDH223..5F..ARL;KDH221,TRH201,22#..RHD..(02S,03S,05S,06S,14S)..(ARL,GEN) DK.GRAY,TRIM1# |
1 | ||
| 45186-60050B0 |
KDH201..SG;KDH201..ARL;KDH223..5F..ARL;KDH221,TRH201,22#..RHD..(02S,03S,05S,06S,14S)..(ARL,GEN) DK.GRAY,TRIM1# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-60050B0 |
KDH201..SG;KDH201..ARL;KDH223..5F..ARL;KDH221,TRH201,22#..RHD..(02S,03S,05S,06S,14S)..(ARL,GEN) DK.GRAY,TRIM1# |
1 | ||
| 45186-60050B0 |
KDH201..SG;KDH201..ARL;KDH223..5F..ARL;KDH221,TRH201,22#..RHD..(02S,03S,05S,06S,14S)..(ARL,GEN) DK.GRAY,TRIM1# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-60020B1 |
KDH200..MA;KDH203..15S;KDH223..4FC..TH;KDH201..RHD..03S;KDH203,TRH201..RHD;TRH223..10S,12S,13S;KDH222..STD..(KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH202,212,221,TRH203,213..(02S,03S,06S,10S,11S)..(ARL,GEN,MA,TH);KDH201,213,220,223,TRH200..(02S,05S,06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) DK.GRAY,TRIM1# |
1 | ||
| 45187-60020B1 |
KDH200..MA;KDH203..15S;KDH223..4FC..TH;KDH201..RHD..03S;KDH203,TRH201..RHD;TRH223..10S,12S,13S;KDH222..STD..(KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH202,212,221,TRH203,213..(02S,03S,06S,10S,11S)..(ARL,GEN,MA,TH);KDH201,213,220,223,TRH200..(02S,05S,06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) DK.GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 90179-12071 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| Linked diagrams | ||||
| 8401 | ||||
