TRH201R-RBMDKQ (2013)
Toyota Hiace

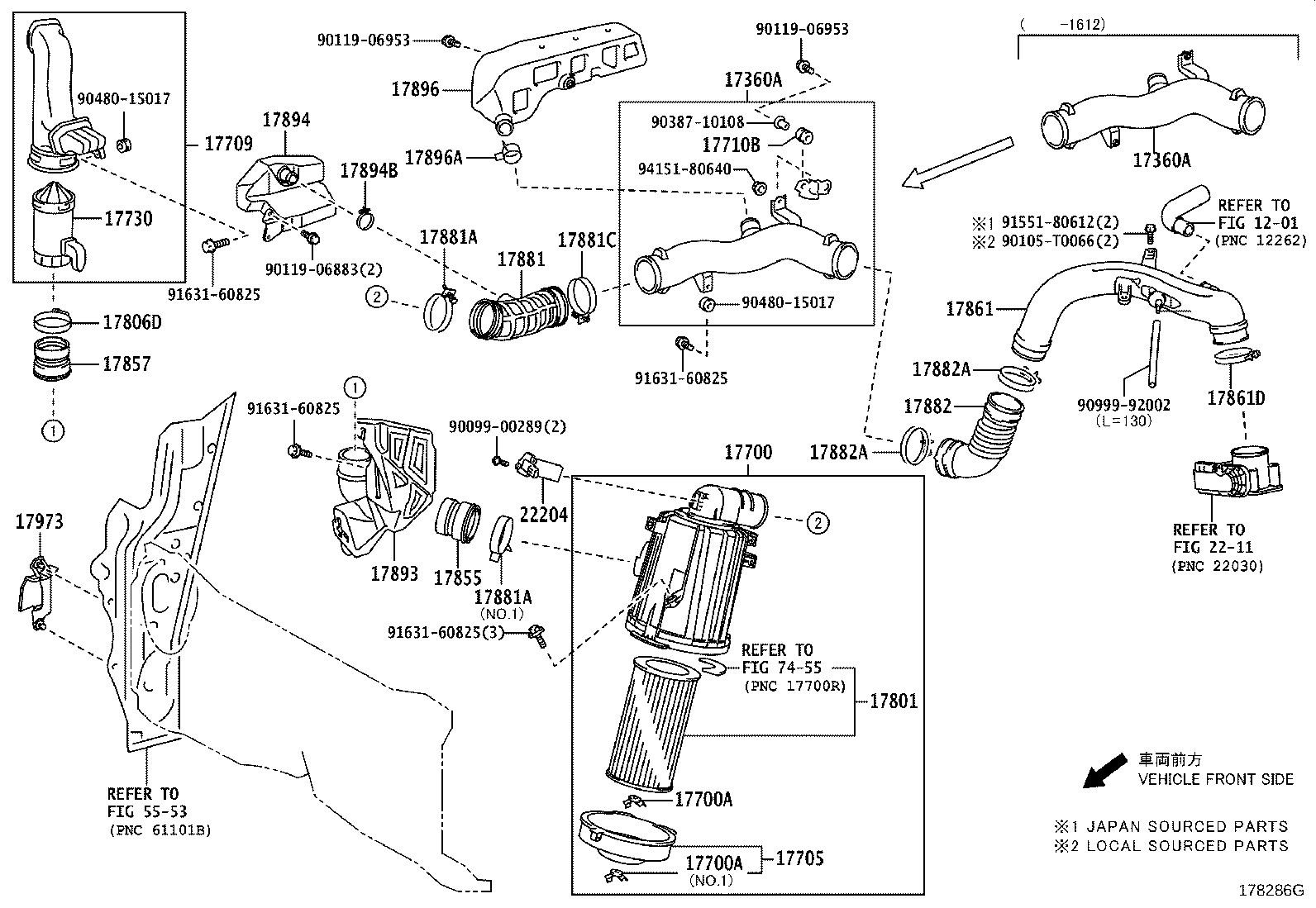

(1312- )2TRFE..TRH201,203..4FC,5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17360A - TUBE ASSY, AIR | ||||
| 17360-75050 |
1TRFE..TRH200..6FC;2TRFE..TRH213..RHD;2TRFE..TRH201,203,221;2TRFE..TRH213..LHD..STD;2TRFE..TRH223..12S,14S,16S |
1 | ||
| 17360-75051 |
2TRFE..TRH221..GCC;2TRFE..TRH223..GL..GCC;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 17360A - TUBE ASSY, AIR | ||||
| 17360-75050 |
1TRFE..TRH200..6FC;2TRFE..TRH213..RHD;2TRFE..TRH201,203,221;2TRFE..TRH213..LHD..STD;2TRFE..TRH223..12S,14S,16S |
1 | ||
| 17360-75051 |
2TRFE..TRH221..GCC;2TRFE..TRH223..GL..GCC;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-75461 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17700-75471 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 17700-75560 |
1TRFE,2TRFE..TRH200,201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS) |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE,NO.1 |
1 | ||
| 90175-08008 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE,NO.2 |
1 | ||
| 90175-08008 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-75311 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17705-75300 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 17705-30180 |
1TRFE,2TRFE..TRH200,201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS) |
1 | ||
| 17709 - INLET SUB-ASSY, AIR CLEANER | ||||
| 17709-30021 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17710B - GROMMET | ||||
| 90480-16043 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-30010 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-75010 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17806D - CLAMP(FOR AIR CLEANER PIPE) | ||||
| 90460-92002 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17855 - GASKET, AIR INLET DUCT, NO.1 | ||||
| 17855-30010 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17857 - GASKET, AIR INLET DUCT, NO.2 | ||||
| 17857-30010 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-75111 |
2TRFE..TRH201;2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 17861D - CLAMP(FOR INTAKE AIR CONNECTOR) | ||||
| 96111-10800 |
2TRFE..TRH201;2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30080 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90466-78001 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) NO.1 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90466-78001 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) NO.1 |
1 | ||
| 17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-75150 |
2TRFE..TRH201..RHD..(ARL,GEN) |
1 | ||
| 17882-75130 |
2TRFE..TRH201..RHD..5F..(ARL,GEN) |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-30070 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17894 - BRACKET, RESONATOR | ||||
| 17894-30010 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) | ||||
| 96111-10380 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17896 - RESONATOR, INTAKE AIR, NO.3 | ||||
| 17896-75011 |
2TRFE..TRH223..6FC;2TRFE..TRH221..(5F,6FC)..ARL;1TRFE,2TRFE..TRH200,201..5F,6FC;2TRFE..TRH203,223..10S,12S,13S,15S |
1 | ||
| 17896-75012 |
2TRFE..TRH201,203..5F,6FC;2TRFE..TRH22#..(02S,10S,12S,13S,14S)..(ARL,GEN,RUS) |
1 | ||
| 17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3) | ||||
| 90467-37005 |
1TRFE..TRH200..6FC;2TRFE..TRH201,203,213,22# |
1 | ||
| 96136-44301 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN;2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 17972 - INLET, COOL AIR, NO.2 | ||||
| 17972-30010 |
2TRFE..TRH201..RHD..(ARL,GEN) |
1 | ||
| 17973 - INLET, COOL AIR, NO.3 | ||||
| 17973-30010 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-75030 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90105-T0066 | ||||
| 90119-06883 | ||||
| 90119-06953 | ||||
| 90387-10108 | ||||
| 90480-15017 | ||||
| 90999-92002 | ||||
| 91551-80612 | ||||
| 91631-60825 | ||||
| 91673-80816 | ||||
| 94151-80640 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 2211 | ||||
| 5252 | ||||
| 5355 | ||||
| 5553 | ||||
| 7455 | ||||
(1312- )2TRFE..TRH201,22#..4FC,5F..ARL
LPG CONVERSION PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17360A - TUBE ASSY, AIR | ||||
| 17360-75050 |
1TRFE..TRH200..6FC;2TRFE..TRH213..RHD;2TRFE..TRH201,203,221;2TRFE..TRH213..LHD..STD;2TRFE..TRH223..12S,14S,16S |
1 | ||
| 17360-75051 |
2TRFE..TRH221..GCC;2TRFE..TRH223..GL..GCC;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 17360A - TUBE ASSY, AIR | ||||
| 17360-75050 |
1TRFE..TRH200..6FC;2TRFE..TRH213..RHD;2TRFE..TRH201,203,221;2TRFE..TRH213..LHD..STD;2TRFE..TRH223..12S,14S,16S |
1 | ||
| 17360-75051 |
2TRFE..TRH221..GCC;2TRFE..TRH223..GL..GCC;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-75461 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17700-75471 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 17700-75560 |
1TRFE,2TRFE..TRH200,201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS) |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE,NO.1 |
1 | ||
| 90175-08008 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE,NO.2 |
1 | ||
| 90175-08008 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE,NO.1 |
1 | ||
| 90175-08008 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE,NO.2 |
1 | ||
| 90175-08008 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-75311 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17705-75300 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 17705-30180 |
1TRFE,2TRFE..TRH200,201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS) |
1 | ||
| 17709 - INLET SUB-ASSY, AIR CLEANER | ||||
| 17709-30021 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17710B - GROMMET | ||||
| 90480-16043 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-30010 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-75010 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17806D - CLAMP(FOR AIR CLEANER PIPE) | ||||
| 90460-92002 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17855 - GASKET, AIR INLET DUCT, NO.1 | ||||
| 17855-30010 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17857 - GASKET, AIR INLET DUCT, NO.2 | ||||
| 17857-30010 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-75111 |
2TRFE..TRH201;2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 17861D - CLAMP(FOR INTAKE AIR CONNECTOR) | ||||
| 96111-10800 |
2TRFE..TRH201;2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30080 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90466-78001 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) NO.1 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90466-78001 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) NO.1 |
1 | ||
| 17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-75150 |
2TRFE..TRH201..RHD..(ARL,GEN) |
1 | ||
| 17882-75130 |
2TRFE..TRH201..RHD..5F..(ARL,GEN) |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-30070 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17894 - BRACKET, RESONATOR | ||||
| 17894-30010 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) | ||||
| 96111-10380 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17896 - RESONATOR, INTAKE AIR, NO.3 | ||||
| 17896-75011 |
2TRFE..TRH223..6FC;2TRFE..TRH221..(5F,6FC)..ARL;1TRFE,2TRFE..TRH200,201..5F,6FC;2TRFE..TRH203,223..10S,12S,13S,15S |
1 | ||
| 17896-75012 |
2TRFE..TRH201,203..5F,6FC;2TRFE..TRH22#..(02S,10S,12S,13S,14S)..(ARL,GEN,RUS) |
1 | ||
| 17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3) | ||||
| 90467-37005 |
1TRFE..TRH200..6FC;2TRFE..TRH201,203,213,22# |
1 | ||
| 96136-44301 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN;2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 17973 - INLET, COOL AIR, NO.3 | ||||
| 17973-30010 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-75030 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90105-T0066 | ||||
| 90119-06883 | ||||
| 90119-06953 | ||||
| 90387-10108 | ||||
| 90480-15017 | ||||
| 90999-92002 | ||||
| 91551-80612 | ||||
| 91631-60825 | ||||
| 94151-80640 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 2211 | ||||
| 5553 | ||||
| 7455 | ||||

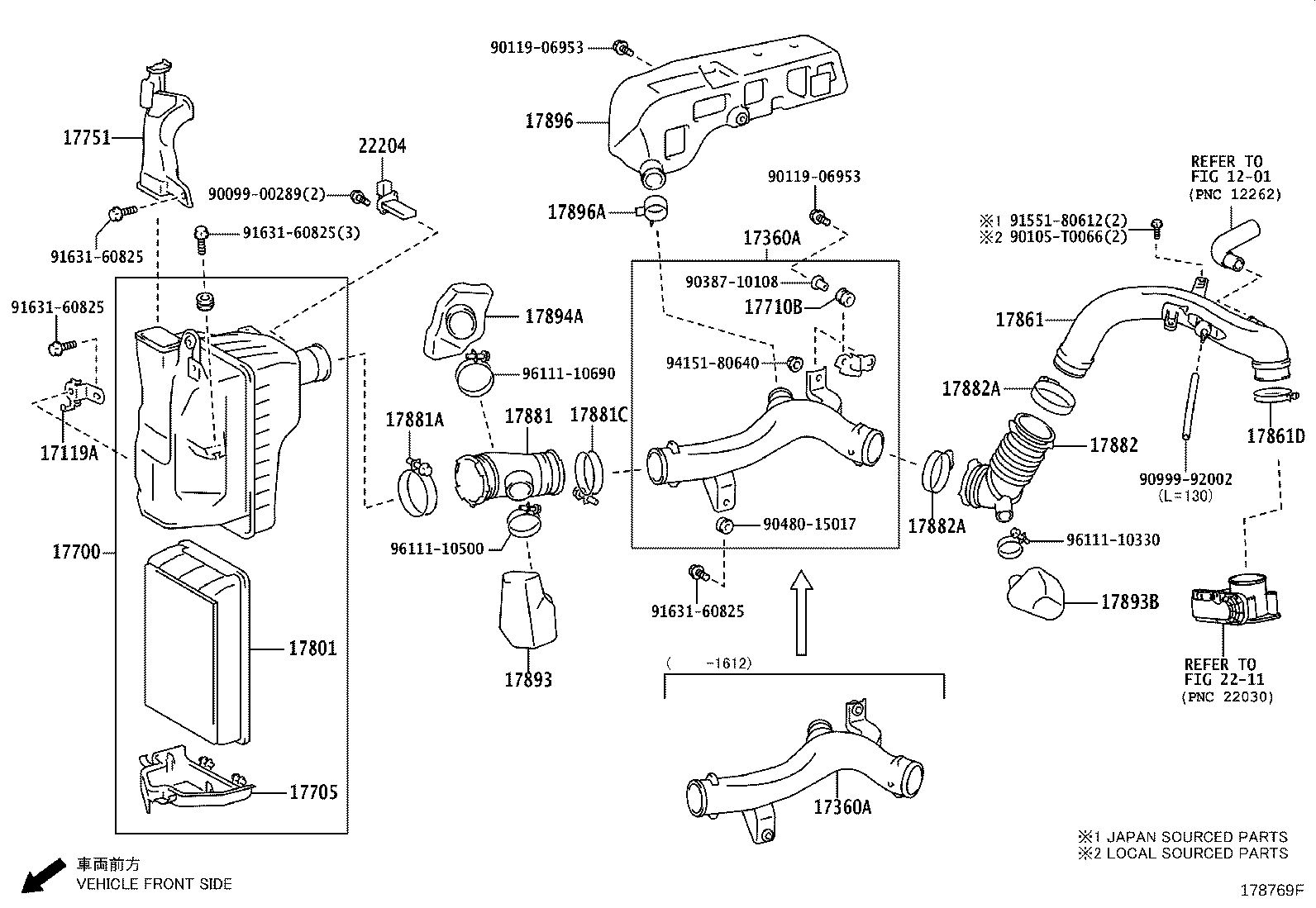

(1312- )1KDFTV..KDH203..15S ; (1312- )1KDFTV..KDH201..4D..5F..GEN,TH ; (1312-
EXCEPT EURO 5 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-75461 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17700-75461 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17700-75461 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17700-75471 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 17700-75471 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 17700-75471 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 17700-75560 |
1TRFE,2TRFE..TRH200,201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS) |
1 | ||
| 17700-75560 |
1TRFE,2TRFE..TRH200,201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS) |
1 | ||
| 17700-75560 |
1TRFE,2TRFE..TRH200,201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS) |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-75311 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17705-75311 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17705-75311 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17705-75300 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 17705-75300 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 17705-75300 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 17705-30180 |
1TRFE,2TRFE..TRH200,201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS) |
1 | ||
| 17705-30180 |
1TRFE,2TRFE..TRH200,201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS) |
1 | ||
| 17705-30180 |
1TRFE,2TRFE..TRH200,201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS) |
1 | ||
| 17710B - GROMMET | ||||
| 90480-16043 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 90480-16043 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 90480-16043 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 17710B - GROMMET | ||||
| 90480-16043 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 90480-16043 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 90480-16043 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-75010 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17801-75010 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17801-75010 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30080 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17881-30080 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17881-30080 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90466-78001 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) NO.1 |
1 | ||
| 90466-78001 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) NO.1 |
1 | ||
| 90466-78001 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) NO.1 |
1 | ||
| 17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
2 | ||
| 96111-10800 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
2 | ||
| 96111-10800 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
2 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-30070 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17893-30070 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17893-30070 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) | ||||
| 96111-10380 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 96111-10380 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 96111-10380 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17896 - RESONATOR, INTAKE AIR, NO.3 | ||||
| 17896-75011 |
2TRFE..TRH223..6FC;2TRFE..TRH221..(5F,6FC)..ARL;1TRFE,2TRFE..TRH200,201..5F,6FC;2TRFE..TRH203,223..10S,12S,13S,15S |
1 | ||
| 17896-75011 |
2TRFE..TRH223..6FC;2TRFE..TRH221..(5F,6FC)..ARL;1TRFE,2TRFE..TRH200,201..5F,6FC;2TRFE..TRH203,223..10S,12S,13S,15S |
1 | ||
| 17896-75011 |
2TRFE..TRH223..6FC;2TRFE..TRH221..(5F,6FC)..ARL;1TRFE,2TRFE..TRH200,201..5F,6FC;2TRFE..TRH203,223..10S,12S,13S,15S |
1 | ||
| 17896-75012 |
2TRFE..TRH201,203..5F,6FC;2TRFE..TRH22#..(02S,10S,12S,13S,14S)..(ARL,GEN,RUS) |
1 | ||
| 17896-75012 |
2TRFE..TRH201,203..5F,6FC;2TRFE..TRH22#..(02S,10S,12S,13S,14S)..(ARL,GEN,RUS) |
1 | ||
| 17896-75012 |
2TRFE..TRH201,203..5F,6FC;2TRFE..TRH22#..(02S,10S,12S,13S,14S)..(ARL,GEN,RUS) |
1 | ||
| 17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3) | ||||
| 90467-37005 |
1TRFE..TRH200..6FC;2TRFE..TRH201,203,213,22# |
1 | ||
| 90467-37005 |
1TRFE..TRH200..6FC;2TRFE..TRH201,203,213,22# |
1 | ||
| 90467-37005 |
1TRFE..TRH200..6FC;2TRFE..TRH201,203,213,22# |
1 | ||
| 96136-44301 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN;2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 96136-44301 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN;2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 96136-44301 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN;2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-75030 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 22204-75030 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 22204-75030 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| Common parts | ||||
| 12251-30010 | ||||
| 88718-2F110 | ||||
| 90099-00289 | ||||
| 90105-T0117 | ||||
| 90119-06953 | ||||
| 90179-08017 | ||||
| 90179-08057 | ||||
| 90460-67008 | ||||
| 90464-00795 | ||||
| 90466-07002 | ||||
| 90467-09185 | ||||
| 90469-07015 | ||||
| 90949-01B66 | ||||
| 91551-80620 | ||||
| 91553-80810 | ||||
| 91553-80812 | ||||
| 91631-40835 | ||||
| 91631-60622 | ||||
| 91631-60825 | ||||
| 91635-B0835 | ||||
| 94151-80800 | ||||
| 96132-40700 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2606 | ||||
| 5351 | ||||
(1312-1606)1KDFTV..KDH221..ARL ; (1312-1606)1KDFTV..KDH223..4FC..ARL ; (1512- )1
SINGAPOLE SPEC OR PERU SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-75461 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17700-75471 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 17700-75560 |
1TRFE,2TRFE..TRH200,201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS) |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-75311 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17705-75300 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 17705-30180 |
1TRFE,2TRFE..TRH200,201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS) |
1 | ||
| 17710B - GROMMET | ||||
| 90480-16043 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 17710B - GROMMET | ||||
| 90480-16043 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-75010 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30080 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90466-78001 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) NO.1 |
1 | ||
| 17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
2 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-30070 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) | ||||
| 96111-10380 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17896 - RESONATOR, INTAKE AIR, NO.3 | ||||
| 17896-75011 |
2TRFE..TRH223..6FC;2TRFE..TRH221..(5F,6FC)..ARL;1TRFE,2TRFE..TRH200,201..5F,6FC;2TRFE..TRH203,223..10S,12S,13S,15S |
1 | ||
| 17896-75012 |
2TRFE..TRH201,203..5F,6FC;2TRFE..TRH22#..(02S,10S,12S,13S,14S)..(ARL,GEN,RUS) |
1 | ||
| 17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3) | ||||
| 90467-37005 |
1TRFE..TRH200..6FC;2TRFE..TRH201,203,213,22# |
1 | ||
| 96136-44301 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN;2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-75030 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| Common parts | ||||
| 12251-30010 | ||||
| 12251-30050 | ||||
| 88718-2F110 | ||||
| 90099-00289 | ||||
| 90105-T0117 | ||||
| 90119-06953 | ||||
| 90179-08017 | ||||
| 90179-08057 | ||||
| 90460-67008 | ||||
| 90464-00795 | ||||
| 90466-07002 | ||||
| 90467-09185 | ||||
| 90469-07015 | ||||
| 90949-01B66 | ||||
| 91551-80620 | ||||
| 91553-80810 | ||||
| 91553-80812 | ||||
| 91631-40835 | ||||
| 91631-60622 | ||||
| 91631-60825 | ||||
| 91635-B0835 | ||||
| 94151-80800 | ||||
| 96132-40700 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2606 | ||||
| 5351 | ||||
(1501- )2TRFE..TRH201..RHD..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17360A - TUBE ASSY, AIR | ||||
| 17360-75050 |
1TRFE..TRH200..6FC;2TRFE..TRH213..RHD;2TRFE..TRH201,203,221;2TRFE..TRH213..LHD..STD;2TRFE..TRH223..12S,14S,16S |
1 | ||
| 17360-75051 |
2TRFE..TRH221..GCC;2TRFE..TRH223..GL..GCC;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 17360A - TUBE ASSY, AIR | ||||
| 17360-75050 |
1TRFE..TRH200..6FC;2TRFE..TRH213..RHD;2TRFE..TRH201,203,221;2TRFE..TRH213..LHD..STD;2TRFE..TRH223..12S,14S,16S |
1 | ||
| 17360-75051 |
2TRFE..TRH221..GCC;2TRFE..TRH223..GL..GCC;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-75461 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17700-75471 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 17700-75560 |
1TRFE,2TRFE..TRH200,201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS) |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-75311 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17705-75300 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 17705-30180 |
1TRFE,2TRFE..TRH200,201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS) |
1 | ||
| 17710B - GROMMET | ||||
| 90480-16043 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-75010 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-75111 |
2TRFE..TRH201;2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 17861D - CLAMP(FOR INTAKE AIR CONNECTOR) | ||||
| 96111-10800 |
2TRFE..TRH201;2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30080 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90466-78001 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) NO.1 |
1 | ||
| 17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-75150 |
2TRFE..TRH201..RHD..(ARL,GEN) |
1 | ||
| 17882-75130 |
2TRFE..TRH201..RHD..5F..(ARL,GEN) |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-30070 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17896 - RESONATOR, INTAKE AIR, NO.3 | ||||
| 17896-75011 |
2TRFE..TRH223..6FC;2TRFE..TRH221..(5F,6FC)..ARL;1TRFE,2TRFE..TRH200,201..5F,6FC;2TRFE..TRH203,223..10S,12S,13S,15S |
1 | ||
| 17896-75012 |
2TRFE..TRH201,203..5F,6FC;2TRFE..TRH22#..(02S,10S,12S,13S,14S)..(ARL,GEN,RUS) |
1 | ||
| 17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3) | ||||
| 90467-37005 |
1TRFE..TRH200..6FC;2TRFE..TRH201,203,213,22# |
1 | ||
| 96136-44301 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN;2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-75030 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90105-T0066 | ||||
| 90119-06953 | ||||
| 90387-10108 | ||||
| 90480-15017 | ||||
| 90999-92002 | ||||
| 91551-80612 | ||||
| 91631-60825 | ||||
| 94151-80640 | ||||
| 96111-10330 | ||||
| 96111-10500 | ||||
| 96111-10690 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 2211 | ||||
(1312-1501)2TRFE..TRH201,22#..02S,06S,12S,14S..5F..ARL,GEN,RUS ; (1312- )2TRFE..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17360A - TUBE ASSY, AIR | ||||
| 17360-75050 |
1TRFE..TRH200..6FC;2TRFE..TRH213..RHD;2TRFE..TRH201,203,221;2TRFE..TRH213..LHD..STD;2TRFE..TRH223..12S,14S,16S |
1 | ||
| 17360-75051 |
2TRFE..TRH221..GCC;2TRFE..TRH223..GL..GCC;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 17360A - TUBE ASSY, AIR | ||||
| 17360-75050 |
1TRFE..TRH200..6FC;2TRFE..TRH213..RHD;2TRFE..TRH201,203,221;2TRFE..TRH213..LHD..STD;2TRFE..TRH223..12S,14S,16S |
1 | ||
| 17360-75051 |
2TRFE..TRH221..GCC;2TRFE..TRH223..GL..GCC;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-75461 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17700-75471 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 17700-75560 |
1TRFE,2TRFE..TRH200,201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS) |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-75311 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17705-75300 |
2TRFE..TRH201,22#..ARL LPG CONVERSION PACKAGE |
1 | ||
| 17705-30180 |
1TRFE,2TRFE..TRH200,201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS) |
1 | ||
| 17710B - GROMMET | ||||
| 90480-16043 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-75010 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-75111 |
2TRFE..TRH201;2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 17861D - CLAMP(FOR INTAKE AIR CONNECTOR) | ||||
| 96111-10800 |
2TRFE..TRH201;2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30080 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90466-78001 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) NO.1 |
1 | ||
| 17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-75150 |
2TRFE..TRH201..RHD..(ARL,GEN) |
1 | ||
| 17882-75130 |
2TRFE..TRH201..RHD..5F..(ARL,GEN) |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-30070 |
2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS) |
1 | ||
| 17896 - RESONATOR, INTAKE AIR, NO.3 | ||||
| 17896-75011 |
2TRFE..TRH223..6FC;2TRFE..TRH221..(5F,6FC)..ARL;1TRFE,2TRFE..TRH200,201..5F,6FC;2TRFE..TRH203,223..10S,12S,13S,15S |
1 | ||
| 17896-75012 |
2TRFE..TRH201,203..5F,6FC;2TRFE..TRH22#..(02S,10S,12S,13S,14S)..(ARL,GEN,RUS) |
1 | ||
| 17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3) | ||||
| 90467-37005 |
1TRFE..TRH200..6FC;2TRFE..TRH201,203,213,22# |
1 | ||
| 96136-44301 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN;2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-75030 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90105-T0066 | ||||
| 90119-06953 | ||||
| 90387-10108 | ||||
| 90480-15017 | ||||
| 90999-92002 | ||||
| 91551-80612 | ||||
| 91631-60825 | ||||
| 94151-80640 | ||||
| 96111-10500 | ||||
| 96111-10690 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 2211 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
