Toyota Hiace TRH201 INSIDE TRIM BOARD

TRH201L-SRMDKV (2013)

Toyota Hiace

Production Dec 2013 - Sep 9999

Engine 2TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(7702- )LH20,30,RH20,22,3#,42

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
58644-95A00
67771-20022
67772-22010
90159-60020
90189-06018
Linked diagrams
7456

(0501- )KDH200,201,LH200,TRH200,201..5D

Click highlighted areas on diagram

W(DUAL AIR CONDITIONER)

Part #	Description	Period	Qty	Price
Common parts
75867-33030
90467-09182
90467-10161
Linked diagrams
5851
6151
7452
7455

(1312- )KDH200,201,LH200,TRH200,201

Click highlighted areas on diagram

Part #	Description	Period	Qty
62211 - GARNISH, FRONT PILLAR, RH
62210-26041B0	TRH201;KDH201..SG;KDH200..GCC,MA;KDH201..02S,03S,05S;KDH200..LHD..5D..GEN;KDH202,203,LH20#,TRH203..SRF..4D..5F..STD LT.GRAY,TRIM1#	12/2013 - 12/2999	1
62210-26052B0	TRH201..GCC WITHOUT(DESTINATION PACKAGE)&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	01/2017 - 12/2999	1
62210-26052B0	TRH201;LH200..4D;KDH201..SG;KDH200..LHD..5D;KDH201..02S,03S,05S AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	12/2013 - 12/2999	1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-10161	KDH201..SG;KDH201..02S,03S;KDH200,LH200,TRH201..ARL,GCC,GEN,SA AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 01/2015	2
90467-10161	KDH201..SG;KDH201..02S,03S;KDH200,202,203,LH20#,TRH201,203	12/2013 - 01/2014	6
90467-09236	KDH201..SG;KDH201..02S,03S;KDH200,202,203,LH20#,TRH201,203..SRF..STD	01/2014 - 01/2015	6
67771-28150	TRH201;KDH201..SG;KDH200..GCC,MA;KDH201..02S,03S,05S;KDH200..LHD..5D..GEN;KDH202,203,LH20#,TRH203..SRF..4D..5F..STD	01/2015 - 12/2999	6
67771-28150	TRH201;LH200..4D;KDH201..SG;KDH200..LHD..5D;KDH201..02S,03S,05S AIR CONDITIONER-DUAL AIR CONDITIONER	01/2015 - 12/2999	2
67771-28150	TRH201..GCC WITHOUT(DESTINATION PACKAGE)&AIR CONDITIONER-DUAL AIR CONDITIONER	01/2017 - 12/2999	2
62211T - CLIP(FOR FRONT PILLAR GARNISH)
90467-06177B5	TRH201;KDH201..SG;KDH200..GCC,MA;KDH201..02S,03S,05S;KDH200..LHD..5D..GEN;KDH202,203,LH20#,TRH203..SRF..4D..5F..STD LT.GRAY,TRIM1#	12/2013 - 12/2999	2
62212 - GARNISH, FRONT PILLAR, LH
62220-26021B0	TRH201..GCC WITHOUT(DESTINATION PACKAGE),LT.GRAY,TRIM1#	01/2017 - 12/2999	1
62220-26050B0	KDH200..GCC;TRH201..GCC,SA AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	12/2013 - 12/2999	1
62220-26041B0	KDH200..GCC;TRH201..GCC,SA LT.GRAY,TRIM1#	12/2013 - 12/2999	1
62220-26032B0	TRH201..GCC WITHOUT(DESTINATION PACKAGE)&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	01/2017 - 12/2999	1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-26010C0	TRH201;TRH203..5F;TRH213..LHD;KDH223..4FC..TH;TRH223..4FC..GL;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);KDH213,222,LH200..4D..(03S,13S,16S)..(GEN,KEN,SA);KDH220,223,TRH200..(06S,12S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..(02S,03S,05S,06S,10S,12S,13S,15S,16S)..(ARL,GCC,GEN,MA,TH) BLACK,TRIM1#	12/2013 - 12/2999	1
62314D - TRIM, FRONT DOOR OPENING, LH
62314-26010C0	TRH201;TRH203..5F;TRH213..LHD;KDH223..4FC..TH;TRH223..4FC..GL;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);KDH213,222,LH200..4D..(03S,13S,16S)..(GEN,KEN,SA);KDH220,223,TRH200..(06S,12S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..(02S,03S,05S,06S,10S,12S,13S,15S,16S)..(ARL,GCC,GEN,MA,TH) BLACK,TRIM1#	12/2013 - 12/2999	1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-26200B0	KDH200,TRH201,221..GCC DK.GRAY,TRIM1#	12/2013 - 12/2999	1
62413-26220B0	KDH200,TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#	12/2013 - 12/2999	1
62413C - CLIP (FOR CENTER LOWER GARNISH)
75867-33030	KDH213..11S;KDH223..STD;KDH212..13S..STD;KDH222,TRH213,223..RHD;KDH222,TRH213,223..LHD..STD;KDH20#,212,220,221,LH20#,212,222,TRH20#,221..02S,03S,05S,06S,10S,11S,12S,15S,16S	12/2013 - 10/2016	1
67771-28150	KDH223..4FC..TH;LH200,TRH203..4D..5F;KDH222..RHD..(03S,16S);TRH223..STD..(ARL,SA,TH);KDH200,213,220..LHD..5D..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222,TRH213,223..LHD..STD..GEN;KDH220,223,TRH221..(02S,06S,12S,14S,16S)..STD..(ARL,GEN,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S	11/2016 - 12/2999	1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-26210B0	KDH200,TRH201,221..GCC DK.GRAY,TRIM1#	12/2013 - 12/2999	1
62414-26250B0	KDH200,TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#	12/2013 - 12/2999	1
62424F - COVER, CENTER PILLAR GARNISH, LOWER LH
62424-26031B0	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# DK.GRAY,TRIM1#	12/2013 - 06/2016	1
62424-26032B0	KDH223..4FC..TH;TRH223..4FC..GL;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH213,223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH DK.GRAY,TRIM1#	07/2016 - 12/2999	1
62631D - BOARD, QUARTER TRIM, REAR RH
62631-26230	LH200..4D;TRH200..4FC;KDH200..GCC,MA;GDH201,KDH201,TRH201;KDH200..LHD..5D..GEN	12/2013 - 12/2999	1
62631E - RETAINER, QUATER TRIM
67771-26230E0	TRH201..06S..GCC CREAM YELLOW,TRIM1#	12/2013 - 01/2017	13
67771-26230E0	TRH201..06S..GCC REAR SEAT BELT-OUTER:3 POINT & CENTER:2 POINT TYPE,CREAM YELLOW,TRIM1#	12/2013 - 01/2017	1
67771-26230E0	TRH201..06S..GCC CREAM YELLOW,TRIM1#	01/2017 - 03/2020	1
67771-26250E1	KDH201,TRH201..06S OCHER,TRIM1#	03/2020 - 12/2999	1
62632A - RETAINER(FOR QUARTER INSIDE TRIM BOARD)
67771-26230E0	TRH201..06S..GCC REAR SEAT BELT-OUTER:3 POINT & CENTER:2 POINT TYPE,CREAM YELLOW,TRIM1#	12/2013 - 01/2017	1
67771-26230E0	TRH201..06S..GCC CREAM YELLOW,TRIM1#	12/2013 - 01/2017	13
67771-26230E0	TRH201..06S..GCC CREAM YELLOW,TRIM1#	01/2017 - 03/2020	1
67771-26250E1	KDH201,TRH201..06S OCHER,TRIM1#	03/2020 - 12/2999	1
62632D - BOARD, QUARTER TRIM, REAR LH
62632-26300	LH200..4D;TRH200..4FC;KDH200..GCC,MA;GDH201,KDH201,TRH201;KDH200..LHD..5D..GEN	12/2013 - 12/2999	1
Common parts
90467-09182
90467-10161
Linked diagrams
7455

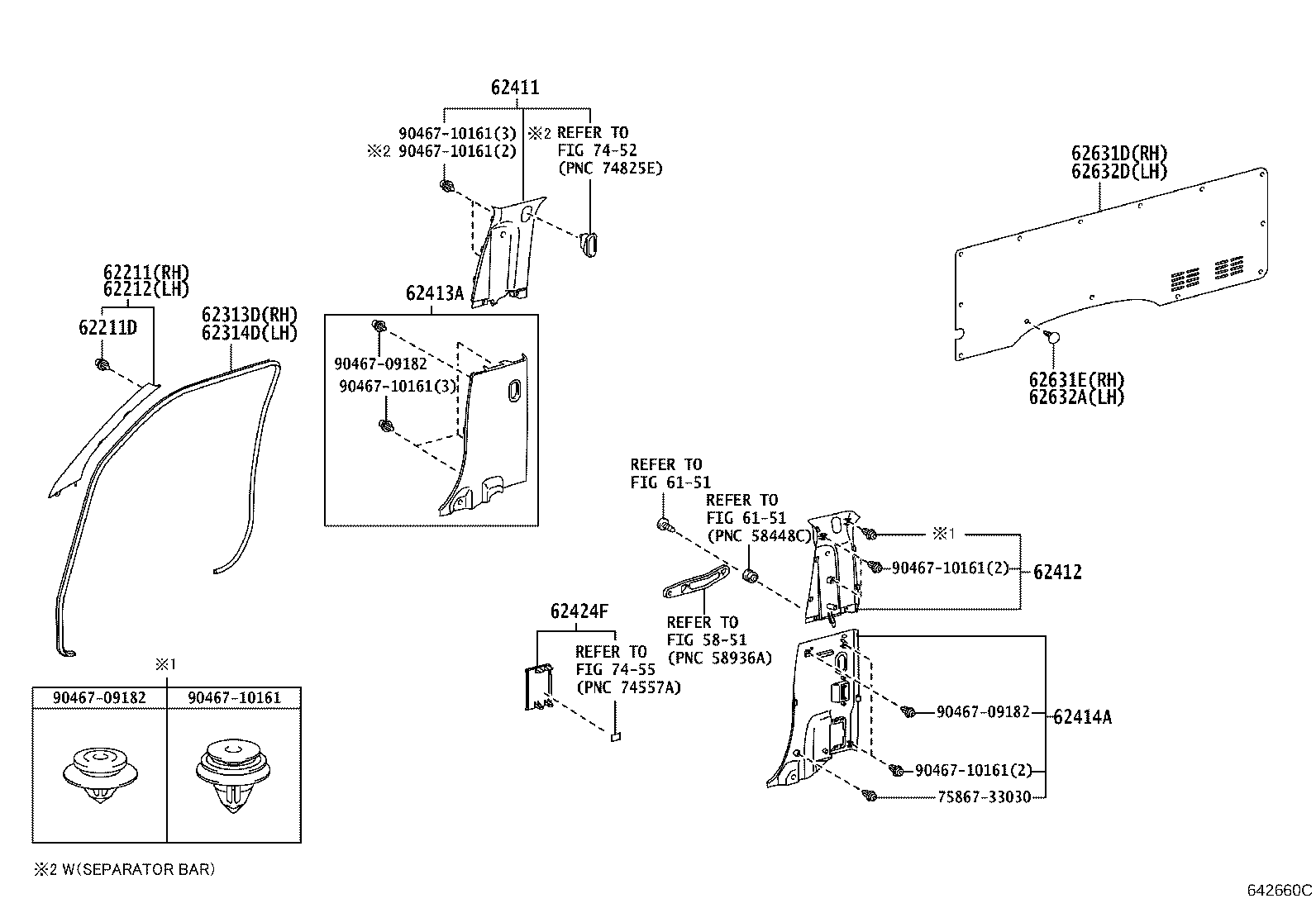

(1312- )GDH201,KDH200,201,LH200,TRH200,201

Click highlighted areas on diagram

W(DUAL AIR CONDITIONER)

Part #	Description	Period	Qty
62211 - GARNISH, FRONT PILLAR, RH
62210-26041B0	TRH201;KDH201..SG;KDH200..GCC,MA;KDH201..02S,03S,05S;KDH200..LHD..5D..GEN;KDH202,203,LH20#,TRH203..SRF..4D..5F..STD LT.GRAY,TRIM1#	12/2013 - 12/2999	1
62210-26052B0	TRH201..GCC WITHOUT(DESTINATION PACKAGE)&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	01/2017 - 12/2999	1
62210-26052B0	TRH201;LH200..4D;KDH201..SG;KDH200..LHD..5D;KDH201..02S,03S,05S AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	12/2013 - 12/2999	1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-10161	KDH201..SG;KDH201..02S,03S;KDH200,LH200,TRH201..ARL,GCC,GEN,SA AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 01/2015	2
90467-10161	KDH201..SG;KDH201..02S,03S;KDH200,202,203,LH20#,TRH201,203	12/2013 - 01/2014	6
90467-09236	KDH201..SG;KDH201..02S,03S;KDH200,202,203,LH20#,TRH201,203..SRF..STD	01/2014 - 01/2015	6
67771-28150	TRH201;KDH201..SG;KDH200..GCC,MA;KDH201..02S,03S,05S;KDH200..LHD..5D..GEN;KDH202,203,LH20#,TRH203..SRF..4D..5F..STD	01/2015 - 12/2999	6
67771-28150	TRH201;LH200..4D;KDH201..SG;KDH200..LHD..5D;KDH201..02S,03S,05S AIR CONDITIONER-DUAL AIR CONDITIONER	01/2015 - 12/2999	2
67771-28150	TRH201..GCC WITHOUT(DESTINATION PACKAGE)&AIR CONDITIONER-DUAL AIR CONDITIONER	01/2017 - 12/2999	2
62212 - GARNISH, FRONT PILLAR, LH
62220-26021B0	TRH201..GCC WITHOUT(DESTINATION PACKAGE),LT.GRAY,TRIM1#	01/2017 - 12/2999	1
62220-26050B0	KDH200..GCC;TRH201..GCC,SA AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	12/2013 - 12/2999	1
62220-26041B0	KDH200..GCC;TRH201..GCC,SA LT.GRAY,TRIM1#	12/2013 - 12/2999	1
62220-26032B0	TRH201..GCC WITHOUT(DESTINATION PACKAGE)&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	01/2017 - 12/2999	1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-26010C0	TRH201;TRH203..5F;TRH213..LHD;KDH223..4FC..TH;TRH223..4FC..GL;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);KDH213,222,LH200..4D..(03S,13S,16S)..(GEN,KEN,SA);KDH220,223,TRH200..(06S,12S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..(02S,03S,05S,06S,10S,12S,13S,15S,16S)..(ARL,GCC,GEN,MA,TH) BLACK,TRIM1#	12/2013 - 12/2999	1
62314D - TRIM, FRONT DOOR OPENING, LH
62314-26010C0	TRH201;TRH203..5F;TRH213..LHD;KDH223..4FC..TH;TRH223..4FC..GL;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);KDH213,222,LH200..4D..(03S,13S,16S)..(GEN,KEN,SA);KDH220,223,TRH200..(06S,12S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..(02S,03S,05S,06S,10S,12S,13S,15S,16S)..(ARL,GCC,GEN,MA,TH) BLACK,TRIM1#	12/2013 - 12/2999	1
62411 - GARNISH, CENTER PILLAR, RH
62410-26070B0	TRH201..5D;KDH201..SG;KDH200..LHD..5D;KDH201,LH200..LHD..4D;KDH201..5D..(03S,05S) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	12/2013 - 12/2999	1
62412 - GARNISH, CENTER PILLAR, LH
62420-26050B0	TRH201;KDH201..SG;LH200..RHD..4D;KDH200,201..LHD..5D;KDH201..RHD..(02S,03S,05S) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#	12/2013 - 12/2999	1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-26200B0	KDH200,TRH201,221..GCC DK.GRAY,TRIM1#	12/2013 - 12/2999	1
62413-26220B0	KDH200,TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#	12/2013 - 12/2999	1
62413C - CLIP (FOR CENTER LOWER GARNISH)
75867-33030	KDH213..11S;KDH223..STD;KDH212..13S..STD;KDH222,TRH213,223..RHD;KDH222,TRH213,223..LHD..STD;KDH20#,212,220,221,LH20#,212,222,TRH20#,221..02S,03S,05S,06S,10S,11S,12S,15S,16S	12/2013 - 10/2016	1
67771-28150	KDH223..4FC..TH;LH200,TRH203..4D..5F;KDH222..RHD..(03S,16S);TRH223..STD..(ARL,SA,TH);KDH200,213,220..LHD..5D..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222,TRH213,223..LHD..STD..GEN;KDH220,223,TRH221..(02S,06S,12S,14S,16S)..STD..(ARL,GEN,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S	11/2016 - 12/2999	1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-26210B0	KDH200,TRH201,221..GCC DK.GRAY,TRIM1#	12/2013 - 12/2999	1
62414-26250B0	KDH200,TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#	12/2013 - 12/2999	1
62424F - COVER, CENTER PILLAR GARNISH, LOWER LH
62424-26031B0	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# DK.GRAY,TRIM1#	12/2013 - 06/2016	1
62424-26032B0	KDH223..4FC..TH;TRH223..4FC..GL;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH213,223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH DK.GRAY,TRIM1#	07/2016 - 12/2999	1
62631D - BOARD, QUARTER TRIM, REAR RH
62631-26230	LH200..4D;TRH200..4FC;KDH200..GCC,MA;GDH201,KDH201,TRH201;KDH200..LHD..5D..GEN	12/2013 - 12/2999	1
62631E - RETAINER, QUATER TRIM
67771-26230E0	TRH201..06S..GCC CREAM YELLOW,TRIM1#	12/2013 - 01/2017	13
67771-26230E0	TRH201..06S..GCC REAR SEAT BELT-OUTER:3 POINT & CENTER:2 POINT TYPE,CREAM YELLOW,TRIM1#	12/2013 - 01/2017	1
67771-26230E0	TRH201..06S..GCC CREAM YELLOW,TRIM1#	01/2017 - 03/2020	1
67771-26250E1	KDH201,TRH201..06S OCHER,TRIM1#	03/2020 - 12/2999	1
62632A - RETAINER(FOR QUARTER INSIDE TRIM BOARD)
67771-26230E0	TRH201..06S..GCC REAR SEAT BELT-OUTER:3 POINT & CENTER:2 POINT TYPE,CREAM YELLOW,TRIM1#	12/2013 - 01/2017	1
67771-26230E0	TRH201..06S..GCC CREAM YELLOW,TRIM1#	12/2013 - 01/2017	13
67771-26230E0	TRH201..06S..GCC CREAM YELLOW,TRIM1#	01/2017 - 03/2020	1
67771-26250E1	KDH201,TRH201..06S OCHER,TRIM1#	03/2020 - 12/2999	1
62632D - BOARD, QUARTER TRIM, REAR LH
62632-26300	LH200..4D;TRH200..4FC;KDH200..GCC,MA;GDH201,KDH201,TRH201;KDH200..LHD..5D..GEN	12/2013 - 12/2999	1
Common parts
90467-09182
90467-10161
Linked diagrams
5851
6151
7455
