TRH201L-SRMDKV (2013)

Toyota Hiace

Production Dec 2013 - Sep 9999
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

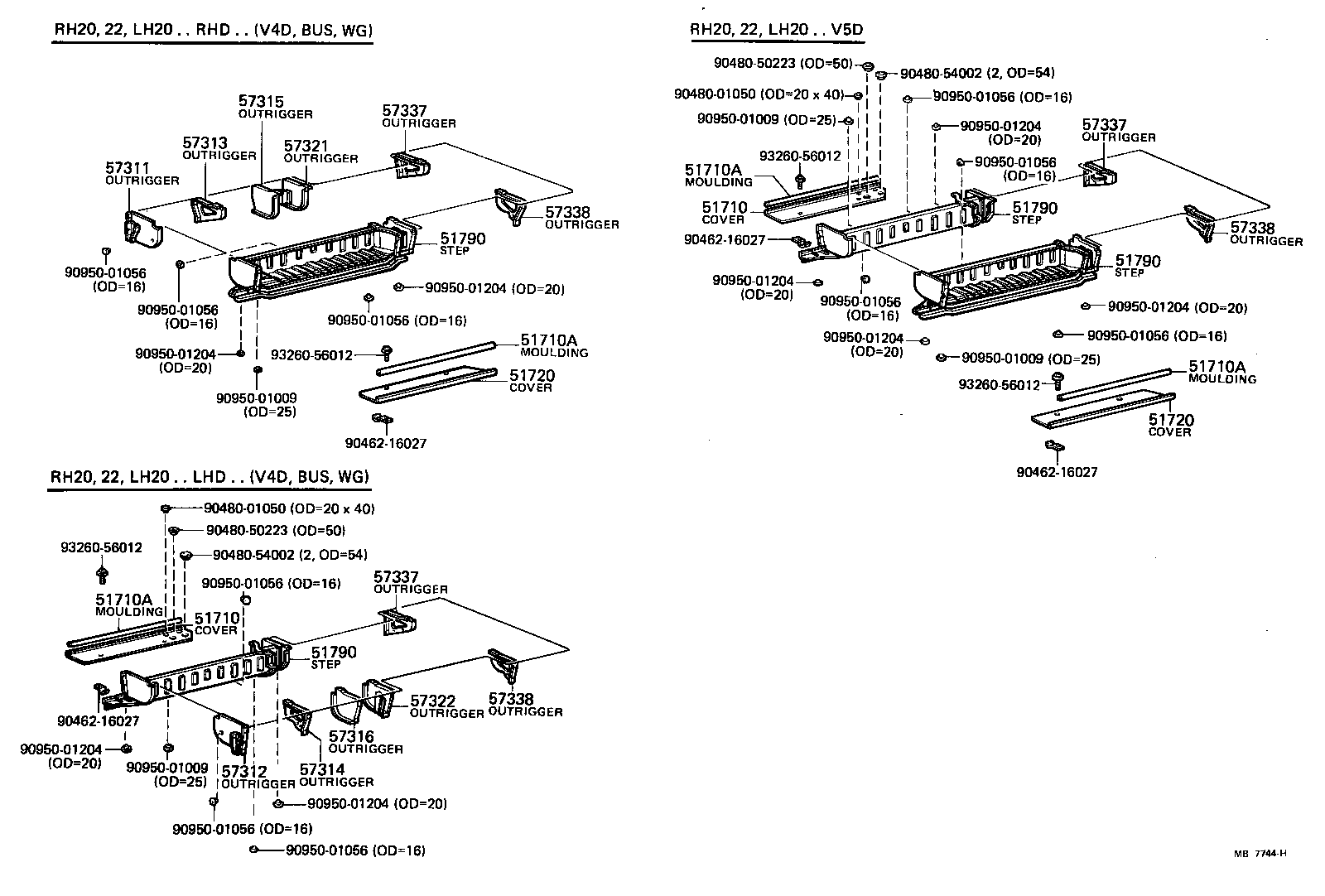

(7702- )LH20,RH20,22

Click highlighted areas on diagram

diagram 51710 51710 51710A 51710A 51710A 51710A 51720 51720 51790 51790 51790 51790 57311 57312 57313 57314 57315 57316 57321 57322 57337 57337 57337 57338 57338 57338 9046216027 9046216027 9046216027 9046216027 9048001050 9048001050 9048050223 9048050223 9048054002 9048054002 9095001009 9095001009 9095001009 9095001009 9095001056 9095001056 9095001056 9095001056 9095001056 9095001056 9095001056 9095001056 9095001056 9095001056 9095001204 9095001204 9095001204 9095001204 9095001204 9095001204 9095001204 9095001204 9326056012 9326056012 9326056012 9326056012
Part # Description Qty Price
Common parts
90462-16027
90480-01050
90480-50223
90480-54002
90950-01009
90950-01056
90950-01204
93260-56012

(0501- )KDH200,201,212,LH200,TRH200,201..5D

Click highlighted areas on diagram

diagram 51403D 57023 57024 57066B 57068 57069 57254A 57413 57414 57415 57416 5752 57608B 57609C 57652C 57653F 57654A 57658 57685B 57685B 58218 58223H 58224J 58266B 58266B 58297J 58303B 58304B 58309F 58311 58335A 58367A 58367A 58460C 58460C 58460C 58474 5851 5851 5854 58587B 58587C 58587D 58587D 58588A 58588A 58597C 58597C 58656C 58666E 58759A 9015950322 9018905055 9155380612 9155380612 9155380612 9155380612 9155380818 9155380818 9155380818 9155380818 9155380818 9155381230 9155381230 9155381230 9155381230
Part # Description Qty Price
Common parts
90159-50322
90189-05055
91553-80612
91553-80818
91553-81230
Linked diagrams
5752
5851
5854

(1312- )GDH201,KDH200,201,LH200,TRH200,201..5D

Click highlighted areas on diagram

diagram 51403D 51568F 51569A 51998A 57023 57024 57066B 57068 57069 57254A 57413 57414 57415 57416 5752 57608B 57609C 57652C 57653F 57654A 57658 57685B 58218 58223H 58224J 58266B 58266F 58297J 58303B 58304B 58309F 58311 58335A 58367A 58367A 58460C 58460C 58460C 58474 5851 5851 5854 58587B 58587C 58587D 58587D 58588A 58588A 58597C 58597C 58656C 58666E 58759A 9015950322 9018905055 9155380612 9155380612 9155380612 9155380612 9155380818 9155380818 9155380818 9155380818 9155380818 9155380818 9155381230 9155381230 9155381230 9155381230
Part # Description Qty Price
51403D - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51403-26232

TRH203,213;TRH223..LHD..4FC;TRH201,22#..5F..(ARL,GCC,GEN,RUS,SA)

 1
51403-26320

TRH221..GCC;TRH201,203..5F;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..5F..STD..(ARL,SA);TRH223..5F..GL..(GCC,RUS);TRH213,221..(02S,06S,11S,16S)..(4FC,5F)..(ARL,GCC,SA,TH)

 1
51568F - BRACKET, PROPELLER SHAFT GUARD
51568-26040

KDH20#,LH20#,TRH201,203..GCC,GEN,MA

 1
51569A - GUARD, PROPELLER SHAFT
51569-26120

KDH20#,LH20#,TRH201,203..GCC,GEN,MA

 1
51998A - HANGER, EXHAUST PIPE SUPPORT, NO.6
51998-26080

TRH223..4FC..GL;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;LH222,TRH213,223..LHD..STD..GEN;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA);GDH201,KDH201,202,203,212,220,221,LH202,212..ARL,GCC,GEN,MA,TH

 1
57023 - MEMBER SUB-ASSY, REAR SIDE, RH
57023-26670

TRH201..06S..GCC

ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION

 1
57023-26650

LH200..4D;TRH200..4FC;TRH221..ARL,GCC;KDH200..LHD..5D;GDH201,KDH201,220,221,TRH201..ARL,GCC,GEN,TH

 1
57024 - MEMBER SUB-ASSY, REAR SIDE, LH
57024-26660

LH200..4D;TRH200..4FC;TRH221..ARL,GCC;KDH200..LHD..5D;GDH201,KDH201,220,221,TRH201..ARL,GCC,GEN,TH

 1
57024-26680

TRH201..06S..GCC

ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION

 1
57066B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6
57066-26121

LH200..4D;TRH200..4FC;KDH200..GCC,MA;KDH200..LHD..5D..GEN;GDH201,KDH201,203,TRH201..02S,03S,05S,06S

 1
57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57068-26230

TRH201..4FC..GEN;TRH201..06S..GCC;KDH201,TRH200..SP..06S..(4FC,5F);GDH201,KDH202,203,LH202,TRH203..02S,06S,10S,12S

 1
57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER
57069-26120

KDH203..RHD;KDH200..LHD..5D;TRH201..06S..GCC;TRH201..SP..(ARL,GCC,GEN);LH200,TRH203..SRF..4D..5F;KDH201,202,LH202..02S,03S,05S,12S,15S

 1
57069-26130

TRH201..06S..GCC

ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION

 1
57254A - REINFORCEMENT, ENGINE REAR MOUNTING MEMBER
57254-26041

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
57413 - RAIL, FLOOR SIDE, CENTER RH
57405-26A80

TRH201..06S..GCC

REAR SEAT BELT-OUTER:3 POINT & CENTER:2 POINT TYPE

 1
57413-26A70

TRH201..06S..GCC

 1
57405-26A80

TRH201..06S..GCC

 1
57414 - RAIL, FLOOR SIDE, CENTER LH
57406-26500

TRH201..06S..GCC

REAR SEAT BELT-OUTER:3 POINT & CENTER:2 POINT TYPE

 1
57414-26510

TRH201..06S..GCC

 1
57406-26500

TRH201..06S..GCC

 1
57415 - RAIL, FLOOR SIDE, REAR RH
57415-26210

TRH221..02S,06S;TRH213..LHD..STD;KDH200,TRH221..GCC,MA;KDH200,220..LHD..5D..GEN;KDH220,TRH200..06S..(4FC,5F);KDH212,LH200,TRH203..4D..5F..STD..(GCC,GEN);GDH201,KDH201,202,203,221,LH202,212,TRH201..02S,03S,05S,06S,15S,16S

 1
57416 - RAIL, FLOOR SIDE, REAR LH
57416-26160

TRH221..02S,06S;TRH213..LHD..STD;KDH200,TRH221..GCC,MA;KDH200,220..LHD..5D..GEN;KDH220,TRH200..06S..(4FC,5F);KDH212,LH200,TRH203..4D..5F..STD..(GCC,GEN);GDH201,KDH201,202,203,221,LH202,212,TRH201..02S,03S,05S,06S,15S,16S

 1
57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57608-26301

LH200..4D;TRH200..4FC;KDH200..GCC,MA;KDH200..LHD..5D..GEN;GDH201,KDH201,203,TRH201..02S,03S,05S,06S

 1
57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5
57609-26182

LH200..4D;TRH200..4FC;KDH200..LHD..5D;GDH201,KDH201,203,TRH201..(02S,03S,05S,06S)..(ARL,GCC,GEN,TH)

 1
57609-26282

TRH201..06S..GCC

ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION

 1
57652C - MEMBER, REAR FLOOR CROSS, NO.1
57652-26120

TRH200..4FC;KDH200..GCC,MA;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;GDH201,KDH201,202,203,LH202,TRH201

 1
57653F - MEMBER, REAR FLOOR CROSS, NO.2
57653-26131

TRH201;KDH203..15S;KDH200..GCC,MA;KDH200..LHD..5D..GEN;KDH203,TRH200..RHD..(06S,12S)..(4FC,5F);KDH201,202,LH20#,TRH203..4D..5F..(GCC,GEN,MA,TH)

 1
57654A - MEMBER, REAR FLOOR CROSS, NO.3
57607-26601

KDH201,TRH200,201..05S,06S

 1
57607-26A30

GDH201,KDH201,TRH201..05S,06S

 1
57658 - MEMBER, REAR FLOOR CROSS, NO.7
57067-26101

LH200..4D;TRH200..4FC;KDH200..GCC,MA;KDH200..LHD..5D..GEN;GDH201,KDH201,203,TRH201..02S,03S,05S,06S

 1
57685B - GUARD, FUEL TANK
57685-26040

TRH201;TRH203..5F;TRH221..GCC;TRH223..GL..GCC;TRH213,223..LHD..STD..GEN;TRH223..(12S,16S)..(RUS,SA,TH);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH)

FRONT

 1
57685-26070

TRH201,203

FRONT

 1
58218 - PLATE, SEAT FLOOR PANEL
58218-26010

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 2
58223H - REINFORCEMENT, FLOOR PANEL SIDE, RH
58223-26071

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
58224J - REINFORCEMENT, FLOOR PANEL SIDE, LH
58224-26091

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
58266B - BRACKET, FUEL TUBE CLAMP
58266-95J00

TRH203..5F;TRH221..GCC;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH213,TRH213..LHD..(10S,11S,16S)..GEN;KDH201,TRH200..SP..(03S,06S)..(4FC,5F)..GEN;GDH201,KDH203,212,TRH201..02S,03S,05S,06S,11S;TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH)

 4
58297J - RETAINER, FLOOR CLAMP
58297-26020

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
58303B - STEP SUB-ASSY, REAR FLOOR, RH
58303-26160

TRH201..06S..GCC

 1
58303-26390

TRH201..06S..GCC

ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION

 1
58304B - STEP SUB-ASSY, REAR FLOOR, LH
58304-26390

TRH201..06S..GCC

 1
58304-26360

TRH201..03S..GEN;KDH200,201,220..LHD..5D

 1
58304-26B40

TRH201..06S..GCC

ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION

 1
58311 - PAN, REAR FLOOR
58311-26B70

TRH201..06S..GCC

 1
58311-26B71

TRH201..06S..GCC

 1
58335A - SEAL, REAR FLOOR SIDE SERVICE HOLE COVER
58335-26030

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
58460C - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33010

TRH200..4FC;GDH201,KDH201,220,TRH201,221..05S,06S

 4
58460C - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33010

TRH200..4FC;GDH201,KDH201,220,TRH201,221..05S,06S

 4
58460C - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33010

TRH200..4FC;GDH201,KDH201,220,TRH201,221..05S,06S

 4
58474 - COVER, INSPECTION HOLE
58474-26010

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
58587B - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1 RH
58587-26060

KDH213,223,TRH200..(06S,11S,14S)..4FC..GEN;GDH201,KDH201,212,220,TRH201,213,221..05S,06S,11S

 1
58587C - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1 LH
58587-26080

KDH213,223,TRH200..(06S,11S,14S)..4FC..GEN;GDH201,KDH201,212,220,TRH201,213,221..05S,06S,11S

 1
58587D - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1
58587-26010

KDH213,223,TRH200..(06S,11S,14S)..4FC..GEN;GDH201,KDH201,212,220,TRH201,213,221..05S,06S,11S

 2
58587D - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1
58587-26010

KDH213,223,TRH200..(06S,11S,14S)..4FC..GEN;GDH201,KDH201,212,220,TRH201,213,221..05S,06S,11S

 2
58656C - PLATE, REAR FLOOR, CENTER LOWER NO.2 RH
58656-26020

TRH213..GCC,TH;KDH200..LHD..5D;TRH213..LHD..GEN;KDH202,212,LH20#,212..LHD;KDH201,TRH203..LHD..4D..5F;KDH201,TRH200..5D..(4FC,5F);GDH201,KDH203,213,TRH201..(03S,05S,06S,10S,11S,12S,13S,15S)..(GCC,GEN)

 1
58666E - PLATE, REAR FLOOR, CENTER LOWER NO.2 LH
58666-26010

KDH200..GCC,MA;LH200..RHD..4D;TRH200,213..5D..4FC;KDH212..(11S,16S)..GEN;KDH200,201..LHD..5D..GEN;GDH201,KDH201,202,203,LH202,212,TRH203..RHD;KDH213,TRH201..(02S,03S,05S,06S,11S)..(ARL,GCC,GEN,SA)

 1
58759A - COVER, FUEL TANK INSPECTION HOLE
58759-26010

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH213,221..GCC,MA,TH;KDH213,222,223,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH

 1
Common parts
90159-50322
90189-05055
91553-80612
91553-80818
91553-81230
Linked diagrams
5752
5851
5854
