TRH201L-SRMDKV (2013)
Toyota Hiace

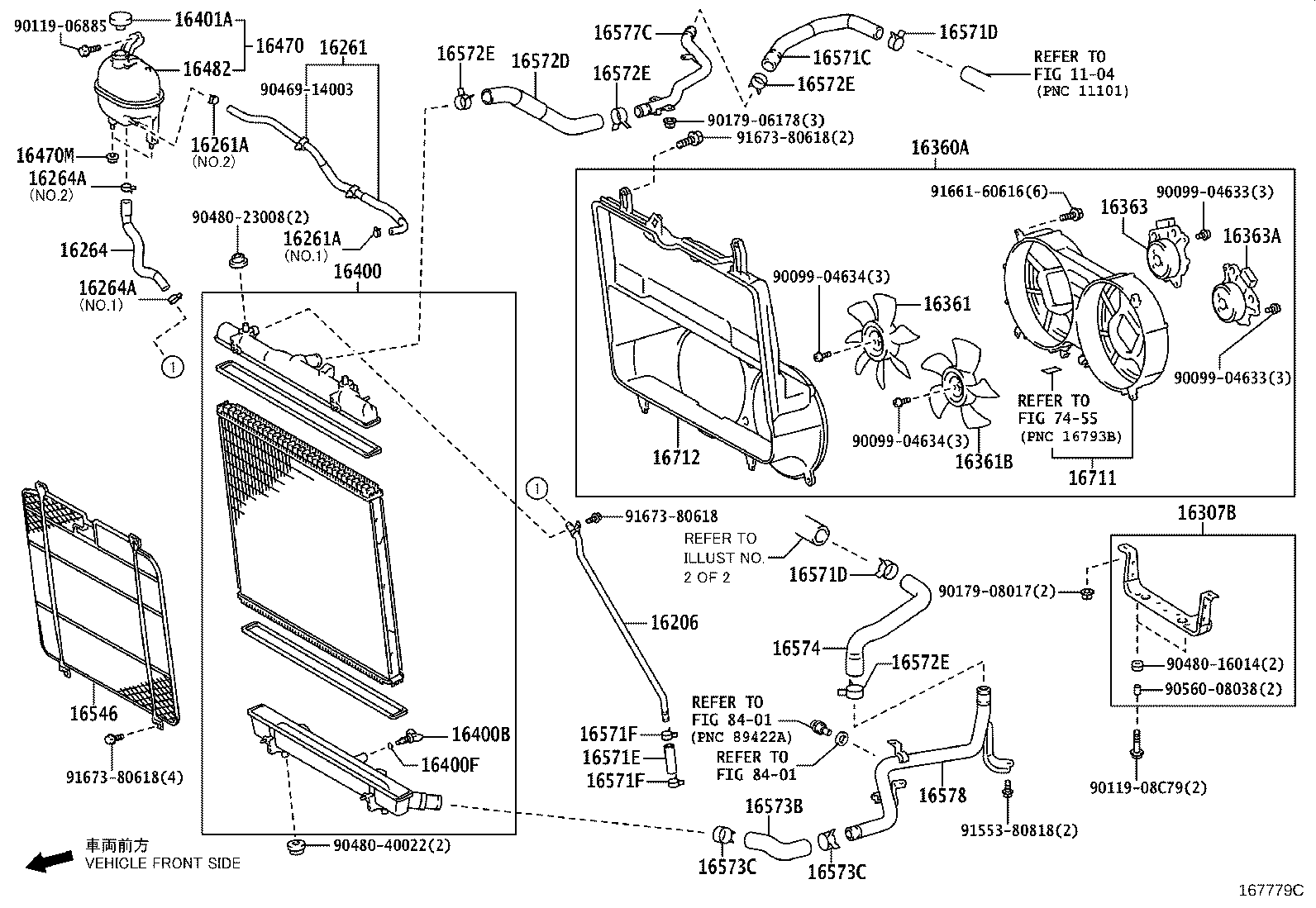

ILLUST NO. 1 OF 2(1312-2005)2TRFE..TRH201,203..LHD
W/O(AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-75020 |
2TRFE..TRH221..GCC;2TRFE..TRH201,213..LHD;2TRFE..TRH203..LHD..5F;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..5F..GL..(GCC,RUS) |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75240 |
2TRFE..TRH201,203..LHD..5F |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.1:REFER ILLUST. |
1 | ||
| 96136-41501 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.2:REFER ILLUST. |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.1:REFER ILLUST. |
1 | ||
| 96136-41501 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.2:REFER ILLUST. |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75180 |
2TRFE..TRH201,203..LHD..5F |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42501 |
1TRFE,2TRFE..TRH20#,213,22# NO.2:REFER ILLUST. |
1 | ||
| 96138-42501 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..5F..GL..GCC;1TRFE,2TRFE..TRH20#..5F,6FC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.1:REFER ILLUST. |
1 | ||
| 90466-26004 |
2TRFE..TRH201,203,213,22#..STD NO.2:REFER ILLUST. |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42501 |
1TRFE,2TRFE..TRH20#,213,22# NO.2:REFER ILLUST. |
1 | ||
| 96138-42501 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..5F..GL..GCC;1TRFE,2TRFE..TRH20#..5F,6FC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.1:REFER ILLUST. |
1 | ||
| 90466-26004 |
2TRFE..TRH201,203,213,22#..STD NO.2:REFER ILLUST. |
1 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-75011 |
2TRFE..TRH201,22#..STD..GCC |
1 | ||
| 16307-75021 |
2TRFE..TRH201..GCC;2TRFE..TRH221..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16307-75021 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16307-75011 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 16307-75021 |
2TRFE..TRH201,221..GCC |
1 | ||
| 16307-30010 |
2TRFE..TRH201,203,213,22#..STD |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-75032 |
2TRFE..TRH201..GCC;2TRFE..TRH221..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16360-75032 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16360-75022 |
2TRFE..TRH201,22#..STD..GCC |
1 | ||
| 16360-75032 |
2TRFE..TRH201,221..GCC |
1 | ||
| 16360-75022 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 16360-75070 |
2TRFE..TRH201,22#..GCC |
1 | ||
| 16360-75060 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 16361 - FAN | ||||
| 16361-75030 |
2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;1TRFE,2TRFE..TRH200,201;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16361-11040 |
2TRFE..TRH201,203,213,22#..STD |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-75030 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER,LH |
1 | ||
| 16363-20390 |
2TRFE..TRH201,22#..STD..GCC |
1 | ||
| 16363-20390 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER,RH |
1 | ||
| 16363-75030 |
2TRFE..TRH201..GCC;2TRFE..TRH221..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER,LH |
1 | ||
| 16363-20390 |
2TRFE..TRH201..GCC;2TRFE..TRH221..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER,RH |
1 | ||
| 16363-75030 |
2TRFE..TRH201,221..GCC LH |
1 | ||
| 16363-20390 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 16363-20390 |
2TRFE..TRH201,221..GCC RH |
1 | ||
| 16363-24100 |
2TRFE..TRH201,203,213,22#..STD |
1 | ||
| 16380 - BRACKET ASSY, FAN | ||||
| 16380-75023 |
2TRFE..TRH201;2TRFE..TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16380-75023 |
2TRFE..TRH201,221 AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16380-75024 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16380-75024 |
2TRFE..TRH201..GCC;2TRFE..TRH221..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16380-75013 |
2TRFE..TRH201,22#..STD..GCC |
1 | ||
| 16380-75012 |
2TRFE..TRH201,203,213,22#..(02S,03S,05S,06S,15S,16S)..STD |
1 | ||
| 16380-75024 |
2TRFE..TRH201,221..GCC |
1 | ||
| 16380-75013 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-75472 |
2TRFE..TRH221..GCC;2TRFE..TRH201,203..5F;2TRFE..TRH213..LHD..5F;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH22#..(02S,06S,14S,16S)..5F..STD..(ARL,SA,TH) |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16475-37011 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16475-37010 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16475-28140 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75122 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16470-75123 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16470-75124 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 90480-14470 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16546 - PROTECTOR, RADIATOR | ||||
| 16546-75010 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16546-75010 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16546-75010 |
2TRFE..TRH201,22#..STD..GCC |
1 | ||
| 16546-75010 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-75260 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54301 |
2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;1TRFE,2TRFE..TRH200,201;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) LOWER |
1 | ||
| 96136-44301 |
2TRFE..TRH201,203,213,22#..STD LOWER |
1 | ||
| 90467-37005 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) UPPER,TYPE A |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54301 |
2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;1TRFE,2TRFE..TRH200,201;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) LOWER |
1 | ||
| 96136-44301 |
2TRFE..TRH201,203,213,22#..STD LOWER |
1 | ||
| 90467-37005 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) UPPER,TYPE A |
1 | ||
| 16571E - HOSE, WATER | ||||
| 99555-20075 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96136-42101 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96136-42101 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-75310 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
4 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
4 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
4 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
4 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-75080 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-75030 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-75040 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-75011 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-75230 |
2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;1TRFE,2TRFE..TRH200,201;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16711-75270 |
2TRFE..TRH201,203,213,22#..STD |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75122 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06885 | ||||
| 90119-08C79 | ||||
| 90179-06178 | ||||
| 90179-08017 | ||||
| 90389-09025 | ||||
| 90469-14003 | ||||
| 90480-16021 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 91553-80818 | ||||
| 91661-60616 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 7455 | ||||
| 8401 | ||||

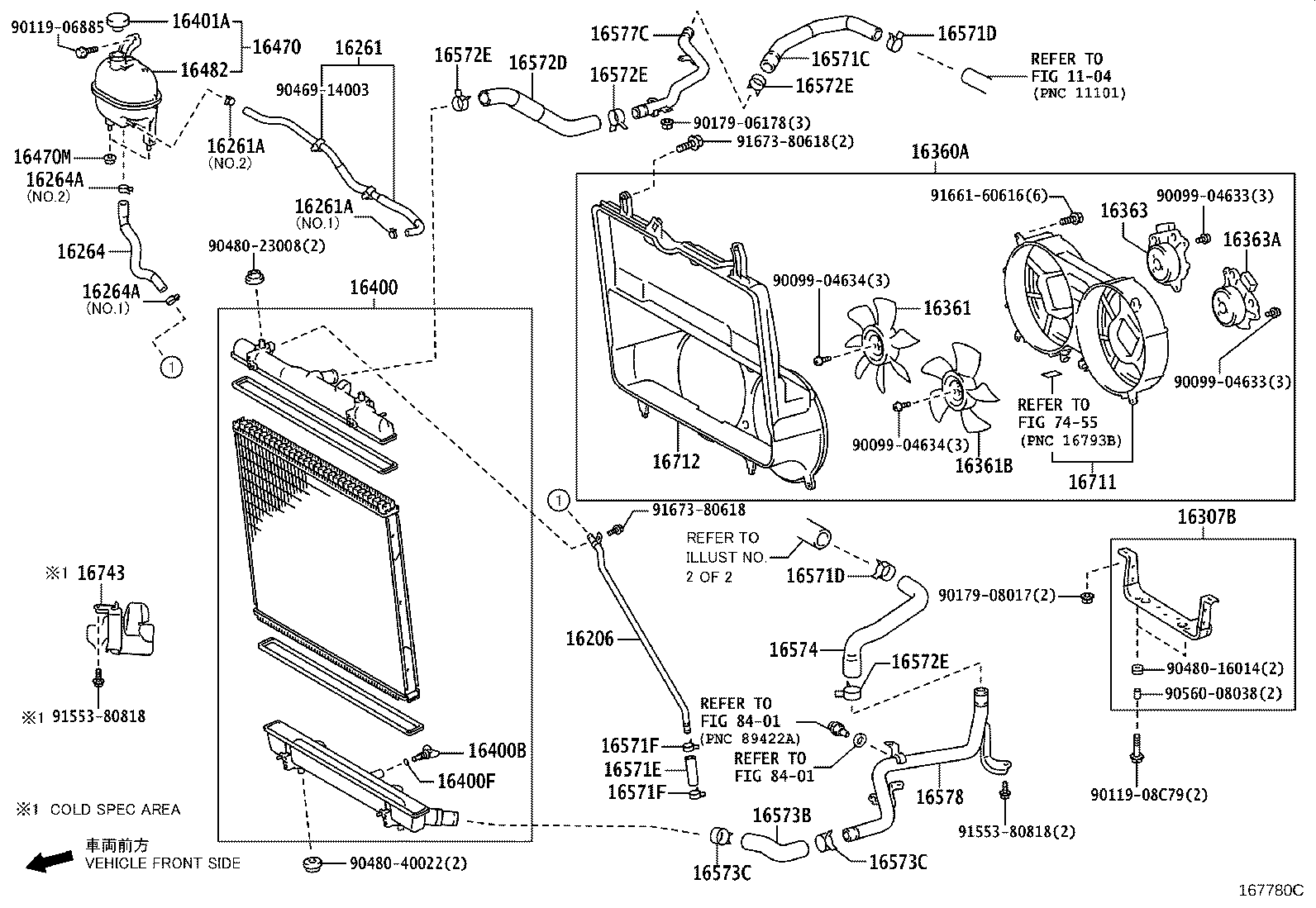

ILLUST NO. 1 OF 2(1312-2005)2TRFE..TRH201,203..LHD
W(AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-75020 |
2TRFE..TRH221..GCC;2TRFE..TRH201,213..LHD;2TRFE..TRH203..LHD..5F;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..5F..GL..(GCC,RUS) |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75240 |
2TRFE..TRH201,203..LHD..5F |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.1:REFER ILLUST. |
1 | ||
| 96136-41501 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.2:REFER ILLUST. |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.1:REFER ILLUST. |
1 | ||
| 96136-41501 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.2:REFER ILLUST. |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75180 |
2TRFE..TRH201,203..LHD..5F |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42501 |
1TRFE,2TRFE..TRH20#,213,22# NO.2:REFER ILLUST. |
1 | ||
| 96138-42501 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..5F..GL..GCC;1TRFE,2TRFE..TRH20#..5F,6FC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.1:REFER ILLUST. |
1 | ||
| 90466-26004 |
2TRFE..TRH201,203,213,22#..STD NO.2:REFER ILLUST. |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42501 |
1TRFE,2TRFE..TRH20#,213,22# NO.2:REFER ILLUST. |
1 | ||
| 96138-42501 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..5F..GL..GCC;1TRFE,2TRFE..TRH20#..5F,6FC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.1:REFER ILLUST. |
1 | ||
| 90466-26004 |
2TRFE..TRH201,203,213,22#..STD NO.2:REFER ILLUST. |
1 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-75011 |
2TRFE..TRH201,22#..STD..GCC |
1 | ||
| 16307-75021 |
2TRFE..TRH201..GCC;2TRFE..TRH221..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16307-75021 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16307-75011 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 16307-75021 |
2TRFE..TRH201,221..GCC |
1 | ||
| 16307-30010 |
2TRFE..TRH201,203,213,22#..STD |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-75032 |
2TRFE..TRH201..GCC;2TRFE..TRH221..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16360-75032 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16360-75022 |
2TRFE..TRH201,22#..STD..GCC |
1 | ||
| 16360-75032 |
2TRFE..TRH201,221..GCC |
1 | ||
| 16360-75022 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 16360-75070 |
2TRFE..TRH201,22#..GCC |
1 | ||
| 16360-75060 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 16361 - FAN | ||||
| 16361-75030 |
2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;1TRFE,2TRFE..TRH200,201;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16361-11040 |
2TRFE..TRH201,203,213,22#..STD |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-75040 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16361-75040 |
2TRFE..TRH201..GCC;2TRFE..TRH221..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16361-75040 |
2TRFE..TRH201,221..GCC |
1 | ||
| 16361-37100 |
2TRFE..TRH201,22#..GCC |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-75030 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER,LH |
1 | ||
| 16363-20390 |
2TRFE..TRH201,22#..STD..GCC |
1 | ||
| 16363-20390 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER,RH |
1 | ||
| 16363-75030 |
2TRFE..TRH201..GCC;2TRFE..TRH221..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER,LH |
1 | ||
| 16363-20390 |
2TRFE..TRH201..GCC;2TRFE..TRH221..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER,RH |
1 | ||
| 16363-75030 |
2TRFE..TRH201,221..GCC LH |
1 | ||
| 16363-20390 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 16363-20390 |
2TRFE..TRH201,221..GCC RH |
1 | ||
| 16363-24100 |
2TRFE..TRH201,203,213,22#..STD |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-75030 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER,LH |
1 | ||
| 16363-20390 |
2TRFE..TRH201,22#..STD..GCC |
1 | ||
| 16363-20390 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER,RH |
1 | ||
| 16363-75030 |
2TRFE..TRH201..GCC;2TRFE..TRH221..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER,LH |
1 | ||
| 16363-20390 |
2TRFE..TRH201..GCC;2TRFE..TRH221..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER,RH |
1 | ||
| 16363-75030 |
2TRFE..TRH201,221..GCC LH |
1 | ||
| 16363-20390 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 16363-20390 |
2TRFE..TRH201,221..GCC RH |
1 | ||
| 16363-24100 |
2TRFE..TRH201,203,213,22#..STD |
1 | ||
| 16380 - BRACKET ASSY, FAN | ||||
| 16380-75023 |
2TRFE..TRH201;2TRFE..TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16380-75023 |
2TRFE..TRH201,221 AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16380-75024 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16380-75024 |
2TRFE..TRH201..GCC;2TRFE..TRH221..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16380-75013 |
2TRFE..TRH201,22#..STD..GCC |
1 | ||
| 16380-75012 |
2TRFE..TRH201,203,213,22#..(02S,03S,05S,06S,15S,16S)..STD |
1 | ||
| 16380-75024 |
2TRFE..TRH201,221..GCC |
1 | ||
| 16380-75013 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-75472 |
2TRFE..TRH221..GCC;2TRFE..TRH201,203..5F;2TRFE..TRH213..LHD..5F;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH22#..(02S,06S,14S,16S)..5F..STD..(ARL,SA,TH) |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16475-37011 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16475-37010 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16475-28140 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75122 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16470-75123 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16470-75124 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 90480-14470 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-75260 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54301 |
2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;1TRFE,2TRFE..TRH200,201;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) LOWER |
1 | ||
| 96136-44301 |
2TRFE..TRH201,203,213,22#..STD LOWER |
1 | ||
| 90467-37005 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) UPPER,TYPE A |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54301 |
2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;1TRFE,2TRFE..TRH200,201;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) LOWER |
1 | ||
| 96136-44301 |
2TRFE..TRH201,203,213,22#..STD LOWER |
1 | ||
| 90467-37005 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) UPPER,TYPE A |
1 | ||
| 16571E - HOSE, WATER | ||||
| 99555-20075 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96136-42101 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96136-42101 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-75310 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
4 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
4 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
4 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
4 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-75080 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-75030 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-75040 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-75011 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-75230 |
2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;1TRFE,2TRFE..TRH200,201;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16711-75270 |
2TRFE..TRH201,203,213,22#..STD |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75122 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06885 | ||||
| 90119-08C79 | ||||
| 90179-06178 | ||||
| 90179-08017 | ||||
| 90389-09025 | ||||
| 90469-14003 | ||||
| 90480-16021 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 91553-80818 | ||||
| 91661-60616 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 7455 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(2005- )2TRFE..TRH201,203..LHD
W/O(AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-75020 |
2TRFE..TRH221..GCC;2TRFE..TRH201,213..LHD;2TRFE..TRH203..LHD..5F;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..5F..GL..(GCC,RUS) |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75240 |
2TRFE..TRH201,203..LHD..5F |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.1:REFER ILLUST. |
1 | ||
| 96136-41501 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.2:REFER ILLUST. |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.1:REFER ILLUST. |
1 | ||
| 96136-41501 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.2:REFER ILLUST. |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75180 |
2TRFE..TRH201,203..LHD..5F |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42501 |
1TRFE,2TRFE..TRH20#,213,22# NO.2:REFER ILLUST. |
1 | ||
| 96138-42501 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..5F..GL..GCC;1TRFE,2TRFE..TRH20#..5F,6FC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.1:REFER ILLUST. |
1 | ||
| 90466-26004 |
2TRFE..TRH201,203,213,22#..STD NO.2:REFER ILLUST. |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42501 |
1TRFE,2TRFE..TRH20#,213,22# NO.2:REFER ILLUST. |
1 | ||
| 96138-42501 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..5F..GL..GCC;1TRFE,2TRFE..TRH20#..5F,6FC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.1:REFER ILLUST. |
1 | ||
| 90466-26004 |
2TRFE..TRH201,203,213,22#..STD NO.2:REFER ILLUST. |
1 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-75011 |
2TRFE..TRH201,22#..STD..GCC |
1 | ||
| 16307-75021 |
2TRFE..TRH201..GCC;2TRFE..TRH221..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16307-75021 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16307-75011 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 16307-75021 |
2TRFE..TRH201,221..GCC |
1 | ||
| 16307-30010 |
2TRFE..TRH201,203,213,22#..STD |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-75032 |
2TRFE..TRH201..GCC;2TRFE..TRH221..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16360-75032 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16360-75022 |
2TRFE..TRH201,22#..STD..GCC |
1 | ||
| 16360-75032 |
2TRFE..TRH201,221..GCC |
1 | ||
| 16360-75022 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 16360-75070 |
2TRFE..TRH201,22#..GCC |
1 | ||
| 16360-75060 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 16361 - FAN | ||||
| 16361-75030 |
2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;1TRFE,2TRFE..TRH200,201;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16361-11040 |
2TRFE..TRH201,203,213,22#..STD |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-75040 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16361-75040 |
2TRFE..TRH201..GCC;2TRFE..TRH221..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16361-75040 |
2TRFE..TRH201,221..GCC |
1 | ||
| 16361-37100 |
2TRFE..TRH201,22#..GCC |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-75030 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER,LH |
1 | ||
| 16363-20390 |
2TRFE..TRH201,22#..STD..GCC |
1 | ||
| 16363-20390 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER,RH |
1 | ||
| 16363-75030 |
2TRFE..TRH201..GCC;2TRFE..TRH221..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER,LH |
1 | ||
| 16363-20390 |
2TRFE..TRH201..GCC;2TRFE..TRH221..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER,RH |
1 | ||
| 16363-75030 |
2TRFE..TRH201,221..GCC LH |
1 | ||
| 16363-20390 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 16363-20390 |
2TRFE..TRH201,221..GCC RH |
1 | ||
| 16363-24100 |
2TRFE..TRH201,203,213,22#..STD |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-47060 |
2TRFE..TRH201,22#..GCC |
1 | ||
| 16363-47060 |
2TRFE..TRH201,22#..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-75472 |
2TRFE..TRH221..GCC;2TRFE..TRH201,203..5F;2TRFE..TRH213..LHD..5F;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH22#..(02S,06S,14S,16S)..5F..STD..(ARL,SA,TH) |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16475-37011 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16475-37010 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16475-28140 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75122 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16470-75123 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16470-75124 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 90480-14470 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16546 - PROTECTOR, RADIATOR | ||||
| 16546-75010 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16546-75010 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16546-75010 |
2TRFE..TRH201,22#..STD..GCC |
1 | ||
| 16546-75010 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-75260 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54301 |
2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;1TRFE,2TRFE..TRH200,201;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) LOWER |
1 | ||
| 96136-44301 |
2TRFE..TRH201,203,213,22#..STD LOWER |
1 | ||
| 90467-37005 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) UPPER,TYPE A |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54301 |
2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;1TRFE,2TRFE..TRH200,201;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) LOWER |
1 | ||
| 96136-44301 |
2TRFE..TRH201,203,213,22#..STD LOWER |
1 | ||
| 90467-37005 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) UPPER,TYPE A |
1 | ||
| 16571E - HOSE, WATER | ||||
| 99555-20075 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96136-42101 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96136-42101 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-75310 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
4 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
4 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
4 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
4 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-75080 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-75030 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-75040 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-75011 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-75230 |
2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;1TRFE,2TRFE..TRH200,201;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16711-75270 |
2TRFE..TRH201,203,213,22#..STD |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75122 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| Common parts | ||||
| 90099-04633 | ||||
| 90099-04634 | ||||
| 90119-06885 | ||||
| 90119-08C79 | ||||
| 90179-06178 | ||||
| 90179-08017 | ||||
| 90469-14003 | ||||
| 90480-16014 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 90560-08038 | ||||
| 91553-80818 | ||||
| 91661-60616 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 7455 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(2005- )2TRFE..TRH201,203..LHD
W(AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-75020 |
2TRFE..TRH221..GCC;2TRFE..TRH201,213..LHD;2TRFE..TRH203..LHD..5F;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..5F..GL..(GCC,RUS) |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75240 |
2TRFE..TRH201,203..LHD..5F |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.1:REFER ILLUST. |
1 | ||
| 96136-41501 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.2:REFER ILLUST. |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.1:REFER ILLUST. |
1 | ||
| 96136-41501 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.2:REFER ILLUST. |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75180 |
2TRFE..TRH201,203..LHD..5F |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42501 |
1TRFE,2TRFE..TRH20#,213,22# NO.2:REFER ILLUST. |
1 | ||
| 96138-42501 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..5F..GL..GCC;1TRFE,2TRFE..TRH20#..5F,6FC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.1:REFER ILLUST. |
1 | ||
| 90466-26004 |
2TRFE..TRH201,203,213,22#..STD NO.2:REFER ILLUST. |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42501 |
1TRFE,2TRFE..TRH20#,213,22# NO.2:REFER ILLUST. |
1 | ||
| 96138-42501 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..5F..GL..GCC;1TRFE,2TRFE..TRH20#..5F,6FC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) NO.1:REFER ILLUST. |
1 | ||
| 90466-26004 |
2TRFE..TRH201,203,213,22#..STD NO.2:REFER ILLUST. |
1 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-75011 |
2TRFE..TRH201,22#..STD..GCC |
1 | ||
| 16307-75021 |
2TRFE..TRH201..GCC;2TRFE..TRH221..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16307-75021 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16307-75011 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 16307-75021 |
2TRFE..TRH201,221..GCC |
1 | ||
| 16307-30010 |
2TRFE..TRH201,203,213,22#..STD |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-75032 |
2TRFE..TRH201..GCC;2TRFE..TRH221..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16360-75032 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16360-75022 |
2TRFE..TRH201,22#..STD..GCC |
1 | ||
| 16360-75032 |
2TRFE..TRH201,221..GCC |
1 | ||
| 16360-75022 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 16360-75070 |
2TRFE..TRH201,22#..GCC |
1 | ||
| 16360-75060 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 16361 - FAN | ||||
| 16361-75030 |
2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;1TRFE,2TRFE..TRH200,201;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16361-11040 |
2TRFE..TRH201,203,213,22#..STD |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-75040 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 16361-75040 |
2TRFE..TRH201..GCC;2TRFE..TRH221..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 16361-75040 |
2TRFE..TRH201,221..GCC |
1 | ||
| 16361-37100 |
2TRFE..TRH201,22#..GCC |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-75030 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER,LH |
1 | ||
| 16363-20390 |
2TRFE..TRH201,22#..STD..GCC |
1 | ||
| 16363-20390 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-DUAL AIR CONDITIONER,RH |
1 | ||
| 16363-75030 |
2TRFE..TRH201..GCC;2TRFE..TRH221..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER,LH |
1 | ||
| 16363-20390 |
2TRFE..TRH201..GCC;2TRFE..TRH221..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER,RH |
1 | ||
| 16363-75030 |
2TRFE..TRH201,221..GCC LH |
1 | ||
| 16363-20390 |
2TRFE..TRH201,221..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 16363-20390 |
2TRFE..TRH201,221..GCC RH |
1 | ||
| 16363-24100 |
2TRFE..TRH201,203,213,22#..STD |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-47060 |
2TRFE..TRH201,22#..GCC |
1 | ||
| 16363-47060 |
2TRFE..TRH201,22#..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-75472 |
2TRFE..TRH221..GCC;2TRFE..TRH201,203..5F;2TRFE..TRH213..LHD..5F;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH22#..(02S,06S,14S,16S)..5F..STD..(ARL,SA,TH) |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16475-37011 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16475-37010 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16475-28140 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75122 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16470-75123 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 16470-75124 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
1TRFE,2TRFE..TRH20#,213,22# |
2 | ||
| 90480-14470 |
2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH201,203..5F,6FC;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-75260 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54301 |
2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;1TRFE,2TRFE..TRH200,201;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) LOWER |
1 | ||
| 96136-44301 |
2TRFE..TRH201,203,213,22#..STD LOWER |
1 | ||
| 90467-37005 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) UPPER,TYPE A |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54301 |
2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;1TRFE,2TRFE..TRH200,201;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) LOWER |
1 | ||
| 96136-44301 |
2TRFE..TRH201,203,213,22#..STD LOWER |
1 | ||
| 90467-37005 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) UPPER,TYPE A |
1 | ||
| 16571E - HOSE, WATER | ||||
| 99555-20075 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96136-42101 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96136-42101 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-75310 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
4 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
4 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
4 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
4 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-75080 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-75030 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-75040 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-75011 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-75230 |
2TRFE..TRH203..5F;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;1TRFE,2TRFE..TRH200,201;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 16711-75270 |
2TRFE..TRH201,203,213,22#..STD |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75122 |
2TRFE..TRH201;2TRFE..TRH203..5F;1TRFE..TRH200..4FC;2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH213..LHD..GEN;2TRFE..TRH223..LHD..STD..GEN;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH223..5F..GL..(GCC,RUS);2TRFE..TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| Common parts | ||||
| 90099-04633 | ||||
| 90099-04634 | ||||
| 90119-06885 | ||||
| 90119-08C79 | ||||
| 90179-06178 | ||||
| 90179-08017 | ||||
| 90469-14003 | ||||
| 90480-16014 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 90560-08038 | ||||
| 91553-80818 | ||||
| 91661-60616 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 7455 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
