TRH201L-SRMDKV (2013)

Toyota Hiace

Production Dec 2013 - Sep 9999
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )L

Click highlighted areas on diagram

diagram 11000K 11000K 11000K 11101K 11101K 11101K
Part # Description Qty Price

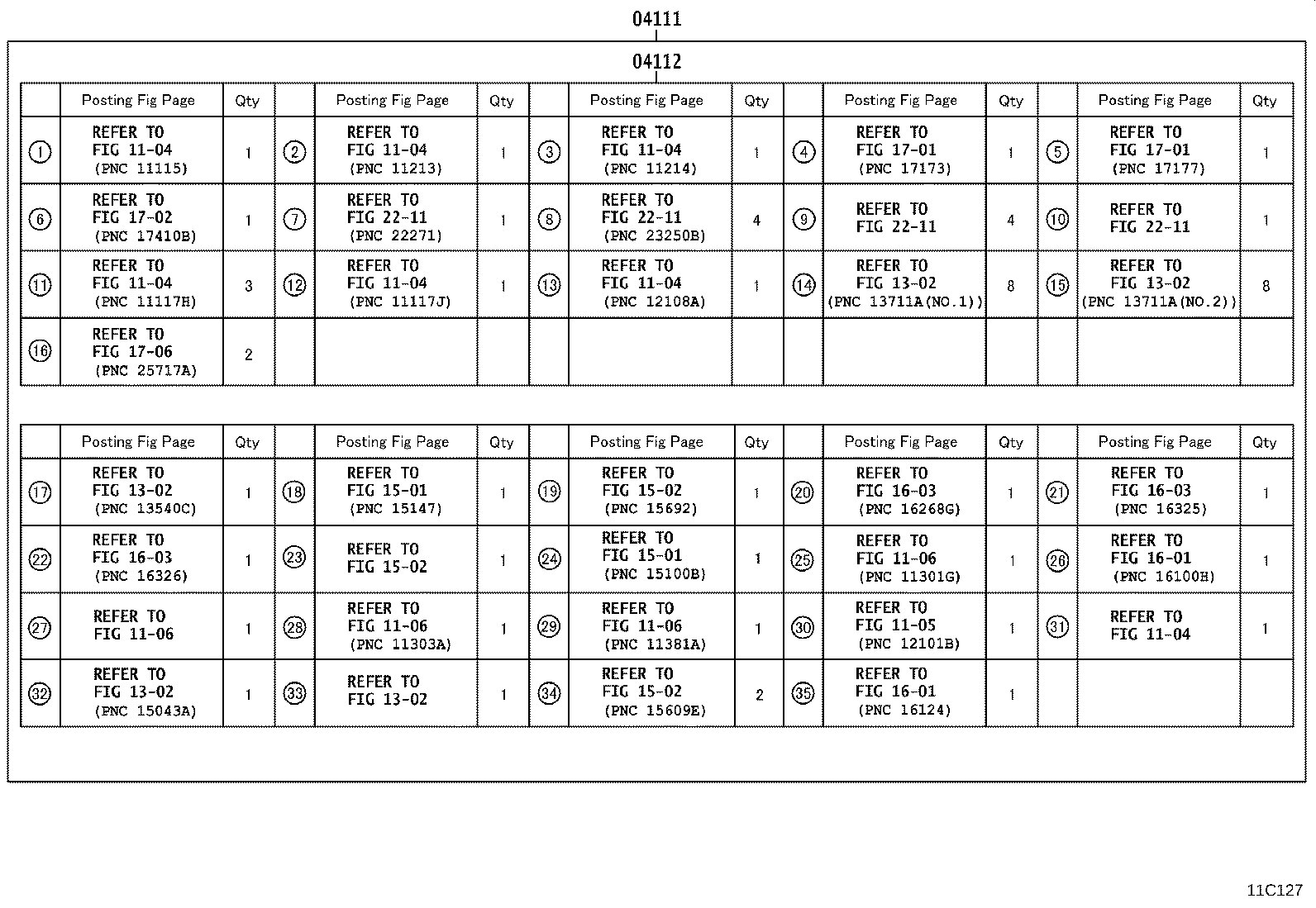

ILLUST NO. 1 OF 2(0501- )2TRFE

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price

ILLUST NO. 2 OF 2(0501- )2TRFE

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1104 1104 1104 1104 1104 1104 1104 1105 1106 1106 1106 1106 1302 1302 1302 1302 1501 1501 1502 1502 1502 1502 1502 1601 1601 1603 1603 1603 1701 1701 1702 1706 2211 2211 2211
Part # Description Qty Price
Linked diagrams
1104
1105
1106
1302
1501
1502
1601
1603
1701
1702
1706
2211

ILLUST NO. 1 OF 2(1312- )2TRFE

Click highlighted areas on diagram

WITH (AIR PUMP)

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-75808

2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(03S,06S);2TRFE..TRH201,213..LHD..SG..5F..STD;2TRFE..TRH201,203,223..(03S,14S,15S,16S)..5F..(GCC,GEN,SA)

 1
04111-75809

2TRFE..TRH201,203,213,22#..5F..(GCC,SA)

 1
04111-75B10

2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(03S,06S);2TRFE..TRH201,213..LHD..SG..5F..STD;2TRFE..TRH201,203,223..(03S,14S,15S,16S)..5F..(GCC,GEN,SA)

 1
04111-75C41

2TRFE..TRH201..06S..GCC;2TRFE..TRH221..SP..(03S,06S);2TRFE..TRH201,203,213,223..(03S,10S,14S,15S,16S)..5F..(GCC,GEN,SA)

 1
04111-75C40

2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(03S,06S);2TRFE..TRH201,213..LHD..SG..5F..STD;2TRFE..TRH201,203,223..(03S,14S,15S,16S)..5F..(GCC,GEN,SA)

 1
04111-75C22

2TRFE..TRH223..TH;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH201,213,221..GCC,TH

 1
04111-75C42

2TRFE..TRH201,221..GCC;2TRFE..TRH223..5F..GL..GCC

WITHOUT(DESTINATION PACKAGE)

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-75674

2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(03S,06S);2TRFE..TRH201,213..LHD..SG..5F..STD;2TRFE..TRH201,203,223..(03S,14S,15S,16S)..5F..(GCC,GEN,SA)

 1
04112-75675

2TRFE..TRH201,221..GCC;2TRFE..TRH223..5F..GL..GCC

WITHOUT(DESTINATION PACKAGE)

 1
04112-75685

2TRFE..TRH223..TH;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH201,213,221..GCC,TH

 1

ILLUST NO. 2 OF 2(1312- )2TRFE

Click highlighted areas on diagram

WITH (AIR PUMP)

diagram 04111 04112 1104 1104 1104 1104 1104 1104 1104 1105 1106 1106 1106 1106 1302 1302 1302 1302 1302 1501 1501 1502 1502 1502 1601 1601 1603 1603 1603 1701 1701 1702 1706 2211 2211 2211 2211
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-75808

2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(03S,06S);2TRFE..TRH201,213..LHD..SG..5F..STD;2TRFE..TRH201,203,223..(03S,14S,15S,16S)..5F..(GCC,GEN,SA)

 1
04111-75809

2TRFE..TRH201,203,213,22#..5F..(GCC,SA)

 1
04111-75B10

2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(03S,06S);2TRFE..TRH201,213..LHD..SG..5F..STD;2TRFE..TRH201,203,223..(03S,14S,15S,16S)..5F..(GCC,GEN,SA)

 1
04111-75C41

2TRFE..TRH201..06S..GCC;2TRFE..TRH221..SP..(03S,06S);2TRFE..TRH201,203,213,223..(03S,10S,14S,15S,16S)..5F..(GCC,GEN,SA)

 1
04111-75C40

2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(03S,06S);2TRFE..TRH201,213..LHD..SG..5F..STD;2TRFE..TRH201,203,223..(03S,14S,15S,16S)..5F..(GCC,GEN,SA)

 1
04111-75C22

2TRFE..TRH223..TH;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH201,213,221..GCC,TH

 1
04111-75C42

2TRFE..TRH201,221..GCC;2TRFE..TRH223..5F..GL..GCC

WITHOUT(DESTINATION PACKAGE)

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-75674

2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(03S,06S);2TRFE..TRH201,213..LHD..SG..5F..STD;2TRFE..TRH201,203,223..(03S,14S,15S,16S)..5F..(GCC,GEN,SA)

 1
04112-75675

2TRFE..TRH201,221..GCC;2TRFE..TRH223..5F..GL..GCC

WITHOUT(DESTINATION PACKAGE)

 1
04112-75685

2TRFE..TRH223..TH;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH201,213,221..GCC,TH

 1
Linked diagrams
1104
1105
1106
1302
1501
1502
1601
1603
1701
1702
1706
2211

ILLUST NO. 1 OF 2(1312- )2TRFE

Click highlighted areas on diagram

WITH OUT (AIR PUMP)

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-75808

2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(03S,06S);2TRFE..TRH201,213..LHD..SG..5F..STD;2TRFE..TRH201,203,223..(03S,14S,15S,16S)..5F..(GCC,GEN,SA)

 1
04111-75809

2TRFE..TRH201,203,213,22#..5F..(GCC,SA)

 1
04111-75B10

2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(03S,06S);2TRFE..TRH201,213..LHD..SG..5F..STD;2TRFE..TRH201,203,223..(03S,14S,15S,16S)..5F..(GCC,GEN,SA)

 1
04111-75C41

2TRFE..TRH201..06S..GCC;2TRFE..TRH221..SP..(03S,06S);2TRFE..TRH201,203,213,223..(03S,10S,14S,15S,16S)..5F..(GCC,GEN,SA)

 1
04111-75C40

2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(03S,06S);2TRFE..TRH201,213..LHD..SG..5F..STD;2TRFE..TRH201,203,223..(03S,14S,15S,16S)..5F..(GCC,GEN,SA)

 1
04111-75C22

2TRFE..TRH223..TH;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH201,213,221..GCC,TH

 1
04111-75C42

2TRFE..TRH201,221..GCC;2TRFE..TRH223..5F..GL..GCC

WITHOUT(DESTINATION PACKAGE)

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-75674

2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(03S,06S);2TRFE..TRH201,213..LHD..SG..5F..STD;2TRFE..TRH201,203,223..(03S,14S,15S,16S)..5F..(GCC,GEN,SA)

 1
04112-75675

2TRFE..TRH201,221..GCC;2TRFE..TRH223..5F..GL..GCC

WITHOUT(DESTINATION PACKAGE)

 1
04112-75685

2TRFE..TRH223..TH;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH201,213,221..GCC,TH

 1

ILLUST NO. 2 OF 2(1312- )2TRFE

Click highlighted areas on diagram

WITH OUT (AIR PUMP)

diagram 04111 04112 1104 1104 1104 1104 1104 1104 1104 1105 1106 1106 1106 1106 1302 1302 1302 1302 1302 1501 1501 1502 1502 1502 1601 1601 1603 1603 1603 1701 1701 1702 2211 2211 2211 2211
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-75808

2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(03S,06S);2TRFE..TRH201,213..LHD..SG..5F..STD;2TRFE..TRH201,203,223..(03S,14S,15S,16S)..5F..(GCC,GEN,SA)

 1
04111-75809

2TRFE..TRH201,203,213,22#..5F..(GCC,SA)

 1
04111-75B10

2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(03S,06S);2TRFE..TRH201,213..LHD..SG..5F..STD;2TRFE..TRH201,203,223..(03S,14S,15S,16S)..5F..(GCC,GEN,SA)

 1
04111-75C41

2TRFE..TRH201..06S..GCC;2TRFE..TRH221..SP..(03S,06S);2TRFE..TRH201,203,213,223..(03S,10S,14S,15S,16S)..5F..(GCC,GEN,SA)

 1
04111-75C40

2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(03S,06S);2TRFE..TRH201,213..LHD..SG..5F..STD;2TRFE..TRH201,203,223..(03S,14S,15S,16S)..5F..(GCC,GEN,SA)

 1
04111-75C22

2TRFE..TRH223..TH;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH201,213,221..GCC,TH

 1
04111-75C42

2TRFE..TRH201,221..GCC;2TRFE..TRH223..5F..GL..GCC

WITHOUT(DESTINATION PACKAGE)

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-75674

2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(03S,06S);2TRFE..TRH201,213..LHD..SG..5F..STD;2TRFE..TRH201,203,223..(03S,14S,15S,16S)..5F..(GCC,GEN,SA)

 1
04112-75675

2TRFE..TRH201,221..GCC;2TRFE..TRH223..5F..GL..GCC

WITHOUT(DESTINATION PACKAGE)

 1
04112-75685

2TRFE..TRH223..TH;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH201,213,221..GCC,TH

 1
Linked diagrams
1104
1105
1106
1302
1501
1502
1601
1603
1701
1702
2211
