RH42RB-JRGQ (1977)
Toyota Hiace
Production
Feb 1977
-
Nov 1982
Engine
18R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7702-7804)RH22,42 ; (7702-7804)RH20,3#..RHD ; (7702-7804)LHD..12S..EUR ; (7702-780
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88344 - GLASS SUB-ASSY, SIGHT | ||||
| 88344-30011 |
RH42 |
1 | ||
| 88344 - GLASS SUB-ASSY, SIGHT | ||||
| 88344-30011 |
RH42 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-30450 |
RH42 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-30450 |
RH42 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95A00 |
RH42 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95A00 |
RH42 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 88434-30010 |
RH42 |
5 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 88434-30010 |
RH42 |
5 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-26050 |
RH42 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-26050 |
RH42 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95A06 |
RH42 |
1 | ||
| 88712-95A00 |
RH42 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95A06 |
RH42 |
1 | ||
| 88712-95A00 |
RH42 |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88711-95A04 |
RH42 |
1 | ||
| 88711-95A00 |
RH42 |
1 | ||
| 88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2 | ||||
| 88711-95A00 |
RH42 |
1 | ||
| 88711-95A01 |
RH42 |
1 | ||
| 88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2 | ||||
| 88711-95A00 |
RH42 |
1 | ||
| 88711-95A01 |
RH42 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-95A02 |
RH42 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95A00 |
RH42 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95A00 |
RH42 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95A01 |
RH42 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95A01 |
RH42 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-95A02 |
RH42 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-95A02 |
RH42 |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-95A03 |
RH42 |
1 | ||
| 88716-95A12 |
RH42 |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-95A03 |
RH42 |
1 | ||
| 88716-95A12 |
RH42 |
1 | ||
| Common parts | ||||
| 88713-87304 | ||||
| 88714-14010 | ||||
| 88714-14020 | ||||
| 88714-30290 | ||||
| 88718-12130 | ||||
| 88718-26020 | ||||
| 88718-95A00 | ||||
| 88718-95A01 | ||||
| 88718-95A02 | ||||
| 88718-95A03 | ||||
| 88896-12030 | ||||
| 90099-32094 | ||||
| 90461-08205 | ||||
| 90461-10117 | ||||
| 90461-10923 | ||||
| 93385-16016 | ||||
| 93540-14008 | ||||
| 93540-15010 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
(7702-7804)RH22 ; (7702-7804)RH20,3#..RHD ; (7702-7804)LHD..12S..EUR ; (7702-7804)R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2 | ||||
| 88712-95A01 |
RH42 |
2 | ||
| 88712-95A07 |
RH42 |
2 | ||
| 88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2 | ||||
| 88712-95A01 |
RH42 |
2 | ||
| 88712-95A07 |
RH42 |
2 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-90702 |
RH42 |
1 | ||
| 88716H - PIPE, COOLER REFRIGERANT LIQUID, H | ||||
| 88716-95A11 |
RH42 |
1 | ||
| 88716-90700 |
RH42 |
1 | ||
| 88716R - COVER, PIPE OR HOSE, NO.1 | ||||
| 88897-90700 |
RH42 |
1 | ||
| 88716S - COVER, PIPE OR HOSE, NO.2 | ||||
| 88897-95A00 |
RH42 |
1 | ||
| 88716T - COVER, PIPE OR HOSE, NO.3 | ||||
| 88898-95A01 |
RH42 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-90700 |
RH42 LH |
1 | ||
| 88717-95A05 |
RH42 RH |
1 | ||
| 88717-90702 |
RH42 RH |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-90700 |
RH42 LH |
1 | ||
| 88717-95A05 |
RH42 RH |
1 | ||
| 88717-90702 |
RH42 RH |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-95A06 |
RH42 |
1 | ||
| 88717-95A00 |
RH42 |
1 | ||
| Common parts | ||||
| 88713-87304 | ||||
| 88718-14110 | ||||
| 88718-95A02 | ||||
| 88718-95A04 | ||||
| 90099-00914 | ||||
| 90099-00919 | ||||
| 90099-32084 | ||||
| 90099-32085 | ||||
| 93540-14008 | ||||
| 93540-15010 | ||||

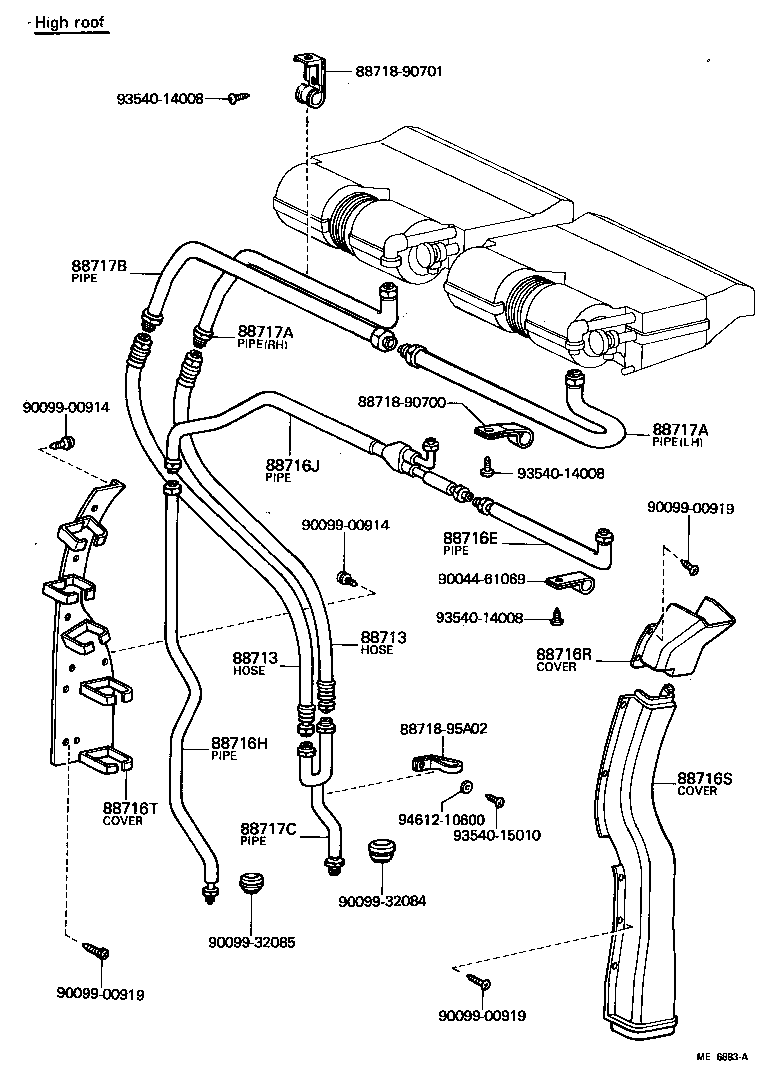

(7702-7804)RH42
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2 | ||||
| 88712-95A01 |
RH42 |
2 | ||
| 88712-95A07 |
RH42 |
2 | ||
| 88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2 | ||||
| 88712-95A01 |
RH42 |
2 | ||
| 88712-95A07 |
RH42 |
2 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-90702 |
RH42 |
1 | ||
| 88716H - PIPE, COOLER REFRIGERANT LIQUID, H | ||||
| 88716-95A11 |
RH42 |
1 | ||
| 88716-90700 |
RH42 |
1 | ||
| 88716J - PIPE, COOLER REFRIGERANT LIQUID, J | ||||
| 88716-90701 |
RH42 |
1 | ||
| 88716-95A10 |
RH42 |
1 | ||
| 88716R - COVER, PIPE OR HOSE, NO.1 | ||||
| 88897-90700 |
RH42 |
1 | ||
| 88716S - COVER, PIPE OR HOSE, NO.2 | ||||
| 88897-95A00 |
RH42 |
1 | ||
| 88716T - COVER, PIPE OR HOSE, NO.3 | ||||
| 88898-95A01 |
RH42 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-90700 |
RH42 LH |
1 | ||
| 88717-95A05 |
RH42 RH |
1 | ||
| 88717-90702 |
RH42 RH |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-90700 |
RH42 LH |
1 | ||
| 88717-95A05 |
RH42 RH |
1 | ||
| 88717-90702 |
RH42 RH |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-95A06 |
RH42 |
1 | ||
| 88717-90701 |
RH42 |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-95A06 |
RH42 |
1 | ||
| 88717-95A00 |
RH42 |
1 | ||
| Common parts | ||||
| 88718-90700 | ||||
| 88718-90701 | ||||
| 88718-95A02 | ||||
| 90044-61069 | ||||
| 90099-00914 | ||||
| 90099-00919 | ||||
| 90099-32084 | ||||
| 90099-32085 | ||||
| 93540-14008 | ||||
| 93540-15010 | ||||
| 94612-10600 | ||||

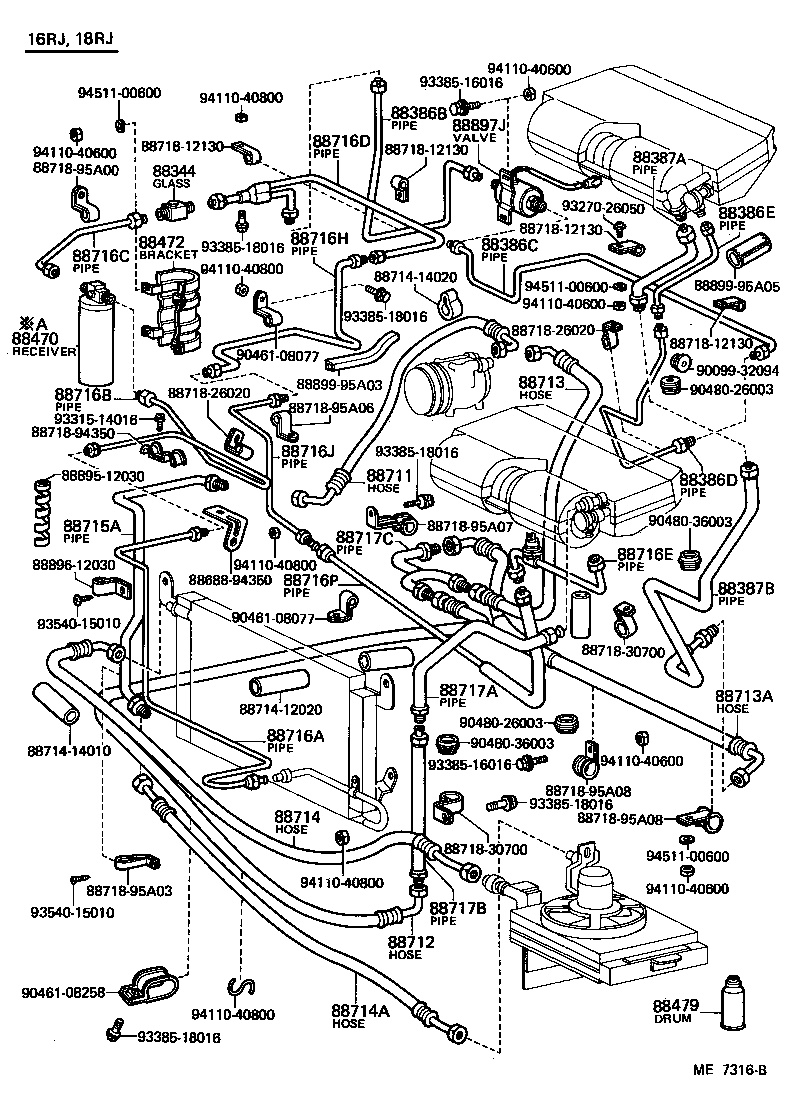

(7804-7912)RH22,32,42..RHD..BUS
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88344 - GLASS SUB-ASSY, SIGHT | ||||
| 88344-30011 |
RH42 |
1 | ||
| 88386B - PIPE, REAR COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95A13 |
RH42 |
1 | ||
| 88386C - PIPE, REAR COOLER REFRIGERANT LIQUID, C | ||||
| 88716-95A14 |
RH42 |
1 | ||
| 88386D - PIPE, REAR COOLER REFRIGERANT LIQUID, D | ||||
| 88716-95A15 |
RH42 |
1 | ||
| 88386E - PIPE, REAR COOLER REFRIGERANT LIQUID, E (TO COOLER UNIT | ||||
| 88716-95A16 |
RH42 |
1 | ||
| 88387A - PIPE, RR COOLER REFRIGERANT SUCTION, A (FROM COOLER UNI | ||||
| 88717-95A07 |
RH42 |
1 | ||
| 88387B - PIPE, REAR COOLER REFRIGERANT SUCTION, B | ||||
| 88717-95A08 |
RH42 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-30450 |
RH42 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95A00 |
RH42 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 88434-30010 |
RH42 |
5 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-26050 |
RH42 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95A06 |
RH42 |
1 | ||
| 88712-95A00 |
RH42 |
1 | ||
| 88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2 | ||||
| 88712-95A01 |
RH42 |
2 | ||
| 88712-95A07 |
RH42 |
2 | ||
| 88713A - HOSE, COOLER REFRIGERANT SUCTION, NO.3 | ||||
| 88712-95A08 |
RH42 |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88711-95A04 |
RH42 |
1 | ||
| 88711-95A00 |
RH42 |
1 | ||
| 88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2 | ||||
| 88711-95A00 |
RH42 |
1 | ||
| 88711-95A01 |
RH42 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-95A02 |
RH42 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95A00 |
RH42 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95A01 |
RH42 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-95A02 |
RH42 |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-95A03 |
RH42 |
1 | ||
| 88716-95A12 |
RH42 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-90702 |
RH42 |
1 | ||
| 88716H - PIPE, COOLER REFRIGERANT LIQUID, H | ||||
| 88716-95A11 |
RH42 |
1 | ||
| 88716-90700 |
RH42 |
1 | ||
| 88716J - PIPE, COOLER REFRIGERANT LIQUID, J | ||||
| 88716-90701 |
RH42 |
1 | ||
| 88716-95A10 |
RH42 |
1 | ||
| 88716P - PIPE, COOLER REFRIGERANT LIQUID, P | ||||
| 88716-95A09 |
RH42 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-90700 |
RH42 LH |
1 | ||
| 88717-95A05 |
RH42 RH |
1 | ||
| 88717-90702 |
RH42 RH |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-95A06 |
RH42 |
1 | ||
| 88717-90701 |
RH42 |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-95A06 |
RH42 |
1 | ||
| 88717-95A00 |
RH42 |
1 | ||
| 88897J - VALVE, COOLER MAGNET | ||||
| 88897-95A05 |
RH42 |
1 | ||
| Common parts | ||||
| 88688-94350 | ||||
| 88714-12020 | ||||
| 88714-14010 | ||||
| 88714-14020 | ||||
| 88718-12130 | ||||
| 88718-26020 | ||||
| 88718-30700 | ||||
| 88718-94350 | ||||
| 88718-95A00 | ||||
| 88718-95A03 | ||||
| 88718-95A06 | ||||
| 88718-95A07 | ||||
| 88718-95A08 | ||||
| 88895-12030 | ||||
| 88896-12030 | ||||
| 88899-95A03 | ||||
| 88899-95A05 | ||||
| 90099-32094 | ||||
| 90461-08077 | ||||
| 90461-08258 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 93270-26050 | ||||
| 93315-14016 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||
| 93540-15010 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
(7804-7912)RH22,42 ; (7804-7912)RH20,3#..RHD ; (7804-7912)LHD..12S..EUR ; (7804-791
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88367 - SHROUD, COOLER BLOWER FAN | ||||
| 88891-95A00 |
RH42 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-95A01 |
RH42 |
1 | ||
| 88453-95A00 |
RH42 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95A01 |
RH42 W/MOTOR FAN |
1 | ||
| 88460-95A00 |
RH42 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95A01 |
RH42 W/MOTOR FAN |
1 | ||
| 88460-95A00 |
RH42 |
1 | ||
| 88460A - COVER, COOLER CONDENSER | ||||
| 88896-95A00 |
RH42 |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88898-95A00 |
RH42 |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95A00 |
RH42 |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95A01 |
RH42 |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95A00 |
RH42 |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-95A00 |
RH42 |
1 | ||
| 88550-95A02 |
RH42 |
1 | ||
| Common parts | ||||
| 88688-95A10 | ||||
| 90099-04910 | ||||
| 90099-12405 | ||||
| 93315-15016 | ||||
| 93385-18014 | ||||
| 94612-11000 | ||||
(7702-7804)RH22,42 ; (7702-7804)RH20,3#..RHD ; (7702-7804)LHD..12S..EUR ; (7702-780
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88367 - SHROUD, COOLER BLOWER FAN | ||||
| 88891-95A00 |
RH42 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-95A01 |
RH42 |
1 | ||
| 88453-95A00 |
RH42 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95A01 |
RH42 W/MOTOR FAN |
1 | ||
| 88460-95A00 |
RH42 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95A01 |
RH42 W/MOTOR FAN |
1 | ||
| 88460-95A00 |
RH42 |
1 | ||
| 88460A - COVER, COOLER CONDENSER | ||||
| 88896-95A00 |
RH42 |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88898-95A00 |
RH42 |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95A00 |
RH42 |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95A01 |
RH42 |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95A00 |
RH42 |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-95A00 |
RH42 |
1 | ||
| 88550-95A02 |
RH42 |
1 | ||
| Common parts | ||||
| 88890-95A00 | ||||
| 90099-04910 | ||||
| 93315-15012 | ||||
| 93385-18014 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94521-00600 | ||||
| 94612-11000 | ||||
(7702- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-30450 |
RH42 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
RH42 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
