RH42RB-JRGQ (1977)

Toyota Hiace

Production Feb 1977 - Nov 1982
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )RH42

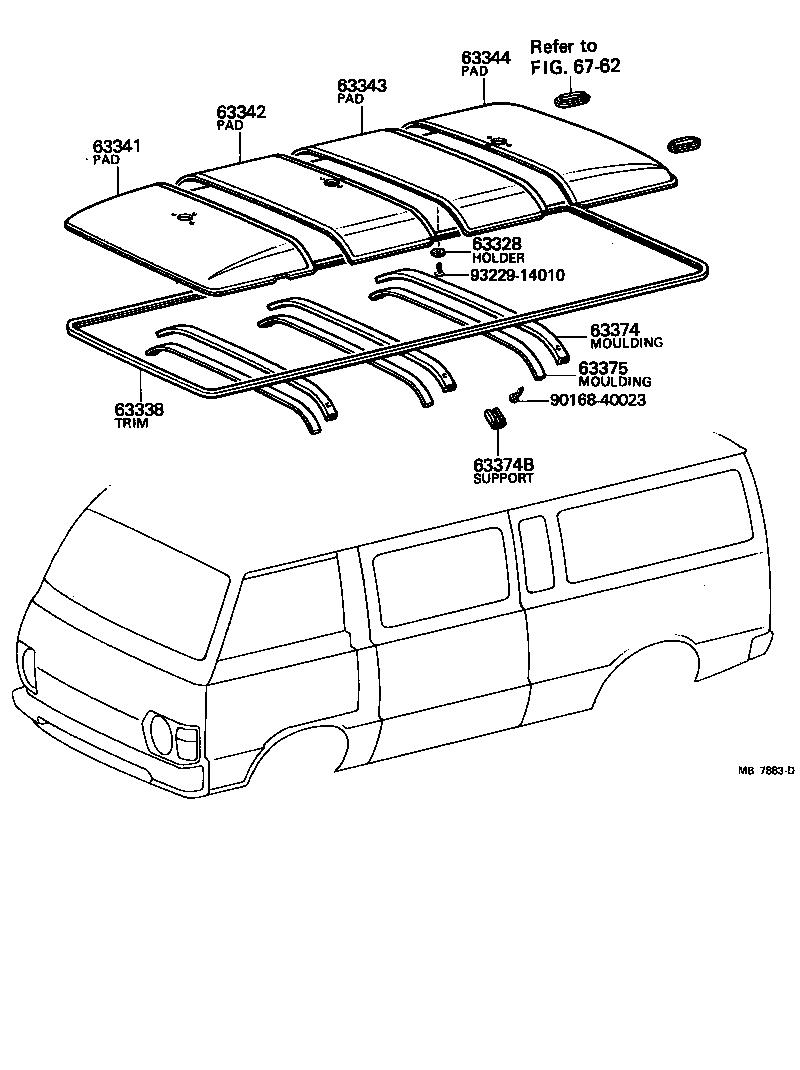

Click highlighted areas on diagram

diagram 63328 63338 63341 63342 63343 63344 63374 63374B 63375 6762 9016840023 9322914010
Part # Description Qty Price
63328 - HOLDER, ROOF LINING
63359-90700

RH42

 4
63338 - TRIM, ROOF LINING
63338-90701

RH42

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-95A09

RH11,2#,3#..BUS,TR,V

 1
63311-90700

RH42

 1
63342 - PAD, ROOF SILENCER, NO.2
63312-90700

RH42

 1
63312-90702

RH42

 1
63343 - PAD, ROOF SILENCER, NO.3
63313-90700

RH42

 1
63313-90701

RH42

 1
63344 - PAD, ROOF SILENCER, NO.4
63314-90701

RH42

 1
63314-90700

RH42

 1
63374 - MOULDING, ROOF BOARD SET
63331-90700

RH42

 3
63374B - SUPPORT, ROOF INNER BOARD SET MOULDING
62171-90010

RH42

 6
63375 - MOULDING, ROOF VINYL
63333-90700

RH42

 3
Common parts
90168-40023
93229-14010
Linked diagrams
6762

(7702- )BUS,TR,V

Click highlighted areas on diagram

diagram 63341 63341 63341 63342 63342 63342 63343 63343 63344 63345 6762
Part # Description Qty Price
63341 - PAD, ROOF SILENCER, NO.1
63341-95A09

RH11,2#,3#..BUS,TR,V

 1
63311-90700

RH42

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-95A09

RH11,2#,3#..BUS,TR,V

 1
63311-90700

RH42

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-95A09

RH11,2#,3#..BUS,TR,V

 1
63311-90700

RH42

 1
63342 - PAD, ROOF SILENCER, NO.2
63312-90700

RH42

 1
63312-90702

RH42

 1
63342 - PAD, ROOF SILENCER, NO.2
63312-90700

RH42

 1
63312-90702

RH42

 1
63342 - PAD, ROOF SILENCER, NO.2
63312-90700

RH42

 1
63312-90702

RH42

 1
63343 - PAD, ROOF SILENCER, NO.3
63313-90700

RH42

 1
63313-90701

RH42

 1
63343 - PAD, ROOF SILENCER, NO.3
63313-90700

RH42

 1
63313-90701

RH42

 1
63344 - PAD, ROOF SILENCER, NO.4
63314-90701

RH42

 1
63314-90700

RH42

 1
Linked diagrams
6762
