RH32RV-JRFQ (1977)
Toyota Hiace
Production
Feb 1977
-
Nov 1982
Engine
18R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7706- )18R..RH22,32..ARL ; (8010- )12R..RH11,20..ARL

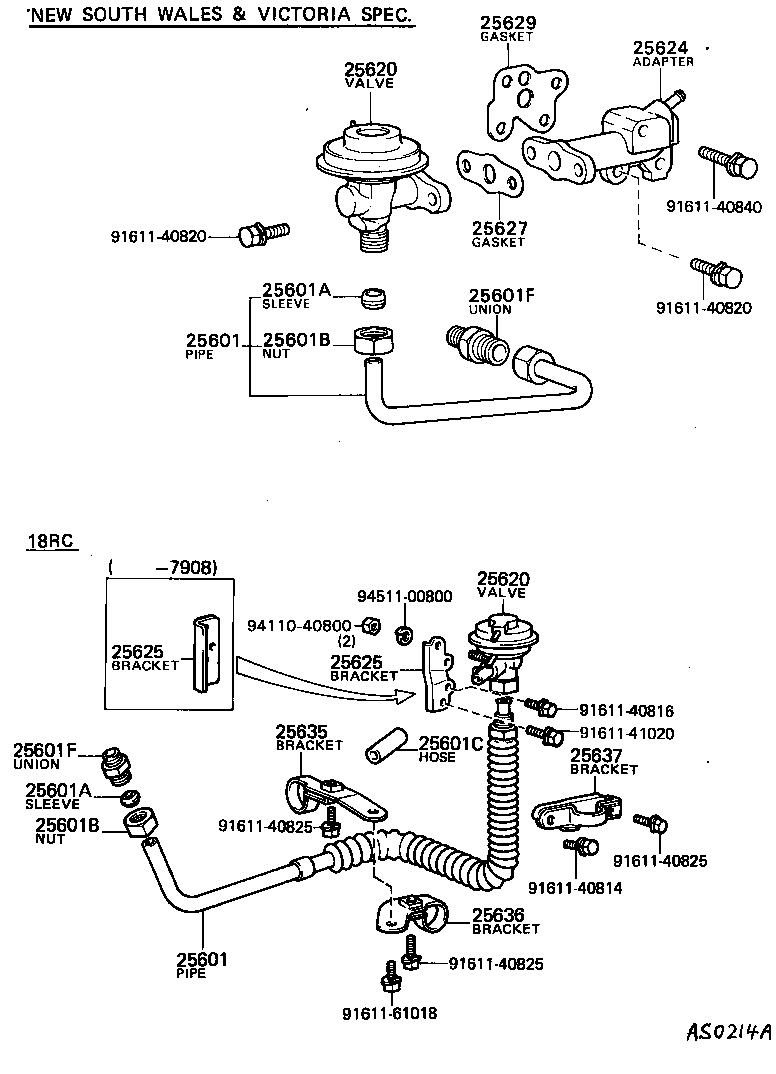

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25601-34020 |
18R..RH22,32..ARL 18RC |
1 | ||
| 25601-34021 |
18R..RH22,32..ARL 18RC |
1 | ||
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25601-34020 |
18R..RH22,32..ARL 18RC |
1 | ||
| 25601-34021 |
18R..RH22,32..ARL 18RC |
1 | ||
| 25601A - SLEEVE, BALL, EGR PIPE, NO.1 | ||||
| 90410-18038 |
18R..RH22,32..ARL 18RC |
1 | ||
| 25601A - SLEEVE, BALL, EGR PIPE, NO.1 | ||||
| 90410-18038 |
18R..RH22,32..ARL 18RC |
1 | ||
| 25601B - NUT, UNION, EGR PIPE, NO.1 | ||||
| 90402-26074 |
18R..RH22,32..ARL 18RC |
1 | ||
| 25601B - NUT, UNION, EGR PIPE, NO.1 | ||||
| 90402-26074 |
18R..RH22,32..ARL 18RC |
1 | ||
| 25601C - HOSE(FOR EGR PIPE, NO.1) | ||||
| 90445-20016 |
18R..RH22,32..ARL 18RC |
1 | ||
| 90445-23004 |
18R..RH22,32..ARL 18RC |
1 | ||
| 90445-19956 |
18R..RH22,32..ARL 18RC |
1 | ||
| 25601F - UNION(FOR EGR PIPE, NO.1) | ||||
| 90404-26284 |
18R..RH22,32..ARL 18RC |
1 | ||
| 25601F - UNION(FOR EGR PIPE, NO.1) | ||||
| 90404-26284 |
18R..RH22,32..ARL 18RC |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-34130 |
18R..RH22,32..ARL 18RC |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-34130 |
18R..RH22,32..ARL 18RC |
1 | ||
| 25625 - BRACKET, EGR VALVE | ||||
| 25625-34011 |
18R..RH22,32..ARL 18RC |
1 | ||
| 25625-34012 |
18R..RH22,32..ARL 18RC |
1 | ||
| 25625 - BRACKET, EGR VALVE | ||||
| 25625-34011 |
18R..RH22,32..ARL 18RC |
1 | ||
| 25625-34012 |
18R..RH22,32..ARL 18RC |
1 | ||
| 25635 - BRACKET, EGR PIPE, NO.1 | ||||
| 25635-34010 |
18R..RH22,32..ARL 18RC |
1 | ||
| 25636 - BRACKET, EGR PIPE, NO.2 | ||||
| 25636-34010 |
18R..RH22,32..ARL 18RC |
1 | ||
| 25637 - BRACKET, EGR PIPE, NO.3 | ||||
| 25637-34010 |
18R..RH22,32..ARL 18RC |
1 | ||
| Common parts | ||||
| 91611-40814 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91611-40825 | ||||
| 91611-40840 | ||||
| 91611-41020 | ||||
| 91611-61018 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
