RH32RV-JRFQ (1977)

Toyota Hiace

Production Feb 1977 - Nov 1982
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7706- )18R..RH22,32..ARL

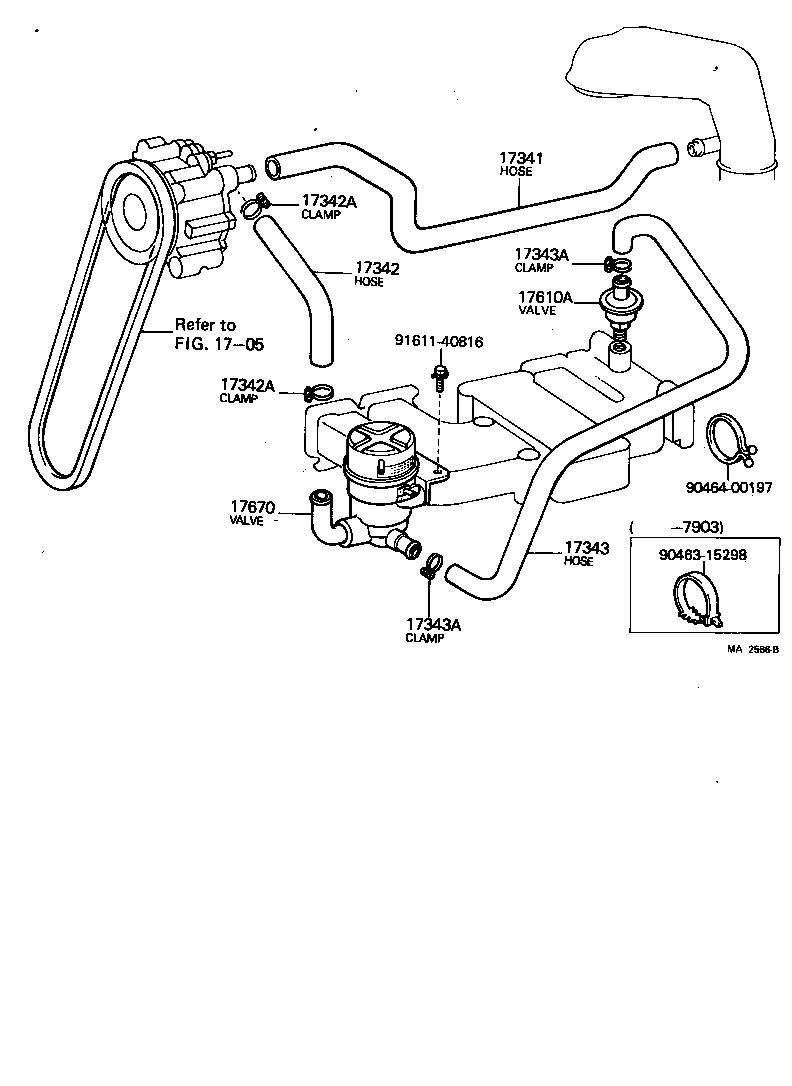

Click highlighted areas on diagram

diagram 1705 17341 17342 17342A 17342A 17343 17343A 17343A 17610A 17670 9046315298 9046400197 9161140816
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-34050

18R..RH22,32..ARL

18RC

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-34020

18R..RH22,32..ARL

18RC

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
96112-10300

18R..RH22,32..ARL

18RC

 2
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
96112-10300

18R..RH22,32..ARL

18RC

 2
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-34040

18R..RH22,32..ARL

18RC

 1
17343-34050

18R..RH22,32..ARL

18RC

 1
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
96112-10270

18R..RH22,32..ARL

18RC

 2
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
96112-10270

18R..RH22,32..ARL

18RC

 2
17610A - VALVE, CHECK(FOR AIR INJECTION SYSTEM)
90917-10039

18R..RH22,32..ARL

18RC

 1
17670 - VALVE ASSY, AIR BY-PASS
17670-34030

18R..RH22,32..ARL

18RC

 1
Common parts
90463-15298
90464-00197
91611-40816
Linked diagrams
1705
