RH32RV-JRFQ (1977)

Toyota Hiace

Production Feb 1977 - Nov 1982
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7707- )18R..RH25,32..EUR ; (8004- )18R..RH22,32,42..ARL

Click highlighted areas on diagram

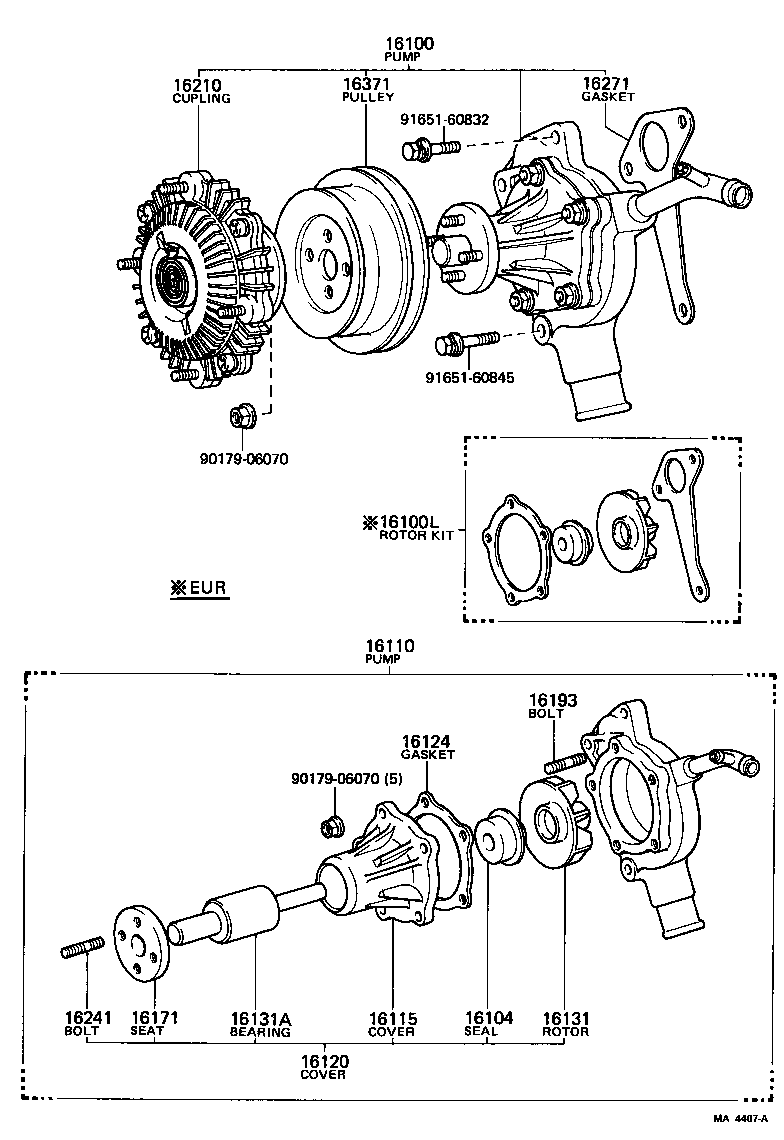

diagram 16100 16100L 16104 16110 16115 16120 16124 16131 16131A 16171 16193 16210 16241 16271 16371 9017906070 9017906070 9165160832 9165160845
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39215

18R..RH22,32,42..ARL,GEN,SA

 1
16100-39245

18R..RH22,32,42..ARL,GEN,SA

 1
16100-39245

18R..RH22,32..ARL

18RC

 1
16100-39295

18R..RH22,32,42..ARL

 1
16100L - ROTOR KIT, WATER PUMP
04162-34010

18R..RH25,32

 1
04162-34010

18R..RH22,32,42..ARL,GEN,SA

 1
16104 - SEAL SET, WATER PUMP
16104-41111

18R..RH22,32,42..ARL,GEN,SA

 1
16104-41111

18R..RH22,32,42..ARL

 1
16104-41110

18R..RH22,32,42..ARL,GEN,SA

 1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-34100

18R..RH22,32,42..ARL

 1
16115 - COVER, WATER PUMP
16115-41110

18R..RH22,32,42..ARL,GEN,SA

 1
16115-41110

18R..RH22,32,42..ARL

 1
16120 - COVER ASSY, WATER PUMP
16120-34101

18R..RH22,32,42..ARL

 1
16120-34090

18R..RH22,32,42..ARL,GEN,SA

 1
16124 - GASKET, WATER PUMP COVER
16129-33030

18R..RH22,25,32,42

 1
16131 - ROTOR, WATER PUMP
16131-41110

18R..RH22,32,42..ARL,GEN,SA

 1
16131-41110

18R..RH22,32,42..ARL

 1
16131A - BEARING, WATER PUMP
90369-30028

18R..RH22,32,42..ARL,GEN,SA

 1
90369-30005

18R..RH22,32,42..ARL

WPB 16112R-4RS

 1
16171 - SEAT, WATER PUMP PULLEY
16171-24030

18R..RH22,32,42..ARL

 1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-33030

18R..RH22,25,32,42

 5
16210 - COUPLING ASSY, FLUID
16210-34090

18R..RH22,32,42..ARL,GEN,SA

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16241-40030

18R..RH22,32,42..ARL,GEN,SA

 4
16193-33030

18R..RH22,32,42..ARL

 4
16271 - GASKET, WATER PUMP
16271-33010

18R..RH22,25,32,42

 1
16371 - PULLEY, FAN
16173-34100

18R..RH22,32,42..ARL

 1
Common parts
90179-06070
91651-60832
91651-60845

(7804-8004)18R..RH22,32,42..ARL,GEN,SA ; (8004-8102)18R..RH22,32,42..GEN,SA

Click highlighted areas on diagram

diagram 16100 16100L 16104 16115 16120 16124 16131 16131A 16193 16202 16210 16221 16226 16241 16243 16271 9017906070 9033916007 9165160832 9165160845 9322016016 9328016010 9611210250
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39215

18R..RH22,32,42..ARL,GEN,SA

 1
16100-39245

18R..RH22,32,42..ARL,GEN,SA

 1
16100-39245

18R..RH22,32..ARL

18RC

 1
16100-39295

18R..RH22,32,42..ARL

 1
16100L - ROTOR KIT, WATER PUMP
04162-34010

18R..RH25,32

 1
04162-34010

18R..RH22,32,42..ARL,GEN,SA

 1
16104 - SEAL SET, WATER PUMP
16104-41111

18R..RH22,32,42..ARL,GEN,SA

 1
16104-41111

18R..RH22,32,42..ARL

 1
16104-41110

18R..RH22,32,42..ARL,GEN,SA

 1
16115 - COVER, WATER PUMP
16115-41110

18R..RH22,32,42..ARL,GEN,SA

 1
16115-41110

18R..RH22,32,42..ARL

 1
16120 - COVER ASSY, WATER PUMP
16120-34101

18R..RH22,32,42..ARL

 1
16120-34090

18R..RH22,32,42..ARL,GEN,SA

 1
16124 - GASKET, WATER PUMP COVER
16129-33030

18R..RH22,25,32,42

 1
16131 - ROTOR, WATER PUMP
16131-41110

18R..RH22,32,42..ARL,GEN,SA

 1
16131-41110

18R..RH22,32,42..ARL

 1
16131A - BEARING, WATER PUMP
90369-30028

18R..RH22,32,42..ARL,GEN,SA

 1
90369-30005

18R..RH22,32,42..ARL

WPB 16112R-4RS

 1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-33030

18R..RH22,25,32,42

 5
16202 - PULLEY & BEARING CASE SUB-ASSY, FLUID COUPLING
16202-34090

18R..RH22,32,42..ARL,GEN,SA

 1
16210 - COUPLING ASSY, FLUID
16210-34090

18R..RH22,32,42..ARL,GEN,SA

 1
16221 - CASE, FLUID COUPLING
16221-45010

18R..RH22,32,42..ARL,GEN,SA

 1
16226 - GASKET, FLUID COUPLING CASE
16226-45010

18R..RH22,32,42..ARL,GEN,SA

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16241-40030

18R..RH22,32,42..ARL,GEN,SA

 4
16193-33030

18R..RH22,32,42..ARL

 4
16243 - WASHER, PLATE(FOR WATER PUMP)
16243-40030

18R..RH22,32,42..ARL,GEN,SA

 1
16271 - GASKET, WATER PUMP
16271-33010

18R..RH22,25,32,42

 1
Common parts
90179-06070
90339-16007
91651-60832
91651-60845
93220-16016
93280-16010
96112-10250

(7901- )L

Click highlighted areas on diagram

diagram 16100 16171 16210 16241 16271 16371 9011908108 9011908108 9017906158
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39215

18R..RH22,32,42..ARL,GEN,SA

 1
16100-39245

18R..RH22,32,42..ARL,GEN,SA

 1
16100-39245

18R..RH22,32..ARL

18RC

 1
16100-39295

18R..RH22,32,42..ARL

 1
16171 - SEAT, WATER PUMP PULLEY
16171-24030

18R..RH22,32,42..ARL

 1
16210 - COUPLING ASSY, FLUID
16210-34090

18R..RH22,32,42..ARL,GEN,SA

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16241-40030

18R..RH22,32,42..ARL,GEN,SA

 4
16193-33030

18R..RH22,32,42..ARL

 4
16271 - GASKET, WATER PUMP
16271-33010

18R..RH22,25,32,42

 1
16371 - PULLEY, FAN
16173-34100

18R..RH22,32,42..ARL

 1
Common parts
90119-08108
90179-06158

(7702-7804)18R..ARL,GEN,SA ; (7804-8004)18R..RH22,32..ARL ; (8102- )18R..RH22,32

Click highlighted areas on diagram

diagram 16100 16109 16124 16193 16241 16243 16271 9017906070 9033916007 9165160832 9165160845 9322016016 9328016010 9611210250
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39215

18R..RH22,32,42..ARL,GEN,SA

 1
16100-39245

18R..RH22,32,42..ARL,GEN,SA

 1
16100-39245

18R..RH22,32..ARL

18RC

 1
16100-39295

18R..RH22,32,42..ARL

 1
16109 - PUMP SUB-ASSY, WATER
16109-34110

18R..RH22,32..ARL

18RC

 1
16109-34110

18R..RH22,32,42..ARL,GEN,SA

 1
16124 - GASKET, WATER PUMP COVER
16129-33030

18R..RH22,25,32,42

 1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-33030

18R..RH22,25,32,42

 5
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16241-40030

18R..RH22,32,42..ARL,GEN,SA

 4
16193-33030

18R..RH22,32,42..ARL

 4
16243 - WASHER, PLATE(FOR WATER PUMP)
16243-40030

18R..RH22,32,42..ARL,GEN,SA

 1
16271 - GASKET, WATER PUMP
16271-33010

18R..RH22,25,32,42

 1
Common parts
90179-06070
90339-16007
91651-60832
91651-60845
93220-16016
93280-16010
96112-10250
