RH32RV-JRFE (1977)
Toyota Hiace
(7702-7912)LH20,30,RH2#,3#..06S ; (7912- )LH20,30,RH20,22,3#..RHD..06S

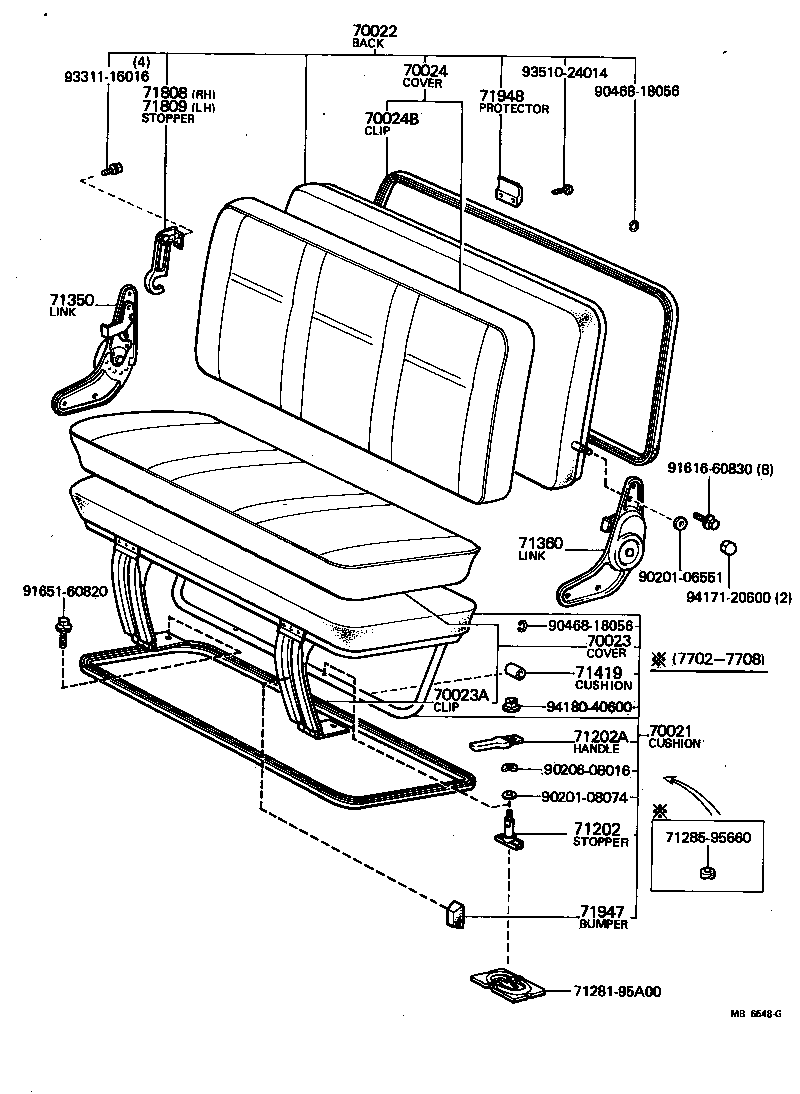

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70021 - CUSHION ASSY, NO.2 SEAT | ||||
| 71410-95A0005 |
LH20,RH2#,3#..RHD..06S BEIGE,BEIGE |
1 | ||
| 70022 - BACK ASSY, NO.2 SEAT | ||||
| 71450-95A0005 |
LH20,30,RH2#,3#..06S BEIGE,BEIGE |
1 | ||
| 70023 - COVER ASSY, NO.2 SEAT CUSHION | ||||
| 71440-95A0005 |
LH20,30,RH2#,3#..06S BEIGE,BEIGE |
1 | ||
| 70023A - CLIP, LEATHER (FOR SEAT CUSHION COVER) | ||||
| 71417-9570105 |
LH20,30,RH2#,3#..06S BEIGE |
1 | ||
| 70024 - COVER ASSY, NO.2 SEAT BACK | ||||
| 71490-95A0005 |
LH20,30,RH2#,3#..06S BEIGE,BEIGE |
1 | ||
| 70024B - CLIP, LEATHER(FOR SEAT BACK COVER) | ||||
| 71418-9570105 |
LH20,30,RH2#,3#..06S BEIGE |
1 | ||
| 71202 - STOPPER SUB-ASSY, REAR SEAT LEG | ||||
| 71208-95660 |
RH2#,3#..06S |
1 | ||
| 71054-95A00 |
RH2#,3#..06S L=47.8 |
1 | ||
| 71202A - HANDLE, REAR SEAT LEG STOPPER | ||||
| 71286-95660 |
RH2#,3#..06S |
1 | ||
| 71616-95A00 |
RH2#,3#..06S |
1 | ||
| 71350 - LINK ASSY, REAR SEAT BACK CUSHION, RH | ||||
| 71405-95A02 |
LH20,RH2#,3#..RHD..06S |
1 | ||
| 71360 - LINK ASSY, REAR SEAT BACK CUSHION, LH | ||||
| 71406-95A02 |
LH20,RH2#,3#..RHD..06S |
1 | ||
| 71419 - CUSHION (FOR REAR SEAT LEG) | ||||
| 71419-95A00 |
LH20,30,RH20,22,3#..06S |
2 | ||
| 71808 - STOPPER SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71041-95A00 |
LH20,30,RH2#,3#..06S |
1 | ||
| 71809 - STOPPER SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71043-95A00 |
LH20,30,RH2#,3#..06S |
1 | ||
| 71947 - BUMPER, PASSENGER SEAT CUSHION | ||||
| 71947-95663 |
LH20,30,RH20,22,3#..06S |
2 | ||
| 71948 - PROTECTOR, PASSENGER SEAT BACK | ||||
| 71948-95660 |
RH2#,3#..06S |
2 | ||
| Common parts | ||||
| 71281-95A00 | ||||
| 71285-95660 | ||||
| 90201-06551 | ||||
| 90201-08074 | ||||
| 90206-08016 | ||||
| 90468-18056 | ||||
| 91616-60830 | ||||
| 91651-60820 | ||||
| 93311-16016 | ||||
| 93510-24014 | ||||
| 94171-20600 | ||||
| 94180-40600 | ||||
(7702- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71012 - SUPPORT SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71012-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD |
1 | ||
| 71012A - GUIDE, FRONT SEAT BACK SUPPORT, LH | ||||
| 71297-95A00 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 71110S - CUSHION ASSY, FRONT SEAT, RH | ||||
| 71110-95A0805 |
LH20,30,RH2#,3#,42..RHD T=1.5 BEIGE,BEIGE |
1 | ||
| 71110-95A10 |
LH20,30,RH2#,3#,42..RHD..GEN T=0.45 BEIGE |
1 | ||
| 71110-95A13 |
LH20,RH11,20,22,3#..RHD..(03S,06S)..GEN T=0.45 BROWN |
1 | ||
| 71110-95A22 |
LH11,20,30,RH11,20,22,3#..RHD..(TR,V,WG) T=1.5 BROWN |
1 | ||
| 71140S - COVER, FRONT SEAT CUSHION, RH | ||||
| 71140-95A08 |
LH20,30,RH11,20,22,3#..(03S,06S)..GEN T=0.45 BROWN |
1 | ||
| 71140-95A15 |
LH11,20,30,RH11,20,22,3#..TR,V,WG T=1.5 BROWN |
1 | ||
| 71140-95A0505 |
LH20,30,RH2#,3#,42 T=1.5 BEIGE,BEIGE |
1 | ||
| 71140-95A06 |
LH20,30,RH2#,3#,42..GEN,PHL T=0.45 BEIGE |
1 | ||
| 71150S - BACK ASSY, FRONT SEAT, RH | ||||
| 71150-95A2805 |
LH20,30,RH2#,3#,42..RHD T=1.5,*LBS,W/RECLINING,BEIGE,BEIGE |
1 | ||
| 71150-95A3405 |
LH20,30,RH2#,3#,42..RHD T=1.5,*HBS,W/RECLINING,BEIGE,BEIGE |
1 | ||
| 71150-95A5506 |
LH20,RH11,20,22,3#..RHD..(03S,06S)..GEN T=0.45,*LBS,W/RECLINING,BROWN,BROWN |
1 | ||
| 71150-95A38 |
LH20,30,RH2#,3#,42..RHD..GEN T=0.45,*LBS,W/RECLINING,BEIGE |
1 | ||
| 71150-95A42 |
LH20,30,RH2#,3#,42..RHD..GEN T=0.45,*HBS,W/RECLINING,BEIGE |
1 | ||
| 71150-95A64 |
LH11,20,30,RH11,20,22,3#..RHD..(TR,V,WG) T=1.5,*HBS,W/RECLINING,BROWN |
1 | ||
| 71150-95A63 |
LH20,RH11,20,22,3#..RHD..(03S,06S)..GEN T=0.45,*HBS,W/RECLINING,BROWN |
1 | ||
| 71150-95A5806 |
LH11,20,30,RH11,20,22,3#..RHD..(TR,V,WG) T=1.5,*LBS,W/RECLINING,BROWN,BROWN |
1 | ||
| 71190S - COVER, FRONT SEAT BACK, RH | ||||
| 71190-95A17 |
LH20,30,RH11,20,22,3#..(03S,06S)..GEN T=0.45,*HBS,BROWN |
1 | ||
| 71190-95A1405 |
LH20,30,RH2#,3#,42 T=1.5,*HBS,BEIGE,BEIGE |
1 | ||
| 71190-95A1205 |
LH20,30,RH2#,3#,42 T=1.5,*LBS,BEIGE,BEIGE |
1 | ||
| 71190-95A16 |
LH20,30,RH2#,3#,42..GEN,PHL T=0.45,*HBS,BEIGE |
1 | ||
| 71190-95A2406 |
LH20,30,RH11,20,22,3#..(03S,06S)..GEN T=0.45,*LBS,BROWN,BROWN |
1 | ||
| 71190-95A15 |
LH20,30,RH2#,3#,42..GEN,PHL T=0.45,*LBS,BEIGE |
1 | ||
| 71190-95A2606 |
LH11,20,30,RH11,2#,3#..(TR,V,WG)..(EUR,GEN,SA) T=1.5,*LBS,BROWN,BROWN |
1 | ||
| 71190-95A28 |
LH11,20,30,RH11,2#,3#..(TR,V,WG)..(EUR,GEN,SA) T=1.5,*HBS,BROWN |
1 | ||
| 71210S - CUSHION ASSY, FRONT SEAT, LH | ||||
| 71210-95A13 |
LH20,RH11,20,22,3#..RHD..(03S,06S)..GEN T=0.45 BROWN |
1 | ||
| 71210-95A10 |
LH20,30,RH2#,3#,42..RHD..GEN T=0.45 BEIGE |
1 | ||
| 71210-95A0805 |
LH20,30,RH2#,3#,42..RHD T=1.5 BEIGE,BEIGE |
1 | ||
| 71210-95A22 |
LH11,20,30,RH11,20,22,3#..RHD..(TR,V,WG) T=1.5 BROWN |
1 | ||
| 71240S - COVER, FRONT SEAT CUSHION, LH | ||||
| 71240-95A11 |
LH20,30,RH2#,3#,42..RHD..GEN T=0.45 BEIGE |
1 | ||
| 71240-95A14 |
LH20,RH11,20,22,3#..RHD..(03S,06S)..GEN T=0.45 BROWN |
1 | ||
| 71240-95A0905 |
LH20,30,RH2#,3#,42..RHD T=1.5 BEIGE,BEIGE |
1 | ||
| 71240-95A21 |
LH11,20,30,RH11,20,22,3#..RHD..(TR,V,WG) T=1.5 BROWN |
1 | ||
| 71250S - BACK ASSY, FRONT SEAT, LH | ||||
| 71250-95A2405 |
LH20,30,RH2#,3#,42..RHD T=1.5,*LBS,BEIGE,BEIGE |
1 | ||
| 71250-95A37 |
LH20,30,RH2#,3#,42..RHD..GEN T=0.45,*HBS,BEIGE |
1 | ||
| 71250-95A3005 |
LH20,30,RH2#,3#,42..RHD T=1.5,*HBS,BEIGE,BEIGE |
1 | ||
| 71250-95A42 |
LH20,RH11,20,22,3#..RHD..(03S,06S)..GEN T=0.45,*HBS,BROWN |
1 | ||
| 71250-95A34 |
LH20,30,RH2#,3#,42..RHD..GEN T=0.45,*LBS,BEIGE |
1 | ||
| 71250-95A4906 |
LH20,RH11,20,22,3#..RHD..(03S,06S)..GEN T=0.45,*LBS,BROWN,BROWN |
1 | ||
| 71250-95A5406 |
LH11,20,30,RH11,20,22,3#..RHD..(TR,V,WG) T=1.5,*LBS,BROWN,BROWN |
1 | ||
| 71250-95A61 |
LH11,20,30,RH11,20,22,3#..RHD..(03S,06S) T=1.5,*HBS,BROWN |
1 | ||
| 71283 - BUSH, FRONT SEAT BACK SUPPORT, LH | ||||
| 71283-95A00 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 71283A - BOLT, FRONT SEAT BACK SUPPORT, LH | ||||
| 71285-95A00 |
LH11,20,30,RH11,20,22,3#,42..RHD UPR |
1 | ||
| 71282-95A00 |
LH11,20,30,RH11,20,22,3#,42..RHD LWR |
1 | ||
| 71283A - BOLT, FRONT SEAT BACK SUPPORT, LH | ||||
| 71285-95A00 |
LH11,20,30,RH11,20,22,3#,42..RHD UPR |
1 | ||
| 71282-95A00 |
LH11,20,30,RH11,20,22,3#,42..RHD LWR |
1 | ||
| 71284 - SPACER, FRONT SEAT BACK SUPPORT, LH | ||||
| 71284-95A00 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 71290S - COVER, FRONT SEAT BACK, LH | ||||
| 71190-95A1205 |
LH20,30,RH2#,3#,42 T=1.5,*LBS,BEIGE,BEIGE |
1 | ||
| 71190-95A16 |
LH20,30,RH2#,3#,42..GEN,PHL T=0.45,*HBS,BEIGE |
1 | ||
| 71190-95A15 |
LH20,30,RH2#,3#,42..GEN,PHL T=0.45,*LBS,BEIGE |
1 | ||
| 71190-95A1405 |
LH20,30,RH2#,3#,42 T=1.5,*HBS,BEIGE,BEIGE |
1 | ||
| 71190-95A17 |
LH20,30,RH11,20,22,3#..(03S,06S)..GEN T=0.45,*HBS,BROWN |
1 | ||
| 71190-95A2606 |
LH11,20,30,RH11,2#,3#..(TR,V,WG)..(EUR,GEN,SA) T=1.5,*LBS,BROWN,BROWN |
1 | ||
| 71190-95A28 |
LH11,20,30,RH11,2#,3#..(TR,V,WG)..(EUR,GEN,SA) T=1.5,*HBS,BROWN |
1 | ||
| 71190-95A2406 |
LH20,30,RH11,20,22,3#..(03S,06S)..GEN T=0.45,*LBS,BROWN,BROWN |
1 | ||
| 71294 - HINGE, FRONT SEAT BACK, LH | ||||
| 71294-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD |
1 | ||
| 71299 - BRACKET, FRONT SEAT BACK, LH | ||||
| 71209-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD |
1 | ||
| 71209-95A0506 |
LH11,20,30,RH11,20,22,3#,42..RHD..(EUR,GEN,SA) BROWN |
1 | ||
| 71306A - HINGE SUB-ASSY, CENTER SEAT, RH | ||||
| 71307-95A03 |
LH11,20,30,RH11,2#,3#,42..RHD..(EUR,GEN,SA) |
1 | ||
| 71306B - HINGE SUB-ASSY, CENTER SEAT, LH | ||||
| 71308-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 71310S - CUSHION ASSY, FRONT SEAT, CENTER | ||||
| 71310-95A0005 |
LH20,RH2#,3#..RHD..V..(EUR,GEN) BEIGE,BEIGE |
1 | ||
| 71340S - COVER, FRONT SEAT CUSHION, CENTER | ||||
| 71340-95A0005 |
LH20,30,RH2#,3#..V..(EUR,GEN,PHL) BEIGE,BEIGE |
1 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-95A0205 |
LH20,30,RH2#,3#..V..(EUR,GEN,PHL) BEIGE,BEIGE |
1 | ||
| 71390S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71390-95A0205 |
LH20,30,RH2#,3#..V..(EUR,GEN,PHL) BEIGE,BEIGE |
1 | ||
| 71390-95A11 |
LH11,20,30,RH11,20,22,3#,42..(BUS,TR,V)..(03S,06S,09S,12S,15S) BROWN |
1 | ||
| 71903 - CATCH SUB-ASSY, SEAT CUSHION, FRONT | ||||
| 71901-95016 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 71921 - RETAINER, ENGINE SERVICE HOLE COVER CATCH | ||||
| 71921-95700 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72710-95A00 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD |
1 | ||
| Common parts | ||||
| 90119-08060 | ||||
| 90119-08339 | ||||
| 90119-08340 | ||||
| 90119-08341 | ||||
| 90468-18071 | ||||
| 90540-06001 | ||||
| 90540-06003 | ||||
| 90541-12001 | ||||
| 91521-60816 | ||||
| 91616-60820 | ||||
| 91656-60820 | ||||
| 93319-15012 | ||||
| 93510-15016 | ||||
| 93510-15020 | ||||
| 94180-40800 | ||||
| 94612-10500 | ||||
| 94614-10800 | ||||
