RH32RB-JRE (1977)

Toyota Hiace

Production Feb 1977 - Dec 1980
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )

Click highlighted areas on diagram

diagram 87205 87205 87245A 87245A 87246A 87246A 87246E 87251 87251 87251 87265 8871414010 9017908123 9046108157 9046108157 9046108157 9046108157 9046108157 9046108157 9046108157 9046108157 9046108458 9046108517 9046110240 9046110240 9046110240 9046110240 9161140814 9161140814 9161140814 9161140814 9161140814 9161140816 9338518016 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
99552-32000

RH22,32,42

*H,L=1170

 1
99552-32000

RH22,25,32,42

*H,L=1170

 1
87245A - HOSE, HEATER WATER, INLET A
99552-32000

RH22,32,42

*H,L=1170

 1
99552-32000

RH22,25,32,42

*H,L=1170

 1
87246A - HOSE, HEATER WATER, OUTLET A
99552-32000

RH22,25,32,42

*H,L=1170

 1
99552-32000

RH22,32,42

*H,L=1170

 1
87246A - HOSE, HEATER WATER, OUTLET A
99552-32000

RH22,25,32,42

*H,L=1170

 1
99552-32000

RH22,32,42

*H,L=1170

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87240-95A01

LH20,30,RH22,32,42..BUS

RR HEATER

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87240-95A01

LH20,30,RH22,32,42..BUS

RR HEATER

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87240-95A01

LH20,30,RH22,32,42..BUS

RR HEATER

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-95A00

RH20,22,3#..BUS

4WAY TYPE,W/RR HEATER

 1
Common parts
88714-14010
90179-08123
90461-08157
90461-08458
90461-08517
90461-10240
91611-40814
91611-40816
93385-18016
96112-10250

(7702-7912)RH22,32..BUS

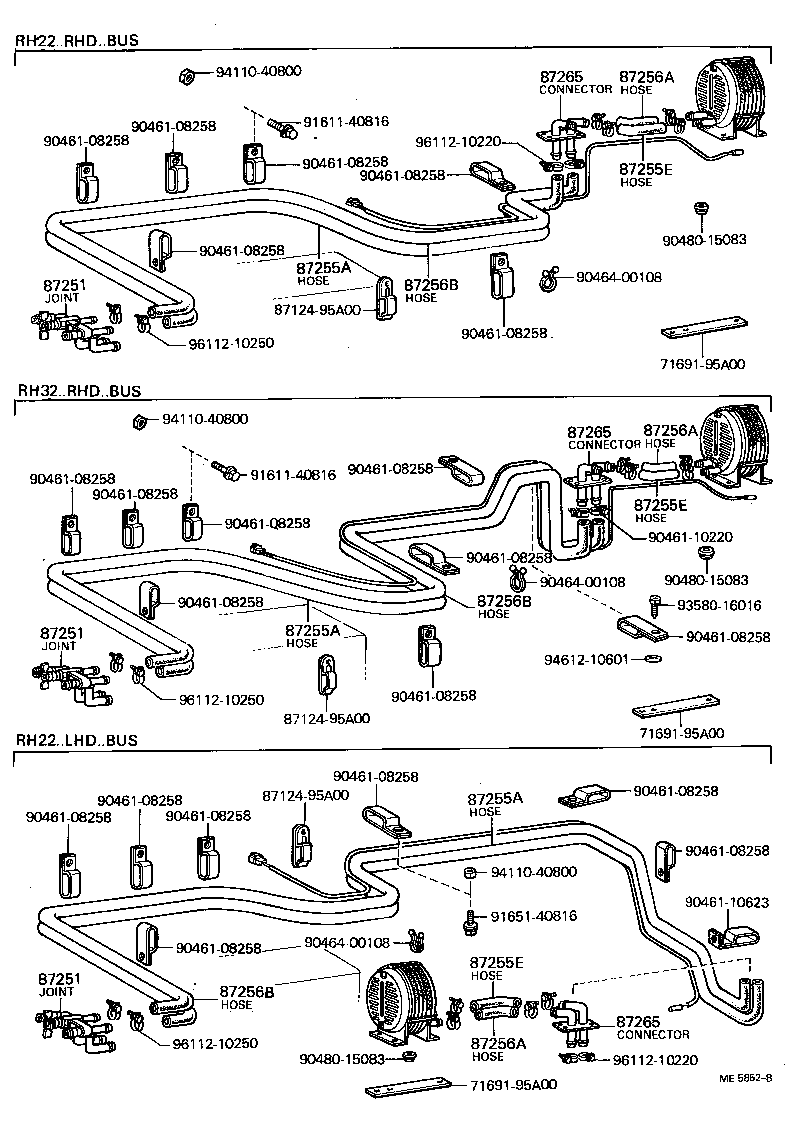

Click highlighted areas on diagram

diagram 7169195A00 7169195A00 7169195A00 8712495A00 8712495A00 8712495A00 87251 87251 87251 87255A 87255A 87255A 87255E 87255E 87255E 87256A 87256A 87256A 87256B 87256B 87256B 87265 87265 87265 9046108258 9046108258 9046108258 9046108258 9046108258 9046108258 9046108258 9046108258 9046108258 9046108258 9046108258 9046108258 9046108258 9046108258 9046108258 9046108258 9046108258 9046108258 9046108258 9046108258 9046108258 9046110220 9046110623 9046400108 9046400108 9046400108 9048015083 9048015083 9048015083 9161140816 9161140816 9165140816 9358016016 9411040800 9411040800 9411040800 9461210601 9611210220 9611210220 9611210250 9611210250 9611210250
Part # Description Qty Price
87251 - JOINT OR UNION, WATER HOSE THROUGH
87240-95A01

LH20,30,RH22,32,42..BUS

RR HEATER

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87240-95A01

LH20,30,RH22,32,42..BUS

RR HEATER

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87240-95A01

LH20,30,RH22,32,42..BUS

RR HEATER

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99552-23000

RH32..BUS

*H,L=2800

 1
99552-22000

LH20,30,RH2#,3#,42..BUS

*H,L=1180

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99552-23000

RH32..BUS

*H,L=2800

 1
99552-22000

LH20,30,RH2#,3#,42..BUS

*H,L=1180

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99552-23000

RH32..BUS

*H,L=2800

 1
99552-22000

LH20,30,RH2#,3#,42..BUS

*H,L=1180

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-20200

RH2#,3#..BUS

*H,L=110

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-20200

RH2#,3#..BUS

*H,L=110

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-20200

RH2#,3#..BUS

*H,L=110

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-20100

RH2#,3#..BUS

*H,L=70

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-20100

RH2#,3#..BUS

*H,L=70

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-20100

RH2#,3#..BUS

*H,L=70

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99552-23000

RH32..BUS

*H,L=2800

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99552-23000

RH32..BUS

*H,L=2800

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99552-23000

RH32..BUS

*H,L=2800

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-95A00

RH20,22,3#..BUS

4WAY TYPE,W/RR HEATER

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-95A00

RH20,22,3#..BUS

4WAY TYPE,W/RR HEATER

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-95A00

RH20,22,3#..BUS

4WAY TYPE,W/RR HEATER

 1
Common parts
71691-95A00
87124-95A00
90461-08258
90461-10220
90461-10623
90464-00108
90480-15083
91611-40816
91651-40816
93580-16016
94110-40800
94612-10601
96112-10220
96112-10250

(7912- )RH22,32,42

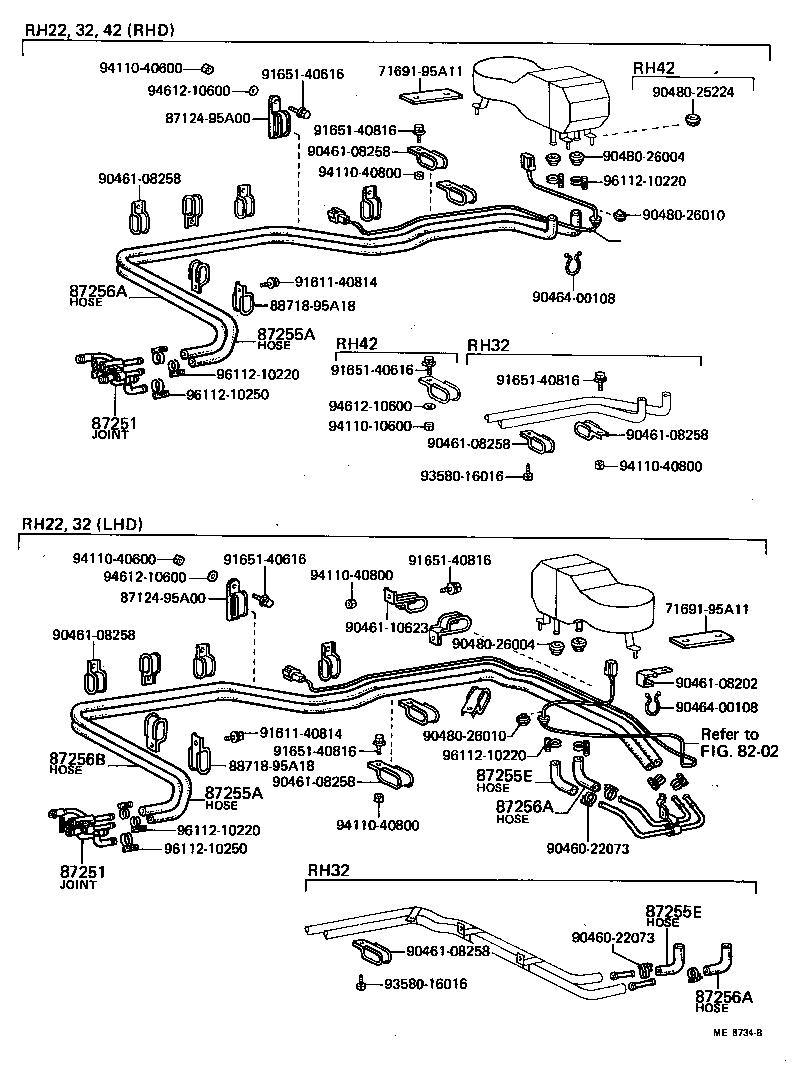

Click highlighted areas on diagram

diagram 7169195A11 7169195A11 8202 8712495A00 8712495A00 87251 87251 87255A 87255A 87255E 87255E 87256A 87256A 87256A 87256B 8871895A18 8871895A18 9046022073 9046022073 9046108202 9046108258 9046108258 9046108258 9046108258 9046108258 9046108258 9046108258 9046110623 9046400108 9046400108 9048025224 9048026004 9048026004 9048026010 9048026010 9161140814 9161140814 9165140616 9165140616 9165140616 9165140816 9165140816 9165140816 9165140816 9358016016 9358016016 9411010600 9411040600 9411040600 9411040800 9411040800 9411040800 9411040800 9461210600 9461210600 9461210600 9611210220 9611210220 9611210220 9611210220 9611210250 9611210250
Part # Description Qty Price
87251 - JOINT OR UNION, WATER HOSE THROUGH
87240-95A01

LH20,30,RH22,32,42..BUS

RR HEATER

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87240-95A01

LH20,30,RH22,32,42..BUS

RR HEATER

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99552-23000

RH32..BUS

*H,L=2800

 1
99552-22000

LH20,30,RH2#,3#,42..BUS

*H,L=1180

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99552-23000

RH32..BUS

*H,L=2800

 1
99552-22000

LH20,30,RH2#,3#,42..BUS

*H,L=1180

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-20200

RH2#,3#..BUS

*H,L=110

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-20200

RH2#,3#..BUS

*H,L=110

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-20100

RH2#,3#..BUS

*H,L=70

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-20100

RH2#,3#..BUS

*H,L=70

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-20100

RH2#,3#..BUS

*H,L=70

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99552-23000

RH32..BUS

*H,L=2800

 1
Common parts
71691-95A11
87124-95A00
88718-95A18
90460-22073
90461-08202
90461-08258
90461-10623
90464-00108
90480-25224
90480-26004
90480-26010
91611-40814
91651-40616
91651-40816
93580-16016
94110-10600
94110-40600
94110-40800
94612-10600
96112-10220
96112-10250
Linked diagrams
8202
