RH32LV-JRFE (1977)
Toyota Hiace
(7702- )18R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

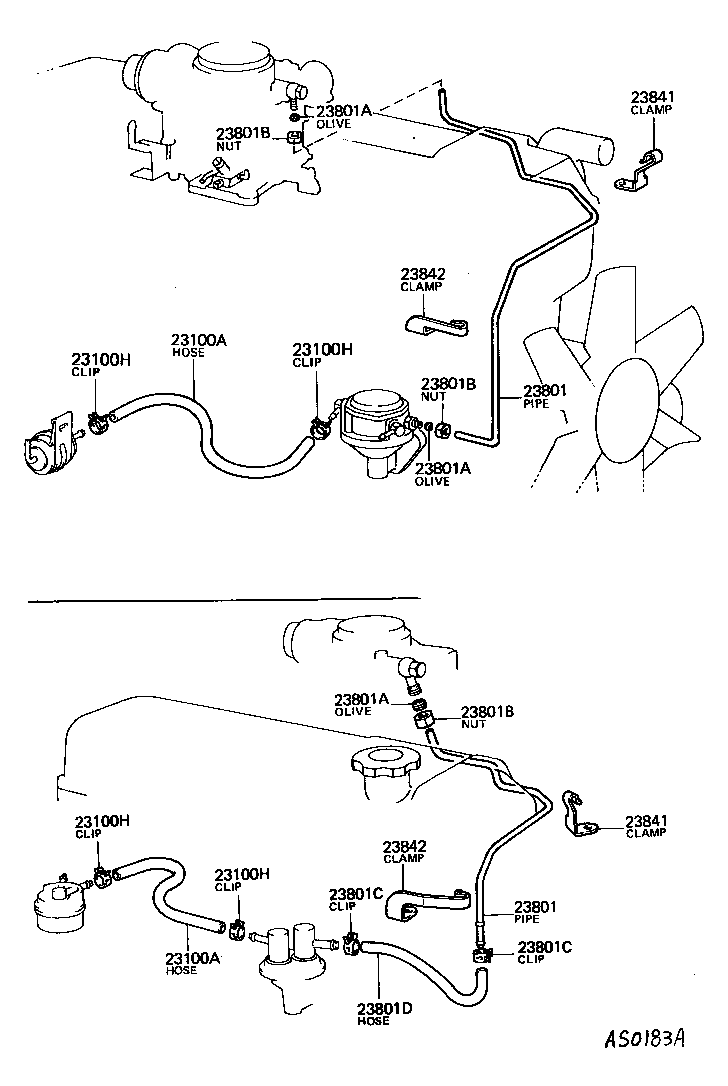

| 23100A - HOSE, FUEL | ||||
| 95332-06080 |
12R,18R..RH2#,3#,42 *H,L=700 |
1 | ||
| 95331-06070 |
12R,18R..RH2#,3#,42 L=700 |
1 | ||
| 23271-31010 |
12R#,18R..RH2#,3#,42 L=600 |
1 | ||
| 95332-06070 |
12R#,18R..RH2#,3#,42 L=700 |
1 | ||
| 95332-06060 |
12R,18R..RH20,22,3#,42 L=600 |
1 | ||
| 23271-31020 |
12R,18R..RH20,22,3#,42 L=600 |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 95332-06080 |
12R,18R..RH2#,3#,42 *H,L=700 |
1 | ||
| 95331-06070 |
12R,18R..RH2#,3#,42 L=700 |
1 | ||
| 23271-31010 |
12R#,18R..RH2#,3#,42 L=600 |
1 | ||
| 95332-06070 |
12R#,18R..RH2#,3#,42 L=700 |
1 | ||
| 95332-06060 |
12R,18R..RH20,22,3#,42 L=600 |
1 | ||
| 23271-31020 |
12R,18R..RH20,22,3#,42 L=600 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
18R..RH22,25,32,42 |
2 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
18R..RH22,25,32,42 |
2 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
18R..RH22,25,32,42 |
2 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
18R..RH22,25,32,42 |
2 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 23811-34041 |
18R..RH22,25,32,42 |
1 | ||
| 23811-34041 |
18R..RH22,32,42..ARL,GEN,SA |
1 | ||
| 23811-34031 |
18R..RH22,32,42 |
1 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 23811-34041 |
18R..RH22,25,32,42 |
1 | ||
| 23811-34041 |
18R..RH22,32,42..ARL,GEN,SA |
1 | ||
| 23811-34031 |
18R..RH22,32,42 |
1 | ||
| 23801A - OLIVE(FOR FUEL PIPE) | ||||
| 96395-71200 |
18R..RH22,32,42..ARL,GEN,SA |
1 | ||
| 96395-71200 |
18R..RH22,25,32,42 |
1 | ||
| 96395-71400 |
18R..RH22,32,42 |
2 | ||
| 23801A - OLIVE(FOR FUEL PIPE) | ||||
| 96395-71200 |
18R..RH22,32,42..ARL,GEN,SA |
1 | ||
| 96395-71200 |
18R..RH22,25,32,42 |
1 | ||
| 96395-71400 |
18R..RH22,32,42 |
2 | ||
| 23801A - OLIVE(FOR FUEL PIPE) | ||||
| 96395-71200 |
18R..RH22,32,42..ARL,GEN,SA |
1 | ||
| 96395-71200 |
18R..RH22,25,32,42 |
1 | ||
| 96395-71400 |
18R..RH22,32,42 |
2 | ||
| 23801B - NUT, UNION(FOR FUEL PIPE) | ||||
| 90402-13041 |
18R..RH22,32,42 |
2 | ||
| 96315-11200 |
18R..RH22,32,42..ARL,GEN,SA |
1 | ||
| 96315-11200 |
18R..RH22,25,32,42 |
1 | ||
| 23801B - NUT, UNION(FOR FUEL PIPE) | ||||
| 90402-13041 |
18R..RH22,32,42 |
2 | ||
| 96315-11200 |
18R..RH22,32,42..ARL,GEN,SA |
1 | ||
| 96315-11200 |
18R..RH22,25,32,42 |
1 | ||
| 23801B - NUT, UNION(FOR FUEL PIPE) | ||||
| 90402-13041 |
18R..RH22,32,42 |
2 | ||
| 96315-11200 |
18R..RH22,32,42..ARL,GEN,SA |
1 | ||
| 96315-11200 |
18R..RH22,25,32,42 |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
18R..RH22,32,42..ARL,GEN,SA |
2 | ||
| 96132-30600 |
18R..RH22,25,32,42 |
2 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
18R..RH22,32,42..ARL,GEN,SA |
2 | ||
| 96132-30600 |
18R..RH22,25,32,42 |
2 | ||
| 23801D - HOSE, FUEL PIPE, NO.1 | ||||
| 95332-06020 |
18R..RH22,32,42..ARL,GEN,SA *H,L=160 |
1 | ||
| 95332-06020 |
18R..RH22,25,32,42 *H,L=160 |
1 | ||
| 23841 - CLAMP, FUEL PIPE(HOSE), NO.1 | ||||
| 23841-34030 |
18R..RH22,25,32,42 |
1 | ||
| 23841-34030 |
18R..RH22,32,42..ARL,GEN,SA |
1 | ||
| 23841-34020 |
18R..RH22,32,42 |
1 | ||
| 23841 - CLAMP, FUEL PIPE(HOSE), NO.1 | ||||
| 23841-34030 |
18R..RH22,25,32,42 |
1 | ||
| 23841-34030 |
18R..RH22,32,42..ARL,GEN,SA |
1 | ||
| 23841-34020 |
18R..RH22,32,42 |
1 | ||
| 23842 - CLAMP, FUEL PIPE(HOSE), NO.2 | ||||
| 23842-34041 |
18R..RH22,32,42 |
1 | ||
| 23842-34050 |
18R..RH22,32,42..ARL,GEN,SA |
1 | ||
| 23842-34050 |
18R..RH22,25,32,42 |
1 | ||
| 23842-34051 |
18R..RH22,25,32,42 |
1 | ||
| 23842 - CLAMP, FUEL PIPE(HOSE), NO.2 | ||||
| 23842-34041 |
18R..RH22,32,42 |
1 | ||
| 23842-34050 |
18R..RH22,32,42..ARL,GEN,SA |
1 | ||
| 23842-34050 |
18R..RH22,25,32,42 |
1 | ||
| 23842-34051 |
18R..RH22,25,32,42 |
1 | ||
