RH30RV-JRW (1977)
Toyota Hiace
(7702- )LH20,30..RHD ; (7702- )RH20,22,3#..RHD..V4D ; (7702- )RH20,22,3#..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57441 - COVER, PLATE FLOOR SIDE RAIL | ||||
| 57441-95A00 |
LH20,30,RH20,22,3#,42 |
2 | ||
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61103-95A01 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61104-95A01 |
LH11,20,30,RH11,20,25,3#..EUR |
1 | ||
| 61163 - PILLAR, FRONT BODY, INNER RH | ||||
| 61105-95A00 |
LH20,30,RH20,22,3#,42..RHD |
1 | ||
| 61164 - PILLAR, FRONT BODY, INNER LH | ||||
| 61106-95A00 |
LH20,30,RH20,22,3#,42..RHD..(BUS,V) |
1 | ||
| 61106-95A00 |
LH20,30,RH2#,3#,42..RHD |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61231-95A00 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61232-95A00 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 61206 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR LH | ||||
| 61208-95A00 |
LH20,30,RH20,22,3#..RHD |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61201-95A01 |
LH20,30,RH20,22,3#..RHD..V4D..03S |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-95A00 |
LH20,30,RH20,22,3#,42..RHD |
1 | ||
| 61214 - RAIL, ROOF SIDE, OUTER REAR LH | ||||
| 61204-95A02 |
LH20,30,RH20,22,3#..RHD..03S |
1 | ||
| 61223 - CHANNEL, ROOF DRIP, FRONT RH | ||||
| 61261-95A01 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 61224 - CHANNEL, ROOF DRIP, FRONT LH | ||||
| 61262-95A01 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 61263 - CHANNEL, ROOF DRIP, REAR RH | ||||
| 61263-95A01 |
LH30,RH3# |
1 | ||
| 61264 - CHANNEL, ROOF DRIP, REAR LH | ||||
| 61264-95A01 |
LH30,RH3# |
1 | ||
| 61301B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61301-95A00 |
LH20,30,RH20,22,3#..RHD..V4D |
1 | ||
| 61302A - PILLAR, CENTER BODY, OUTER LH | ||||
| 61302-95A00 |
LH20,30,RH20,22,3#,42..RHD |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61303-95A10 |
LH20,30,RH20,22,3#..RHD..V4D |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61304-95A10 |
LH20,30,RH20,22,3#..RHD..V |
1 | ||
| 61333 - PLATE, CENTER PILLAR, RH | ||||
| 57403-95A00 |
LH20,30,RH20,22,3#..RHD..V4D |
1 | ||
| 61334 - PLATE, CENTER PILLAR, LH | ||||
| 57404-95A01 |
LH20,RH2#,3#..RHD..V4D |
1 | ||
| 57404-95A03 |
RH20,22,3#,42..RHD..(EUR,GEN,SA) |
1 | ||
| 61351 - COVER, CENTER BODY, INNER RH | ||||
| 61351-95A00 |
LH30..V4D;LH30..V5D..06S..EUR;RH20..LHD..12S..EUR;LH11,20,RH11,20,3#..(03S,06S)..EUR W/O SEAT BELT |
1 | ||
| 61352 - COVER, CENTER BODY, INNER, LH | ||||
| 61351-95A00 |
LH30..V4D;LH30..V5D..06S..EUR;RH20..LHD..12S..EUR;LH11,20,RH11,20,3#..(03S,06S)..EUR W/O SEAT BELT |
1 | ||
| 61413 - PANEL, ROCKER, CENTER RH | ||||
| 57413-95A02 |
LH30,RH3#..RHD..V4D |
1 | ||
| 61414 - PANEL, ROCKER, CENTER LH | ||||
| 57406-95A01 |
LH30,RH3# |
1 | ||
| 61415 - PANEL, ROCKER, REAR RH | ||||
| 57045-95A01 |
RH3#,42 |
1 | ||
| 61416 - PANEL, ROCKER, REAR LH | ||||
| 57416-95A01 |
RH3#,42 |
1 | ||
| 61513 - PILLAR, QUARTER LOCK INNER, RH | ||||
| 61805-95A02 |
LH30,RH3#..RHD..V4D..03S |
1 | ||
| 61607-95A01 |
LH30,RH30..RHD..V4D..06S;LH20,RH20,22,32..RHD..V4D;LH30,RH30..V4D..4H..03S..(ARL,EUR) |
1 | ||
| 61514 - PILLAR, QUARTER LOCK, INNER LH | ||||
| 61608-95A02 |
LH20,30,RH20,22,3#..RHD..03S |
1 | ||
| 61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61605-95A00 |
RH22;LH20,30,RH20,3#,42..BUS,V |
1 | ||
| 61607 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61606-95A00 |
RH22;LH20,30,RH20,3#,42..BUS,V |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-95A09 |
LH30,RH3#..RHD..V4D..03S |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-95A05 |
LH30,RH3#..RHD..03S |
1 | ||
| 61625 - REINFORCEMENT, OPENING SIDE FRAME, RH | ||||
| 61623-95A00 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 61626 - REINFORCEMENT, OPENING SIDE FRAME, LH | ||||
| 61624-95A00 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 61631 - PANEL, QUARTER WHEEL HOUSE, RH | ||||
| 61633-95A00 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 61632 - PANEL, QUARTER WHEEL HOUSE, LH | ||||
| 61634-95A00 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 61633 - EXTENSION, WHEEL HOUSE, RH | ||||
| 61641-95A00 |
LH20,30,RH20,22,3#,42 FR |
1 | ||
| 61643-95A00 |
LH20,30,RH20,22,3#,42 RR |
1 | ||
| 61633 - EXTENSION, WHEEL HOUSE, RH | ||||
| 61641-95A00 |
LH20,30,RH20,22,3#,42 FR |
1 | ||
| 61643-95A00 |
LH20,30,RH20,22,3#,42 RR |
1 | ||
| 61634 - EXTENSION, WHEEL HOUSE, LH | ||||
| 61642-95A00 |
LH20,30,RH20,22,3#,42 FR |
1 | ||
| 61644-95A00 |
LH20,30,RH20,22,3#,42 RR |
1 | ||
| 61634 - EXTENSION, WHEEL HOUSE, LH | ||||
| 61642-95A00 |
LH20,30,RH20,22,3#,42 FR |
1 | ||
| 61644-95A00 |
LH20,30,RH20,22,3#,42 RR |
1 | ||
| 61648 - REINFORCEMENT, SIDE WINDOW | ||||
| 61645-95A00 |
LH20,30,RH20,22,3#..03S |
6 | ||
| 61648 - REINFORCEMENT, SIDE WINDOW | ||||
| 61645-95A00 |
LH20,30,RH20,22,3#..03S |
6 | ||
| 61692 - COVER, QUARTER INNER, REAR | ||||
| 61701-95A00 |
LH20,30,RH20,3#..EUR LH,W/RR WIPER |
1 | ||
| 61678-95A00 |
LH20,30,RH20,22,3#,42 LH |
1 | ||
| 61677-95A00 |
LH20,30,RH20,22,3#,42 RH |
1 | ||
| 61692 - COVER, QUARTER INNER, REAR | ||||
| 61701-95A00 |
LH20,30,RH20,3#..EUR LH,W/RR WIPER |
1 | ||
| 61678-95A00 |
LH20,30,RH20,22,3#,42 LH |
1 | ||
| 61677-95A00 |
LH20,30,RH20,22,3#,42 RH |
1 | ||
| 61692A - CATCH, WASHER TANK SERVICE HOLE COVER | ||||
| 61653-95A00 |
LH20,30,RH20,3#..EUR W/RR WIPER |
1 | ||
| 61692B - KNOB, WASHER TANK SERVICE HOLE COVER | ||||
| 55521-95260 |
LH20,30,RH20,3#..EUR W/RR WIPER |
1 | ||
| 61694 - COVER, QUARTER INNER, NO.1 | ||||
| 61351-95A00 |
LH30,RH3#..V |
1 | ||
| 61695 - COVER, QUARTER INNER, NO.2 | ||||
| 61673-95A00 |
LH30,RH3#..V4D |
1 | ||
| 61696 - COVER, QUARTER INNER, NO.3 | ||||
| 61681-95A00 |
LH30,RH3#..V |
4 | ||
| 61697 - COVER, QUARTER INNER, NO.4 | ||||
| 61671-95A00 |
LH20,30,RH20,22,3#,42 |
2 | ||
| 61698 - COVER, QUARTER INNER, NO.5 | ||||
| 61675-95A00 |
LH20,30,RH20,22,3# |
1 | ||
| 61699 - COVER, QUARTER INNER, NO.6 | ||||
| 61679-95A00 |
LH30,RH3#..V |
2 | ||
| 61707 - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61731-95A11 |
LH30,RH3#..RHD..V4D..03S |
1 | ||
| 61707E - EXTENSION, QUARTER INNER PANEL, RH | ||||
| 61735-95A03 |
LH20,30,RH20,22,3#..RHD..V4D..03S |
1 | ||
| 61708 - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61732-95A09 |
LH30,RH3#..RHD..03S |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 77301-95A00 |
RH2#,3#,42 |
1 | ||
| 77301-95A01 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 61728 - REINFORCEMENT, QUARTER PANEL, FRONT RH | ||||
| 61703-95A03 |
LH20,30,RH20,22,3#..RHD..V4D..03S |
1 | ||
| 61733 - GUSSET, QUARTER, INNER RH | ||||
| 61733-95A00 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 61734 - GUSSET, QUARTER, INNER LH | ||||
| 61734-95A00 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 61783 - PATCH, QUARTER PANEL INNER | ||||
| 61784-95A00 |
LH20,30,RH20,22,3#,42..RHD LH |
1 | ||
| 61786 - STRENGTH, QUARTER PANEL VERTICAL | ||||
| 61703-95A05 |
LH30,RH3#..RHD..03S LH |
1 | ||
| 61703-95A05 |
LH30,RH3#..03S RH |
1 | ||
| 61791 - BRACE, QUARTER INNER PANEL | ||||
| 61781-95A01 |
LH30,RH3# RH |
1 | ||
| 61781-95A01 |
LH30,RH3#,42 LH |
1 | ||
| 64750D - COVER, DECK SIDE TRIM, WASHER | ||||
| 61702-95A00 |
LH20,30,RH20,3#..EUR W/RR WIPER |
1 | ||
| Common parts | ||||
| 61167-95A00 | ||||
| 90034-80031 | ||||
| 90149-60005 | ||||
| 90154-60001 | ||||
| 90168-60004 | ||||
| 90950-01011 | ||||
| 90950-01027 | ||||
| 90950-01029 | ||||
| 90950-01126 | ||||
| 90950-01130 | ||||
| 90950-01150 | ||||
| 90950-01179 | ||||
| 90950-01212 | ||||
| 90950-01224 | ||||
| 90950-01269 | ||||
| 90950-01341 | ||||
| 90950-06003 | ||||
| 91666-40822 | ||||
| 93510-14010 | ||||

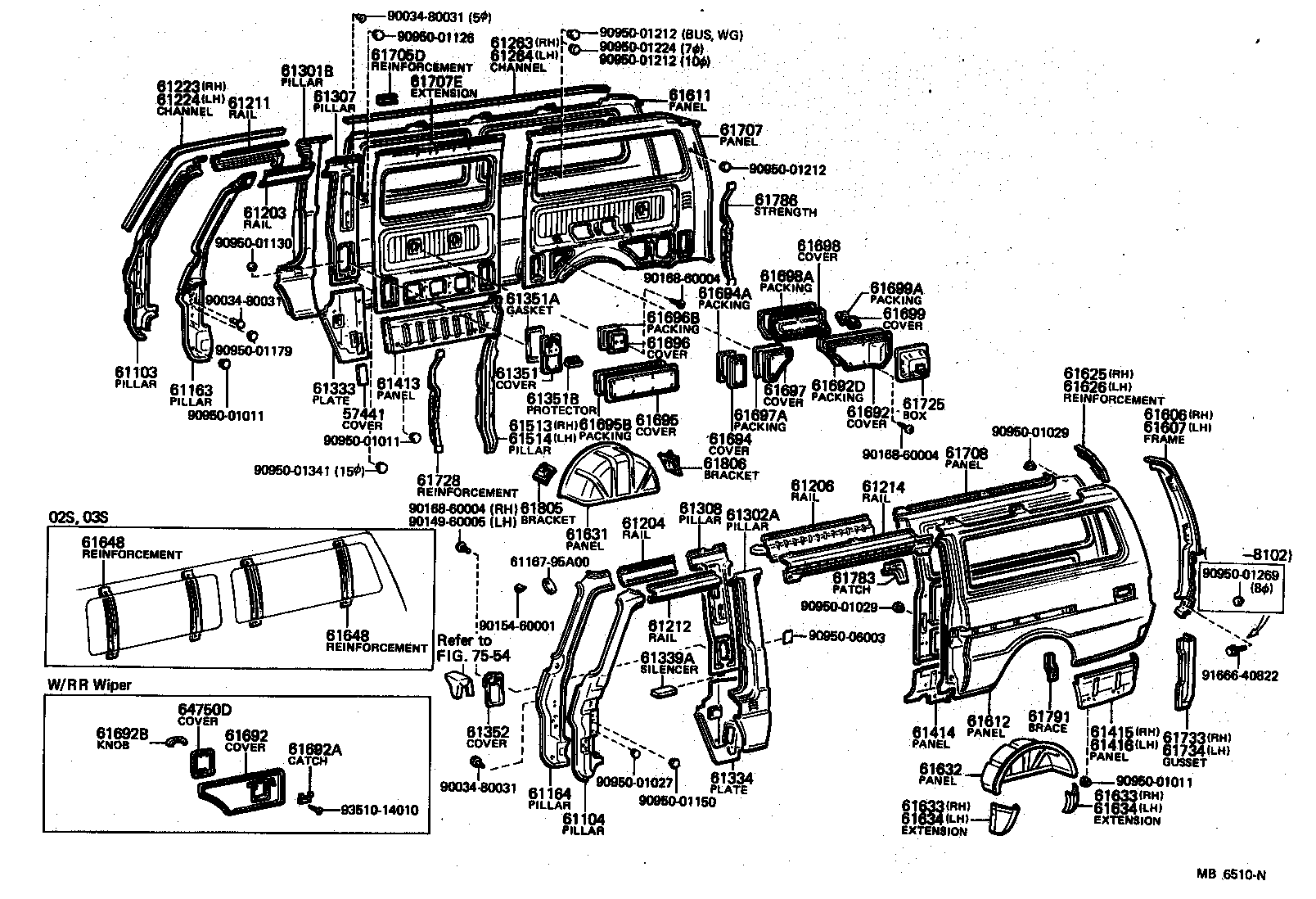

| Linked diagrams | ||||
| 7554 | ||||
