RH30RV-JRW (1977)
Toyota Hiace
(7702- )12R#

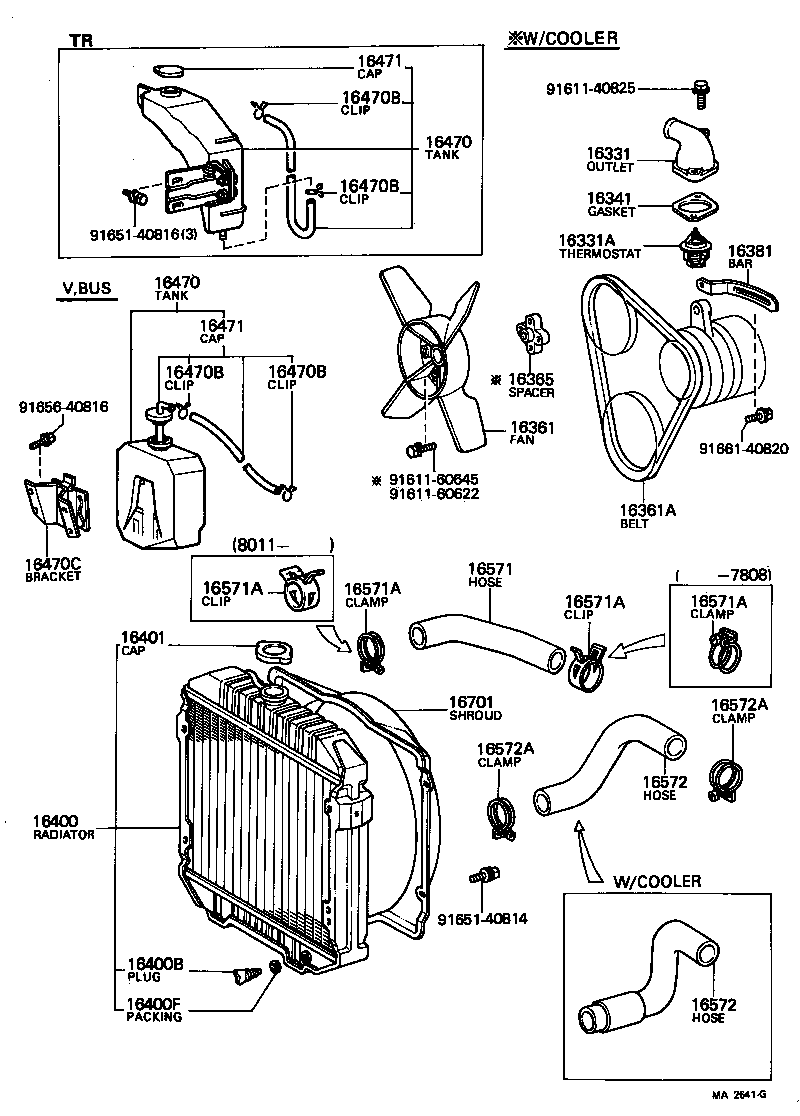

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-31051 |
12R..RH11,20,30..EUR |
1 | ||
| 16331-31051 |
12R..RH11,20,30..RHD HONG KONG SPEC |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03034 |
12R..RH11,20,30 *WAX 82-95,*(F) |
1 | ||
| 90916-03037 |
12R..RH11,20,30 *WAX 82-95,*(K) |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-49010 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 16341-38010 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 16361 - FAN | ||||
| 16361-31021 |
12R#..RH11,20,30 4 BLADES |
1 | ||
| 16361-31050 |
12R..RH11,20,30 5BLADES W/COOLER |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02061 |
12R..RH20,30..EUR L=900,12V 40A ALTERNATOR |
1 | ||
| 90916-02060 |
12R#..RH11,20,30 L=890 |
1 | ||
| 16365 - SPACER, FAN | ||||
| 16365-31020 |
12R..RH11,20,30 W/COOLER |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-31012 |
12R#..RH11,20,30 |
1 | ||
| 16381-30021 |
12R..RH20,30..EUR 12V 40A ALTERNATOR |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-31210 |
12R#..RH11,20,30 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24051 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24051 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-23070 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-95A01 |
12R,18R..RH20,22,3#,42 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-95A01 |
12R,18R..RH20,22,3#,42 |
1 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-95A00 |
12R,18R..RH20,22,3#,42 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-95A02 |
12R,18R..RH20,22,3#,42 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-95A02 |
12R,18R..RH20,22,3#,42 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16572-31070 |
12R#..RH11,20,30 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
12R#..RH11,20,30 WATER OUTLET SIDE |
1 | ||
| 96111-10440 |
12R#..RH11,20,30 RADIATOR SIDE |
1 | ||
| 96111-10430 |
12R#..RH11,20,30 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
12R#..RH11,20,30 WATER OUTLET SIDE |
1 | ||
| 96111-10440 |
12R#..RH11,20,30 RADIATOR SIDE |
1 | ||
| 96111-10430 |
12R#..RH11,20,30 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
12R#..RH11,20,30 WATER OUTLET SIDE |
1 | ||
| 96111-10440 |
12R#..RH11,20,30 RADIATOR SIDE |
1 | ||
| 96111-10430 |
12R#..RH11,20,30 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
12R#..RH11,20,30 WATER OUTLET SIDE |
1 | ||
| 96111-10440 |
12R#..RH11,20,30 RADIATOR SIDE |
1 | ||
| 96111-10430 |
12R#..RH11,20,30 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-31041 |
12R#..RH11,20,30 |
1 | ||
| 16571-31060 |
12R..RH11,20,30 W/COOLER |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-31041 |
12R#..RH11,20,30 |
1 | ||
| 16571-31060 |
12R..RH11,20,30 W/COOLER |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
12R#..RH11,20,30 ID=46 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
12R#..RH11,20,30 ID=46 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-31110 |
12R#..RH11,20,30 |
1 | ||
| Common parts | ||||
| 91611-40825 | ||||
| 91611-60622 | ||||
| 91611-60645 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91656-40816 | ||||
| 91661-40820 | ||||
