RH30RV-JRFE (1977)

Toyota Hiace

Production Feb 1977 - Dec 1980
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

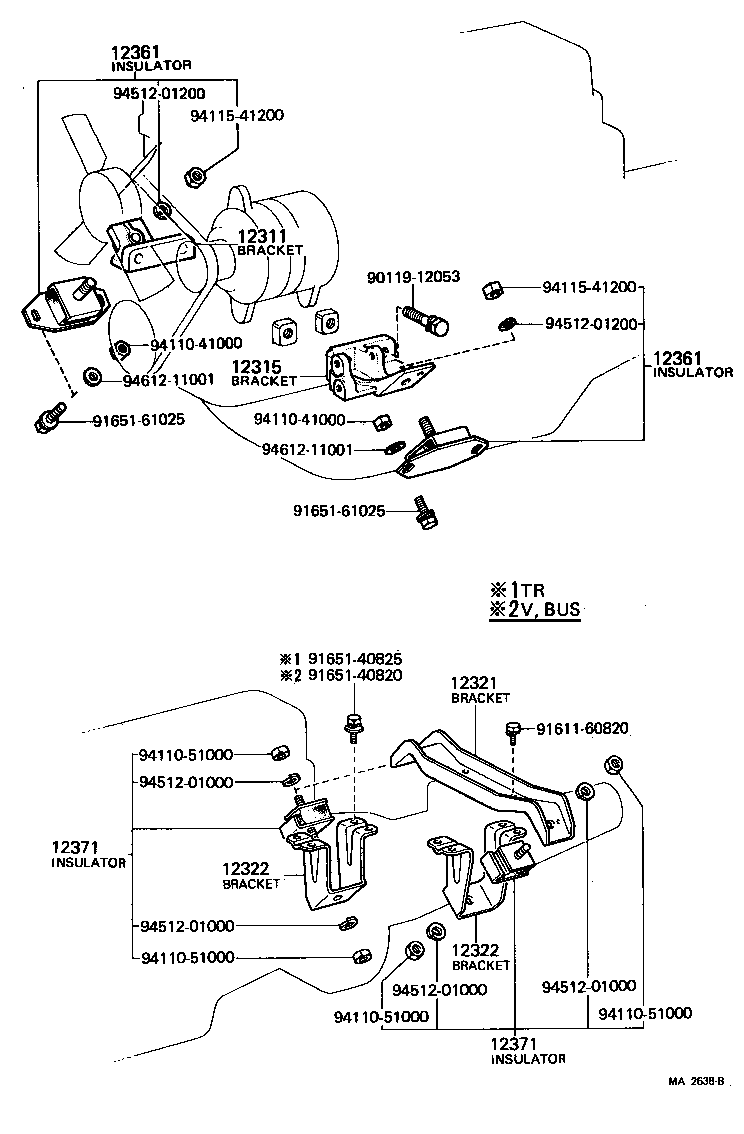

(7702-7912)12R#

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12322 12361 12361 12371 12371 9011912053 9161160820 9165140820 9165140825 9165161025 9165161025 9411041000 9411041000 9411051000 9411051000 9411051000 9411051000 9411541200 9411541200 9451201000 9451201000 9451201000 9451201000 9451201200 9451201200 9461211001 9461211001
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-30010

12R#..RH11,20,30

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-31011

12R..RH11,20,30

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-31020

12R#,18R..RH11,2#,3#,42

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-31020

12R#,18R..RH11,2#,3#,42

 2
12322-54010

12R#,18R..RH11,2#,3#,42

 2
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-31020

12R#,18R..RH11,2#,3#,42

 2
12322-54010

12R#,18R..RH11,2#,3#,42

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-39018

12R#..RH11,20,30

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-39018

12R#..RH11,20,30

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-39025

12R#,18R..RH11,2#,3#,42

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-39025

12R#,18R..RH11,2#,3#,42

 2
Common parts
90119-12053
91611-60820
91651-40820
91651-40825
91651-61025
94110-41000
94110-51000
94115-41200
94512-01000
94512-01200
94612-11001

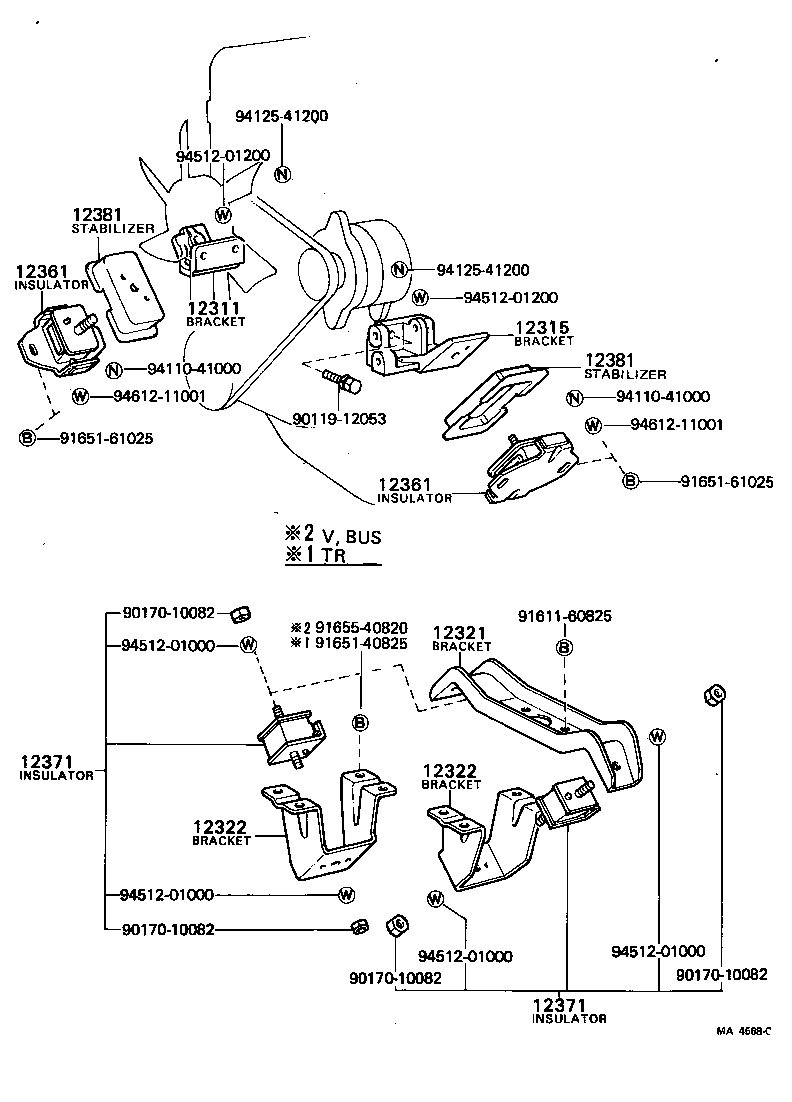

(7912- )12R

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12322 12361 12361 12371 12371 12381 12381 9011912053 9017010082 9017010082 9017010082 9017010082 9161160825 9165140825 9165161025 9165161025 9165540820 9411041000 9411041000 9412541200 9412541200 9451201000 9451201000 9451201000 9451201000 9451201200 9451201200 9461211001 9461211001
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-30010

12R#..RH11,20,30

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-31011

12R..RH11,20,30

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-31020

12R#,18R..RH11,2#,3#,42

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-31020

12R#,18R..RH11,2#,3#,42

 2
12322-54010

12R#,18R..RH11,2#,3#,42

 2
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-31020

12R#,18R..RH11,2#,3#,42

 2
12322-54010

12R#,18R..RH11,2#,3#,42

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-39018

12R#..RH11,20,30

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-39018

12R#..RH11,20,30

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-39025

12R#,18R..RH11,2#,3#,42

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-39025

12R#,18R..RH11,2#,3#,42

 2
Common parts
90119-12053
90170-10082
91611-60825
91651-40825
91651-61025
91655-40820
94110-41000
94125-41200
94512-01000
94512-01200
94612-11001
