RH30LV-JRFE (1977)

Toyota Hiace

Production Feb 1977 - Nov 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )RH11,20,30..03S,06S..ARL,GEN

Click highlighted areas on diagram

diagram 88301 88301 88302 88310A 88320 88330 88330B 88330B 88330C 88413 88415 88431 88432 88444 88595 88596 8889912130 8889914020 9009904182 9009904522 9161160816 9161160816 9161160820 9161160830 9161160835 9161160835 9161161035 9161161040 9451101000 9461111000
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88401-20090

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88401-20090

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-20080

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99522-11015

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
99322-01010

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88320 - COMPRESSOR ASSY, COOLER
88320-12090

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88330 - CLUTCH ASSY, MAGNET
88410-20110

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88330B - BEARING, MAGNET CLUTCH
90099-10083

RH11,20,30..(03S,06S)..(ARL,GEN)

 2
88330B - BEARING, MAGNET CLUTCH
90099-10083

RH11,20,30..(03S,06S)..(ARL,GEN)

 2
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90096-90005

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88413 - PULLEY SUB-ASSY, MAGNET CLUTCH
88402-30250

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88415 - RETAINER, MAGNET CLUTCH BEARING, NO.1
88415-12020

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-26110

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
88432-20070

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88444 - BRACKET, IDLE PULLEY
88444-26010

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-30250

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88440-26050

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88440-26040

RH20,22,3#..ARL,GEN

 1
88596 - PULLEY ASSY, IDLE, NO.2
88440-20060

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
Common parts
88899-12130
88899-14020
90099-04182
90099-04522
91611-60816
91611-60820
91611-60830
91611-60835
91611-61035
91611-61040
94511-01000
94611-11000

(7702- )RH11,20,30..03S,06S..ARL,GEN

Click highlighted areas on diagram

diagram 88316 88316A 88316B 88316C 88320 88320K 88321 88322 88324 88325 88325B 88326 88326 88328 88329 88329 88329A 88329A 88332 88360 88360A 88363 88363 88364 88374 88374 88375 88375 9009904254 9009904276 9009904277 9111270610
Part # Description Qty Price
88316 - CRANKSHAFT, COOLER COMPRESSOR
88316-12050

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT
90099-10104

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88316B - RING, COMPRESSOR CRANKSHAFT REAR BEARING SNAP
90096-90004

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88316C - KEY, COMPRESSOR CRANKSHAFT
90097-00465

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88320 - COMPRESSOR ASSY, COOLER
88320-12090

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL
04881-20022

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-12021

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE
88371-26030

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88324 - PLATE SUB-ASSY, COOLER COMPRESSOR VALVE
88305-12030

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88325 - CRANKCASE, COOLER COMPRESSOR
88325-12040

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88325B - PLUG, CYLINDER BLOCK OIL
88339-12020

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88326 - PLATE, COOLER COMPRESSOR BOTTOM
88326-12020

RH11,20,30..(03S,06S)..(ARL,GEN)

RR

 1
88331-12030

RH11,20,30..(03S,06S)..(ARL,GEN)

LWR

 1
88326 - PLATE, COOLER COMPRESSOR BOTTOM
88326-12020

RH11,20,30..(03S,06S)..(ARL,GEN)

RR

 1
88331-12030

RH11,20,30..(03S,06S)..(ARL,GEN)

LWR

 1
88328 - REED SUB-ASSY, COOLER COMPRESSOR VALVE
88307-12021

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88329 - PISTON SUB-ASSY, COOLER COMPRESSOR
88301-12030

RH11,20,30..(03S,06S)..(ARL,GEN)

 2
88329 - PISTON SUB-ASSY, COOLER COMPRESSOR
88301-12030

RH11,20,30..(03S,06S)..(ARL,GEN)

 2
88329A - RING, COMPRESSOR PISTON SNAP
90099-07054

RH11,20,30..(03S,06S)..(ARL,GEN)

 4
88329A - RING, COMPRESSOR PISTON SNAP
90099-07054

RH11,20,30..(03S,06S)..(ARL,GEN)

 4
88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE
88372-12080

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT
88360-12050

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90005

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88363 - ROD SUB-ASSY, COOLER COMPRESSOR CONNECTING
88302-20040

RH11,20,30..(03S,06S)..(ARL,GEN)

 2
88363 - ROD SUB-ASSY, COOLER COMPRESSOR CONNECTING
88302-20040

RH11,20,30..(03S,06S)..(ARL,GEN)

 2
88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR
88367-12020

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88374 - VALVE, COOLER COMPRESSOR SERVICE
88374-12020

RH11,2#,3#,42..ARL,GEN

 2
88374-12020

RH11,20,22,3#..(03S,06S)..(ARL,GEN)

 2
88374 - VALVE, COOLER COMPRESSOR SERVICE
88374-12020

RH11,2#,3#,42..ARL,GEN

 2
88374-12020

RH11,20,22,3#..(03S,06S)..(ARL,GEN)

 2
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-12020

RH11,20,30..(03S,06S)..(ARL,GEN)

 2
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-12020

RH11,20,30..(03S,06S)..(ARL,GEN)

 2
Common parts
90099-04254
90099-04276
90099-04277
91112-70610

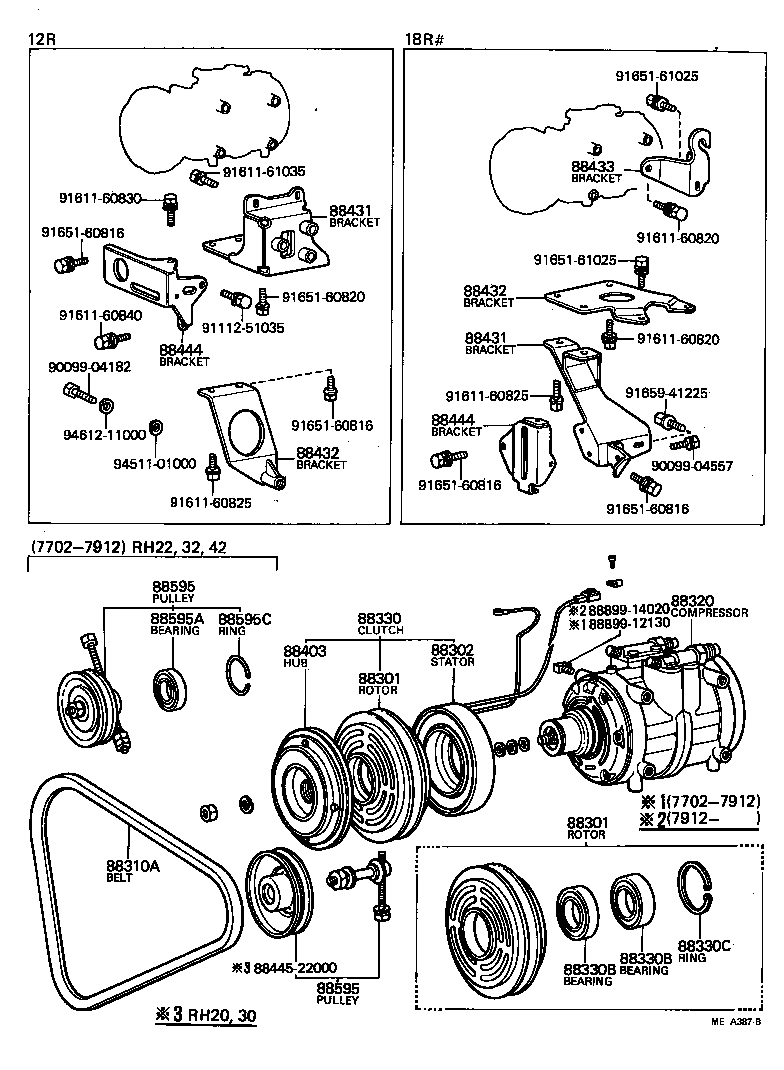

(7702-7912)RH22,42 ; (7702-7912)RH20,3#..RHD ; (7702-7912)LHD..12S..EUR ; (7702-791

Click highlighted areas on diagram

diagram 88301 88301 88302 88310A 88320 88330 88330B 88330B 88330C 88403 88431 88431 88432 88432 88433 88444 88444 8844522000 88595 88595 88595A 88595C 8889912130 8889914020 9009904182 9009904557 9111251035 9161160820 9161160820 9161160825 9161160825 9161160830 9161160840 9161161035 9165160816 9165160816 9165160816 9165160816 9165160820 9165161025 9165161025 9165941225 9451101000 9461211000
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88401-20090

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88401-20090

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88401-20090

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88401-20090

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-20080

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88411-20080

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99522-11015

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
99522-11015

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
99322-01010

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
99322-01010

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88320 - COMPRESSOR ASSY, COOLER
88320-12090

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88320-12090

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88330 - CLUTCH ASSY, MAGNET
88410-20110

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88410-20110

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88330B - BEARING, MAGNET CLUTCH
90099-10083

RH11,20,30..(03S,06S)..(ARL,GEN)

 2
90099-10083

RH11,20,30..(03S,06S)..(ARL,GEN)

 2
88330B - BEARING, MAGNET CLUTCH
90099-10083

RH11,20,30..(03S,06S)..(ARL,GEN)

 2
90099-10083

RH11,20,30..(03S,06S)..(ARL,GEN)

 2
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90096-90005

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
90096-90005

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-26110

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88431-26110

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-26110

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88431-26110

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
88432-20070

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88432-20070

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
88432-20070

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88432-20070

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88444 - BRACKET, IDLE PULLEY
88444-26010

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88444-26010

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88444 - BRACKET, IDLE PULLEY
88444-26010

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88444-26010

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-30250

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88440-30250

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88440-26050

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88440-26050

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88440-26040

RH20,22,3#..ARL,GEN

 1
88440-26040

RH20,22,3#..ARL,GEN

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-30250

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88440-30250

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88440-26050

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88440-26050

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
88440-26040

RH20,22,3#..ARL,GEN

 1
88440-26040

RH20,22,3#..ARL,GEN

 1
Common parts
88445-22000
88899-12130
88899-14020
90099-04182
90099-04557
91112-51035
91611-60820
91611-60825
91611-60830
91611-60840
91611-61035
91651-60816
91651-60820
91651-61025
91659-41225
94511-01000
94612-11000

(7702- )

Click highlighted areas on diagram

diagram 1603 16361A 1705 17610B 8719 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02060

12R#..RH11,20,30

L=890

 1
99332-00890

12R#..RH11,20,30

L=890

 1
99332-00985

L..LH11,20,30

L=985

 1
99332-10985

L..LH11,20,30

L=985

 1
99332-11000

L..LH11,20,30

L=1000

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99522-11015

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
99322-01010

RH11,20,30..(03S,06S)..(ARL,GEN)

 1
Linked diagrams
1603
1705
8719
