Toyota Hiace RH30 WIRING & CLAMP

RH30LV-JRFE (1977)

Toyota Hiace

Production Feb 1977 - Nov 1982

Engine 12R

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

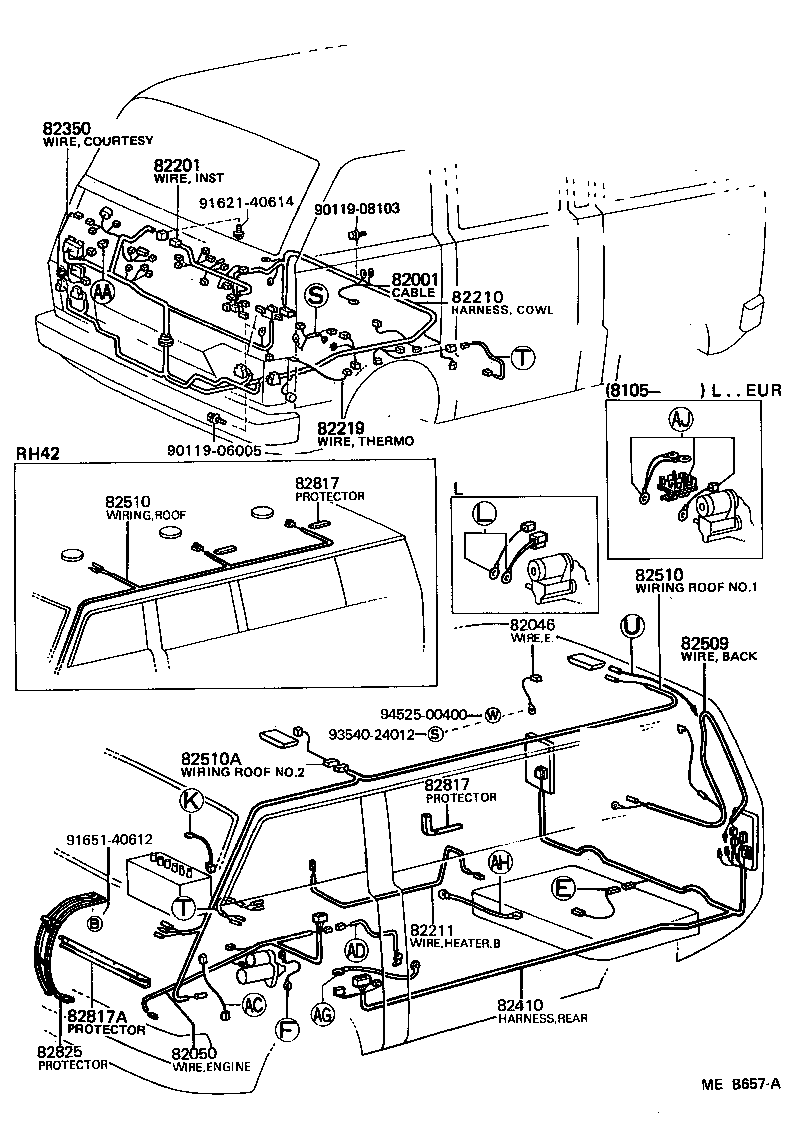

(7702- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82050 - WIRE ASSY, ENGINE
82320-95A10	RH11,20,30..LHD..(GEN,PHL)	02/1977 - 12/1979	1
82320-95A15	LH11,20,30	01/1979 - 12/1979	1
82320-95A21	RH11,20,30..LHD..GEN	12/1979 - 12/1980	1
82320-95A20	RH11,20,30..ARL,GEN,IDN	12/1980 - 11/1982	1
82320-95A18	LH11,20,30..4H	05/1981 - 11/1982	1
82320-95A18	LH11,20,30	12/1979 - 05/1981	1
82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82310-95A36	RH20,30..LHD	02/1977 - 11/1977	1
82310-95A28	RH20,30..LHD W/*REH	02/1977 - 11/1977	1
82310-95A54	RH20,30..LHD W/*REH	11/1977 - 11/1978	1
82310-95A63	RH20,30..LHD	11/1977 - 11/1978	1
82310-95A85	RH20,30..LHD..(GEN,PHL)	11/1978 - 12/1979	1
82370-95A13	LH20,30..LHD..GEN	09/1979 - 12/1979	1
82370-95A22	RH20,30..LHD..GEN	12/1979 - 12/1980	1
82370-95A46	LH20,30..LHD..GEN	12/1979 - 12/1980	1
82220-95A48	LH20,30..LHD	12/1980 - 05/1981	1
82220-95A37	RH20,22,3#..LHD..GEN	12/1980 - 11/1982	1
82220-95A69	LH20,30..LHD..GEN	05/1981 - 11/1982	1
82220 - HARNESS ASSY, WIRING COWL
82210-95A08	RH11,2#,3#..LHD	02/1977 - 01/1979	1
82210-95A41	RH11,2#,3#..LHD..(GEN,PHL)	01/1979 - 12/1979	1
82210-95A39	RH11,2#,3#..GEN,IDN	05/1979 - 12/1979	1
82210-95A58	LH20,30..LHD..GEN	09/1979 - 12/1979	1
82210-95A67	RH11,20,22,3#..LHD..GEN	12/1979 - 12/1980	1
82210-95A86	LH20,30..LHD..GEN	12/1979 - 12/1980	1
82410 - HARNESS ASSY, WIRING TO REAR LAMP
82430-95A02	RH3#	02/1977 - 05/1978	1
82430-95A02	LH30,RH3#	08/1978 - 12/1979	1
82430-95A02	RH3#..EUR,GEN,PHL	05/1978 - 08/1978	1
82430-95A33	LH30,RH3#..ARL,GEN	12/1979 - 12/1980	1
82430-95A38	LH30,RH3#	12/1980 - 11/1982	1
82510 - WIRING ASSY, ROOF
82510-95A07	RH3#..V	04/1977 - 05/1977	1
82510-95A11	RH3#..V	07/1977 - 05/1978	1
82510-95A11	RH32..V5D..ARL;RH3#..V..(EUR,GEN,PHL)	05/1978 - 08/1978	1
82510-95A09	RH3#..V	05/1977 - 07/1977	1
82510-95A02	RH3#..V	02/1977 - 04/1977	1
82510-95A20	LH30,RH3#..V	12/1979 - 12/1980	1
82510-95A11	LH30,RH3#..V	08/1978 - 12/1979	1
82510-95A26	LH30,RH3#..V	12/1980 - 11/1982	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
83712-95A00	RH11,20,30 L=100	02/1977 - 11/1982	1
82825 - PROTECTOR, WIRING HARNESS
82707-95A03	LH11,20,30..LHD	01/1979 - 12/1980	1
82707-95A01	RH11,2#,3#..LHD	02/1977 - 12/1980	1
Common parts
91651-40612

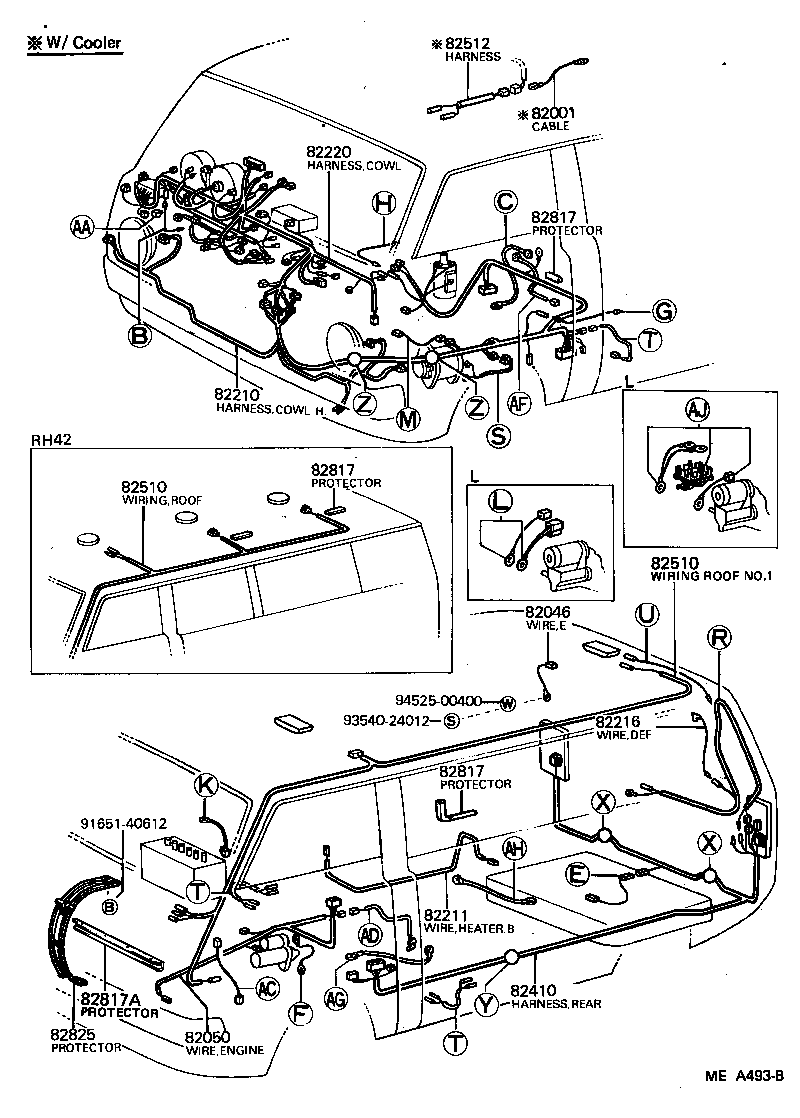

(7702- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07051	LH11,20,RH11,2#,3#,42 L=300	02/1977 - 08/1979	1
90980-07051	RH11,20,22,3#,42 L=300	08/1979 - 04/1981	1
90980-07051	RH11,20,30 L=300	04/1981 - 11/1982	1
90980-07021	RH11,20,22,3#,42 L=280	02/1977 - 11/1982	1
90980-07162	LH11,20,30,RH25 L=300	08/1979 - 11/1982	1
82001 - CABLE, BOND, NO.1
90980-07051	LH11,20,RH11,2#,3#,42 L=300	02/1977 - 08/1979	1
90980-07051	RH11,20,22,3#,42 L=300	08/1979 - 04/1981	1
90980-07051	RH11,20,30 L=300	04/1981 - 11/1982	1
90980-07021	RH11,20,22,3#,42 L=280	02/1977 - 11/1982	1
90980-07162	LH11,20,30,RH25 L=300	08/1979 - 11/1982	1
82210C - FUSIBLE LINK
90982-08058	RH11,2#,3#,42 L=110,0.85R,0.5G	02/1977 - 12/1979	1
90982-08035	LH11,20,30 L=120,1.25 BLACK	01/1979 - 05/1981	1
90982-08035	LH11,20,30..4H L=120,1.25 BLACK	05/1981 - 08/1981	1
90982-08143	RH11,2#,3#,42 L=110	12/1979 - 12/1980	1
90982-08058	RH11,20,22,3#,42 L=110,0.85R,0.5G	12/1980 - 11/1982	1
90982-08153	LH11,20,30..4H L=120,1.25 BLACK	08/1981 - 11/1982	1
82210C - FUSIBLE LINK
90982-08058	RH11,2#,3#,42 L=110,0.85R,0.5G	02/1977 - 12/1979	1
90982-08035	LH11,20,30 L=120,1.25 BLACK	01/1979 - 05/1981	1
90982-08035	LH11,20,30..4H L=120,1.25 BLACK	05/1981 - 08/1981	1
90982-08143	RH11,2#,3#,42 L=110	12/1979 - 12/1980	1
90982-08058	RH11,20,22,3#,42 L=110,0.85R,0.5G	12/1980 - 11/1982	1
90982-08153	LH11,20,30..4H L=120,1.25 BLACK	08/1981 - 11/1982	1
82210C - FUSIBLE LINK
90982-08058	RH11,2#,3#,42 L=110,0.85R,0.5G	02/1977 - 12/1979	1
90982-08035	LH11,20,30 L=120,1.25 BLACK	01/1979 - 05/1981	1
90982-08035	LH11,20,30..4H L=120,1.25 BLACK	05/1981 - 08/1981	1
90982-08143	RH11,2#,3#,42 L=110	12/1979 - 12/1980	1
90982-08058	RH11,20,22,3#,42 L=110,0.85R,0.5G	12/1980 - 11/1982	1
90982-08153	LH11,20,30..4H L=120,1.25 BLACK	08/1981 - 11/1982	1
82210D - FUSIBLE LINK
90982-08098	LH11,20,30..4H L=110,0.5 GREEN,0.85 RED	05/1981 - 08/1981	1
90982-08098	LH11,20,30	01/1979 - 12/1979	1
90982-08098	LH11,20,30	12/1980 - 05/1981	1
90982-08058	LH11,20,30..4H L=110,0.85R,0.5G	08/1981 - 11/1982	1
90982-08144	LH11,20,30	12/1979 - 12/1980	1
82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR)
82301-95A00	LH11,20,30,RH11,2#,3#,42 FR DOOR	02/1977 - 12/1979	1
82301-95A07	LH11,20,30,RH11,2#,3#,42 FR DOOR	12/1979 - 04/1980	1
82301-95A07	LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA FR DOOR	04/1980 - 12/1980	1
82301-95A09	LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA FR DOOR	12/1980 - 11/1982	1
82301-95A02	RH32..RHD;RH32..LHD..06S;LH20,30,RH2#,30 BACK DOOR	02/1977 - 12/1979	1
82301-95A00	LH20,30,RH11,20,22,3#..TW,V5D SLIDE OR RR DOOR	02/1977 - 11/1982	2
82301-95A08	LH20,30,RH20,22,3# BACK DOOR	12/1979 - 11/1982	1
82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR)
82301-95A00	LH11,20,30,RH11,2#,3#,42 FR DOOR	02/1977 - 12/1979	1
82301-95A07	LH11,20,30,RH11,2#,3#,42 FR DOOR	12/1979 - 04/1980	1
82301-95A07	LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA FR DOOR	04/1980 - 12/1980	1
82301-95A09	LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA FR DOOR	12/1980 - 11/1982	1
82301-95A02	RH32..RHD;RH32..LHD..06S;LH20,30,RH2#,30 BACK DOOR	02/1977 - 12/1979	1
82301-95A00	LH20,30,RH11,20,22,3#..TW,V5D SLIDE OR RR DOOR	02/1977 - 11/1982	2
82301-95A08	LH20,30,RH20,22,3# BACK DOOR	12/1979 - 11/1982	1
82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR)
82301-95A00	LH11,20,30,RH11,2#,3#,42 FR DOOR	02/1977 - 12/1979	1
82301-95A07	LH11,20,30,RH11,2#,3#,42 FR DOOR	12/1979 - 04/1980	1
82301-95A07	LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA FR DOOR	04/1980 - 12/1980	1
82301-95A09	LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA FR DOOR	12/1980 - 11/1982	1
82301-95A02	RH32..RHD;RH32..LHD..06S;LH20,30,RH2#,30 BACK DOOR	02/1977 - 12/1979	1
82301-95A00	LH20,30,RH11,20,22,3#..TW,V5D SLIDE OR RR DOOR	02/1977 - 11/1982	2
82301-95A08	LH20,30,RH20,22,3# BACK DOOR	12/1979 - 11/1982	1
82412 - WIRE, FUEL GAGE
82403-95A00	LH20,30,RH20,22,3#,42	02/1977 - 11/1982	1
82412 - WIRE, FUEL GAGE
82403-95A00	LH20,30,RH20,22,3#,42	02/1977 - 11/1982	1
Common parts
90179-08103

(7702- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82049 - WIRING SUB-ASSY, REAR WIPER
82601-95A07	LH20,30 W/*RW	12/1979 - 12/1980	1
82601-95A06	LH20,30 W/*RW	09/1979 - 12/1979	1
82203 - WIRE SUB-ASSY, ALTERNATOR
82405-95A02	RH20,22,3#,42	11/1978 - 11/1982	1
82405-95A00	RH11,2#,3#,42	02/1977 - 11/1978	1
82405-95A03	LH20,30	01/1979 - 11/1982	1
82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR)
82301-95A00	LH11,20,30,RH11,2#,3#,42 FR DOOR	02/1977 - 12/1979	1
82301-95A07	LH11,20,30,RH11,2#,3#,42 FR DOOR	12/1979 - 04/1980	1
82301-95A07	LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA FR DOOR	04/1980 - 12/1980	1
82301-95A09	LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA FR DOOR	12/1980 - 11/1982	1
82301-95A02	RH32..RHD;RH32..LHD..06S;LH20,30,RH2#,30 BACK DOOR	02/1977 - 12/1979	1
82301-95A00	LH20,30,RH11,20,22,3#..TW,V5D SLIDE OR RR DOOR	02/1977 - 11/1982	2
82301-95A08	LH20,30,RH20,22,3# BACK DOOR	12/1979 - 11/1982	1
82509 - WIRING SUB-ASSY, BACK DOOR
82501-95A01	LH20,30,RH20,22,3#,42..BUS,V	02/1977 - 12/1980	1
82501-95A06	LH20,30,RH2#,3#,42	12/1980 - 11/1982	1
82501-95A03	LH20,30,RH20,22,3#,42	12/1979 - 12/1980	1
Common parts
82711-95A02
90461-06075
90461-08002
90461-08188
90461-08214
90461-10030
91611-40614
91611-40816
91651-40816
91651-40820

(7702- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90461-04009
90461-06404
90461-06645
90461-08238
90461-08413
90463-04010
90463-04079
90463-05006
90463-06097
90463-08026
90463-08030
90463-08124
90463-08185
90463-08375
90463-08576
90463-10337
90463-10338
90463-10521
90463-15565
90464-00044
90464-00073
90467-08006
90480-01515
90480-29002
90480-30320

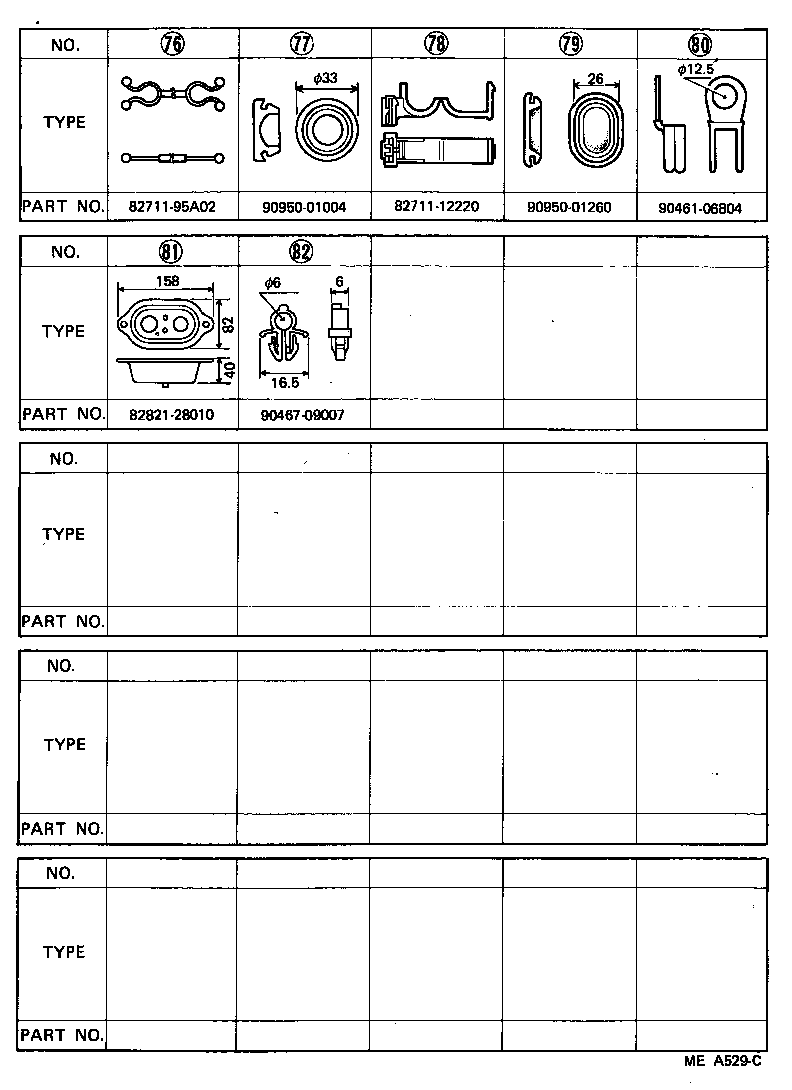

(7702- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90461-06035
90461-06097
90461-06303
90461-08183
90461-08200
90461-08202
90461-10275
90461-10283
90461-10316
90461-10461
90463-04133
90463-10031
90463-10055
90463-12008
90463-12009
90463-15067
90463-15298
90463-15385
90464-00108
90467-09007
90480-01428
90480-26043
90480-40507
90950-01150
90950-01179

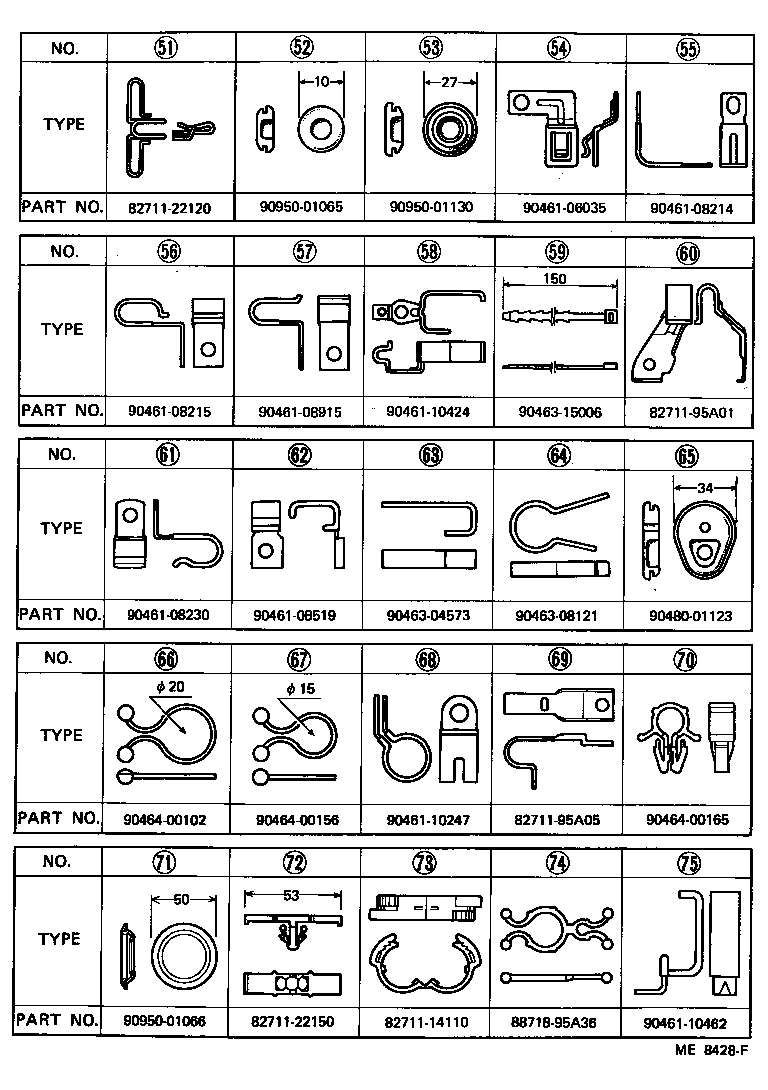

(7912- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-14110
82711-22120
82711-22150
82711-95A01
82711-95A05
88718-95A36
90461-06035
90461-08214
90461-08215
90461-08230
90461-08519
90461-08915
90461-10247
90461-10424
90461-10462
90463-04573
90463-08121
90463-15006
90464-00102
90464-00156
90464-00165
90480-01123
90950-01065
90950-01066
90950-01130

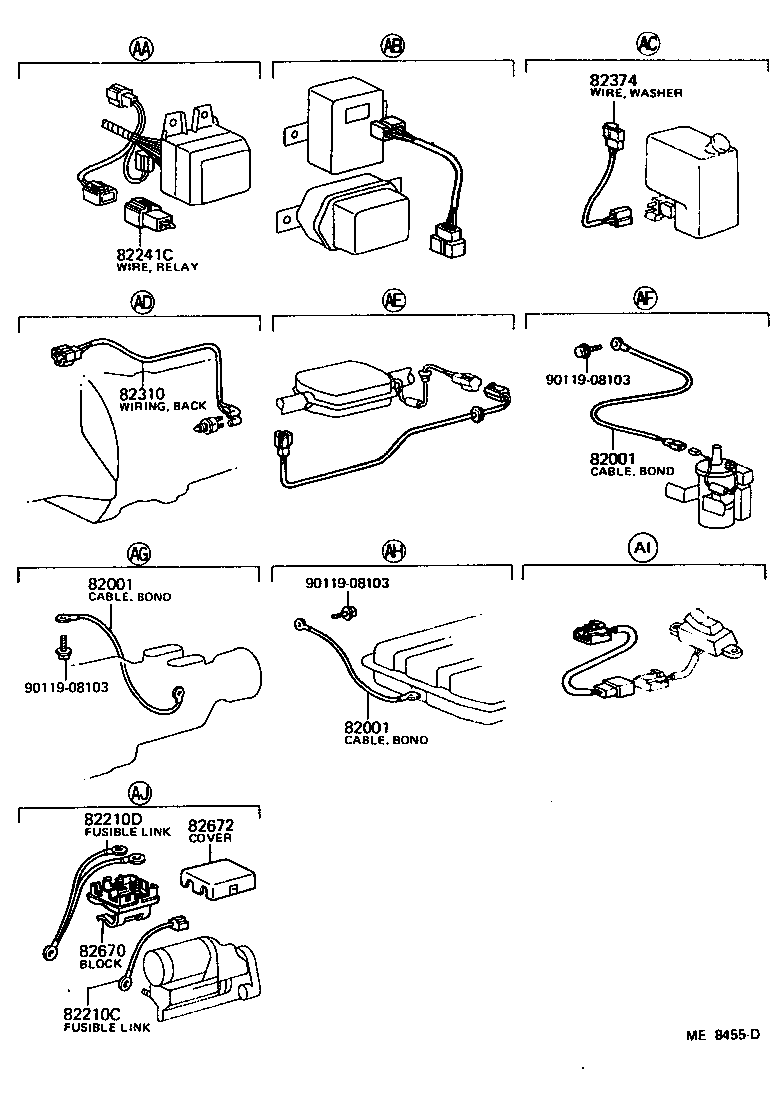

(7912- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07051	LH11,20,RH11,2#,3#,42 L=300	02/1977 - 08/1979	1
90980-07051	RH11,20,22,3#,42 L=300	08/1979 - 04/1981	1
90980-07051	RH11,20,30 L=300	04/1981 - 11/1982	1
90980-07021	RH11,20,22,3#,42 L=280	02/1977 - 11/1982	1
90980-07162	LH11,20,30,RH25 L=300	08/1979 - 11/1982	1
82001 - CABLE, BOND, NO.1
90980-07051	LH11,20,RH11,2#,3#,42 L=300	02/1977 - 08/1979	1
90980-07051	RH11,20,22,3#,42 L=300	08/1979 - 04/1981	1
90980-07051	RH11,20,30 L=300	04/1981 - 11/1982	1
90980-07021	RH11,20,22,3#,42 L=280	02/1977 - 11/1982	1
90980-07162	LH11,20,30,RH25 L=300	08/1979 - 11/1982	1
82001 - CABLE, BOND, NO.1
90980-07051	LH11,20,RH11,2#,3#,42 L=300	02/1977 - 08/1979	1
90980-07051	RH11,20,22,3#,42 L=300	08/1979 - 04/1981	1
90980-07051	RH11,20,30 L=300	04/1981 - 11/1982	1
90980-07021	RH11,20,22,3#,42 L=280	02/1977 - 11/1982	1
90980-07162	LH11,20,30,RH25 L=300	08/1979 - 11/1982	1
82210C - FUSIBLE LINK
90982-08058	RH11,2#,3#,42 L=110,0.85R,0.5G	02/1977 - 12/1979	1
90982-08035	LH11,20,30 L=120,1.25 BLACK	01/1979 - 05/1981	1
90982-08035	LH11,20,30..4H L=120,1.25 BLACK	05/1981 - 08/1981	1
90982-08143	RH11,2#,3#,42 L=110	12/1979 - 12/1980	1
90982-08058	RH11,20,22,3#,42 L=110,0.85R,0.5G	12/1980 - 11/1982	1
90982-08153	LH11,20,30..4H L=120,1.25 BLACK	08/1981 - 11/1982	1
82210D - FUSIBLE LINK
90982-08098	LH11,20,30..4H L=110,0.5 GREEN,0.85 RED	05/1981 - 08/1981	1
90982-08098	LH11,20,30	01/1979 - 12/1979	1
90982-08098	LH11,20,30	12/1980 - 05/1981	1
90982-08058	LH11,20,30..4H L=110,0.85R,0.5G	08/1981 - 11/1982	1
90982-08144	LH11,20,30	12/1979 - 12/1980	1
82241C - WIRE, RELAY
82241-22060	LH11,20,30,RH11..GEN	12/1980 - 05/1981	1
82310 - WIRING ASSY, TO BACK UP LAMP SWITCH
82302-95A01	LH20,30..GEN	12/1979 - 12/1980	1
82302-95A03	LH11,20,30..4H	12/1980 - 11/1982	1
Common parts
90119-08103

(7702-8012)LH20,30,RH20,22,3#,42

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07051	LH11,20,RH11,2#,3#,42 L=300	02/1977 - 08/1979	1
90980-07051	RH11,20,22,3#,42 L=300	08/1979 - 04/1981	1
90980-07051	RH11,20,30 L=300	04/1981 - 11/1982	1
90980-07021	RH11,20,22,3#,42 L=280	02/1977 - 11/1982	1
90980-07162	LH11,20,30,RH25 L=300	08/1979 - 11/1982	1
82050 - WIRE ASSY, ENGINE
82320-95A10	RH11,20,30..LHD..(GEN,PHL)	02/1977 - 12/1979	1
82320-95A15	LH11,20,30	01/1979 - 12/1979	1
82320-95A21	RH11,20,30..LHD..GEN	12/1979 - 12/1980	1
82320-95A20	RH11,20,30..ARL,GEN,IDN	12/1980 - 11/1982	1
82320-95A18	LH11,20,30..4H	05/1981 - 11/1982	1
82320-95A18	LH11,20,30	12/1979 - 05/1981	1
82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82310-95A36	RH20,30..LHD	02/1977 - 11/1977	1
82310-95A28	RH20,30..LHD W/*REH	02/1977 - 11/1977	1
82310-95A54	RH20,30..LHD W/*REH	11/1977 - 11/1978	1
82310-95A63	RH20,30..LHD	11/1977 - 11/1978	1
82310-95A85	RH20,30..LHD..(GEN,PHL)	11/1978 - 12/1979	1
82370-95A13	LH20,30..LHD..GEN	09/1979 - 12/1979	1
82370-95A22	RH20,30..LHD..GEN	12/1979 - 12/1980	1
82370-95A46	LH20,30..LHD..GEN	12/1979 - 12/1980	1
82220-95A48	LH20,30..LHD	12/1980 - 05/1981	1
82220-95A37	RH20,22,3#..LHD..GEN	12/1980 - 11/1982	1
82220-95A69	LH20,30..LHD..GEN	05/1981 - 11/1982	1
82220 - HARNESS ASSY, WIRING COWL
82210-95A08	RH11,2#,3#..LHD	02/1977 - 01/1979	1
82210-95A41	RH11,2#,3#..LHD..(GEN,PHL)	01/1979 - 12/1979	1
82210-95A39	RH11,2#,3#..GEN,IDN	05/1979 - 12/1979	1
82210-95A58	LH20,30..LHD..GEN	09/1979 - 12/1979	1
82210-95A67	RH11,20,22,3#..LHD..GEN	12/1979 - 12/1980	1
82210-95A86	LH20,30..LHD..GEN	12/1979 - 12/1980	1
82410 - HARNESS ASSY, WIRING TO REAR LAMP
82430-95A02	RH3#	02/1977 - 05/1978	1
82430-95A02	LH30,RH3#	08/1978 - 12/1979	1
82430-95A02	RH3#..EUR,GEN,PHL	05/1978 - 08/1978	1
82430-95A33	LH30,RH3#..ARL,GEN	12/1979 - 12/1980	1
82430-95A38	LH30,RH3#	12/1980 - 11/1982	1
82510 - WIRING ASSY, ROOF
82510-95A07	RH3#..V	04/1977 - 05/1977	1
82510-95A11	RH3#..V	07/1977 - 05/1978	1
82510-95A11	RH32..V5D..ARL;RH3#..V..(EUR,GEN,PHL)	05/1978 - 08/1978	1
82510-95A09	RH3#..V	05/1977 - 07/1977	1
82510-95A02	RH3#..V	02/1977 - 04/1977	1
82510-95A20	LH30,RH3#..V	12/1979 - 12/1980	1
82510-95A11	LH30,RH3#..V	08/1978 - 12/1979	1
82510-95A26	LH30,RH3#..V	12/1980 - 11/1982	1
82510 - WIRING ASSY, ROOF
82510-95A07	RH3#..V	04/1977 - 05/1977	1
82510-95A11	RH3#..V	07/1977 - 05/1978	1
82510-95A11	RH32..V5D..ARL;RH3#..V..(EUR,GEN,PHL)	05/1978 - 08/1978	1
82510-95A09	RH3#..V	05/1977 - 07/1977	1
82510-95A02	RH3#..V	02/1977 - 04/1977	1
82510-95A20	LH30,RH3#..V	12/1979 - 12/1980	1
82510-95A11	LH30,RH3#..V	08/1978 - 12/1979	1
82510-95A26	LH30,RH3#..V	12/1980 - 11/1982	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
83712-95A00	RH11,20,30 L=100	02/1977 - 11/1982	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
83712-95A00	RH11,20,30 L=100	02/1977 - 11/1982	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
83712-95A00	RH11,20,30 L=100	02/1977 - 11/1982	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82717-95A03	LH20,30,RH20,22,3#,42	12/1980 - 11/1982	1
82825 - PROTECTOR, WIRING HARNESS
82707-95A03	LH11,20,30..LHD	01/1979 - 12/1980	1
82707-95A01	RH11,2#,3#..LHD	02/1977 - 12/1980	1
Common parts
91651-40612
93540-24012
94525-00400

(8012- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-12220
82711-95A02
82821-28010
90461-06804
90467-09007
90950-01004
90950-01260

(8012- )LH20,30,RH20,22,3#,42

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07051	LH11,20,RH11,2#,3#,42 L=300	02/1977 - 08/1979	1
90980-07051	RH11,20,22,3#,42 L=300	08/1979 - 04/1981	1
90980-07051	RH11,20,30 L=300	04/1981 - 11/1982	1
90980-07021	RH11,20,22,3#,42 L=280	02/1977 - 11/1982	1
90980-07162	LH11,20,30,RH25 L=300	08/1979 - 11/1982	1
82050 - WIRE ASSY, ENGINE
82320-95A10	RH11,20,30..LHD..(GEN,PHL)	02/1977 - 12/1979	1
82320-95A15	LH11,20,30	01/1979 - 12/1979	1
82320-95A21	RH11,20,30..LHD..GEN	12/1979 - 12/1980	1
82320-95A20	RH11,20,30..ARL,GEN,IDN	12/1980 - 11/1982	1
82320-95A18	LH11,20,30..4H	05/1981 - 11/1982	1
82320-95A18	LH11,20,30	12/1979 - 05/1981	1
82201 - WIRING SUB-ASSY, INSTRUMENT PANEL
82201-95A10	LH20,30..LHD	12/1980 - 05/1981	1
82201-95A05	RH20,22,30..LHD;RH32..LHD..03S..GEN;RH32..V5D..03S..EUR;RH32..LHD..(06S,15S)	12/1980 - 11/1982	1
82201-95A10	LH20,30..LHD..GEN	05/1981 - 11/1982	1
82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82310-95A36	RH20,30..LHD	02/1977 - 11/1977	1
82310-95A28	RH20,30..LHD W/*REH	02/1977 - 11/1977	1
82310-95A54	RH20,30..LHD W/*REH	11/1977 - 11/1978	1
82310-95A63	RH20,30..LHD	11/1977 - 11/1978	1
82310-95A85	RH20,30..LHD..(GEN,PHL)	11/1978 - 12/1979	1
82370-95A13	LH20,30..LHD..GEN	09/1979 - 12/1979	1
82370-95A22	RH20,30..LHD..GEN	12/1979 - 12/1980	1
82370-95A46	LH20,30..LHD..GEN	12/1979 - 12/1980	1
82220-95A48	LH20,30..LHD	12/1980 - 05/1981	1
82220-95A37	RH20,22,3#..LHD..GEN	12/1980 - 11/1982	1
82220-95A69	LH20,30..LHD..GEN	05/1981 - 11/1982	1
82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR)
82301-95A00	LH11,20,30,RH11,2#,3#,42 FR DOOR	02/1977 - 12/1979	1
82301-95A07	LH11,20,30,RH11,2#,3#,42 FR DOOR	12/1979 - 04/1980	1
82301-95A07	LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA FR DOOR	04/1980 - 12/1980	1
82301-95A09	LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA FR DOOR	12/1980 - 11/1982	1
82301-95A02	RH32..RHD;RH32..LHD..06S;LH20,30,RH2#,30 BACK DOOR	02/1977 - 12/1979	1
82301-95A00	LH20,30,RH11,20,22,3#..TW,V5D SLIDE OR RR DOOR	02/1977 - 11/1982	2
82301-95A08	LH20,30,RH20,22,3# BACK DOOR	12/1979 - 11/1982	1
82410 - HARNESS ASSY, WIRING TO REAR LAMP
82430-95A02	RH3#	02/1977 - 05/1978	1
82430-95A02	LH30,RH3#	08/1978 - 12/1979	1
82430-95A02	RH3#..EUR,GEN,PHL	05/1978 - 08/1978	1
82430-95A33	LH30,RH3#..ARL,GEN	12/1979 - 12/1980	1
82430-95A38	LH30,RH3#	12/1980 - 11/1982	1
82509 - WIRING SUB-ASSY, BACK DOOR
82501-95A01	LH20,30,RH20,22,3#,42..BUS,V	02/1977 - 12/1980	1
82501-95A06	LH20,30,RH2#,3#,42	12/1980 - 11/1982	1
82501-95A03	LH20,30,RH20,22,3#,42	12/1979 - 12/1980	1
82510 - WIRING ASSY, ROOF
82510-95A07	RH3#..V	04/1977 - 05/1977	1
82510-95A11	RH3#..V	07/1977 - 05/1978	1
82510-95A11	RH32..V5D..ARL;RH3#..V..(EUR,GEN,PHL)	05/1978 - 08/1978	1
82510-95A09	RH3#..V	05/1977 - 07/1977	1
82510-95A02	RH3#..V	02/1977 - 04/1977	1
82510-95A20	LH30,RH3#..V	12/1979 - 12/1980	1
82510-95A11	LH30,RH3#..V	08/1978 - 12/1979	1
82510-95A26	LH30,RH3#..V	12/1980 - 11/1982	1
82510 - WIRING ASSY, ROOF
82510-95A07	RH3#..V	04/1977 - 05/1977	1
82510-95A11	RH3#..V	07/1977 - 05/1978	1
82510-95A11	RH32..V5D..ARL;RH3#..V..(EUR,GEN,PHL)	05/1978 - 08/1978	1
82510-95A09	RH3#..V	05/1977 - 07/1977	1
82510-95A02	RH3#..V	02/1977 - 04/1977	1
82510-95A20	LH30,RH3#..V	12/1979 - 12/1980	1
82510-95A11	LH30,RH3#..V	08/1978 - 12/1979	1
82510-95A26	LH30,RH3#..V	12/1980 - 11/1982	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
83712-95A00	RH11,20,30 L=100	02/1977 - 11/1982	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
83712-95A00	RH11,20,30 L=100	02/1977 - 11/1982	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82717-95A03	LH20,30,RH20,22,3#,42	12/1980 - 11/1982	1
82825 - PROTECTOR, WIRING HARNESS
82707-95A03	LH11,20,30..LHD	01/1979 - 12/1980	1
82707-95A01	RH11,2#,3#..LHD	02/1977 - 12/1980	1
Common parts
90119-06005
90119-08103
91621-40614
91651-40612
93540-24012
94525-00400

RH30LV-JRFE (1977)

(7702- )

(7702- )

(7702- )

(7702- )

(7702- )

(7912- )

(7912- )

(7702-8012)LH20,30,RH20,22,3#,42

(8012- )

(8012- )LH20,30,RH20,22,3#,42

Part Price Details
