RH30LV-JRFE (1977)
Toyota Hiace
(7901-8105)LH11,20,30 ; (8105- )LH11,20,30..4H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-50010 |
L..LH20,30;L..LH11..EUR 46B24L,NS60L |
1 | ||
| 28800-30082 |
12R#,18R..RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA 48D26R,N50 |
1 | ||
| 28800-46012 |
L..LH11,20,30 75D31R,N70Z |
1 | ||
| 28800-26040 |
12R,18R..RH11,20,22,3#..(03S,06S)..(GEN,IDN) 34B19L,NS40ZAL |
1 | ||
| 28800 - BATTERY | ||||
| 28800-50010 |
L..LH20,30;L..LH11..EUR 46B24L,NS60L |
1 | ||
| 28800-30082 |
12R#,18R..RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA 48D26R,N50 |
1 | ||
| 28800-46012 |
L..LH11,20,30 75D31R,N70Z |
1 | ||
| 28800-26040 |
12R,18R..RH11,20,22,3#..(03S,06S)..(GEN,IDN) 34B19L,NS40ZAL |
1 | ||
| 28800 - BATTERY | ||||
| 28800-50010 |
L..LH20,30;L..LH11..EUR 46B24L,NS60L |
1 | ||
| 28800-30082 |
12R#,18R..RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA 48D26R,N50 |
1 | ||
| 28800-46012 |
L..LH11,20,30 75D31R,N70Z |
1 | ||
| 28800-26040 |
12R,18R..RH11,20,22,3#..(03S,06S)..(GEN,IDN) 34B19L,NS40ZAL |
1 | ||
| 28800B - CABLE, BATTERY TO GROUND | ||||
| 90982-02033 |
12R,18R..RH11,2#,3#..03S,06S NS40ZAL,L=240 |
1 | ||
| 90982-02176 |
L..LH20,30 N70Z,NS60L,L=240 |
1 | ||
| 90982-02204 |
L..LH20,30 N70Z,NX120-7,L=1530 |
1 | ||
| 90982-02132 |
12R#,18R..RH2#,3#,42 N50,N50Z,L=310 |
1 | ||
| 90982-02033 |
12R,18R..RH20,22,3#..V..GEN NS40ZAL,L=240 |
1 | ||
| 90982-02204 |
L..LH20,30 N70Z,NS60L,L=1530 |
1 | ||
| 82046-95A00 |
L..LH20,30 N70Z,NX120-7,L=1530 |
1 | ||
| 90982-02184 |
12R,18R..RH11,2#,3#..03S,06S NS40ZAL,L=300 |
1 | ||
| 28800B - CABLE, BATTERY TO GROUND | ||||
| 90982-02033 |
12R,18R..RH11,2#,3#..03S,06S NS40ZAL,L=240 |
1 | ||
| 90982-02176 |
L..LH20,30 N70Z,NS60L,L=240 |
1 | ||
| 90982-02204 |
L..LH20,30 N70Z,NX120-7,L=1530 |
1 | ||
| 90982-02132 |
12R#,18R..RH2#,3#,42 N50,N50Z,L=310 |
1 | ||
| 90982-02033 |
12R,18R..RH20,22,3#..V..GEN NS40ZAL,L=240 |
1 | ||
| 90982-02204 |
L..LH20,30 N70Z,NS60L,L=1530 |
1 | ||
| 82046-95A00 |
L..LH20,30 N70Z,NX120-7,L=1530 |
1 | ||
| 90982-02184 |
12R,18R..RH11,2#,3#..03S,06S NS40ZAL,L=300 |
1 | ||
| 28800B - CABLE, BATTERY TO GROUND | ||||
| 90982-02033 |
12R,18R..RH11,2#,3#..03S,06S NS40ZAL,L=240 |
1 | ||
| 90982-02176 |
L..LH20,30 N70Z,NS60L,L=240 |
1 | ||
| 90982-02204 |
L..LH20,30 N70Z,NX120-7,L=1530 |
1 | ||
| 90982-02132 |
12R#,18R..RH2#,3#,42 N50,N50Z,L=310 |
1 | ||
| 90982-02033 |
12R,18R..RH20,22,3#..V..GEN NS40ZAL,L=240 |
1 | ||
| 90982-02204 |
L..LH20,30 N70Z,NS60L,L=1530 |
1 | ||
| 82046-95A00 |
L..LH20,30 N70Z,NX120-7,L=1530 |
1 | ||
| 90982-02184 |
12R,18R..RH11,2#,3#..03S,06S NS40ZAL,L=300 |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 90982-01301 |
L..LH20,30..LHD N100Z,L=2920 |
1 | ||
| 90982-01213 |
12R#,18R..RH2#,3#,42 NS40ZAL,N50,N50Z,L=520 |
1 | ||
| 90982-01299 |
L..LH20,30 N70Z,NS60L,L=1320 |
1 | ||
| 82021-95A09 |
L..LH20,30 N70,NX120-7,L=1320 |
1 | ||
| 82021-95A09 |
L..LH20,30..4H N70,L=1320 |
1 | ||
| 82021-95A05 |
12R,18R..RH20,22,3#..V..GEN NS40ZAL,L=520 |
1 | ||
| 82021-95A06 |
12R,18R..RH20,22,3#,42 N50,N50Z,L=540 |
1 | ||
| 82021-95A19 |
L..LH20,30..4H |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 90982-01301 |
L..LH20,30..LHD N100Z,L=2920 |
1 | ||
| 90982-01213 |
12R#,18R..RH2#,3#,42 NS40ZAL,N50,N50Z,L=520 |
1 | ||
| 90982-01299 |
L..LH20,30 N70Z,NS60L,L=1320 |
1 | ||
| 82021-95A09 |
L..LH20,30 N70,NX120-7,L=1320 |
1 | ||
| 82021-95A09 |
L..LH20,30..4H N70,L=1320 |
1 | ||
| 82021-95A05 |
12R,18R..RH20,22,3#..V..GEN NS40ZAL,L=520 |
1 | ||
| 82021-95A06 |
12R,18R..RH20,22,3#,42 N50,N50Z,L=540 |
1 | ||
| 82021-95A19 |
L..LH20,30..4H |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 90982-01301 |
L..LH20,30..LHD N100Z,L=2920 |
1 | ||
| 90982-01213 |
12R#,18R..RH2#,3#,42 NS40ZAL,N50,N50Z,L=520 |
1 | ||
| 90982-01299 |
L..LH20,30 N70Z,NS60L,L=1320 |
1 | ||
| 82021-95A09 |
L..LH20,30 N70,NX120-7,L=1320 |
1 | ||
| 82021-95A09 |
L..LH20,30..4H N70,L=1320 |
1 | ||
| 82021-95A05 |
12R,18R..RH20,22,3#..V..GEN NS40ZAL,L=520 |
1 | ||
| 82021-95A06 |
12R,18R..RH20,22,3#,42 N50,N50Z,L=540 |
1 | ||
| 82021-95A19 |
L..LH20,30..4H |
1 | ||
| Common parts | ||||
| 90105-08025 | ||||
| 90119-08103 | ||||
| 90173-08004 | ||||
| 90480-38001 | ||||
| 90480-40003 | ||||
| 91611-41016 | ||||

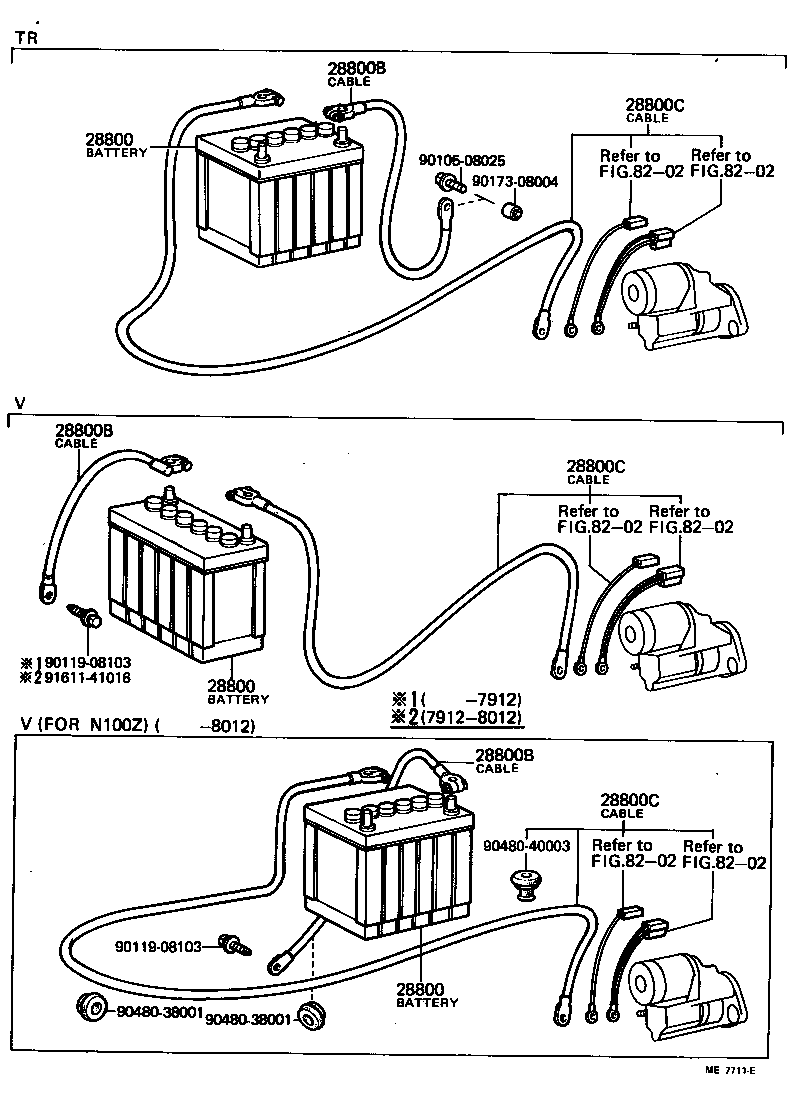

| Linked diagrams | ||||
| 8202 | ||||
(7702- )RH11,2#,3#,42
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-50010 |
L..LH20,30;L..LH11..EUR 46B24L,NS60L |
1 | ||
| 28800-30082 |
12R#,18R..RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA 48D26R,N50 |
1 | ||
| 28800-46012 |
L..LH11,20,30 75D31R,N70Z |
1 | ||
| 28800-26040 |
12R,18R..RH11,20,22,3#..(03S,06S)..(GEN,IDN) 34B19L,NS40ZAL |
1 | ||
| 28800 - BATTERY | ||||
| 28800-50010 |
L..LH20,30;L..LH11..EUR 46B24L,NS60L |
1 | ||
| 28800-30082 |
12R#,18R..RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA 48D26R,N50 |
1 | ||
| 28800-46012 |
L..LH11,20,30 75D31R,N70Z |
1 | ||
| 28800-26040 |
12R,18R..RH11,20,22,3#..(03S,06S)..(GEN,IDN) 34B19L,NS40ZAL |
1 | ||
| 28800 - BATTERY | ||||
| 28800-50010 |
L..LH20,30;L..LH11..EUR 46B24L,NS60L |
1 | ||
| 28800-30082 |
12R#,18R..RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA 48D26R,N50 |
1 | ||
| 28800-46012 |
L..LH11,20,30 75D31R,N70Z |
1 | ||
| 28800-26040 |
12R,18R..RH11,20,22,3#..(03S,06S)..(GEN,IDN) 34B19L,NS40ZAL |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05010 |
12R,18R..RH20,22,3#..GEN NS40ZAL |
1 | ||
| 90982-05005 |
12R#,18R..RH2#,3#,42 N50,N50Z |
1 | ||
| 90982-05004 |
12R,18R..RH20,22,3#..V NS40ZAL |
1 | ||
| 28800B - CABLE, BATTERY TO GROUND | ||||
| 90982-02033 |
12R,18R..RH11,2#,3#..03S,06S NS40ZAL,L=240 |
1 | ||
| 90982-02176 |
L..LH20,30 N70Z,NS60L,L=240 |
1 | ||
| 90982-02204 |
L..LH20,30 N70Z,NX120-7,L=1530 |
1 | ||
| 90982-02132 |
12R#,18R..RH2#,3#,42 N50,N50Z,L=310 |
1 | ||
| 90982-02033 |
12R,18R..RH20,22,3#..V..GEN NS40ZAL,L=240 |
1 | ||
| 90982-02204 |
L..LH20,30 N70Z,NS60L,L=1530 |
1 | ||
| 82046-95A00 |
L..LH20,30 N70Z,NX120-7,L=1530 |
1 | ||
| 90982-02184 |
12R,18R..RH11,2#,3#..03S,06S NS40ZAL,L=300 |
1 | ||
| 28800B - CABLE, BATTERY TO GROUND | ||||
| 90982-02033 |
12R,18R..RH11,2#,3#..03S,06S NS40ZAL,L=240 |
1 | ||
| 90982-02176 |
L..LH20,30 N70Z,NS60L,L=240 |
1 | ||
| 90982-02204 |
L..LH20,30 N70Z,NX120-7,L=1530 |
1 | ||
| 90982-02132 |
12R#,18R..RH2#,3#,42 N50,N50Z,L=310 |
1 | ||
| 90982-02033 |
12R,18R..RH20,22,3#..V..GEN NS40ZAL,L=240 |
1 | ||
| 90982-02204 |
L..LH20,30 N70Z,NS60L,L=1530 |
1 | ||
| 82046-95A00 |
L..LH20,30 N70Z,NX120-7,L=1530 |
1 | ||
| 90982-02184 |
12R,18R..RH11,2#,3#..03S,06S NS40ZAL,L=300 |
1 | ||
| 28800B - CABLE, BATTERY TO GROUND | ||||
| 90982-02033 |
12R,18R..RH11,2#,3#..03S,06S NS40ZAL,L=240 |
1 | ||
| 90982-02176 |
L..LH20,30 N70Z,NS60L,L=240 |
1 | ||
| 90982-02204 |
L..LH20,30 N70Z,NX120-7,L=1530 |
1 | ||
| 90982-02132 |
12R#,18R..RH2#,3#,42 N50,N50Z,L=310 |
1 | ||
| 90982-02033 |
12R,18R..RH20,22,3#..V..GEN NS40ZAL,L=240 |
1 | ||
| 90982-02204 |
L..LH20,30 N70Z,NS60L,L=1530 |
1 | ||
| 82046-95A00 |
L..LH20,30 N70Z,NX120-7,L=1530 |
1 | ||
| 90982-02184 |
12R,18R..RH11,2#,3#..03S,06S NS40ZAL,L=300 |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 90982-01301 |
L..LH20,30..LHD N100Z,L=2920 |
1 | ||
| 90982-01213 |
12R#,18R..RH2#,3#,42 NS40ZAL,N50,N50Z,L=520 |
1 | ||
| 90982-01299 |
L..LH20,30 N70Z,NS60L,L=1320 |
1 | ||
| 82021-95A09 |
L..LH20,30 N70,NX120-7,L=1320 |
1 | ||
| 82021-95A09 |
L..LH20,30..4H N70,L=1320 |
1 | ||
| 82021-95A05 |
12R,18R..RH20,22,3#..V..GEN NS40ZAL,L=520 |
1 | ||
| 82021-95A06 |
12R,18R..RH20,22,3#,42 N50,N50Z,L=540 |
1 | ||
| 82021-95A19 |
L..LH20,30..4H |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 90982-01301 |
L..LH20,30..LHD N100Z,L=2920 |
1 | ||
| 90982-01213 |
12R#,18R..RH2#,3#,42 NS40ZAL,N50,N50Z,L=520 |
1 | ||
| 90982-01299 |
L..LH20,30 N70Z,NS60L,L=1320 |
1 | ||
| 82021-95A09 |
L..LH20,30 N70,NX120-7,L=1320 |
1 | ||
| 82021-95A09 |
L..LH20,30..4H N70,L=1320 |
1 | ||
| 82021-95A05 |
12R,18R..RH20,22,3#..V..GEN NS40ZAL,L=520 |
1 | ||
| 82021-95A06 |
12R,18R..RH20,22,3#,42 N50,N50Z,L=540 |
1 | ||
| 82021-95A19 |
L..LH20,30..4H |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 90982-01301 |
L..LH20,30..LHD N100Z,L=2920 |
1 | ||
| 90982-01213 |
12R#,18R..RH2#,3#,42 NS40ZAL,N50,N50Z,L=520 |
1 | ||
| 90982-01299 |
L..LH20,30 N70Z,NS60L,L=1320 |
1 | ||
| 82021-95A09 |
L..LH20,30 N70,NX120-7,L=1320 |
1 | ||
| 82021-95A09 |
L..LH20,30..4H N70,L=1320 |
1 | ||
| 82021-95A05 |
12R,18R..RH20,22,3#..V..GEN NS40ZAL,L=520 |
1 | ||
| 82021-95A06 |
12R,18R..RH20,22,3#,42 N50,N50Z,L=540 |
1 | ||
| 82021-95A19 |
L..LH20,30..4H |
1 | ||
| Common parts | ||||
| 90105-08025 | ||||
| 90119-08103 | ||||
| 90173-08004 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
(7702- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08116 | ||||
| 90461-08109 | ||||
| 90461-08183 | ||||
| 90461-08214 | ||||
| 90461-08230 | ||||
| 90461-08535 | ||||
| 90461-10247 | ||||
| 90461-10311 | ||||
| 90461-10312 | ||||
| 90461-12684 | ||||
| 90462-10051 | ||||
| 90463-08124 | ||||
| 90480-01168 | ||||
| 90989-01004 | ||||
| 91611-40820 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
