RH30LV-JRFE (1977)

Toyota Hiace

Production Feb 1977 - Nov 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

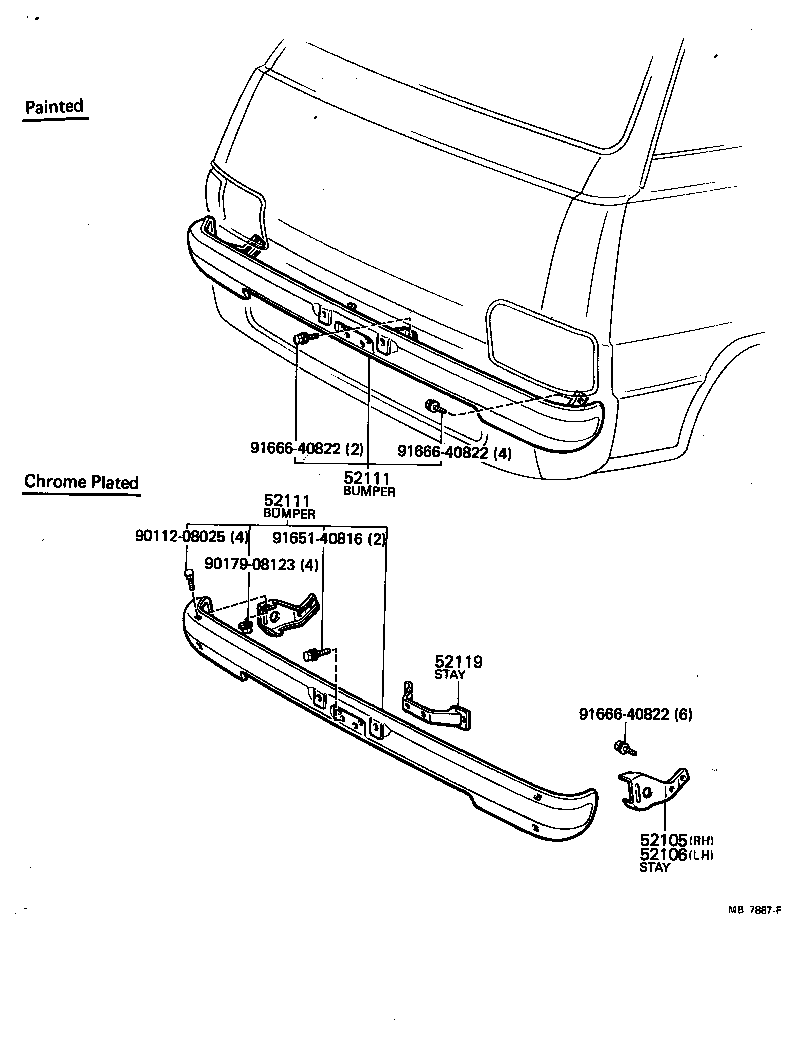

(7702-8012)LH20,30,RH20,22,3#,42

Click highlighted areas on diagram

diagram 52105 52106 52111 52111 52119 9011208025 9017908123 9165140816 9166640822 9166640822 9166640822
Part # Description Qty Price
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52141-95A02

LH20,30,RH20,22,3#,42..GEN

CHROME PLATED

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52142-95A02

LH20,30,RH20,22,3#,42..GEN

CHROME PLATED

 1
52111 - BUMPER ASSY, FRONT
52101-95A91

LH20,30,RH2#,3#,42..BUS,V

 1
52111-95A91

LH20,30,RH20,22,3#,42..GEN

CHROME PLATED

 1
52101-95A91

LH20,30,RH20,22,3#,42..ARL,GEN

 1
52101-29105

LH20,30,RH20,22,3#,42..BUS,V

 1
52111 - BUMPER ASSY, FRONT
52101-95A91

LH20,30,RH2#,3#,42..BUS,V

 1
52111-95A91

LH20,30,RH20,22,3#,42..GEN

CHROME PLATED

 1
52101-95A91

LH20,30,RH20,22,3#,42..ARL,GEN

 1
52101-29105

LH20,30,RH20,22,3#,42..BUS,V

 1
52119 - STAY, FRONT BUMPER, CENTER
52109-95A00

LH20,30,RH20,22,3#,42..GEN

CHROME PLATED

 1
Common parts
90112-08025
90179-08123
91651-40816
91666-40822

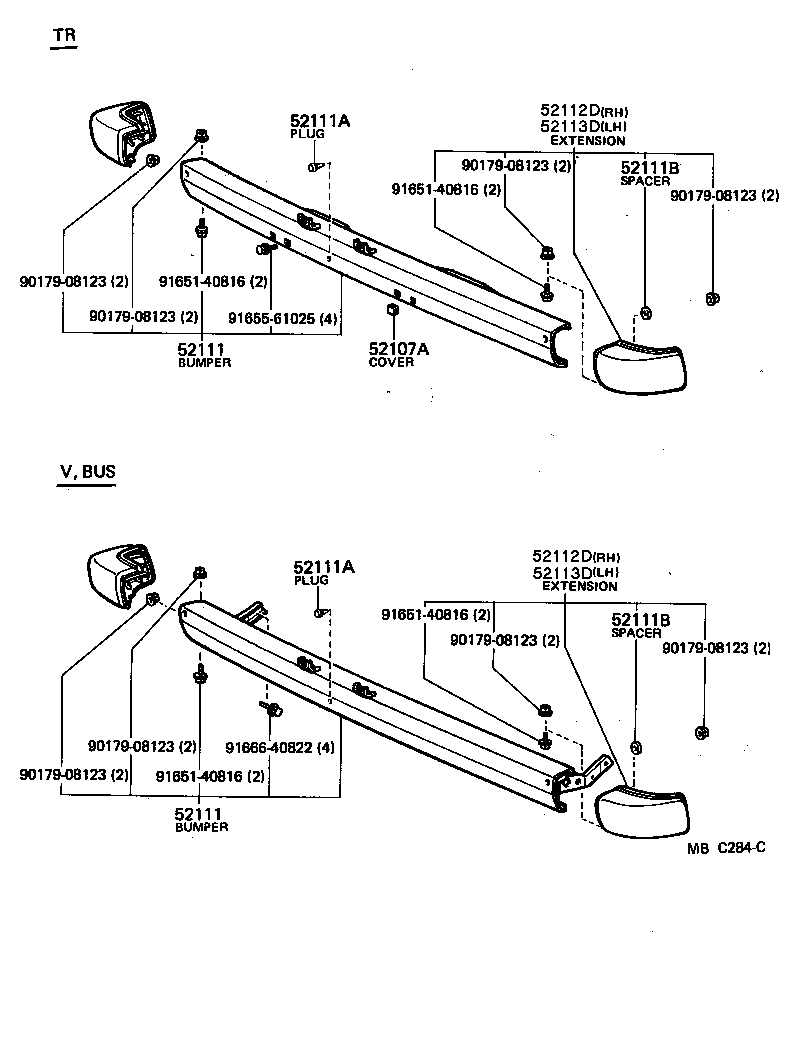

(8012- )BUS,TR,V

Click highlighted areas on diagram

diagram 52107A 52111 52111 52111A 52111A 52111B 52111B 52112D 52112D 52113D 52113D 9017908123 9017908123 9017908123 9017908123 9017908123 9017908123 9017908123 9017908123 9165140816 9165140816 9165140816 9165140816 9165561025 9166640822
Part # Description Qty Price
52111 - BUMPER ASSY, FRONT
52101-95A91

LH20,30,RH2#,3#,42..BUS,V

 1
52111-95A91

LH20,30,RH20,22,3#,42..GEN

CHROME PLATED

 1
52101-95A91

LH20,30,RH20,22,3#,42..ARL,GEN

 1
52101-29105

LH20,30,RH20,22,3#,42..BUS,V

 1
52111 - BUMPER ASSY, FRONT
52101-95A91

LH20,30,RH2#,3#,42..BUS,V

 1
52111-95A91

LH20,30,RH20,22,3#,42..GEN

CHROME PLATED

 1
52101-95A91

LH20,30,RH20,22,3#,42..ARL,GEN

 1
52101-29105

LH20,30,RH20,22,3#,42..BUS,V

 1
52111A - PLUG, FRONT BUMPER
90541-08137

LH11,20,30,RH11,2#,3#,42

 1
90541-08008

LH11,20,30,RH11,2#,3#,42

 1
52111A - PLUG, FRONT BUMPER
90541-08137

LH11,20,30,RH11,2#,3#,42

 1
90541-08008

LH11,20,30,RH11,2#,3#,42

 1
52111B - SPACER(FOR FRONT BUNPER)
52135-95A01

LH11,20,30,RH11,2#,3#,42

 2
52111B - SPACER(FOR FRONT BUNPER)
52135-95A01

LH11,20,30,RH11,2#,3#,42

 2
52112D - EXTENSION, FRONT BUMPER, RH
52011-29025

LH11,20,30,RH11,2#,3#,42

 1
52112D - EXTENSION, FRONT BUMPER, RH
52011-29025

LH11,20,30,RH11,2#,3#,42

 1
52113D - EXTENSION, FRONT BUMPER, LH
52012-29025

LH11,20,30,RH11,2#,3#,42

 1
52113D - EXTENSION, FRONT BUMPER, LH
52012-29025

LH11,20,30,RH11,2#,3#,42

 1
Common parts
90179-08123
91651-40816
91655-61025
91666-40822
