RH22RB-JRE (1977)
Toyota Hiace
(7702- )ARL,EUR,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905 - CABLE SUB-ASSY, DEFROST CONTROL | ||||
| 55905-95A00 |
LH11,20,30,RH11,20,22,3#,42..RHD..(ARL,EUR,GEN,SA) L=510 |
1 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55907-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD..(ARL,EUR,GEN,SA) L=490 |
1 | ||
| 55907-95A02 |
LH11,20,30,RH11,20,22,3#,42..RHD..(ARL,EUR,GEN,SA) L=550 |
1 | ||
| 55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY | ||||
| 55906-95A00 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA L=710 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55902-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD..(ARL,EUR,GEN,SA) |
1 | ||
| 55902-95A02 |
LH11,20,30,RH11,20,22,3#,42..RHD..(ARL,EUR,GEN,SA) |
1 | ||
| 55918 - RETAINER, HEATER CONTROL LEVER | ||||
| 55914-12020 |
RH11,20,22,3#,42..ARL,EUR,GEN,SA |
3 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-12070 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55905-20140 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA |
3 | ||
| 55937-95700 |
RH11,2#,3#,42..ARL,EUR,GEN,SA |
3 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-12070 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55905-20140 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA |
3 | ||
| 55937-95700 |
RH11,2#,3#,42..ARL,EUR,GEN,SA |
3 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-12070 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55905-20140 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA |
3 | ||
| 55937-95700 |
RH11,2#,3#,42..ARL,EUR,GEN,SA |
3 | ||
| 55939 - ORNAMENT, HEATER CONTROL | ||||
| 55519-95A00 |
LH11,20,30,RH11,20,22,3#,42..RHD..(ARL,EUR,GEN,SA) |
1 | ||
| 55939 - ORNAMENT, HEATER CONTROL | ||||
| 55519-95A00 |
LH11,20,30,RH11,20,22,3#,42..RHD..(ARL,EUR,GEN,SA) |
1 | ||
| 87125 - LOUVER, VENTILATION | ||||
| 88960-27011 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN |
1 | ||
| Common parts | ||||
| 55465-95A00 | ||||
| 55933-14010 | ||||
| 93510-14014 | ||||
| 93510-54012 | ||||
| 93510-55012 | ||||

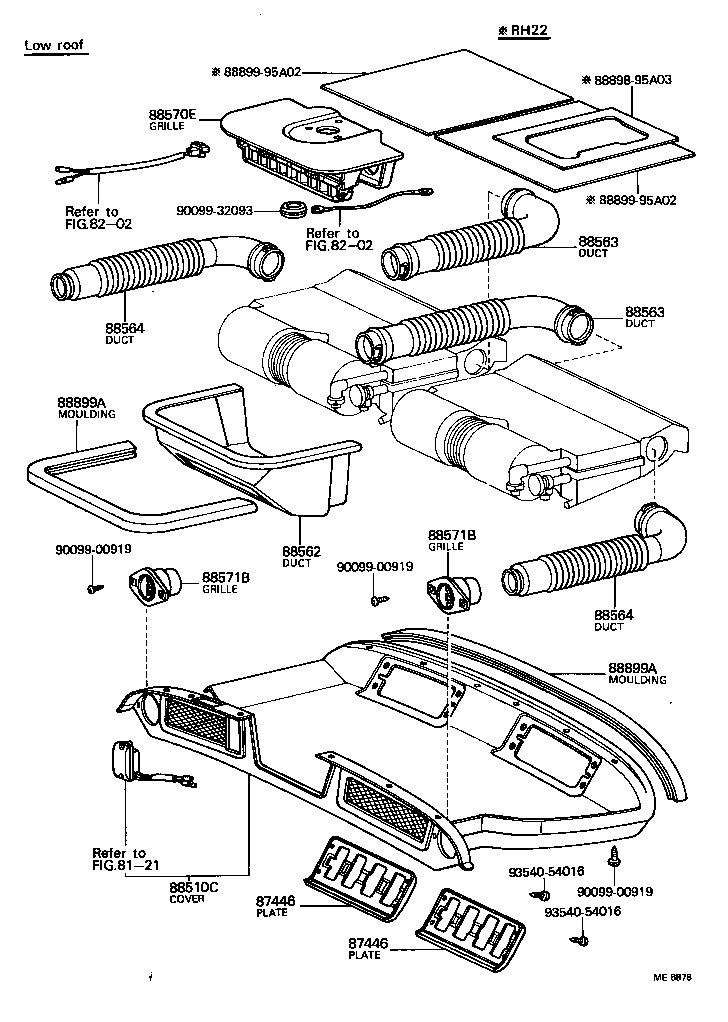

(7702-7804)RH22 ; (7702-7804)RH20,3#..RHD ; (7702-7804)LHD..12S..EUR ; (7702-7804)R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87446 - PLATE, AIR DUCT | ||||
| 88897-95A04 |
RH2#,3#..RHD |
2 | ||
| 87446 - PLATE, AIR DUCT | ||||
| 88897-95A04 |
RH2#,3#..RHD |
2 | ||
| 88510C - COVER ASSY, COOLER UNIT | ||||
| 88896-95A01 |
RH2#,3#..RHD |
1 | ||
| 88562 - DUCT SUB-ASSY, COOLER, NO.1 | ||||
| 88566-95A03 |
RH2#,3#..RHD |
1 | ||
| 88563 - DUCT SUB-ASSY, COOLER, NO.2 | ||||
| 88566-95A00 |
RH2#,3#..RHD |
2 | ||
| 88563 - DUCT SUB-ASSY, COOLER, NO.2 | ||||
| 88566-95A00 |
RH2#,3#..RHD |
2 | ||
| 88564 - DUCT SUB-ASSY, COOLER, NO.3 | ||||
| 88566-95A01 |
RH2#,3#..RHD |
2 | ||
| 88564 - DUCT SUB-ASSY, COOLER, NO.3 | ||||
| 88566-95A01 |
RH2#,3#..RHD |
2 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88898-95A04 |
RH2#,3#..RHD |
1 | ||
| 88571B - GRILLE, AIR OUTLET | ||||
| 88570-95A00 |
RH2#,3#..RHD |
2 | ||
| 88571B - GRILLE, AIR OUTLET | ||||
| 88570-95A00 |
RH2#,3#..RHD |
2 | ||
| 88899A - MOULDING, AIR DUCT | ||||
| 88899-95A00 |
RH2#,3#..RHD L=600 |
1 | ||
| 88899-95A01 |
RH2#,3#..RHD L=1800 |
1 | ||
| 88899A - MOULDING, AIR DUCT | ||||
| 88899-95A00 |
RH2#,3#..RHD L=600 |
1 | ||
| 88899-95A01 |
RH2#,3#..RHD L=1800 |
1 | ||
| Common parts | ||||
| 88898-95A03 | ||||
| 88899-95A02 | ||||
| 90099-00919 | ||||
| 90099-32093 | ||||
| 93540-54016 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
