Toyota Hiace RH22 HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

Manufacturers Home
Toyota
GR
HIACE
RH22RB-JR (1977)
8712 - HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

RH22RB-JR (1977)

Toyota Hiace

Production Feb 1977 - Dec 1980

Engine 18R

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(7702- )ARL,EUR,GEN,SA

Click highlighted areas on diagram

Part #	Description	Period	Qty
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-95A00	LH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,SA STD TYPE	02/1977 - 11/1982	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-20054	LH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,SA	02/1977 - 11/1982	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-95A00	LH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,SA STD TYPE	02/1977 - 11/1982	1
87110 - HEATER ASSY
87110-95A00	LH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,SA	02/1977 - 01/1980	1
87111 - CASE, HEATER
87111-95A00	LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA	02/1977 - 11/1982	1
87111A - CASE, HEATER
87111-95A01	LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA	02/1977 - 11/1982	1
87138 - RESISTOR, HEATER BLOWER
87138-95A00	LH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,SA STD TYPE	02/1977 - 11/1982	1
87188 - PACKING, HEATER BLOWER MOTOR
87128-22010	LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA	02/1977 - 11/1982	1
87240H - VALVE ASSY, WATER UNIT
87240-95A02	LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA	02/1977 - 12/1979	1
87245F - HOSE, HEATER WATER, INLET F
99552-30035	LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA *H,L=35	02/1977 - 11/1982	1
87246F - HOSE, HEATER WATER, OUTLET F
99552-30035	LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA *H,L=35	02/1977 - 11/1982	1
87249E - PIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT)
87157-95A00	LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA	02/1977 - 11/1982	1
Common parts
55465-95A00
87116-14010
90099-02134
90099-02135
90099-02210
90099-05164
90950-01318
90950-03061
91651-40616
91651-40620
93319-10306
93510-15016
93510-55012
93540-14016
93540-55012
96111-10250
Linked diagrams
8715

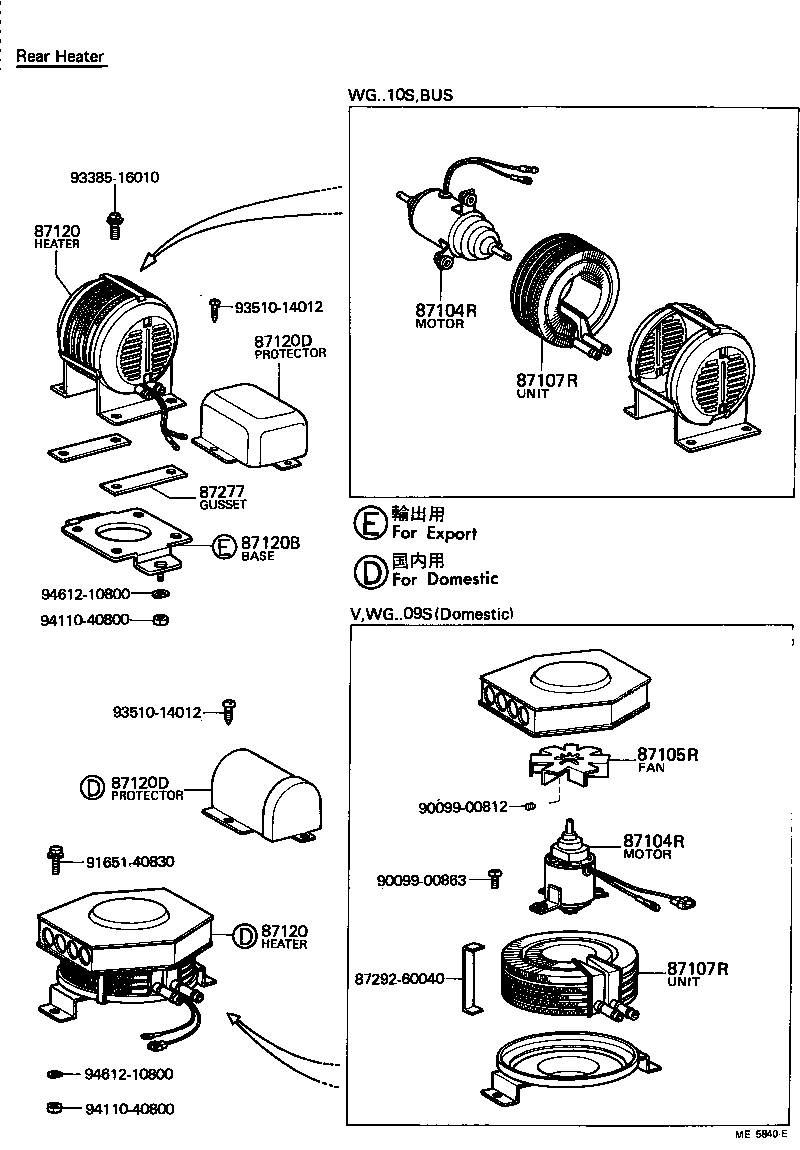

(7702-7909)BUS

Click highlighted areas on diagram

Part #	Description	Period	Qty
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-36190	LH20,30,RH20,22,3#,42..BUS	09/1979 - 12/1980	1
87104-36041	RH2#,3#,42..BUS	02/1977 - 09/1979	1
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-36190	LH20,30,RH20,22,3#,42..BUS	09/1979 - 12/1980	1
87104-36041	RH2#,3#,42..BUS	02/1977 - 09/1979	1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-60040	RH2#,3#..BUS	02/1977 - 09/1979	1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-36050	RH2#,3#..BUS	02/1977 - 09/1979	1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-36050	RH2#,3#..BUS	02/1977 - 09/1979	1
87120 - HEATER ASSY, REAR
87110-95A02	LH20,30,RH20,22,3#,42..BUS	07/1980 - 12/1980	1
87110-95A03	LH20,30,RH20,22,3#,42..BUS	09/1979 - 07/1980	1
87170-36050	RH2#,3#,42..BUS	02/1977 - 09/1979	1
87120 - HEATER ASSY, REAR
87110-95A02	LH20,30,RH20,22,3#,42..BUS	07/1980 - 12/1980	1
87110-95A03	LH20,30,RH20,22,3#,42..BUS	09/1979 - 07/1980	1
87170-36050	RH2#,3#,42..BUS	02/1977 - 09/1979	1
87120B - BASE, REAR HEATER, NO.1
87121-26071	RH2#,3#..BUS	02/1977 - 09/1979	1
87120D - PROTECTOR, REAR HEATER PIPE JOINT
87297-36050	RH2#,3#..BUS	02/1977 - 09/1979	1
87120D - PROTECTOR, REAR HEATER PIPE JOINT
87297-36050	RH2#,3#..BUS	02/1977 - 09/1979	1
Common parts
87292-60040
90099-00812
90099-00863
91651-40830
93385-16010
93510-14012
94110-40800
94612-10800

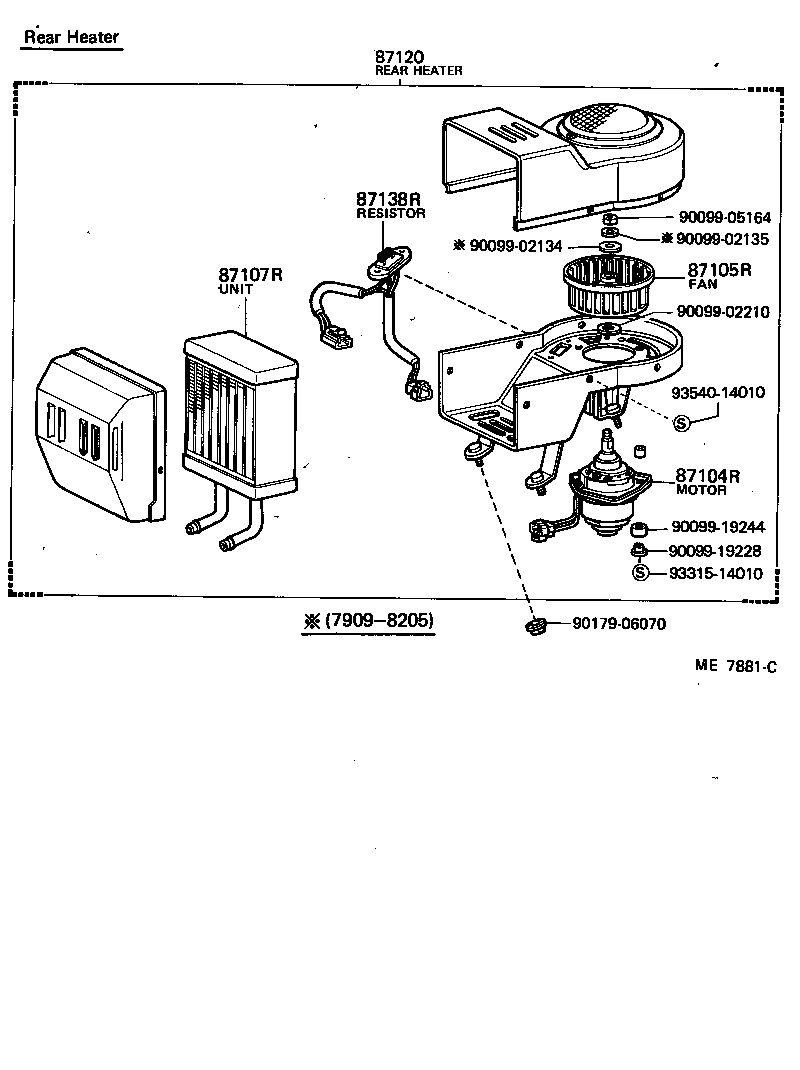

(7909- )BUS,WG..ARL,EUR,GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-36190	LH20,30,RH20,22,3#,42..BUS	09/1979 - 12/1980	1
87104-36041	RH2#,3#,42..BUS	02/1977 - 09/1979	1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-60040	RH2#,3#..BUS	02/1977 - 09/1979	1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-36050	RH2#,3#..BUS	02/1977 - 09/1979	1
87120 - HEATER ASSY, REAR
87110-95A02	LH20,30,RH20,22,3#,42..BUS	07/1980 - 12/1980	1
87110-95A03	LH20,30,RH20,22,3#,42..BUS	09/1979 - 07/1980	1
87170-36050	RH2#,3#,42..BUS	02/1977 - 09/1979	1
Common parts
90099-02134
90099-02135
90099-02210
90099-05164
90099-19228
90099-19244
90179-06070
93315-14010
93540-14010

RH22RB-JR (1977)

(7702- )ARL,EUR,GEN,SA

(7702-7909)BUS

(7909- )BUS,WG..ARL,EUR,GEN
