Toyota Hiace RH22 WINDSHIELD WIPER

Manufacturers Home
Toyota
GR
HIACE
RH22RB-JR (1977)
8501 - WINDSHIELD WIPER

RH22RB-JR (1977)

Toyota Hiace

Production Feb 1977 - Dec 1980

Engine 18R

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

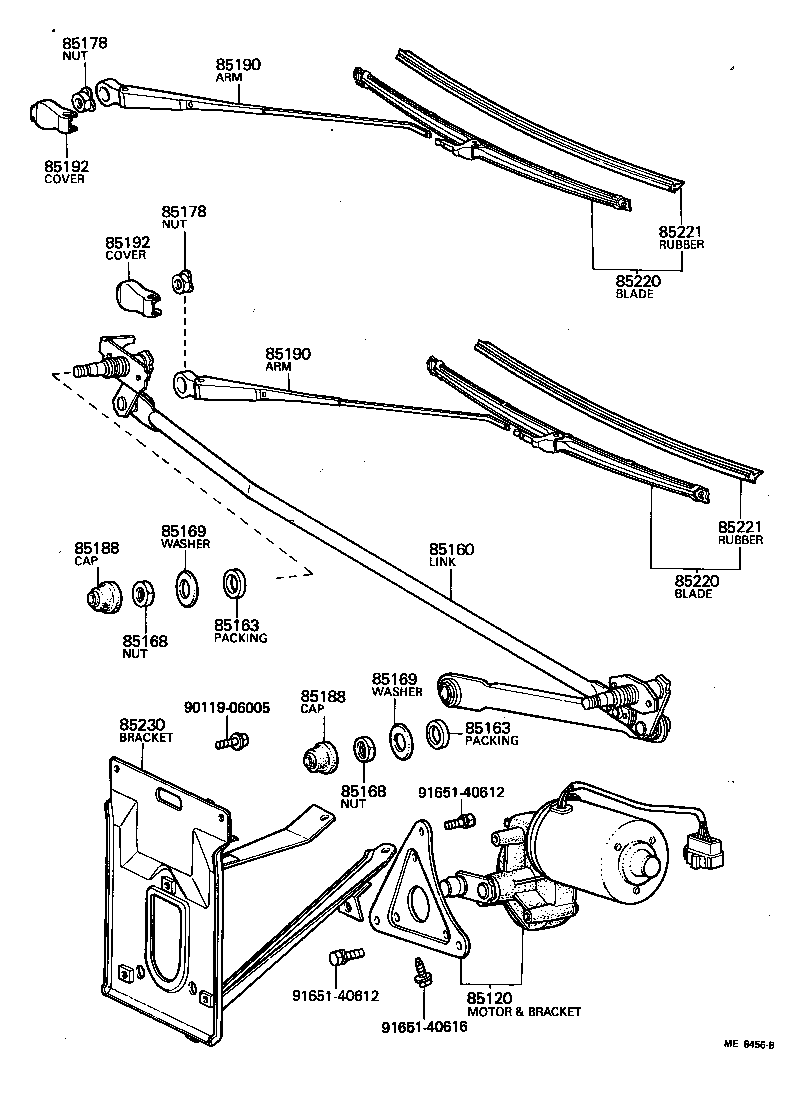

(7912- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
85120 - MOTOR AND BRACKET ASSY, WINDSHIELD WIPER
85120-95A00	LH11,20,30,RH11,2#,3#,42..RHD	02/1977 - 12/1979	1
85120-95A00	LH20,30,RH11,20,22,3#,42..RHD..(ARL,GEN,IDN,SA)	12/1979 - 12/1980	1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-95A00	LH11,20,30,RH11,20,22,3#,42..RHD	02/1977 - 09/1981	1
85163 - PACKING, WINDSHIELD WIPER PIVOT
85185-95A00	LH11,20,30,RH11,2#,3#,42 ID=14	02/1977 - 09/1981	2
85163 - PACKING, WINDSHIELD WIPER PIVOT
85185-95A00	LH11,20,30,RH11,2#,3#,42 ID=14	02/1977 - 09/1981	2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-95A00	RH11,2#,3#,42	02/1977 - 08/1977	2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-95A00	RH11,2#,3#,42	02/1977 - 08/1977	2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85169-95A00	LH11,20,30,RH11,2#,3#,42 ID=14.5	02/1977 - 09/1981	2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85169-95A00	LH11,20,30,RH11,2#,3#,42 ID=14.5	02/1977 - 09/1981	2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
85182-95A00	LH11,20,30,RH11,2#,3#,42	02/1977 - 12/1979	2
90099-05129	LH11,20,30,RH11,2#,3#,42	12/1979 - 10/1980	2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
85182-95A00	LH11,20,30,RH11,2#,3#,42	02/1977 - 12/1979	2
90099-05129	LH11,20,30,RH11,2#,3#,42	12/1979 - 10/1980	2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85135-95A00	LH11,20,30,RH11,2#,3#,42	02/1977 - 09/1981	2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85135-95A00	LH11,20,30,RH11,2#,3#,42	02/1977 - 09/1981	2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95A00	LH11,20,30,RH11,2#,3#,42..RHD	02/1977 - 12/1979	2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95A00	LH11,20,30,RH11,2#,3#,42..RHD	02/1977 - 12/1979	2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-95A00	LH11,20,30,RH11,2#,3#,42	02/1977 - 12/1979	2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-95A00	LH11,20,30,RH11,2#,3#,42	02/1977 - 12/1979	2
85221 - BLADE, WINDSHIELD WIPER
85221-95A00	LH11,20,30,RH11,2#,3#,42	02/1977 - 12/1979	1
85221 - BLADE, WINDSHIELD WIPER
85221-95A00	LH11,20,30,RH11,2#,3#,42	02/1977 - 12/1979	1
85230 - BRACKET ASSY, WINDSHIELD WIPER
85230-95A00	LH11,20,30,RH11,20,22,3#,42..RHD	02/1977 - 11/1982	1
Common parts
90119-06005
91651-40612
91651-40616

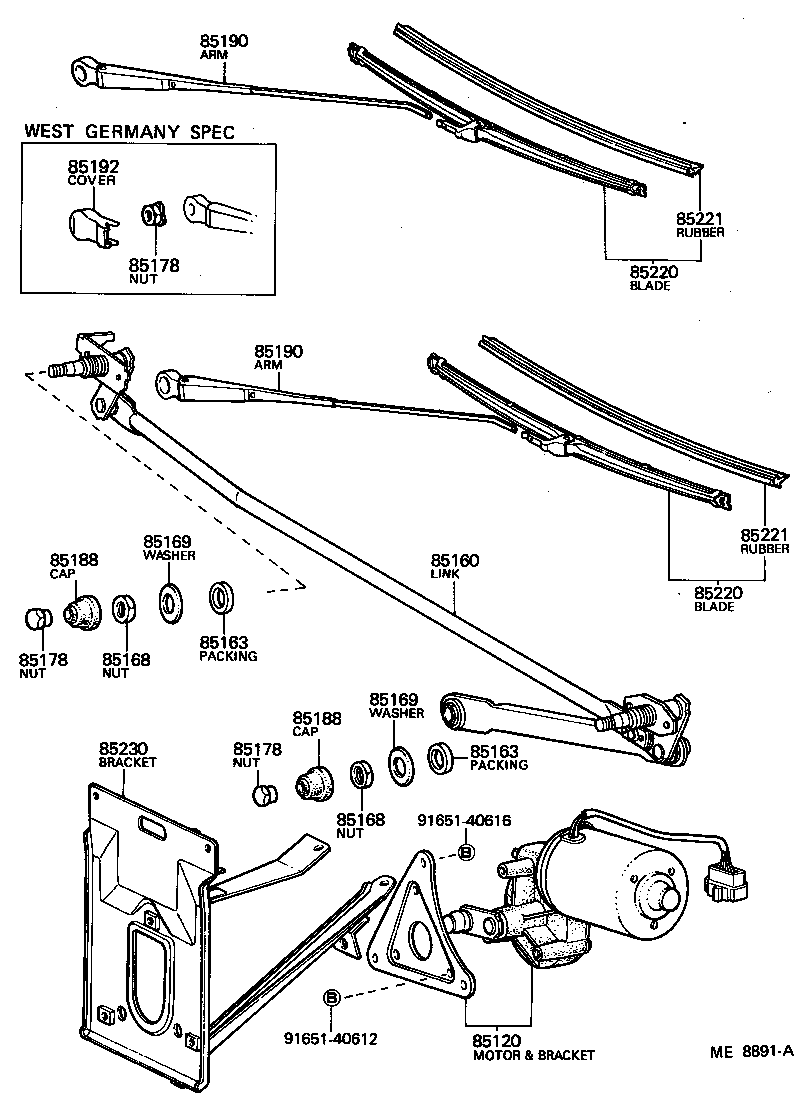

(7702-7912)

Click highlighted areas on diagram

Part #	Description	Period	Qty
85120 - MOTOR AND BRACKET ASSY, WINDSHIELD WIPER
85120-95A00	LH11,20,30,RH11,2#,3#,42..RHD	02/1977 - 12/1979	1
85120-95A00	LH20,30,RH11,20,22,3#,42..RHD..(ARL,GEN,IDN,SA)	12/1979 - 12/1980	1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-95A00	LH11,20,30,RH11,20,22,3#,42..RHD	02/1977 - 09/1981	1
85163 - PACKING, WINDSHIELD WIPER PIVOT
85185-95A00	LH11,20,30,RH11,2#,3#,42 ID=14	02/1977 - 09/1981	2
85163 - PACKING, WINDSHIELD WIPER PIVOT
85185-95A00	LH11,20,30,RH11,2#,3#,42 ID=14	02/1977 - 09/1981	2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-95A00	RH11,2#,3#,42	02/1977 - 08/1977	2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-95A00	RH11,2#,3#,42	02/1977 - 08/1977	2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85169-95A00	LH11,20,30,RH11,2#,3#,42 ID=14.5	02/1977 - 09/1981	2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85169-95A00	LH11,20,30,RH11,2#,3#,42 ID=14.5	02/1977 - 09/1981	2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
85182-95A00	LH11,20,30,RH11,2#,3#,42	02/1977 - 12/1979	2
90099-05129	LH11,20,30,RH11,2#,3#,42	12/1979 - 10/1980	2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
85182-95A00	LH11,20,30,RH11,2#,3#,42	02/1977 - 12/1979	2
90099-05129	LH11,20,30,RH11,2#,3#,42	12/1979 - 10/1980	2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
85182-95A00	LH11,20,30,RH11,2#,3#,42	02/1977 - 12/1979	2
90099-05129	LH11,20,30,RH11,2#,3#,42	12/1979 - 10/1980	2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85135-95A00	LH11,20,30,RH11,2#,3#,42	02/1977 - 09/1981	2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85135-95A00	LH11,20,30,RH11,2#,3#,42	02/1977 - 09/1981	2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95A00	LH11,20,30,RH11,2#,3#,42..RHD	02/1977 - 12/1979	2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95A00	LH11,20,30,RH11,2#,3#,42..RHD	02/1977 - 12/1979	2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-95A00	LH11,20,30,RH11,2#,3#,42	02/1977 - 12/1979	2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-95A00	LH11,20,30,RH11,2#,3#,42	02/1977 - 12/1979	2
85221 - BLADE, WINDSHIELD WIPER
85221-95A00	LH11,20,30,RH11,2#,3#,42	02/1977 - 12/1979	1
85221 - BLADE, WINDSHIELD WIPER
85221-95A00	LH11,20,30,RH11,2#,3#,42	02/1977 - 12/1979	1
85230 - BRACKET ASSY, WINDSHIELD WIPER
85230-95A00	LH11,20,30,RH11,20,22,3#,42..RHD	02/1977 - 11/1982	1
Common parts
91651-40612
91651-40616
