RH22RB-JR (1977)
Toyota Hiace

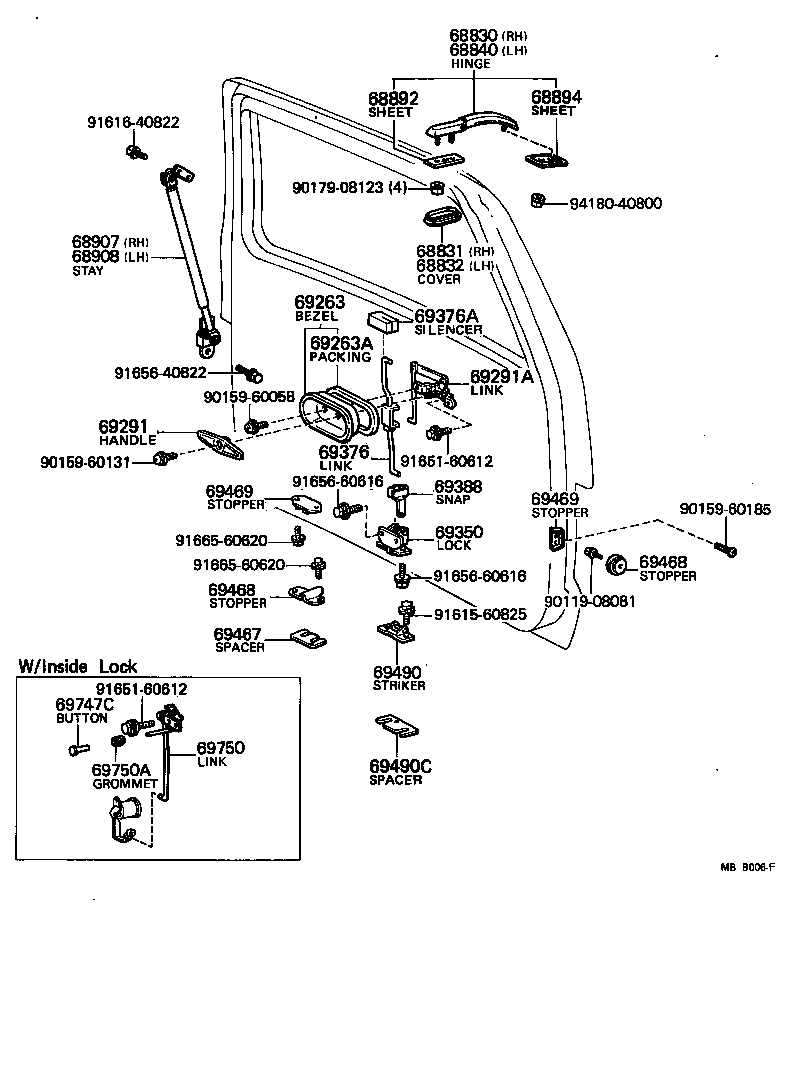

(7702-7912)LH20,30,RH2#,3#,42
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68830 - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-95A00 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 68831 - COVER, BACK DOOR HINGE UPPER, RH | ||||
| 68895-95A00 |
LH20,30,RH2#,3#,42..BUS,V |
1 | ||
| 68832 - COVER, BACK DOOR HINGE UPPER, LH | ||||
| 68895-95A00 |
LH20,30,RH2#,3#,42..BUS,V |
1 | ||
| 68840 - HINGE ASSY, BACK DOOR, LH | ||||
| 68820-95A00 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 68892 - SHEET, BACK DOOR HINGE, UPPER FEMALE | ||||
| 68891-95A00 |
LH20,30,RH20,22,3#,42 |
2 | ||
| 68894 - SHEET, BACK DOOR HINGE, UPPER MALE | ||||
| 68892-95A00 |
LH20,30,RH20,22,3#,42 |
2 | ||
| 68907 - STAY SUB-ASSY, BACK DOOR DAMPER, RH | ||||
| 68970-95A00 |
RH2#,3#,42 |
1 | ||
| 68970-95A03 |
LH20,30,RH20,22,3#,42..ARL,GEN,PHL,SA |
1 | ||
| 68908 - STAY SUB-ASSY, BACK DOOR DAMPER, LH | ||||
| 68980-95A00 |
RH2#,3#,42 |
1 | ||
| 68980-95A03 |
LH20,30,RH20,22,3#,42..ARL,GEN,PHL,SA |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-95A00 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 69376 - LINK, BACK DOOR LOCK | ||||
| 69301-95A00 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69388-12010 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 69468 - STOPPER, BACK DOOR SIDE MALE | ||||
| 69408-95A00 |
LH20,30,RH2#,3#,42 LWR |
2 | ||
| 69468-95A00 |
LH20,30,RH20,22,3#,42 LWR,RH |
1 | ||
| 69407-95A00 |
LH20,30,RH20,22,3#,42 SIDE |
2 | ||
| 69469-95A01 |
LH20,30,RH20,22,3#,42 LWR,LH |
1 | ||
| 69468 - STOPPER, BACK DOOR SIDE MALE | ||||
| 69408-95A00 |
LH20,30,RH2#,3#,42 LWR |
2 | ||
| 69468-95A00 |
LH20,30,RH20,22,3#,42 LWR,RH |
1 | ||
| 69407-95A00 |
LH20,30,RH20,22,3#,42 SIDE |
2 | ||
| 69469-95A01 |
LH20,30,RH20,22,3#,42 LWR,LH |
1 | ||
| 69469 - STOPPER, BACK DOOR SIDE FEMALE | ||||
| 69408-95A01 |
LH20,30,RH20,22,3#,42 LWR,LH |
1 | ||
| 69469-95A00 |
LH20,30,RH2#,3#,42 LWR |
2 | ||
| 69409-95A00 |
LH20,30,RH20,22,3#,42 LWR,RH |
1 | ||
| 69466-95A00 |
LH20,30,RH20,22,3#,42 SIDE |
2 | ||
| 69469 - STOPPER, BACK DOOR SIDE FEMALE | ||||
| 69408-95A01 |
LH20,30,RH20,22,3#,42 LWR,LH |
1 | ||
| 69469-95A00 |
LH20,30,RH2#,3#,42 LWR |
2 | ||
| 69409-95A00 |
LH20,30,RH20,22,3#,42 LWR,RH |
1 | ||
| 69466-95A00 |
LH20,30,RH20,22,3#,42 SIDE |
2 | ||
| 69490 - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69450-95A00 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 69490C - SPACER, BACK DOOR LOCK STRIKER | ||||
| 69475-95A00 |
LH20,30,RH20,22,3#,42 |
2 | ||
| 69747C - BUTTON, DOOR LOCKING(FOR BACK DOOR) | ||||
| 69747-20020 |
RH2#,3#,42..BUS |
1 | ||
| 69747-20020 |
LH20,30,RH2#,3#,42 |
1 | ||
| 69747-20020 |
LH20,30,RH20,22,3#,42..BUS,WG |
1 | ||
| 69750 - LINK SUB-ASSY, BACK DOOR REMOTE CONTROL | ||||
| 69250-95A00 |
LH20,30,RH2#,3#,42 |
1 | ||
| 69250-95A00 |
LH20,30,RH20,22,3#,42..BUS,WG |
1 | ||
| 69250-95A00 |
RH2#,3#,42..BUS |
1 | ||
| 69750A - GROMMET(FOR BACK DOOR REMOTE CONTROL) | ||||
| 90480-10102 |
RH2#,3#,42..BUS |
1 | ||
| 90480-10102 |
LH20,30,RH20,22,3#,42..BUS,WG |
1 | ||
| 90480-10102 |
LH20,30,RH2#,3#,42 |
1 | ||
| Common parts | ||||
| 90119-08081 | ||||
| 90159-60185 | ||||
| 90179-08123 | ||||
| 91615-40825 | ||||
| 91616-40818 | ||||
| 91616-40822 | ||||
| 91651-60612 | ||||
| 91656-40822 | ||||
| 91656-60616 | ||||
| 91666-60622 | ||||
| 94180-40800 | ||||

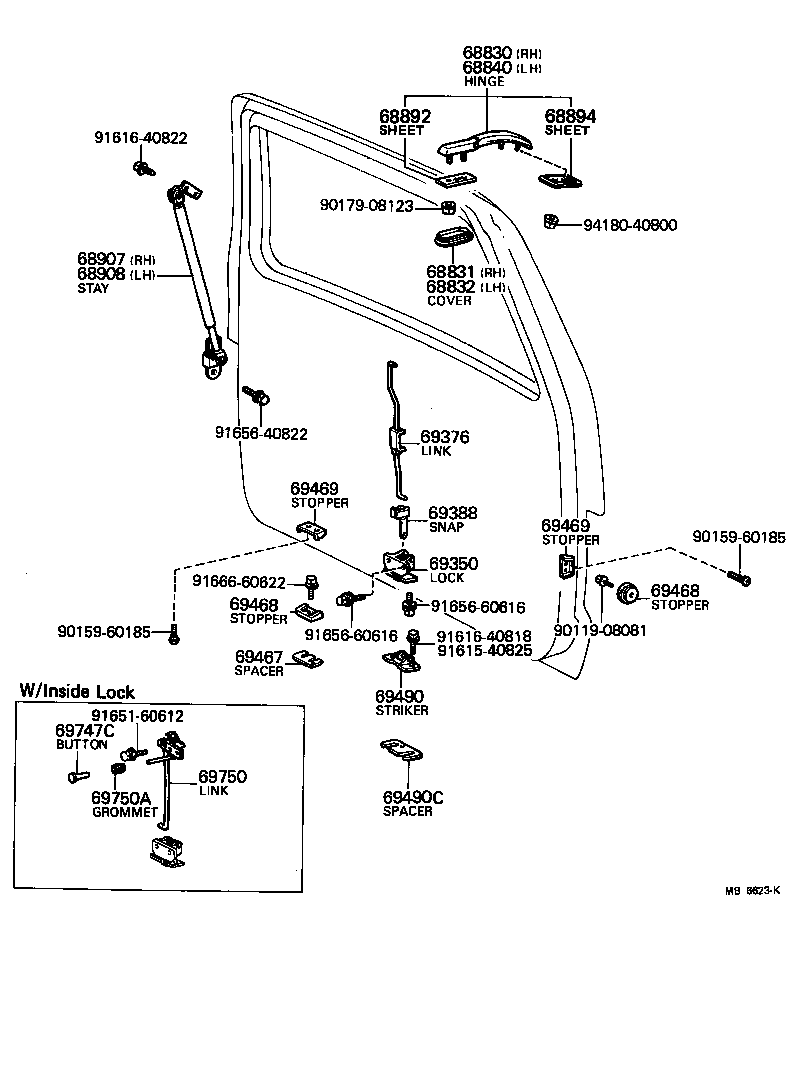

(7912- )LH20,30,RH20,22,3#,42
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68830 - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-95A00 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 68831 - COVER, BACK DOOR HINGE UPPER, RH | ||||
| 68895-95A00 |
LH20,30,RH2#,3#,42..BUS,V |
1 | ||
| 68832 - COVER, BACK DOOR HINGE UPPER, LH | ||||
| 68895-95A00 |
LH20,30,RH2#,3#,42..BUS,V |
1 | ||
| 68840 - HINGE ASSY, BACK DOOR, LH | ||||
| 68820-95A00 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 68892 - SHEET, BACK DOOR HINGE, UPPER FEMALE | ||||
| 68891-95A00 |
LH20,30,RH20,22,3#,42 |
2 | ||
| 68894 - SHEET, BACK DOOR HINGE, UPPER MALE | ||||
| 68892-95A00 |
LH20,30,RH20,22,3#,42 |
2 | ||
| 68907 - STAY SUB-ASSY, BACK DOOR DAMPER, RH | ||||
| 68970-95A00 |
RH2#,3#,42 |
1 | ||
| 68970-95A03 |
LH20,30,RH20,22,3#,42..ARL,GEN,PHL,SA |
1 | ||
| 68908 - STAY SUB-ASSY, BACK DOOR DAMPER, LH | ||||
| 68980-95A00 |
RH2#,3#,42 |
1 | ||
| 68980-95A03 |
LH20,30,RH20,22,3#,42..ARL,GEN,PHL,SA |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-95A00 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 69376 - LINK, BACK DOOR LOCK | ||||
| 69301-95A00 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69388-12010 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 69468 - STOPPER, BACK DOOR SIDE MALE | ||||
| 69408-95A00 |
LH20,30,RH2#,3#,42 LWR |
2 | ||
| 69468-95A00 |
LH20,30,RH20,22,3#,42 LWR,RH |
1 | ||
| 69407-95A00 |
LH20,30,RH20,22,3#,42 SIDE |
2 | ||
| 69469-95A01 |
LH20,30,RH20,22,3#,42 LWR,LH |
1 | ||
| 69468 - STOPPER, BACK DOOR SIDE MALE | ||||
| 69408-95A00 |
LH20,30,RH2#,3#,42 LWR |
2 | ||
| 69468-95A00 |
LH20,30,RH20,22,3#,42 LWR,RH |
1 | ||
| 69407-95A00 |
LH20,30,RH20,22,3#,42 SIDE |
2 | ||
| 69469-95A01 |
LH20,30,RH20,22,3#,42 LWR,LH |
1 | ||
| 69469 - STOPPER, BACK DOOR SIDE FEMALE | ||||
| 69408-95A01 |
LH20,30,RH20,22,3#,42 LWR,LH |
1 | ||
| 69469-95A00 |
LH20,30,RH2#,3#,42 LWR |
2 | ||
| 69409-95A00 |
LH20,30,RH20,22,3#,42 LWR,RH |
1 | ||
| 69466-95A00 |
LH20,30,RH20,22,3#,42 SIDE |
2 | ||
| 69469 - STOPPER, BACK DOOR SIDE FEMALE | ||||
| 69408-95A01 |
LH20,30,RH20,22,3#,42 LWR,LH |
1 | ||
| 69469-95A00 |
LH20,30,RH2#,3#,42 LWR |
2 | ||
| 69409-95A00 |
LH20,30,RH20,22,3#,42 LWR,RH |
1 | ||
| 69466-95A00 |
LH20,30,RH20,22,3#,42 SIDE |
2 | ||
| 69490 - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69450-95A00 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 69490C - SPACER, BACK DOOR LOCK STRIKER | ||||
| 69475-95A00 |
LH20,30,RH20,22,3#,42 |
2 | ||
| 69747C - BUTTON, DOOR LOCKING(FOR BACK DOOR) | ||||
| 69747-20020 |
RH2#,3#,42..BUS |
1 | ||
| 69747-20020 |
LH20,30,RH2#,3#,42 |
1 | ||
| 69747-20020 |
LH20,30,RH20,22,3#,42..BUS,WG |
1 | ||
| 69750 - LINK SUB-ASSY, BACK DOOR REMOTE CONTROL | ||||
| 69250-95A00 |
LH20,30,RH2#,3#,42 |
1 | ||
| 69250-95A00 |
LH20,30,RH20,22,3#,42..BUS,WG |
1 | ||
| 69250-95A00 |
RH2#,3#,42..BUS |
1 | ||
| 69750A - GROMMET(FOR BACK DOOR REMOTE CONTROL) | ||||
| 90480-10102 |
RH2#,3#,42..BUS |
1 | ||
| 90480-10102 |
LH20,30,RH20,22,3#,42..BUS,WG |
1 | ||
| 90480-10102 |
LH20,30,RH2#,3#,42 |
1 | ||
| Common parts | ||||
| 90119-08081 | ||||
| 90159-60058 | ||||
| 90159-60131 | ||||
| 90159-60185 | ||||
| 90179-08123 | ||||
| 91615-60825 | ||||
| 91616-40822 | ||||
| 91651-60612 | ||||
| 91656-40822 | ||||
| 91656-60616 | ||||
| 91665-60620 | ||||
| 94180-40800 | ||||
