RH22LB-JR (1977)
Toyota Hiace
(7702-7912) ; (7912-8110)IDN

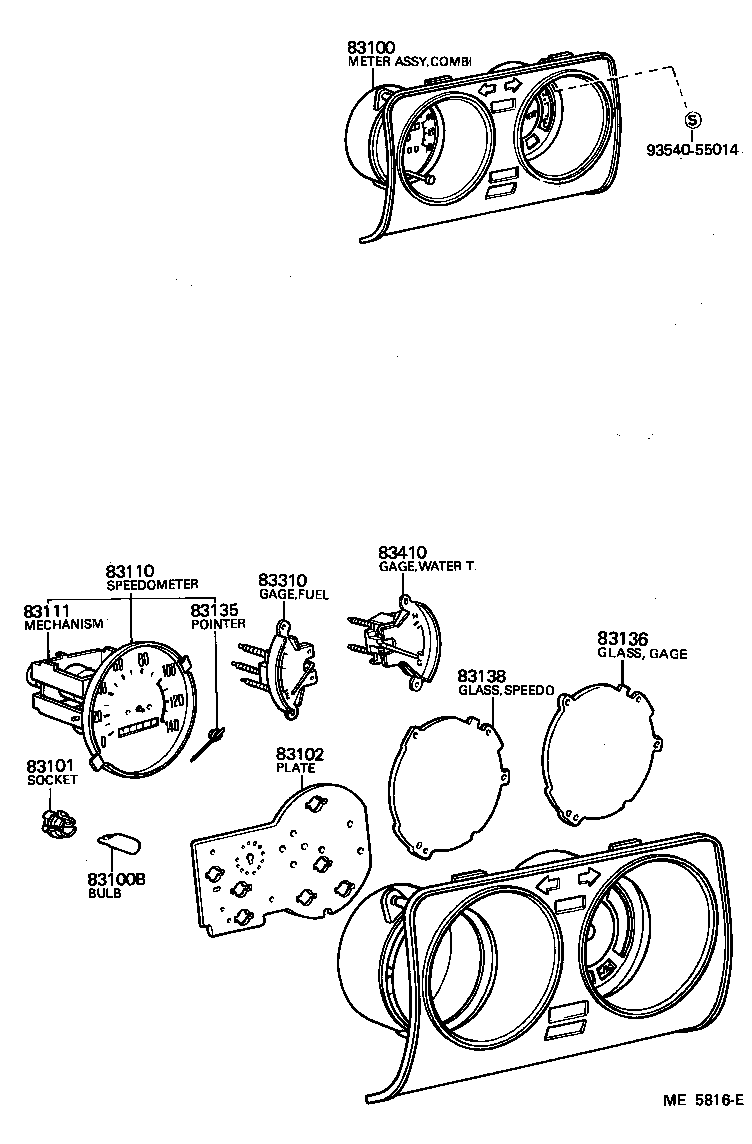

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83100-95A03 |
RH11,2#,3#,42 KM |
1 | ||
| 83100-95A09 |
RH11,2#,3#,42..EUR,GEN MILE & KM |
1 | ||
| 83100-95A04 |
RH11,2#,3#,42..EUR,GEN,SA MILE |
1 | ||
| 83100-95A03 |
RH11,2#,3#,42..EUR,GEN,IDN,PHL,SA KM |
1 | ||
| 83100-95A50 |
RH11,2#,3#,42..EUR,GEN KM |
1 | ||
| 83100-95A53 |
RH11,2#,3#,42..EUR,GEN MILE & KM |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LH11,20,30,RH11,2#,3#,42 12V 3.4W,12V 3.4W |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LH11,20,30,RH11,2#,3#,42 |
11 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95A00 |
RH11,2#,3#,42 |
1 | ||
| 83247-95A06 |
RH11,2#,3#,42..EUR,GEN,SA |
1 | ||
| 83247-95A08 |
RH11,2#,3#,42..ARL,EUR,GEN,SA |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83241-95A03 |
RH11,2#,3#,42..EUR,GEN,IDN,SA MILE |
1 | ||
| 83241-95A02 |
RH11,2#,3#,42 KM |
1 | ||
| 83110-95A04 |
RH11,20,22,30,42..EUR,GEN MILE & KM |
1 | ||
| 83110-95A04 |
RH11,20,22,3#,42..EUR,GEN MILE & KM |
1 | ||
| 83241-95A05 |
RH11,2#,3#,42..EUR,GEN MILE & KM |
1 | ||
| 83110-95A03 |
RH11,2#,3#,42..EUR,GEN KM |
1 | ||
| 83110-95A03 |
RH11,2#,30,42..EUR,GEN KM |
1 | ||
| 83110-95A08 |
RH11,2#,30,42..EUR,GEN KM,W/TRIP METER |
1 | ||
| 83110-95A10 |
RH11,20,22,30,42..EUR,GEN MILE & KM,W/TRIP METER |
1 | ||
| 83111 - MECHANISM, SPEEDOMETER | ||||
| 83112-95A03 |
RH11,2#,3#,42..EUR,GEN MILE & KM |
1 | ||
| 83112-95A02 |
RH11,2#,3#,42 KM |
1 | ||
| 83112-95A03 |
RH11,2#,3#,42..EUR,GEN,SA MILE |
1 | ||
| 83112-95016 |
RH11,20,22,3#,42..EUR,GEN MILE & KM |
1 | ||
| 83112-95016 |
RH11,20,22,30,42..(BUS,TR,V)..(EUR,GEN) MILE & KM |
1 | ||
| 83135 - POINTER, SPEEDOMETER | ||||
| 83135-95A03 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-95A00 |
RH11,2#,3#,42 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 83243-95A02 |
LH11,20,30,RH11,2#,3#,42..EUR,GEN,SA |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-95A00 |
LH11,20,RH11,2#,3#,42 |
1 | ||
| 83244-95A04 |
RH11,20,22,3#..GEN MIDDLE EAST COUNTRY SPEC |
1 | ||
| 83244-95A07 |
LH11,20,30,RH11,20,22,3#,42..EUR,GEN,SA |
1 | ||
| 83244-95A02 |
LH11,20,30,RH11,2#,3#,42..EUR,GEN,SA |
1 | ||
| 83244-95A03 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| Common parts | ||||
| 93540-55014 | ||||
(7702- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-29515 |
RH20,22,3#..LHD L=3290 |
1 | ||
| 83710-95A13 |
RH20,22,3#..LHD |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-29515 |
RH20,22,3#..LHD L=3290 |
1 | ||
| 83710-95A13 |
RH20,22,3#..LHD |
1 | ||
| Common parts | ||||
| 83711-95A00 | ||||
| 90461-06035 | ||||
| 90461-08215 | ||||
| 90461-08915 | ||||
| 90461-10224 | ||||
| 90461-10316 | ||||
| 90461-10441 | ||||
| 90461-10485 | ||||
| 90463-08375 | ||||
| 90480-01123 | ||||
| 90480-01428 | ||||
| 91651-40814 | ||||
| Linked diagrams | ||||
| 3304 | ||||

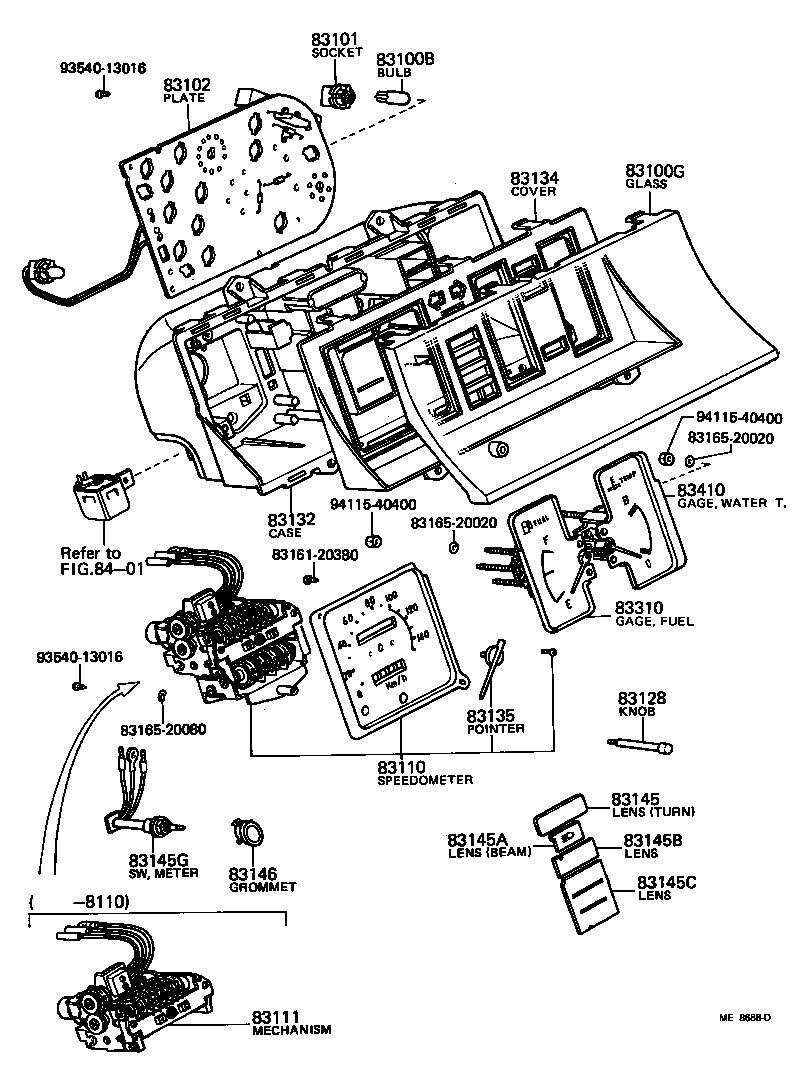

(7912- )ARL,EUR,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LH11,20,30,RH11,2#,3#,42 12V 3.4W,12V 3.4W |
11 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-95700 |
RH11,2#,3#,42 |
1 | ||
| 83138-95A04 |
RH11,2#,3#,42..ARL,EUR,GEN |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LH11,20,30,RH11,2#,3#,42 |
11 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95A00 |
RH11,2#,3#,42 |
1 | ||
| 83247-95A06 |
RH11,2#,3#,42..EUR,GEN,SA |
1 | ||
| 83247-95A08 |
RH11,2#,3#,42..ARL,EUR,GEN,SA |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83241-95A03 |
RH11,2#,3#,42..EUR,GEN,IDN,SA MILE |
1 | ||
| 83241-95A02 |
RH11,2#,3#,42 KM |
1 | ||
| 83110-95A04 |
RH11,20,22,30,42..EUR,GEN MILE & KM |
1 | ||
| 83110-95A04 |
RH11,20,22,3#,42..EUR,GEN MILE & KM |
1 | ||
| 83241-95A05 |
RH11,2#,3#,42..EUR,GEN MILE & KM |
1 | ||
| 83110-95A03 |
RH11,2#,3#,42..EUR,GEN KM |
1 | ||
| 83110-95A03 |
RH11,2#,30,42..EUR,GEN KM |
1 | ||
| 83110-95A08 |
RH11,2#,30,42..EUR,GEN KM,W/TRIP METER |
1 | ||
| 83110-95A10 |
RH11,20,22,30,42..EUR,GEN MILE & KM,W/TRIP METER |
1 | ||
| 83111 - MECHANISM, SPEEDOMETER | ||||
| 83112-95A03 |
RH11,2#,3#,42..EUR,GEN MILE & KM |
1 | ||
| 83112-95A02 |
RH11,2#,3#,42 KM |
1 | ||
| 83112-95A03 |
RH11,2#,3#,42..EUR,GEN,SA MILE |
1 | ||
| 83112-95016 |
RH11,20,22,3#,42..EUR,GEN MILE & KM |
1 | ||
| 83112-95016 |
RH11,20,22,30,42..(BUS,TR,V)..(EUR,GEN) MILE & KM |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-95010 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95010 |
LH11,20,30,RH11,2#,3#,42..EUR,GEN,SA |
1 | ||
| 83132-95010 |
LH11,20,30,RH11,2#,30,42..EUR,GEN,SA |
1 | ||
| 83132-95A02 |
RH11,2#,30,42..EUR,GEN,SA |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95A04 |
LH11,20,30,RH11,2#,3#,42..EUR,GEN |
1 | ||
| 83135 - POINTER, SPEEDOMETER | ||||
| 83135-95A03 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95013 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-95A15 |
LH11,20,30,RH11,2#,3#,42..EUR,GEN,SA |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-95017 |
RH11,2#,3#,42..EUR,GEN |
1 | ||
| 83145-95017 |
LH11,20,30,RH11,2#,3#,42..EUR,GEN |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-95018 |
RH11,2#,3#,42..BUS,TR,V |
1 | ||
| 83145-95018 |
RH11,2#,3#,42..EUR,GEN |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 83243-95A02 |
LH11,20,30,RH11,2#,3#,42..EUR,GEN,SA |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-95A00 |
LH11,20,RH11,2#,3#,42 |
1 | ||
| 83244-95A04 |
RH11,20,22,3#..GEN MIDDLE EAST COUNTRY SPEC |
1 | ||
| 83244-95A07 |
LH11,20,30,RH11,20,22,3#,42..EUR,GEN,SA |
1 | ||
| 83244-95A02 |
LH11,20,30,RH11,2#,3#,42..EUR,GEN,SA |
1 | ||
| 83244-95A03 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| Common parts | ||||
| 83161-20380 | ||||
| 83165-20020 | ||||
| 83165-20080 | ||||
| 93540-13016 | ||||
| 94115-40400 | ||||
| Linked diagrams | ||||
| 8401 | ||||
