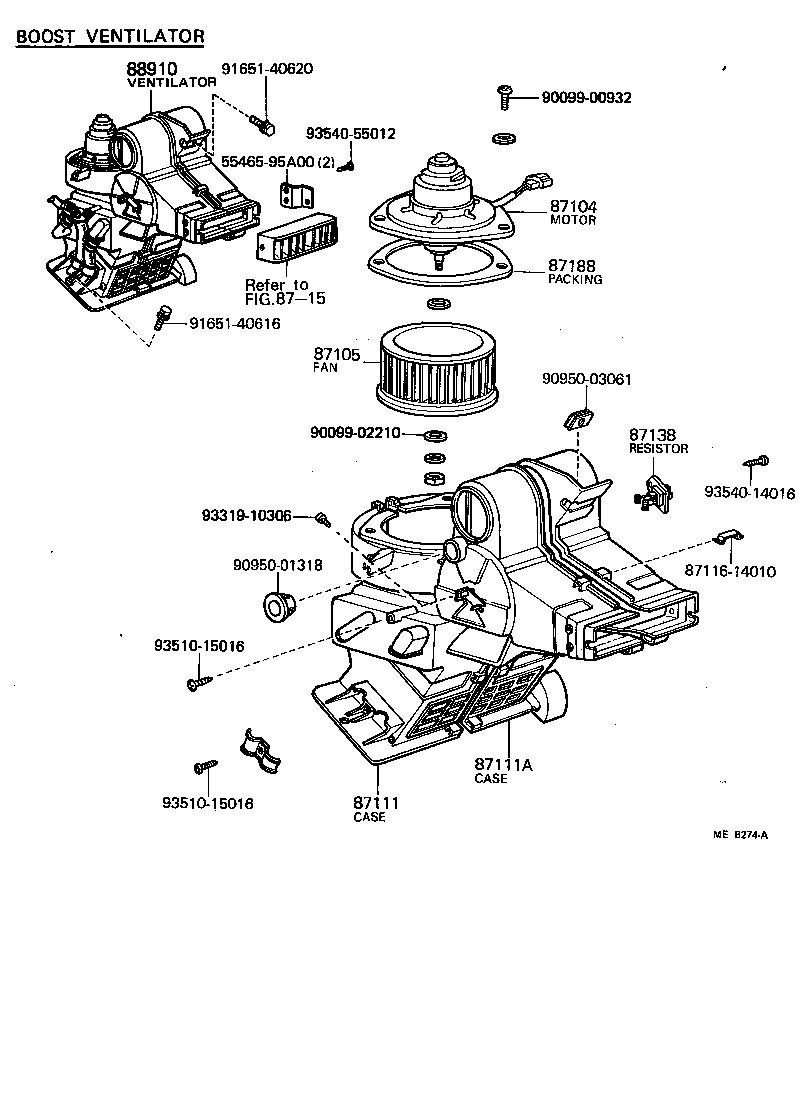

RH20RV-JRFQ (1977)
Toyota Hiace
(7702- )ARL,EUR,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-95A00 |
LH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,SA STD TYPE |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-20054 |
LH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,SA |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-95A00 |
LH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,SA STD TYPE |
1 | ||
| 87110 - HEATER ASSY | ||||
| 87110-95A00 |
LH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,SA |
1 | ||
| 87110-95A08 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA STD HEATER |
1 | ||
| 87111 - CASE, HEATER | ||||
| 87111-95A00 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA |
1 | ||
| 87111A - CASE, HEATER | ||||
| 87111-95A01 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-95A00 |
LH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,SA STD TYPE |
1 | ||
| 87188 - PACKING, HEATER BLOWER MOTOR | ||||
| 87128-22010 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA |
1 | ||
| 87240H - VALVE ASSY, WATER UNIT | ||||
| 87240-95A02 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA |
1 | ||
| 87240-95A04 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA |
1 | ||
| 87245F - HOSE, HEATER WATER, INLET F | ||||
| 99552-30035 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA *H,L=35 |
1 | ||
| 87246F - HOSE, HEATER WATER, OUTLET F | ||||
| 99552-30035 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA *H,L=35 |
1 | ||
| 87249E - PIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT) | ||||
| 87157-95A00 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA |
1 | ||
| Common parts | ||||
| 55465-95A00 | ||||
| 87116-14010 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-02210 | ||||
| 90099-05164 | ||||
| 90950-01318 | ||||
| 90950-03061 | ||||
| 91651-40616 | ||||
| 91651-40620 | ||||
| 93319-10306 | ||||
| 93510-15016 | ||||
| 93510-55012 | ||||
| 93540-14016 | ||||
| 93540-55012 | ||||
| 96111-10250 | ||||
| Linked diagrams | ||||
| 8715 | ||||
(8111- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-95A00 |
LH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,SA STD TYPE |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-20054 |
LH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,SA |
1 | ||
| 87111 - CASE, HEATER | ||||
| 87111-95A00 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA |
1 | ||
| 87111A - CASE, HEATER | ||||
| 87111-95A01 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-95A00 |
LH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,SA STD TYPE |
1 | ||
| 87188 - PACKING, HEATER BLOWER MOTOR | ||||
| 87128-22010 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA |
1 | ||
| Common parts | ||||
| 55465-95A00 | ||||
| 87116-14010 | ||||
| 90099-00932 | ||||
| 90099-02210 | ||||
| 90950-01318 | ||||
| 90950-03061 | ||||
| 91651-40616 | ||||
| 91651-40620 | ||||
| 93319-10306 | ||||
| 93510-15016 | ||||
| 93540-14016 | ||||
| 93540-55012 | ||||
| Linked diagrams | ||||
| 8715 | ||||
