RH20RV-JRFE (1977)
Toyota Hiace

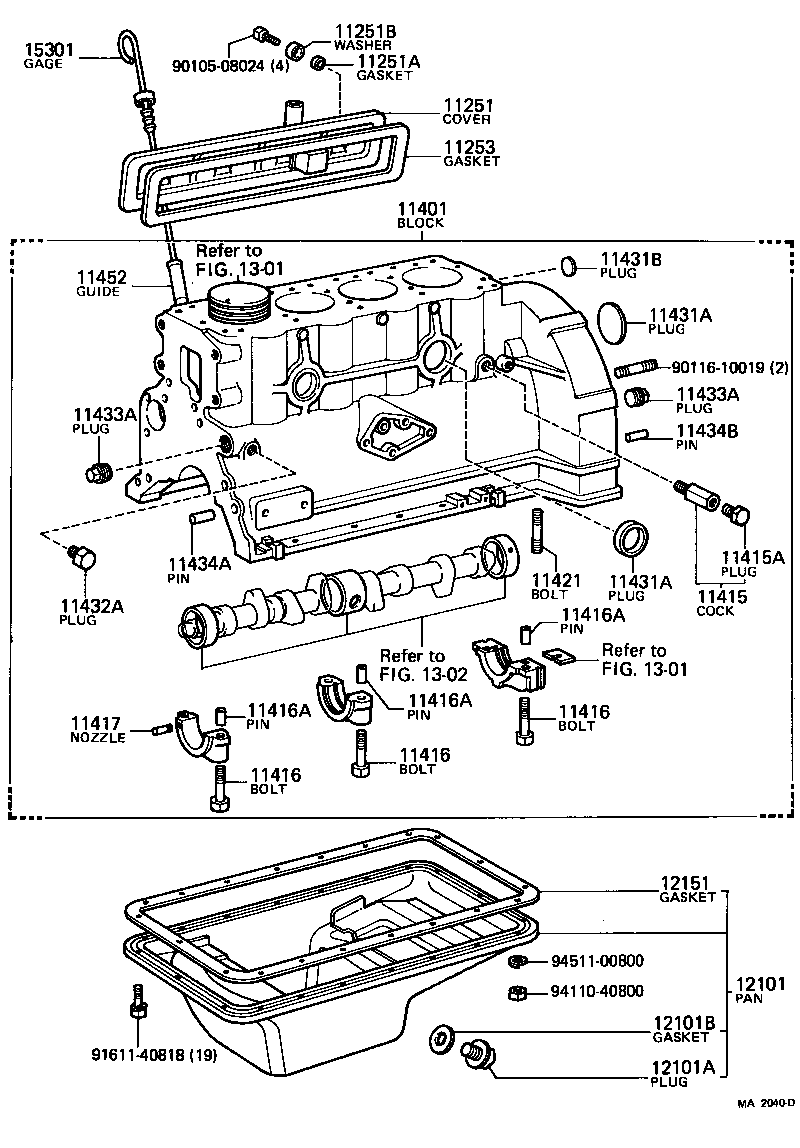

(7702-7808)12R#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11251 - COVER, VALVE PUSH ROD | ||||
| 11203-31010 |
12R#..RH11,20,30 |
1 | ||
| 11251A - GASKET(FOR VALVE PUSH ROD COVER BOLT) | ||||
| 90430-07121 |
12R#..RH11,20,30 |
4 | ||
| 11251B - WASHER, SEAL(FOR VALVE PUSH ROD COVER BOLT) | ||||
| 90210-08006 |
12R#..RH11,20,30 |
4 | ||
| 11253 - GASKET, VALVE PUSH ROD COVER | ||||
| 11253-31010 |
12R#..RH11,20,30 |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-39126 |
12R..RH11,20,30 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-03833 |
12R,18R..RH11,2#,3#,42 |
1 | ||
| 96431-03833 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02032 |
12R#..RH11,20,30 *12-1.25PX62-21 |
6 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02032 |
12R#..RH11,20,30 *12-1.25PX62-21 |
6 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02032 |
12R#..RH11,20,30 *12-1.25PX62-21 |
6 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-15005 |
12R#..RH11,20,30 |
6 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-15005 |
12R#..RH11,20,30 |
6 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-15005 |
12R#..RH11,20,30 |
6 | ||
| 11417 - NOZZLE, OIL | ||||
| 90915-01002 |
12R#..RH11,20,30 |
1 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-08229 |
12R#..RH11,20,30 L=27,S=9&14 |
1 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
12R#..RH11,20,30 OD=50 |
3 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
12R#..RH11,20,30 OD=50 |
3 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43000 |
12R#..RH11,20,30 OD=30 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51025 |
12R#..RH11,20,30 |
1 | ||
| 11433A - PLUG, STRAIGHT, NO.1 | ||||
| 90345-53030 |
12R#..RH11,20,30 |
2 | ||
| 11433A - PLUG, STRAIGHT, NO.1 | ||||
| 90345-53030 |
12R#..RH11,20,30 |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-10192 |
12R#..RH11,20,30 L=22,OD=10,L=22,OD=10 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10192 |
12R#..RH11,20,30 L=22,OD=10,L=22,OD=10 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-31010 |
12R#..RH11,20,30 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-39027 |
12R#..RH11,20,30 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-30010 |
12R#..RH11,20,30 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-31040 |
12R#..RH11,20,30 |
1 | ||
| Common parts | ||||
| 90105-08024 | ||||
| 90116-10019 | ||||
| 91611-40818 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1302 | ||||

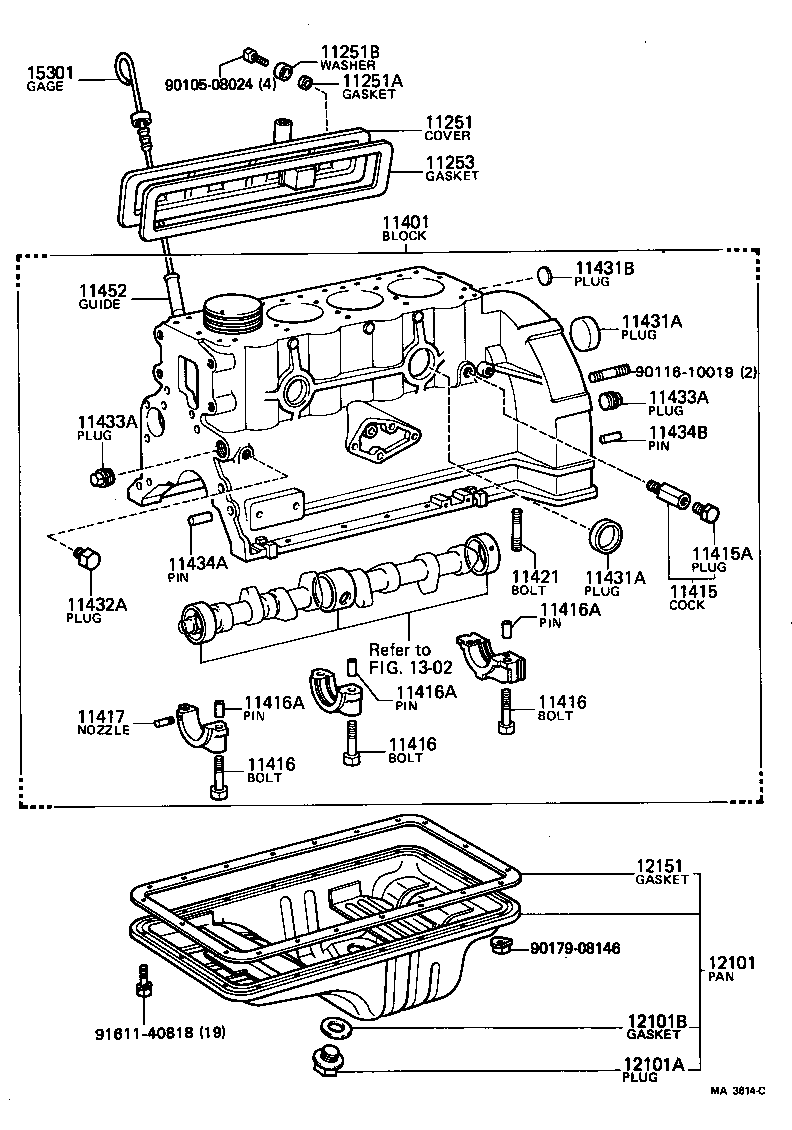

(7808- )12R#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11251 - COVER, VALVE PUSH ROD | ||||
| 11203-31010 |
12R#..RH11,20,30 |
1 | ||
| 11251A - GASKET(FOR VALVE PUSH ROD COVER BOLT) | ||||
| 90430-07121 |
12R#..RH11,20,30 |
4 | ||
| 11251B - WASHER, SEAL(FOR VALVE PUSH ROD COVER BOLT) | ||||
| 90210-08006 |
12R#..RH11,20,30 |
4 | ||
| 11253 - GASKET, VALVE PUSH ROD COVER | ||||
| 11253-31010 |
12R#..RH11,20,30 |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-39126 |
12R..RH11,20,30 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-03833 |
12R,18R..RH11,2#,3#,42 |
1 | ||
| 96431-03833 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02032 |
12R#..RH11,20,30 *12-1.25PX62-21 |
6 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02032 |
12R#..RH11,20,30 *12-1.25PX62-21 |
6 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02032 |
12R#..RH11,20,30 *12-1.25PX62-21 |
6 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-15005 |
12R#..RH11,20,30 |
6 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-15005 |
12R#..RH11,20,30 |
6 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-15005 |
12R#..RH11,20,30 |
6 | ||
| 11417 - NOZZLE, OIL | ||||
| 90915-01002 |
12R#..RH11,20,30 |
1 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-08229 |
12R#..RH11,20,30 L=27,S=9&14 |
1 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
12R#..RH11,20,30 OD=50 |
3 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
12R#..RH11,20,30 OD=50 |
3 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43000 |
12R#..RH11,20,30 OD=30 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51025 |
12R#..RH11,20,30 |
1 | ||
| 11433A - PLUG, STRAIGHT, NO.1 | ||||
| 90345-53030 |
12R#..RH11,20,30 |
2 | ||
| 11433A - PLUG, STRAIGHT, NO.1 | ||||
| 90345-53030 |
12R#..RH11,20,30 |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-10192 |
12R#..RH11,20,30 L=22,OD=10,L=22,OD=10 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10192 |
12R#..RH11,20,30 L=22,OD=10,L=22,OD=10 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-31010 |
12R#..RH11,20,30 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-39027 |
12R#..RH11,20,30 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-30010 |
12R#..RH11,20,30 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-31040 |
12R#..RH11,20,30 |
1 | ||
| Common parts | ||||
| 90105-08024 | ||||
| 90116-10019 | ||||
| 90179-08146 | ||||
| 91611-40818 | ||||
| Linked diagrams | ||||
| 1302 | ||||
