RH20RV-JRE (1977)

Toyota Hiace

Production Feb 1977 - Nov 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )12R#

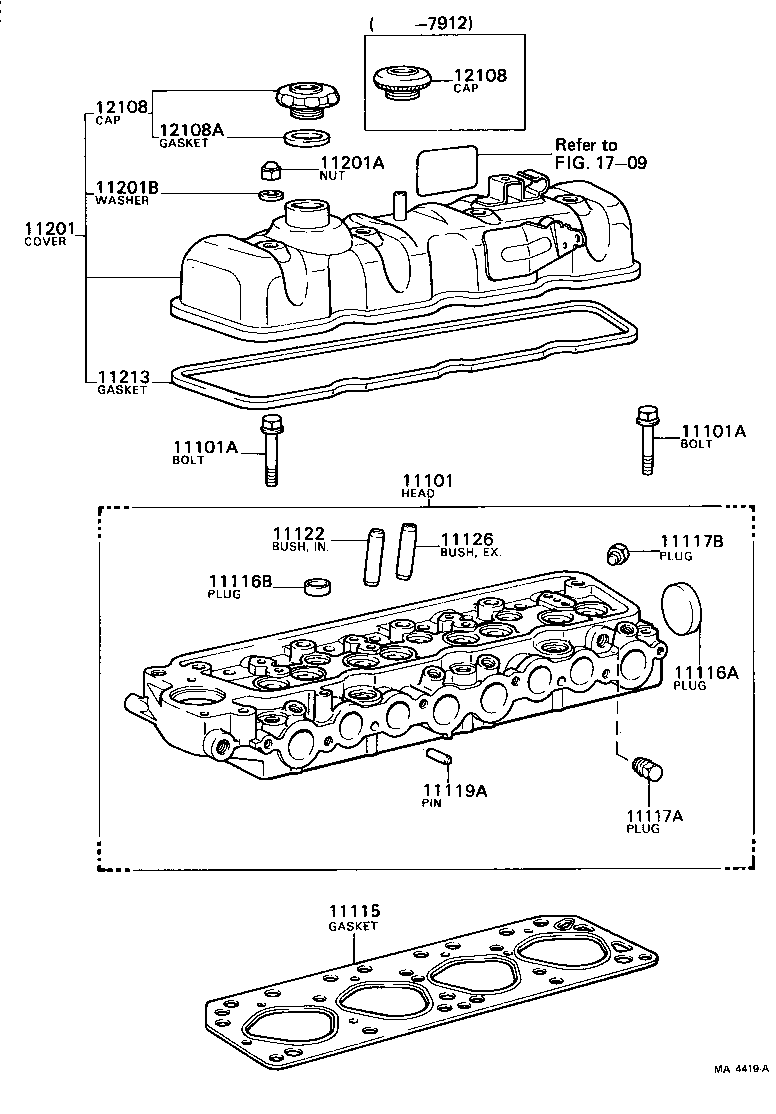

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11115 11116A 11116B 11117A 11117B 11119A 11122 11126 11201 11201A 11201B 11213 12108 12108 12108A 1709
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-39176

12R..RH11,20,30

 1
11101-39177

12R..RH11,20,30

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02051

12R#..RH11,20,30

*12-1.25PX98-24

 5
90910-02052

12R#..RH11,20,30

*12-1.25PX84.5-24

 5
90910-02066

12R#..RH11,20,30

*12-1.25PX98-24

 5
90910-02065

12R#..RH11,20,30

*12-1.25PX84.5-24

 5
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02051

12R#..RH11,20,30

*12-1.25PX98-24

 5
90910-02052

12R#..RH11,20,30

*12-1.25PX84.5-24

 5
90910-02066

12R#..RH11,20,30

*12-1.25PX98-24

 5
90910-02065

12R#..RH11,20,30

*12-1.25PX84.5-24

 5
11115 - GASKET, CYLINDER HEAD
11115-31023

12R#..RH11,20,30

 1
11115-31022

12R#..RH11,20,30

 1
11116A - PLUG, TIGHT, NO.1
96411-45000

12R#..RH11,20,30

OD=50

 1
11116B - PLUG, TIGHT, NO.2
96411-42200

12R#..RH11,20,30

OD=22

 3
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-53028

12R#..RH11,20,30..GEN,IDN,PHL

W/O HEATER

 1
90345-53030

12R..RH11,20,30..GEN,IDN

W/O HEATER

 1
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-51025

12R#..RH11,20,30

 1
11119A - PIN, STRAIGHT, NO.1
90250-08054

12R#,18R..RH11,2#,3#,42

L=23,OD=8,L=23,OD=8

 2
11122 - BUSH, INTAKE VALVE GUIDE
11123-23010

12R#..RH11,20,30

O/S 0.05

 4
11122-23010

12R#..RH11,20,30

STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11123-23010

12R#..RH11,20,30

O/S 0.05

 4
11122-23010

12R#..RH11,20,30

STD

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-39087

12R#..RH11,20,30

 1
11201-39195

12R#..RH11,20,30

 1
11201-39196

12R..RH11,20,30

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-06014

12R#..RH11,20,30

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-10022

12R#..RH11,20,30

 4
90210-10003

12R#..RH11,20,30

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-31011

12R#..RH11,20,30

 1
11213-31020

12R#..RH11,20,30

 1
12108 - CAP SUB-ASSY, OIL FILLER
12181-31020

12R#..RH11,20,30

 1
12180-13010

12R..RH11,20,30

 1
12108 - CAP SUB-ASSY, OIL FILLER
12181-31020

12R#..RH11,20,30

 1
12180-13010

12R..RH11,20,30

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

12R..RH11,20,30

 1
Linked diagrams
1709
