RH20RB-JREW (1977)

Toyota Hiace

Production Feb 1977 - Nov 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )EUR

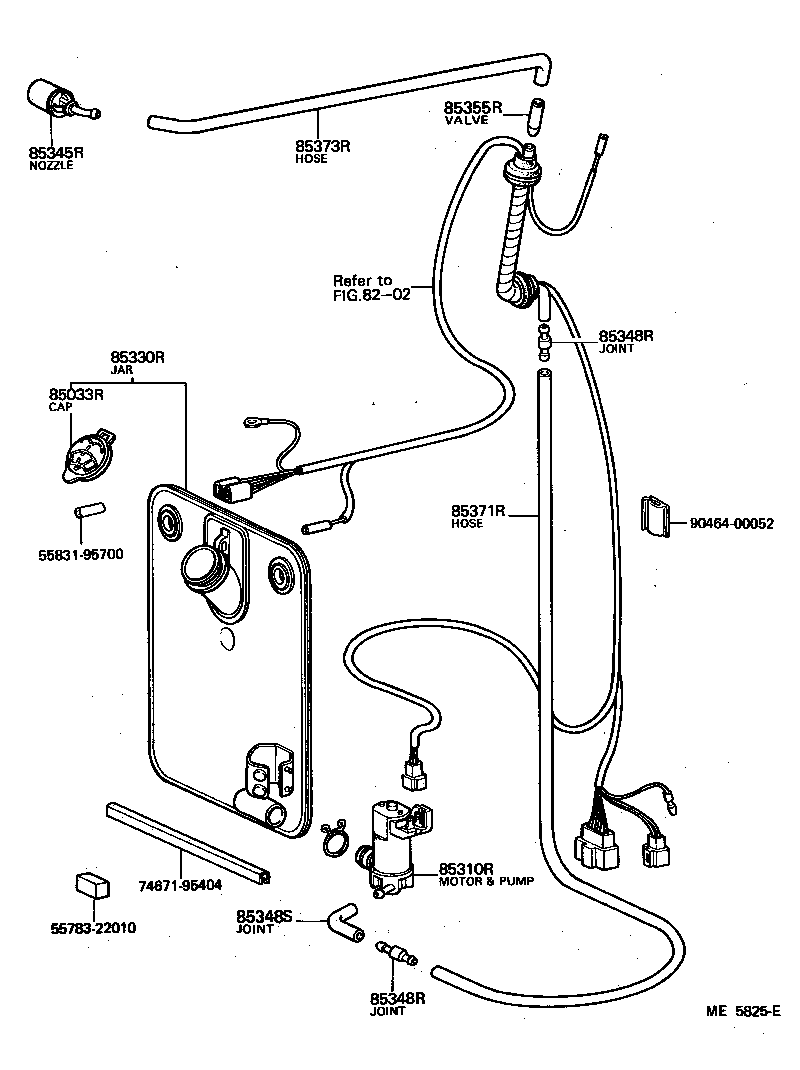

Click highlighted areas on diagram

diagram 5578322010 5583195700 7467195404 8202 85033R 85310R 85330R 85345R 85348R 85348R 85348S 85355R 85371R 85373R 9046400052
Part # Description Qty Price
85033R - CAP ASSY, REAR WASHER
85033-22010

LH20,30,RH20,3#..EUR

 1
85310R - MOTOR ASSY, REAR WASHER
85310-20100

RH20,3#..EUR

 1
85310-20100

LH20,30,RH20,3#..EUR

 1
85330R - JAR ASSY, REAR WASHER
85330-22050

RH20,3#..EUR

 1
85330-22050

LH20,30,RH20,3#..EUR

 1
90099-32089

RH20,3#..EUR

 1
85345R - NOZZLE, REAR WASHER
85035-21010

RH20,3#..EUR

 1
85035-23020

LH20,30,RH20,3#..EUR

 1
85035-23020

RH20,3#..EUR

 1
85035-87004

LH20,30,RH20,3#..EUR

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-87201

RH20,3#..EUR

2 WAY TYPE

 2
85355-87201

LH20,30,RH20,3#..EUR

2 WAY TYPE

 2
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-87201

RH20,3#..EUR

2 WAY TYPE

 2
85355-87201

LH20,30,RH20,3#..EUR

2 WAY TYPE

 2
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20070

RH20,3#..EUR

 1
85355R - VALVE, REAR WASHER HOSE
85031-30010

LH20,30,RH20,3#..EUR

 1
85031-14010

RH20,3#..EUR

 1
85031-14010

LH20,30,RH20,3#..EUR

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001

RH20,3#..EUR

*H,L=1600

 1
90446-06006

LH20,RH20,3#..EUR

*H,L=1600

 1
90446-07001

LH20,30,RH20,3#

*H,L=1600

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90446-07005

RH20,3#..EUR

*H,L=500

 1
90099-33245

LH20,RH20,3#..EUR

*H,L=550

 1
90446-07005

LH20,30,RH20,3#..EUR

*H,L=500

 1
Common parts
55783-22010
55831-95700
74671-95404
90464-00052
Linked diagrams
8202
