RH20RB-JRE (1977)
Toyota Hiace
(7702- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71012 - SUPPORT SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71012-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD |
1 | ||
| 71012-95A0206 |
LH11,20,30,RH11,20,22,3#,42..RHD BROWN |
1 | ||
| 71012A - GUIDE, FRONT SEAT BACK SUPPORT, LH | ||||
| 71297-95A00 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 71110S - CUSHION ASSY, FRONT SEAT, RH | ||||
| 71110-95A0805 |
LH20,30,RH2#,3#,42..RHD T=1.5 BEIGE,BEIGE |
1 | ||
| 71110-95A10 |
LH20,30,RH2#,3#,42..RHD..GEN T=0.45 BEIGE |
1 | ||
| 71110-95A14 |
LH20,30,RH20,22,3#,42..RHD..BUS..GEN T=0.45 BROWN |
1 | ||
| 71110-95A23 |
LH20,30,RH20,22,3#,42..RHD..BUS T=1.5 BROWN |
1 | ||
| 71110-95A3416 |
LH20,30,RH20,22,3#,42..RHD..GEN T=0.45 BROWN,BROWN |
1 | ||
| 71110-95A4016 |
LH20,30,RH20,22,3#,42..RHD..BUS..(ARL,GEN) T=1.5 BROWN,BROWN |
1 | ||
| 71140S - COVER, FRONT SEAT CUSHION, RH | ||||
| 71140-95A0505 |
LH20,30,RH2#,3#,42 T=1.5 BEIGE,BEIGE |
1 | ||
| 71140-95A09 |
LH20,30,RH20,22,3#,42..BUS..GEN T=0.45 BROWN |
1 | ||
| 71140-95A06 |
LH20,30,RH2#,3#,42..GEN,PHL T=0.45 BEIGE |
1 | ||
| 71140-95A16 |
LH20,30,RH20,22,3#,42..BUS T=1.5 BROWN |
1 | ||
| 71140-95A2116 |
LH20,30,RH20,22,3#,42..ARL,GEN T=1.5 BROWN,BROWN |
1 | ||
| 71140-95A2416 |
LH20,30,RH20,22,3#..GEN T=0.45 BROWN,BROWN |
1 | ||
| 71150S - BACK ASSY, FRONT SEAT, RH | ||||
| 71150-95A2805 |
LH20,30,RH2#,3#,42..RHD T=1.5,*LBS,W/RECLINING,BEIGE,BEIGE |
1 | ||
| 71150-95A3405 |
LH20,30,RH2#,3#,42..RHD T=1.5,*HBS,W/RECLINING,BEIGE,BEIGE |
1 | ||
| 71150-95A38 |
LH20,30,RH2#,3#,42..RHD..GEN T=0.45,*LBS,W/RECLINING,BEIGE |
1 | ||
| 71150-95A42 |
LH20,30,RH2#,3#,42..RHD..GEN T=0.45,*HBS,W/RECLINING,BEIGE |
1 | ||
| 71150-95A56 |
LH20,30,RH20,22,3#,42..RHD..BUS..GEN T=0.45,*LBS,W/RECLINING,BROWN |
1 | ||
| 71150-95A59 |
LH20,30,RH20,22,3#,42..RHD..BUS T=1.5,*LBS,W/RECLINING,BROWN |
1 | ||
| 71150-95A62 |
LH20,30,RH20,22,3#,42..RHD..BUS..GEN T=0.45,*HBS,W/RECLINING,BROWN |
1 | ||
| 71150-95A5516 |
LH20,30,RH20,22,3#..RHD..GEN T=0.45,*LBS,W/RECLINING,BROWN,BROWN |
1 | ||
| 71150-95A65 |
LH20,30,RH20,22,3#,42..RHD..BUS T=1.5,*HBS,W/RECLINING,BROWN |
1 | ||
| 71150-95A8716 |
LH20,30,RH11,20,22,3#..RHD..GEN T=1.5,*HBS,W/RECLINING,BROWN |
1 | ||
| 71150-95A5816 |
LH20,30,RH20,22,3#..RHD..GEN T=1.5,*LBS,W/RECLINING,BROWN,BROWN |
1 | ||
| 71150-95A85 |
LH20,30,RH11,20,22,3#..RHD..GEN T=0.45,*HBS,W/RECLINING,BROWN |
1 | ||
| 71150-95A7016 |
RH20,22,32..RHD *SA,T=1.5,*LBS,W/*RSA,BROWN,BROWN |
1 | ||
| 71190S - COVER, FRONT SEAT BACK, RH | ||||
| 71190-95A1405 |
LH20,30,RH2#,3#,42 T=1.5,*HBS,BEIGE,BEIGE |
1 | ||
| 71190-95A1205 |
LH20,30,RH2#,3#,42 T=1.5,*LBS,BEIGE,BEIGE |
1 | ||
| 71190-95A16 |
LH20,30,RH2#,3#,42..GEN,PHL T=0.45,*HBS,BEIGE |
1 | ||
| 71190-95A27 |
LH20,30,RH20,22,3#,42..BUS T=1.5,*LBS,BROWN |
1 | ||
| 71190-95A15 |
LH20,30,RH2#,3#,42..GEN,PHL T=0.45,*LBS,BEIGE |
1 | ||
| 71190-95A2416 |
LH20,30,RH20,22,3#..GEN T=0.45,*LBS,BROWN,BROWN |
1 | ||
| 71190-95A2616 |
LH20,30,RH20,22,3#..GEN T=1.5,*LBS,BROWN,BROWN |
1 | ||
| 71190-95A25 |
LH20,30,RH20,22,3#,42..BUS..GEN T=0.45,*LBS,BROWN |
1 | ||
| 71190-95A4116 |
LH20,30,RH20,22,3#..GEN T=0.45,*HBS,BROWN,BROWN |
1 | ||
| 71190-95A4516 |
LH20,30,RH20,22,3#..GEN T=1.5,*HBS,BROWN,BROWN |
1 | ||
| 71190-95A18 |
LH20,30,RH20,22,3#,42..BUS..GEN T=0.45,*HBS,BROWN |
1 | ||
| 71190-95A29 |
LH20,30,RH20,22,3#,42..BUS T=1.5,*HBS,BROWN |
1 | ||
| 71190-95A3016 |
RH20,22,32..RHD *SA,T=1.5,*LBS,BROWN,BROWN |
1 | ||
| 71190-95A6116 |
LH20,30,RH20,22,3#..GEN T=1.5,*HBS,BROWN,BROWN |
1 | ||
| 71190-95A5716 |
LH20,30,RH20,22,3#..GEN T=0.45,*HBS,BROWN,BROWN |
1 | ||
| 71190-95A5916 |
LH20,30,RH20,22,3#..GEN T=0.45,*LBS,BROWN,BROWN |
1 | ||
| 71190-95A6016 |
LH20,30,RH20,22,3#..GEN T=1.5,*LBS,BROWN,BROWN |
1 | ||
| 71210S - CUSHION ASSY, FRONT SEAT, LH | ||||
| 71210-95A10 |
LH20,30,RH2#,3#,42..RHD..GEN T=0.45 BEIGE |
1 | ||
| 71210-95A0805 |
LH20,30,RH2#,3#,42..RHD T=1.5 BEIGE,BEIGE |
1 | ||
| 71210-95A14 |
LH20,30,RH20,22,3#,42..RHD..BUS..GEN T=0.45 BROWN |
1 | ||
| 71210-95A23 |
LH20,30,RH20,22,3#,42..RHD..BUS T=1.5 BROWN |
1 | ||
| 71210-95A3416 |
LH20,30,RH20,22,3#,42..RHD..GEN T=0.45 BROWN,BROWN |
1 | ||
| 71210-95A3116 |
LH20,30,RH20,22,3#,42..RHD..(ARL,GEN) T=1.5 BROWN,BROWN |
1 | ||
| 71240S - COVER, FRONT SEAT CUSHION, LH | ||||
| 71240-95A11 |
LH20,30,RH2#,3#,42..RHD..GEN T=0.45 BEIGE |
1 | ||
| 71240-95A22 |
LH20,30,RH20,22,3#,42..RHD..BUS T=1.5 BROWN |
1 | ||
| 71240-95A0905 |
LH20,30,RH2#,3#,42..RHD T=1.5 BEIGE,BEIGE |
1 | ||
| 71240-95A15 |
LH20,30,RH20,22,3#,42..RHD..BUS..GEN T=0.45 BROWN |
1 | ||
| 71240-95A3216 |
LH20,30,RH20,22,3#,42..RHD..(ARL,GEN) T=1.5 BROWN,BROWN |
1 | ||
| 71240-95A3516 |
LH20,30,RH20,22,3#,42..RHD..GEN T=0.45 BROWN,BROWN |
1 | ||
| 71250S - BACK ASSY, FRONT SEAT, LH | ||||
| 71250-95A2405 |
LH20,30,RH2#,3#,42..RHD T=1.5,*LBS,BEIGE,BEIGE |
1 | ||
| 71250-95A37 |
LH20,30,RH2#,3#,42..RHD..GEN T=0.45,*HBS,BEIGE |
1 | ||
| 71250-95A3005 |
LH20,30,RH2#,3#,42..RHD T=1.5,*HBS,BEIGE,BEIGE |
1 | ||
| 71250-95A43 |
LH20,30,RH20,22,3#,42..RHD..BUS..GEN T=0.45,*HBS,BROWN |
1 | ||
| 71250-95A34 |
LH20,30,RH2#,3#,42..RHD..GEN T=0.45,*LBS,BEIGE |
1 | ||
| 71250-95A55 |
LH20,30,RH20,22,3#,42..RHD..BUS T=1.5,*LBS,BROWN |
1 | ||
| 71250-95A62 |
LH20,30,RH20,22,3#,42..RHD..BUS T=1.5,*HBS,BROWN |
1 | ||
| 71250-95A4916 |
LH20,30,RH20,22,3#..RHD..GEN T=0.45,*LBS,W/RECLINING,BROWN,BROWN |
1 | ||
| 71250-95A50 |
LH20,30,RH20,22,3#,42..RHD..BUS..GEN T=0.45,*LBS,BROWN |
1 | ||
| 71250-95A7716 |
LH20,30,RH20,22,3#..RHD..(ARL,GEN) T=1.5,*HBS,BROWN,BROWN |
1 | ||
| 71250-95A7316 |
LH20,30,RH20,22,3#..RHD..GEN T=0.45,*HBS,BROWN,BROWN |
1 | ||
| 71250-95A5416 |
LH20,30,RH20,22,32,42..RHD..(ARL,GEN) T=1.5,*LBS,BROWN,BROWN |
1 | ||
| 71283 - BUSH, FRONT SEAT BACK SUPPORT, LH | ||||
| 71283-95A00 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 71283A - BOLT, FRONT SEAT BACK SUPPORT, LH | ||||
| 71285-95A00 |
LH11,20,30,RH11,20,22,3#,42..RHD UPR |
1 | ||
| 71282-95A00 |
LH11,20,30,RH11,20,22,3#,42..RHD LWR |
1 | ||
| 71283A - BOLT, FRONT SEAT BACK SUPPORT, LH | ||||
| 71285-95A00 |
LH11,20,30,RH11,20,22,3#,42..RHD UPR |
1 | ||
| 71282-95A00 |
LH11,20,30,RH11,20,22,3#,42..RHD LWR |
1 | ||
| 71284 - SPACER, FRONT SEAT BACK SUPPORT, LH | ||||
| 71284-95A00 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 71290S - COVER, FRONT SEAT BACK, LH | ||||
| 71190-95A1205 |
LH20,30,RH2#,3#,42 T=1.5,*LBS,BEIGE,BEIGE |
1 | ||
| 71190-95A16 |
LH20,30,RH2#,3#,42..GEN,PHL T=0.45,*HBS,BEIGE |
1 | ||
| 71190-95A15 |
LH20,30,RH2#,3#,42..GEN,PHL T=0.45,*LBS,BEIGE |
1 | ||
| 71190-95A1405 |
LH20,30,RH2#,3#,42 T=1.5,*HBS,BEIGE,BEIGE |
1 | ||
| 71190-95A29 |
LH20,30,RH20,22,3#,42..BUS T=1.5,*HBS,BROWN |
1 | ||
| 71190-95A2416 |
LH20,30,RH20,22,3#,42..GEN T=0.45,*LBS,BROWN,BROWN |
1 | ||
| 71190-95A18 |
LH20,30,RH20,22,3#,42..BUS..GEN T=0.45,*HBS,BROWN |
1 | ||
| 71190-95A27 |
LH20,30,RH20,22,3#,42..BUS T=1.5,*LBS,BROWN |
1 | ||
| 71190-95A25 |
LH20,30,RH20,22,3#,42..BUS..GEN T=0.45,*LBS,BROWN |
1 | ||
| 71190-95A4516 |
LH20,30,RH20,22,32,42..ARL,GEN T=1.5,*HBS,BROWN,BROWN |
1 | ||
| 71190-95A2616 |
LH20,30,RH20,22,3#,42..ARL,GEN T=1.5,*LBS,BROWN,BROWN |
1 | ||
| 71290-95A0516 |
LH20,30,RH20,22,3#,42..GEN T=0.45,*HBS,BROWN,BROWN |
1 | ||
| 71290-95A0816 |
LH20,30,RH20,22,3#,42..ARL,GEN T=1.5,*LBS,BROWN,BROWN |
1 | ||
| 71290-95A0916 |
LH20,30,RH20,22,32,42..ARL,GEN T=1.5,*HBS,BROWN,BROWN |
1 | ||
| 71290-95A0716 |
LH20,30,RH20,22,3#,42..GEN T=0.45,*LBS,BROWN,BROWN |
1 | ||
| 71190-95A4116 |
LH20,30,RH20,22,3#,42..GEN T=0.45,*HBS,BROWN,BROWN |
1 | ||
| 71294 - HINGE, FRONT SEAT BACK, LH | ||||
| 71294-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD |
1 | ||
| 71294-95A0206 |
LH11,20,30,RH11,20,22,3#,42..RHD BROWN |
1 | ||
| 71299 - BRACKET, FRONT SEAT BACK, LH | ||||
| 71209-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD |
1 | ||
| 71209-95A0506 |
LH11,20,30,RH11,20,22,3#,42..RHD..(EUR,GEN,SA) BROWN |
1 | ||
| 71209-95A0506 |
LH20,30,RH11,20,22,3#..RHD..(GEN,SA) BROWN |
1 | ||
| 71209-95A04 |
RH20,22,32..RHD SOUTH AFRICA SPEC |
1 | ||
| 71306A - HINGE SUB-ASSY, CENTER SEAT, RH | ||||
| 71307-95A03 |
LH11,20,30,RH11,2#,3#,42..RHD..(EUR,GEN,SA) |
1 | ||
| 71307-95A0506 |
LH11,20,30,RH11,20,22,3#,42..RHD..(EUR,GEN,SA) BROWN |
1 | ||
| 71306B - HINGE SUB-ASSY, CENTER SEAT, LH | ||||
| 71308-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 71308-95A0306 |
LH11,20,30,RH11,20,22,3#,42 BROWN |
1 | ||
| 71306C - PLATE, CENTER SEAT HINGE CAUTION | ||||
| 71386-95A00 |
LH11,20,30,RH11,20,22,3#,42..EUR,GEN,SA |
1 | ||
| 71310S - CUSHION ASSY, FRONT SEAT, CENTER | ||||
| 71310-95A06 |
RH2#,3#,42..RHD..BUS BEIGE |
1 | ||
| 71310-95A06 |
LH20,30,RH2#,3#,42..RHD..(BUS,WG) BEIGE |
1 | ||
| 71310-95A06 |
RH2#,3#,42..RHD..(BUS,WG) BEIGE |
1 | ||
| 71310-95A14 |
LH11,20,30,RH11,20,22,3#,42..RHD..(03S,06S,09S,12S,15S) BROWN |
1 | ||
| 71340S - COVER, FRONT SEAT CUSHION, CENTER | ||||
| 71340-95A05 |
LH20,30,RH2#,3#,42..BUS,WG BEIGE |
1 | ||
| 71340-95A11 |
LH11,20,30,RH11,20,22,3#,42..03S,06S,09S,12S,15S BROWN |
1 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-95A11 |
RH2#,3#,42..BUS,WG BEIGE |
1 | ||
| 71350-95A17 |
LH11,20,30,RH11,20,22,3#,42..EUR,GEN,IDN BROWN |
1 | ||
| 71350-95A11 |
LH20,30,RH2#,3#,42..BUS BEIGE |
1 | ||
| 71390S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71390-95A08 |
RH2#,3#,42..BUS,WG BEIGE |
1 | ||
| 71390-95A08 |
LH20,30,RH2#,3#,42..BUS BEIGE |
1 | ||
| 71390-95A11 |
LH11,20,30,RH11,20,22,3#..EUR,GEN,IDN BROWN |
1 | ||
| 71390-95A11 |
LH11,20,30,RH11,20,22,3#,42..(BUS,TR,V)..(03S,06S,09S,12S,15S) BROWN |
1 | ||
| 71903 - CATCH SUB-ASSY, SEAT CUSHION, FRONT | ||||
| 71901-95016 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 71921 - RETAINER, ENGINE SERVICE HOLE COVER CATCH | ||||
| 71921-95700 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72710-95A00 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD |
1 | ||
| 72510-95A0306 |
LH11,20,30,RH11,20,22,3#,42..RHD BROWN |
1 | ||
| Common parts | ||||
| 90119-08060 | ||||
| 90119-08339 | ||||
| 90119-08340 | ||||
| 90119-08341 | ||||
| 90468-18071 | ||||
| 90540-06001 | ||||
| 90540-06003 | ||||
| 90541-12001 | ||||
| 91521-60816 | ||||
| 91616-60820 | ||||
| 91656-60820 | ||||
| 93319-15012 | ||||
| 93510-15016 | ||||
| 93510-15020 | ||||
| 94180-40800 | ||||
| 94612-10500 | ||||
| 94614-10800 | ||||
(7702- )BUS

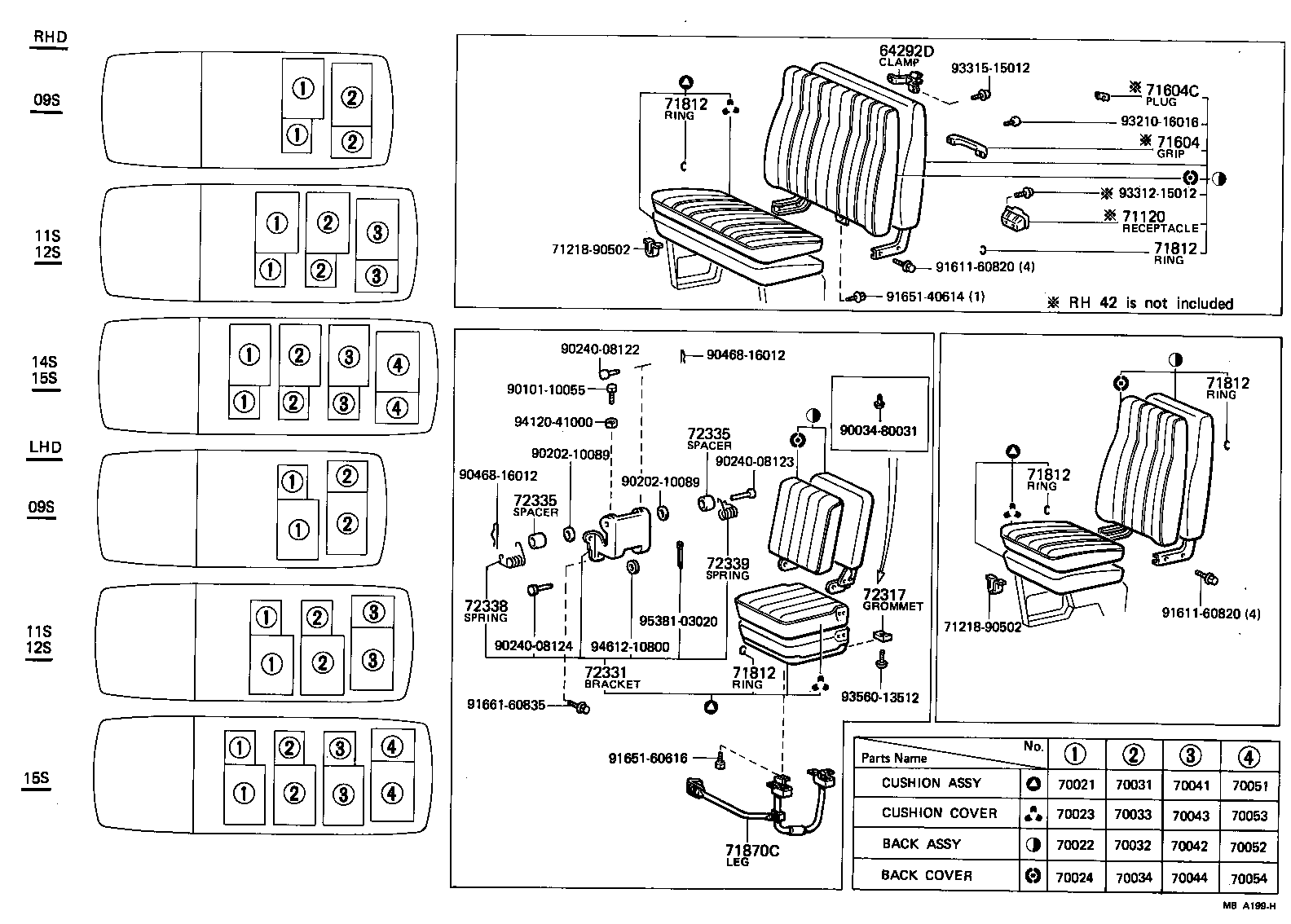

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70021 - CUSHION ASSY, NO.2 SEAT | ||||
| 71410-95A19 |
LH20,30,RH20,22,3#,42..RHD..BUS RH,BROWN |
1 | ||
| 71410-95A04 |
LH20,30,RH2#,3#..RHD..BUS RH,BEIGE |
1 | ||
| 71810-95A01 |
LH20,30,RH2#,3#..RHD..BUS LH,BEIGE |
1 | ||
| 71810-95A03 |
LH20,30,RH20,22,3#,42..RHD..BUS LH,BROWN |
1 | ||
| 70022 - BACK ASSY, NO.2 SEAT | ||||
| 71850-95A01 |
LH20,30,RH2#,3#..RHD..BUS LH,BEIGE |
1 | ||
| 71450-95A04 |
LH20,30,RH2#,3#..RHD..BUS RH,BEIGE |
1 | ||
| 71450-95A20 |
LH20,30,RH20,22,3#,42..RHD..BUS RH,BROWN |
1 | ||
| 71850-95A02 |
LH20,30,RH20,22,3#,42..RHD..BUS LH,BROWN |
1 | ||
| 70023 - COVER ASSY, NO.2 SEAT CUSHION | ||||
| 71408-95A00 |
LH20,30,RH2#,3#..RHD..BUS RH,BEIGE |
1 | ||
| 71408-95A12 |
LH20,30,RH20,22,3#,42..RHD..BUS RH,BROWN |
1 | ||
| 71808-95A01 |
LH20,30,RH2#,3#..RHD..BUS LH,BEIGE |
1 | ||
| 71808-95A03 |
LH20,30,RH20,22,3#,42..RHD..BUS LH,BROWN |
1 | ||
| 70024 - COVER ASSY, NO.2 SEAT BACK | ||||
| 71409-95A00 |
LH20,30,RH2#,3#..RHD..BUS RH,BEIGE |
1 | ||
| 71809-95A01 |
LH20,30,RH2#,3#..RHD..BUS LH,BEIGE |
1 | ||
| 71409-95A06 |
LH20,30,RH20,22,3#,42..RHD..BUS RH,BROWN |
1 | ||
| 71809-95A02 |
LH20,30,RH20,22,3#,42..RHD..BUS LH,BROWN |
1 | ||
| 70031 - CUSHION ASSY, NO.3 SEAT | ||||
| 71410-95A04 |
LH20,30,RH2#,3#..RHD..BUS RH,BEIGE |
1 | ||
| 71810-95A01 |
LH20,30,RH2#,3#..RHD..(12S,15S) LH,BEIGE |
1 | ||
| 71410-95A19 |
LH20,30,RH20,22,3#,42..RHD..BUS RH,BROWN |
1 | ||
| 71810-95A03 |
LH20,30,RH20,22,3#,42..RHD..(12S,14S,15S) LH,BROWN |
1 | ||
| 70032 - BACK ASSY, NO.3 SEAT | ||||
| 71450-95A04 |
LH20,30,RH2#,3#..RHD..(12S,15S) RH,BEIGE |
1 | ||
| 71450-95A20 |
LH20,30,RH20,22,3#,42..RHD..(12S,14S,15S) RH,BROWN |
1 | ||
| 71850-95A01 |
LH20,30,RH2#,3#..RHD..(12S,15S) LH,BEIGE |
1 | ||
| 71850-95A02 |
LH20,30,RH20,22,3#,42..RHD..(12S,14S,15S) LH,BROWN |
1 | ||
| 70033 - COVER ASSY, NO.3 SEAT CUSHION | ||||
| 71408-95A00 |
LH20,30,RH2#,3#..RHD..BUS RH,BEIGE |
1 | ||
| 71808-95A01 |
LH20,30,RH2#,3#..RHD..(12S,15S) LH,BEIGE |
1 | ||
| 71408-95A12 |
LH20,30,RH20,22,3#,42..RHD..BUS RH,BROWN |
1 | ||
| 71808-95A03 |
LH20,30,RH20,22,3#,42..RHD..(12S,14S,15S) LH,BROWN |
1 | ||
| 70034 - COVER ASSY, NO.3 SEAT BACK | ||||
| 71809-95A01 |
LH20,30,RH2#,3#..RHD..(12S,15S) LH,BEIGE |
1 | ||
| 71409-95A06 |
LH20,30,RH20,22,3#,42..RHD..BUS RH,BROWN |
1 | ||
| 71809-95A02 |
LH20,30,RH20,22,3#,42..RHD..(12S,14S,15S) LH,BROWN |
1 | ||
| 71409-95A00 |
LH20,30,RH2#,3#..RHD..BUS RH,BEIGE |
1 | ||
| 70041 - CUSHION ASSY, NO.4 SEAT | ||||
| 71710-95A00 |
LH20,RH2#,3#..RHD..12S LH,BEIGE |
1 | ||
| 71710-95A04 |
LH20,RH20,22,3#..RHD..12S LH,BROWN |
1 | ||
| 71410-95A19 |
LH20,30,RH20,22,3#,42..RHD..(12S,14S,15S) RH,BROWN |
1 | ||
| 71410-95A04 |
LH20,30,RH2#,3#..RHD..(12S,15S) RH,BEIGE |
1 | ||
| 70042 - BACK ASSY, NO.4 SEAT | ||||
| 71750-95A00 |
LH20,RH2#,3#..RHD..12S LH,BEIGE |
1 | ||
| 71650-95A00 |
LH20,RH2#..RHD..12S RH,BEIGE |
1 | ||
| 71750-95A06 |
LH20,RH20,22,3#..RHD..12S LH,BROWN |
1 | ||
| 71650-95A14 |
LH20,RH20,22..RHD..12S RH,BROWN |
1 | ||
| 70043 - COVER ASSY, NO.4 SEAT CUSHION | ||||
| 71408-95A00 |
LH20,30,RH2#,3#..RHD..(12S,15S) RH,BEIGE |
1 | ||
| 71708-95A00 |
LH20,RH2#,3#..RHD..12S LH,BEIGE |
1 | ||
| 71408-95A12 |
LH20,30,RH20,22,3#,42..RHD..(12S,14S,15S) RH,BROWN |
1 | ||
| 71708-95A02 |
LH20,RH20,22,3#..RHD..12S LH,BROWN |
1 | ||
| 70044 - COVER ASSY, NO.4 SEAT BACK | ||||
| 71709-95A00 |
LH20,RH2#,3#..RHD..12S LH,BEIGE |
1 | ||
| 71409-95A00 |
LH20,30,RH2#,3#..RHD..(12S,15S) RH,BEIGE |
1 | ||
| 71409-95A06 |
LH20,30,RH20,22,3#,42..RHD..(12S,14S,15S) RH,BROWN |
1 | ||
| 71709-95A02 |
LH20,RH20,22,3#..RHD..12S LH,BROWN |
1 | ||
| 71120 - RECEPTACLE SUB-ASSY, ASH(FOR REAR SEAT) | ||||
| 74120-90501 |
RH30..PHL;LH20,30,RH20,22,3#,42..BUS |
3 | ||
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74603-2001005 |
LH20,30,RH2#,3#,42..BUS BEIGE,BEIGE |
6 | ||
| 74603-95A03 |
LH20,30,RH20,22,3#,42..BUS |
6 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-1201005 |
LH20,30,RH2#,3#,42..BUS BEIGE,BEIGE |
12 | ||
| 74617-95A03 |
RH32..LHD..V5D..GEN;LH20,30,RH20,22,3#,42..BUS |
12 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
LH20,30,RH20,22,3#,42..BUS RR SEAT |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
LH20,30,RH20,22,3#,42..BUS RR SEAT |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
LH20,30,RH20,22,3#,42..BUS RR SEAT |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
LH20,30,RH20,22,3#,42..BUS RR SEAT |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
LH20,30,RH20,22,3#,42..BUS RR SEAT |
1 | ||
| 72317 - GROMMET, SUB SEAT CUSHION | ||||
| 72317-90500 |
LH20,30,RH20,22,3#,42..BUS |
2 | ||
| 72331 - BRACKET, SUB SEAT CUSHION | ||||
| 72301-90500 |
LH20,30,RH20,22,3#,42..BUS |
3 | ||
| 72335 - SPACER, SUB SEAT LINK | ||||
| 72335-90500 |
LH20,30,RH20,22,3#,42..BUS |
2 | ||
| 72335 - SPACER, SUB SEAT LINK | ||||
| 72335-90500 |
LH20,30,RH20,22,3#,42..BUS |
2 | ||
| 72338 - SPRING, SUB SEAT LINK, RH | ||||
| 72337-90500 |
LH20,30,RH20,22,3#,42..BUS |
1 | ||
| 72339 - SPRING, SUB SEAT LINK, LH | ||||
| 72339-90500 |
LH20,30,RH20,22,3#,42..BUS |
1 | ||
| Common parts | ||||
| 71218-90502 | ||||
| 90034-80031 | ||||
| 90101-10055 | ||||
| 90202-10089 | ||||
| 90240-08122 | ||||
| 90240-08123 | ||||
| 90240-08124 | ||||
| 90468-16012 | ||||
| 91611-60820 | ||||
| 91651-40614 | ||||
| 91651-60616 | ||||
| 91661-60835 | ||||
| 93210-16016 | ||||
| 93312-15012 | ||||
| 93315-15012 | ||||
| 93560-13512 | ||||
| 94120-41000 | ||||
| 94612-10800 | ||||
| 95381-03020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
