RH20LV-JRW (1977)
Toyota Hiace

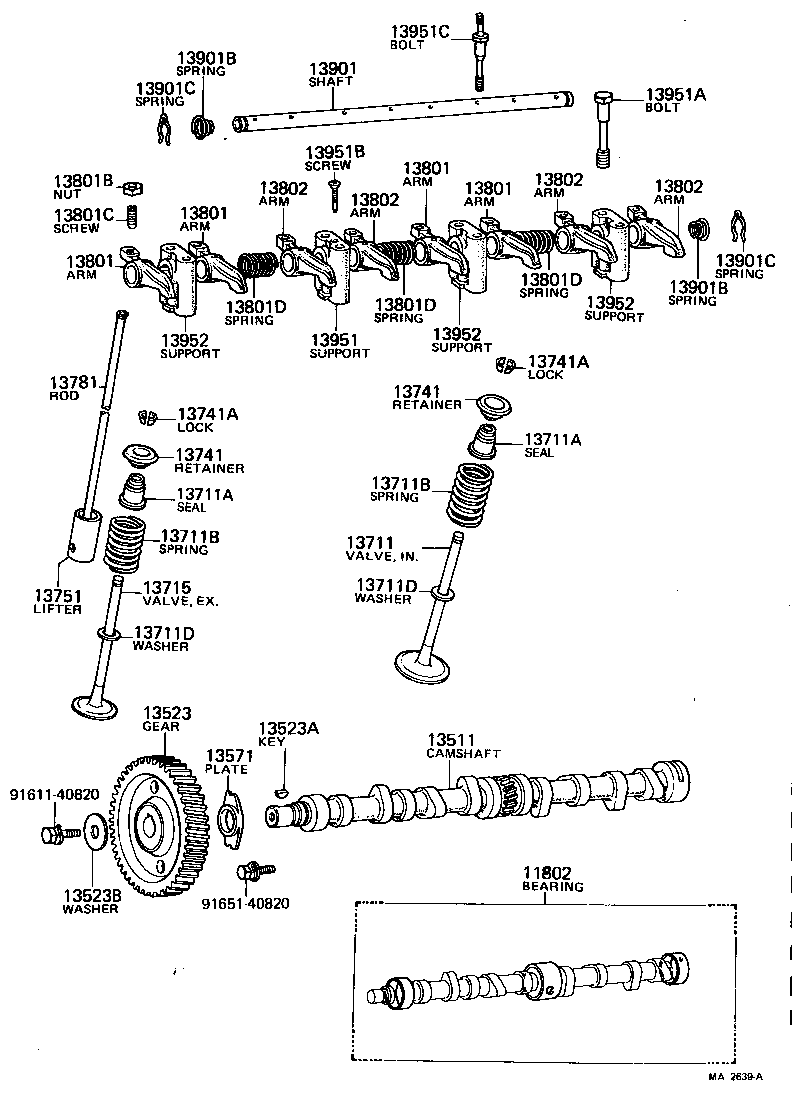

(7702- )12R#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11804-31010 |
12R#..RH11,20,30 U/S 0.250 |
1 | ||
| 11802-31010 |
12R#..RH11,20,30 STD |
1 | ||
| 11805-31010 |
12R#..RH11,20,30 U/S 0.500 |
1 | ||
| 11802-54010 |
L..LH11,20,30 STD,STD |
1 | ||
| 11804-54010 |
L..LH11,20,30 U/S 0.25,U/S 0.250 |
1 | ||
| 11803-54010 |
L..LH11,20,30 U/S 0.125,U/S 0.125 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13511-54010 |
L..LH11,20,30 |
1 | ||
| 13501-54030 |
L..LH11,20,30 |
1 | ||
| 13511-31020 |
12R..RH11,20,30 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-31011 |
12R#..RH11,20,30 N=50 |
1 | ||
| 13523A - KEY, WOODRUFF(FOR TIMING GEAR) | ||||
| 95161-10519 |
12R#..RH11,20,30 |
1 | ||
| 90280-05008 |
L..LH11,20,30 |
1 | ||
| 13523B - WASHER, PLATE(FOR TIMING GEAR) | ||||
| 90201-14007 |
L..LH11,20,30 |
1 | ||
| 90201-08120 |
12R#..RH11,20,30 |
1 | ||
| 13571 - PLATE, CAMSHAFT THRUST | ||||
| 13571-31010 |
12R#..RH11,20,30 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-31050 |
12R#..RH11,20,30 |
4 | ||
| 13711-54010 |
L..LH11,20,30 |
4 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02036 |
L..LH11,20,30 |
8 | ||
| 90913-02033 |
12R#..RH11,20,30 |
8 | ||
| 90913-02060 |
L..LH11,20,30 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02036 |
L..LH11,20,30 |
8 | ||
| 90913-02033 |
12R#..RH11,20,30 |
8 | ||
| 90913-02060 |
L..LH11,20,30 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-45005 |
12R#..RH11,20,30 WD=4.5,CW=6.25 |
8 | ||
| 90501-44002 |
L..LH11,20,30 WD=4.35,CW=6.25 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-45005 |
12R#..RH11,20,30 WD=4.5,CW=6.25 |
8 | ||
| 90501-44002 |
L..LH11,20,30 WD=4.35,CW=6.25 |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-15387 |
12R#..RH11,20,30 |
8 | ||
| 90201-20579 |
L..LH11,20,30 |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-15387 |
12R#..RH11,20,30 |
8 | ||
| 90201-20579 |
L..LH11,20,30 |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-31070 |
12R#..RH11,20,30 |
4 | ||
| 13715-54010 |
L..LH11,20,30 |
4 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-54010 |
L..LH11,20,30 |
8 | ||
| 13741-25012 |
12R#..RH11,20,30 |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-54010 |
L..LH11,20,30 |
8 | ||
| 13741-25012 |
12R#..RH11,20,30 |
8 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03014 |
12R#..RH11,20,30 |
16 | ||
| 90913-03016 |
L..LH11,20,30 |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03014 |
12R#..RH11,20,30 |
16 | ||
| 90913-03016 |
L..LH11,20,30 |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-31020 |
12R#..RH11,20,30 STD |
8 | ||
| 13755-31020 |
12R#..RH11,20,30 O/S 0.05 |
8 | ||
| 13781 - ROD, VALVE PUSH | ||||
| 13781-31022 |
12R#..RH11,20,30 |
8 | ||
| 13781-31021 |
12R..RH11,20,30 |
8 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-31021 |
12R..RH11,20,30 |
4 | ||
| 13811-31022 |
12R#..RH11,20,30 |
4 | ||
| 13801-54010 |
L..LH11,20,30 |
4 | ||
| 13801-54011 |
L..LH11,20,30 |
4 | ||
| 13801-54012 |
L..LH11,20,30 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-31021 |
12R..RH11,20,30 |
4 | ||
| 13811-31022 |
12R#..RH11,20,30 |
4 | ||
| 13801-54010 |
L..LH11,20,30 |
4 | ||
| 13801-54011 |
L..LH11,20,30 |
4 | ||
| 13801-54012 |
L..LH11,20,30 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-31021 |
12R..RH11,20,30 |
4 | ||
| 13811-31022 |
12R#..RH11,20,30 |
4 | ||
| 13801-54010 |
L..LH11,20,30 |
4 | ||
| 13801-54011 |
L..LH11,20,30 |
4 | ||
| 13801-54012 |
L..LH11,20,30 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-31021 |
12R..RH11,20,30 |
4 | ||
| 13811-31022 |
12R#..RH11,20,30 |
4 | ||
| 13801-54010 |
L..LH11,20,30 |
4 | ||
| 13801-54011 |
L..LH11,20,30 |
4 | ||
| 13801-54012 |
L..LH11,20,30 |
4 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-10074 |
12R..RH11,20,30 |
8 | ||
| 90170-08094 |
12R#..RH11,20,30 |
8 | ||
| 90170-08210 |
L..LH11,20,30 |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05019 |
L..LH11,20,30 |
8 | ||
| 90913-05010 |
12R..RH11,20,30 |
8 | ||
| 90913-05016 |
L..LH11,20,30 |
8 | ||
| 90913-05020 |
12R..RH11,20,30 |
8 | ||
| 90913-05013 |
12R#..RH11,20,30 |
8 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16098 |
12R#..RH11,20,30 WD=1.6,CW=9 |
1 | ||
| 90501-16163 |
12R#,18R..RH11,2#,3#,42 WD=1.6,CW=7.5 |
4 | ||
| 90501-16163 |
L..LH11,20,30 WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16098 |
12R#..RH11,20,30 WD=1.6,CW=9 |
1 | ||
| 90501-16163 |
12R#,18R..RH11,2#,3#,42 WD=1.6,CW=7.5 |
4 | ||
| 90501-16163 |
L..LH11,20,30 WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16098 |
12R#..RH11,20,30 WD=1.6,CW=9 |
1 | ||
| 90501-16163 |
12R#,18R..RH11,2#,3#,42 WD=1.6,CW=7.5 |
4 | ||
| 90501-16163 |
L..LH11,20,30 WD=1.6,CW=7.5 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-31021 |
12R..RH11,20,30 |
4 | ||
| 13812-31022 |
12R#..RH11,20,30 |
4 | ||
| 13802-54010 |
L..LH11,20,30 |
4 | ||
| 13802-54011 |
L..LH11,20,30 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-31021 |
12R..RH11,20,30 |
4 | ||
| 13812-31022 |
12R#..RH11,20,30 |
4 | ||
| 13802-54010 |
L..LH11,20,30 |
4 | ||
| 13802-54011 |
L..LH11,20,30 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-31021 |
12R..RH11,20,30 |
4 | ||
| 13812-31022 |
12R#..RH11,20,30 |
4 | ||
| 13802-54010 |
L..LH11,20,30 |
4 | ||
| 13802-54011 |
L..LH11,20,30 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-31021 |
12R..RH11,20,30 |
4 | ||
| 13812-31022 |
12R#..RH11,20,30 |
4 | ||
| 13802-54010 |
L..LH11,20,30 |
4 | ||
| 13802-54011 |
L..LH11,20,30 |
4 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-54010 |
L..LH11,20,30 |
1 | ||
| 13901-31020 |
12R#..RH11,20,30 |
1 | ||
| 13901B - SPRING, CONICAL(FOR VALVE ROCKER SHAFT) | ||||
| 90502-16004 |
12R#..RH11,20,30 |
2 | ||
| 13901B - SPRING, CONICAL(FOR VALVE ROCKER SHAFT) | ||||
| 90502-16004 |
12R#..RH11,20,30 |
2 | ||
| 13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT) | ||||
| 90524-15008 |
12R#..RH11,20,30 |
2 | ||
| 13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT) | ||||
| 90524-15008 |
12R#..RH11,20,30 |
2 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-31020 |
12R#..RH11,20,30 |
1 | ||
| 13951-54010 |
L..LH11,20,30 |
2 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 90119-08191 |
L..LH11,20,30 |
4 | ||
| 90910-01010 |
12R#..RH11,20,30 |
4 | ||
| 13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK) | ||||
| 90151-40010 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 91611-60614 |
L..LH11,20,30 |
2 | ||
| 91611-60620 |
L..LH11,20,30 |
2 | ||
| 13951C - BOLT, STUD(FOR ROCKER SUPPORT) | ||||
| 13955-31010 |
12R#..RH11,20,30 L=109.5,S=16&18 |
4 | ||
| 13959-31010 |
12R#..RH11,20,30 |
4 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-31010 |
12R#..RH11,20,30 |
3 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-31010 |
12R#..RH11,20,30 |
3 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-31010 |
12R#..RH11,20,30 |
3 | ||
| Common parts | ||||
| 91611-40820 | ||||
| 91651-40820 | ||||

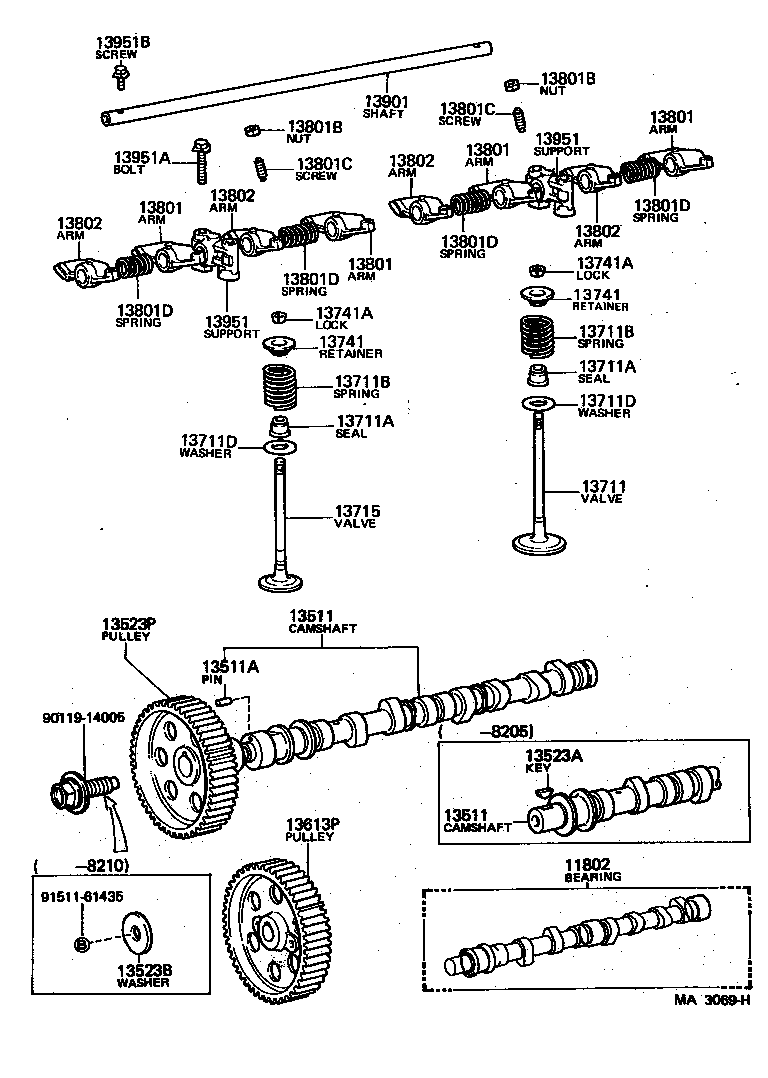

(7901- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11804-31010 |
12R#..RH11,20,30 U/S 0.250 |
1 | ||
| 11802-31010 |
12R#..RH11,20,30 STD |
1 | ||
| 11805-31010 |
12R#..RH11,20,30 U/S 0.500 |
1 | ||
| 11802-54010 |
L..LH11,20,30 STD,STD |
1 | ||
| 11804-54010 |
L..LH11,20,30 U/S 0.25,U/S 0.250 |
1 | ||
| 11803-54010 |
L..LH11,20,30 U/S 0.125,U/S 0.125 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13511-54010 |
L..LH11,20,30 |
1 | ||
| 13501-54030 |
L..LH11,20,30 |
1 | ||
| 13511-31020 |
12R..RH11,20,30 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13511-54010 |
L..LH11,20,30 |
1 | ||
| 13501-54030 |
L..LH11,20,30 |
1 | ||
| 13511-31020 |
12R..RH11,20,30 |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05121 |
L..LH11,20,30 L=15,OD=5 |
1 | ||
| 13523A - KEY, WOODRUFF(FOR TIMING GEAR) | ||||
| 95161-10519 |
12R#..RH11,20,30 |
1 | ||
| 90280-05008 |
L..LH11,20,30 |
1 | ||
| 13523B - WASHER, PLATE(FOR TIMING GEAR) | ||||
| 90201-14007 |
L..LH11,20,30 |
1 | ||
| 90201-08120 |
12R#..RH11,20,30 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-54020 |
L..LH11,20,30 |
1 | ||
| 13523-54010 |
L..LH11,20,30 N=42 |
1 | ||
| 13613P - PULLEY, INJECTION PUMP DRIVE | ||||
| 13613-54010 |
L..LH11,20,30 N=42 |
1 | ||
| 13613-54020 |
L..LH11,20,30 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-31050 |
12R#..RH11,20,30 |
4 | ||
| 13711-54010 |
L..LH11,20,30 |
4 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02036 |
L..LH11,20,30 |
8 | ||
| 90913-02033 |
12R#..RH11,20,30 |
8 | ||
| 90913-02060 |
L..LH11,20,30 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02036 |
L..LH11,20,30 |
8 | ||
| 90913-02033 |
12R#..RH11,20,30 |
8 | ||
| 90913-02060 |
L..LH11,20,30 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-45005 |
12R#..RH11,20,30 WD=4.5,CW=6.25 |
8 | ||
| 90501-44002 |
L..LH11,20,30 WD=4.35,CW=6.25 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-45005 |
12R#..RH11,20,30 WD=4.5,CW=6.25 |
8 | ||
| 90501-44002 |
L..LH11,20,30 WD=4.35,CW=6.25 |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-15387 |
12R#..RH11,20,30 |
8 | ||
| 90201-20579 |
L..LH11,20,30 |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-15387 |
12R#..RH11,20,30 |
8 | ||
| 90201-20579 |
L..LH11,20,30 |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-31070 |
12R#..RH11,20,30 |
4 | ||
| 13715-54010 |
L..LH11,20,30 |
4 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-54010 |
L..LH11,20,30 |
8 | ||
| 13741-25012 |
12R#..RH11,20,30 |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-54010 |
L..LH11,20,30 |
8 | ||
| 13741-25012 |
12R#..RH11,20,30 |
8 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03014 |
12R#..RH11,20,30 |
16 | ||
| 90913-03016 |
L..LH11,20,30 |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03014 |
12R#..RH11,20,30 |
16 | ||
| 90913-03016 |
L..LH11,20,30 |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-31021 |
12R..RH11,20,30 |
4 | ||
| 13811-31022 |
12R#..RH11,20,30 |
4 | ||
| 13801-54010 |
L..LH11,20,30 |
4 | ||
| 13801-54011 |
L..LH11,20,30 |
4 | ||
| 13801-54012 |
L..LH11,20,30 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-31021 |
12R..RH11,20,30 |
4 | ||
| 13811-31022 |
12R#..RH11,20,30 |
4 | ||
| 13801-54010 |
L..LH11,20,30 |
4 | ||
| 13801-54011 |
L..LH11,20,30 |
4 | ||
| 13801-54012 |
L..LH11,20,30 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-31021 |
12R..RH11,20,30 |
4 | ||
| 13811-31022 |
12R#..RH11,20,30 |
4 | ||
| 13801-54010 |
L..LH11,20,30 |
4 | ||
| 13801-54011 |
L..LH11,20,30 |
4 | ||
| 13801-54012 |
L..LH11,20,30 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-31021 |
12R..RH11,20,30 |
4 | ||
| 13811-31022 |
12R#..RH11,20,30 |
4 | ||
| 13801-54010 |
L..LH11,20,30 |
4 | ||
| 13801-54011 |
L..LH11,20,30 |
4 | ||
| 13801-54012 |
L..LH11,20,30 |
4 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-10074 |
12R..RH11,20,30 |
8 | ||
| 90170-08094 |
12R#..RH11,20,30 |
8 | ||
| 90170-08210 |
L..LH11,20,30 |
8 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-10074 |
12R..RH11,20,30 |
8 | ||
| 90170-08094 |
12R#..RH11,20,30 |
8 | ||
| 90170-08210 |
L..LH11,20,30 |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05019 |
L..LH11,20,30 |
8 | ||
| 90913-05010 |
12R..RH11,20,30 |
8 | ||
| 90913-05016 |
L..LH11,20,30 |
8 | ||
| 90913-05020 |
12R..RH11,20,30 |
8 | ||
| 90913-05013 |
12R#..RH11,20,30 |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05019 |
L..LH11,20,30 |
8 | ||
| 90913-05010 |
12R..RH11,20,30 |
8 | ||
| 90913-05016 |
L..LH11,20,30 |
8 | ||
| 90913-05020 |
12R..RH11,20,30 |
8 | ||
| 90913-05013 |
12R#..RH11,20,30 |
8 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16098 |
12R#..RH11,20,30 WD=1.6,CW=9 |
1 | ||
| 90501-16163 |
12R#,18R..RH11,2#,3#,42 WD=1.6,CW=7.5 |
4 | ||
| 90501-16163 |
L..LH11,20,30 WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16098 |
12R#..RH11,20,30 WD=1.6,CW=9 |
1 | ||
| 90501-16163 |
12R#,18R..RH11,2#,3#,42 WD=1.6,CW=7.5 |
4 | ||
| 90501-16163 |
L..LH11,20,30 WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16098 |
12R#..RH11,20,30 WD=1.6,CW=9 |
1 | ||
| 90501-16163 |
12R#,18R..RH11,2#,3#,42 WD=1.6,CW=7.5 |
4 | ||
| 90501-16163 |
L..LH11,20,30 WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16098 |
12R#..RH11,20,30 WD=1.6,CW=9 |
1 | ||
| 90501-16163 |
12R#,18R..RH11,2#,3#,42 WD=1.6,CW=7.5 |
4 | ||
| 90501-16163 |
L..LH11,20,30 WD=1.6,CW=7.5 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-31022 |
12R#..RH11,20,30 |
4 | ||
| 13812-31021 |
12R..RH11,20,30 |
4 | ||
| 13802-54010 |
L..LH11,20,30 |
4 | ||
| 13802-54011 |
L..LH11,20,30 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-31022 |
12R#..RH11,20,30 |
4 | ||
| 13812-31021 |
12R..RH11,20,30 |
4 | ||
| 13802-54010 |
L..LH11,20,30 |
4 | ||
| 13802-54011 |
L..LH11,20,30 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-31022 |
12R#..RH11,20,30 |
4 | ||
| 13812-31021 |
12R..RH11,20,30 |
4 | ||
| 13802-54010 |
L..LH11,20,30 |
4 | ||
| 13802-54011 |
L..LH11,20,30 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-31021 |
12R..RH11,20,30 |
4 | ||
| 13812-31022 |
12R#..RH11,20,30 |
4 | ||
| 13802-54010 |
L..LH11,20,30 |
4 | ||
| 13802-54011 |
L..LH11,20,30 |
4 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-54010 |
L..LH11,20,30 |
1 | ||
| 13901-31020 |
12R#..RH11,20,30 |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-31020 |
12R#..RH11,20,30 |
1 | ||
| 13951-54010 |
L..LH11,20,30 |
2 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-31020 |
12R#..RH11,20,30 |
1 | ||
| 13951-54010 |
L..LH11,20,30 |
2 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 90119-08191 |
L..LH11,20,30 |
4 | ||
| 90910-01010 |
12R#..RH11,20,30 |
4 | ||
| 13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK) | ||||
| 90151-40010 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 91611-60614 |
L..LH11,20,30 |
2 | ||
| 91611-60620 |
L..LH11,20,30 |
2 | ||
| Common parts | ||||
| 90119-14005 | ||||
| 91511-61435 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
