RH20LB-JRE (1977)

Toyota Hiace

Production Feb 1977 - Nov 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )

Click highlighted areas on diagram

diagram 87205 87205 87245A 87245A 87246A 87246A 87246E 87251 87251 87251 87265 8871414010 9017908123 9046108157 9046108157 9046108157 9046108157 9046108157 9046108157 9046108157 9046108157 9046108458 9046108517 9046110240 9046110240 9046110240 9046110240 9161140814 9161140814 9161140814 9161140814 9161140814 9161140816 9338518016 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87240-95A00

RH20,30..BUS

RR HEATER

 1
87251-95A02

RH11,20,30..ARL,EUR,GEN

FR HEATER

 1
87251-30230

LH11,20,30

 1
87251-95A03

LH11,20,30

 1
87240-95A00

RH30..BUS;RH20..12S..EUR;RH20..09S..GEN;RH20..LHD..12S..GEN

RR HEATER

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87240-95A00

RH20,30..BUS

RR HEATER

 1
87251-95A02

RH11,20,30..ARL,EUR,GEN

FR HEATER

 1
87251-30230

LH11,20,30

 1
87251-95A03

LH11,20,30

 1
87240-95A00

RH30..BUS;RH20..12S..EUR;RH20..09S..GEN;RH20..LHD..12S..GEN

RR HEATER

 1
87245A - HOSE, HEATER WATER, INLET A
99552-32000

RH11,20,30..ARL,EUR,GEN

*H,L=1550

 1
87245-95A02

LH11,20,30

 1
87245-95A07

RH11,20,30..ARL,EUR,GEN

L=1550

 1
87245-95A18

LH11,20,30

 1
87245-95A07

RH20,30

L=1550

 1
87245A - HOSE, HEATER WATER, INLET A
99552-32000

RH11,20,30..ARL,EUR,GEN

*H,L=1550

 1
87245-95A02

LH11,20,30

 1
87245-95A07

RH11,20,30..ARL,EUR,GEN

L=1550

 1
87245-95A18

LH11,20,30

 1
87245-95A07

RH20,30

L=1550

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95A00

LH11,20,30

L=1260

 1
87245-95A08

RH20,30

L=1700

 1
87245-95A08

RH11,20,30..ARL,EUR,GEN

L=1700

 1
99552-32000

RH11,20,30..ARL,EUR,GEN

*H,L=1720

 1
87245-95A17

LH11,20,30

 1
99552-32000

RH20,30..BUS

*H,L=1220,W/RR HEATER

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95A00

LH11,20,30

L=1260

 1
87245-95A08

RH20,30

L=1700

 1
87245-95A08

RH11,20,30..ARL,EUR,GEN

L=1700

 1
99552-32000

RH11,20,30..ARL,EUR,GEN

*H,L=1720

 1
87245-95A17

LH11,20,30

 1
99552-32000

RH20,30..BUS

*H,L=1220,W/RR HEATER

 1
87246E - HOSE, HEATER WATER, OUTLET E
99552-31000

RH20..BUS..GEN;RH20..V5D..ARL;RH20..LHD..V5D..GEN;RH20..V4D..(ARL,GEN);RH11,30..ARL,GEN,IDN

*H,L=1000,W/COOLER

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30190

RH11,20,30..ARL,EUR,GEN

FR HEATER

 1
87251-20070

RH11,20,30..ARL,GEN,IDN

W/COOLER

 1
87251-30200

LH11,20,30

 1
87251-36030

RH20,30..BUS

RR HEATER

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30190

RH11,20,30..ARL,EUR,GEN

FR HEATER

 1
87251-20070

RH11,20,30..ARL,GEN,IDN

W/COOLER

 1
87251-30200

LH11,20,30

 1
87251-36030

RH20,30..BUS

RR HEATER

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30190

RH11,20,30..ARL,EUR,GEN

FR HEATER

 1
87251-20070

RH11,20,30..ARL,GEN,IDN

W/COOLER

 1
87251-30200

LH11,20,30

 1
87251-36030

RH20,30..BUS

RR HEATER

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-95A00

RH20,22,3#..BUS

4WAY TYPE,W/RR HEATER

 1
87248-95A00

RH20,30..BUS,WG

3WAY TYPE,W/RR HEATER

 1
87265-60030

RH11,20,30..ARL,GEN,IDN

2WAY TYPE,W/COOLER

 1
Common parts
88714-14010
90179-08123
90461-08157
90461-08458
90461-08517
90461-10240
91611-40814
91611-40816
93385-18016
96112-10250

(7702-7912)RH20,30..09S,12S

Click highlighted areas on diagram

diagram 7169195A00 87205 87205 87251 87251 87255A 87255A 87255E 87255E 87256A 87256A 87256B 87256B 87265 87265 87265 87265 9046108205 9046108205 9046108258 9046108258 9046108258 9046108258 9046108258 9046108258 9046108827 9046108827 9046108827 9046108827 9046110623 9046400108 9046400108 9048015083 9048015083 9165140625 9165140625 9165140814 9165140816 9165140816 9165140816 9411040600 9411040600 9411040600 9411040600 9411040800 9411040800 9411040800 9411040800 9461210601 9461210601 9461210601 9461210601 9611210220 9611210220 9611210220 9611210220 9611210220 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87240-95A00

RH20,30..BUS

RR HEATER

 1
87251-95A02

RH11,20,30..ARL,EUR,GEN

FR HEATER

 1
87251-30230

LH11,20,30

 1
87251-95A03

LH11,20,30

 1
87240-95A00

RH30..BUS;RH20..12S..EUR;RH20..09S..GEN;RH20..LHD..12S..GEN

RR HEATER

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87240-95A00

RH20,30..BUS

RR HEATER

 1
87251-95A02

RH11,20,30..ARL,EUR,GEN

FR HEATER

 1
87251-30230

LH11,20,30

 1
87251-95A03

LH11,20,30

 1
87240-95A00

RH30..BUS;RH20..12S..EUR;RH20..09S..GEN;RH20..LHD..12S..GEN

RR HEATER

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

LH11,20,30

 1
87251-30190

RH11,20,30..ARL,EUR,GEN

FR HEATER

 1
87251-20070

RH11,20,30..ARL,GEN,IDN

W/COOLER

 1
87251-36030

RH20,30..BUS

RR HEATER

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

LH11,20,30

 1
87251-30190

RH11,20,30..ARL,EUR,GEN

FR HEATER

 1
87251-20070

RH11,20,30..ARL,GEN,IDN

W/COOLER

 1
87251-36030

RH20,30..BUS

RR HEATER

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99552-22000

LH20,30,RH2#,3#,42..BUS

*H,L=1180

 1
99552-23000

RH20..LHD..BUS

*H,L=3000

 1
99552-23000

RH20..LHD..(09S,12S)

*H,L=2400

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99552-22000

LH20,30,RH2#,3#,42..BUS

*H,L=1180

 1
99552-23000

RH20..LHD..BUS

*H,L=3000

 1
99552-23000

RH20..LHD..(09S,12S)

*H,L=2400

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-95A06

RH20,22,3#..LHD..(BUS,WG)

 1
99552-20200

RH2#,3#..BUS

*H,L=110

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-95A06

RH20,22,3#..LHD..(BUS,WG)

 1
99552-20200

RH2#,3#..BUS

*H,L=110

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-20100

RH2#,3#..BUS

*H,L=70

 1
87245-95A06

RH20,22,3#..LHD..(BUS,WG)

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-20100

RH2#,3#..BUS

*H,L=70

 1
87245-95A06

RH20,22,3#..LHD..(BUS,WG)

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99552-23000

RH20..LHD..(09S,12S)

*H,L=2400

 1
99552-23000

RH20..LHD..BUS

*H,L=3000

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99552-23000

RH20..LHD..(09S,12S)

*H,L=2400

 1
99552-23000

RH20..LHD..BUS

*H,L=3000

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-95A00

RH20,22,3#..BUS

4WAY TYPE,W/RR HEATER

 1
87248-95A00

RH20,30..BUS,WG

3WAY TYPE,W/RR HEATER

 1
87265-60030

RH11,20,30..ARL,GEN,IDN

2WAY TYPE,W/COOLER

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-95A00

RH20,22,3#..BUS

4WAY TYPE,W/RR HEATER

 1
87248-95A00

RH20,30..BUS,WG

3WAY TYPE,W/RR HEATER

 1
87265-60030

RH11,20,30..ARL,GEN,IDN

2WAY TYPE,W/COOLER

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-95A00

RH20,22,3#..BUS

4WAY TYPE,W/RR HEATER

 1
87248-95A00

RH20,30..BUS,WG

3WAY TYPE,W/RR HEATER

 1
87265-60030

RH11,20,30..ARL,GEN,IDN

2WAY TYPE,W/COOLER

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-95A00

RH20,22,3#..BUS

4WAY TYPE,W/RR HEATER

 1
87248-95A00

RH20,30..BUS,WG

3WAY TYPE,W/RR HEATER

 1
87265-60030

RH11,20,30..ARL,GEN,IDN

2WAY TYPE,W/COOLER

 1
Common parts
71691-95A00
90461-08205
90461-08258
90461-08827
90461-10623
90464-00108
90480-15083
91651-40625
91651-40814
91651-40816
94110-40600
94110-40800
94612-10601
96112-10220
96112-10250

(7912- )RH20,30

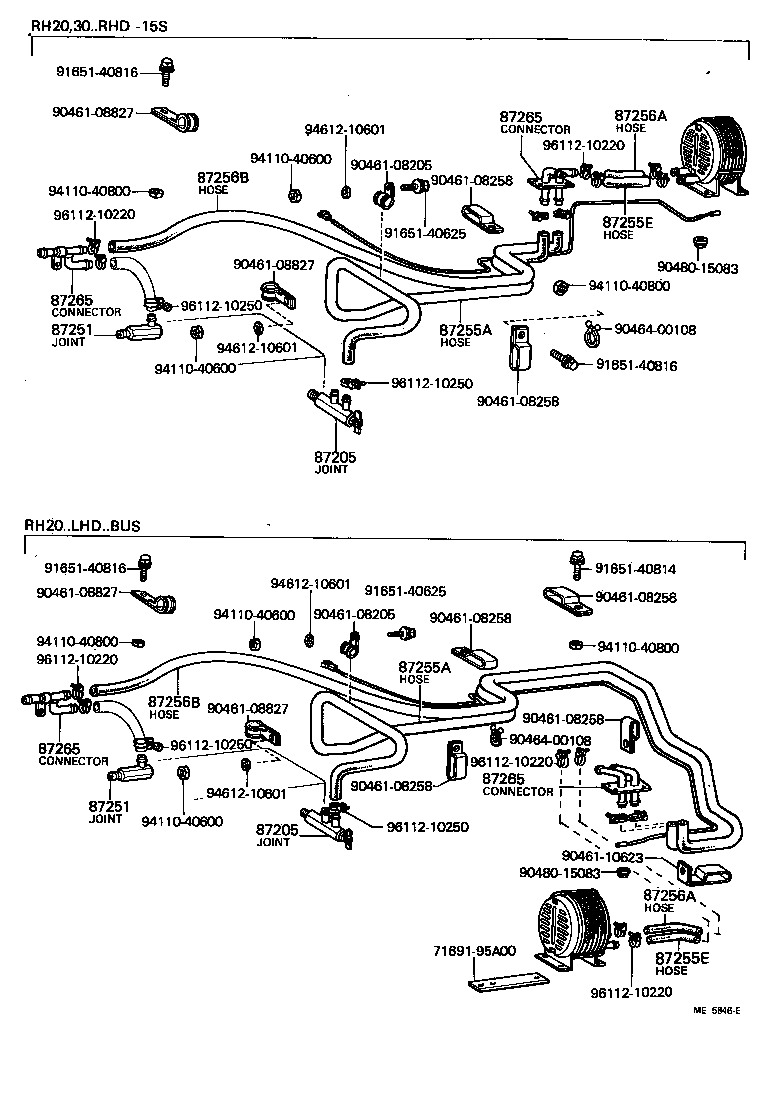

Click highlighted areas on diagram

diagram 7169195A11 7169195A11 7169195A11 8202 8202 8202 87205 87205 87205 87246A 87246A 87246A 87255A 87255A 87255A 87255E 87255E 87256A 87256A 87256A 87256A 87256B 87256E 87256E 87256E 87265 87265 87265 9046022073 9046022073 9046024039 9046024039 9046024039 9046108202 9046108205 9046108205 9046108205 9046108258 9046108258 9046108258 9046108258 9046108827 9046108827 9046108827 9046110507 9046110507 9046110507 9046110623 9046400108 9046400108 9046400108 9048026004 9048026004 9048026004 9048026010 9048026010 9048026010 9165140625 9165140625 9165140625 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9358016016 9358016016 9411040600 9411040600 9411040600 9411040800 9411040800 9411040800 9411040800 9461210601 9461210601 9461210601 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87240-95A00

RH20,30..BUS

RR HEATER

 1
87251-95A02

RH11,20,30..ARL,EUR,GEN

FR HEATER

 1
87251-30230

LH11,20,30

 1
87251-95A03

LH11,20,30

 1
87240-95A00

RH30..BUS;RH20..12S..EUR;RH20..09S..GEN;RH20..LHD..12S..GEN

RR HEATER

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87240-95A00

RH20,30..BUS

RR HEATER

 1
87251-95A02

RH11,20,30..ARL,EUR,GEN

FR HEATER

 1
87251-30230

LH11,20,30

 1
87251-95A03

LH11,20,30

 1
87240-95A00

RH30..BUS;RH20..12S..EUR;RH20..09S..GEN;RH20..LHD..12S..GEN

RR HEATER

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87240-95A00

RH20,30..BUS

RR HEATER

 1
87251-95A02

RH11,20,30..ARL,EUR,GEN

FR HEATER

 1
87251-30230

LH11,20,30

 1
87251-95A03

LH11,20,30

 1
87240-95A00

RH30..BUS;RH20..12S..EUR;RH20..09S..GEN;RH20..LHD..12S..GEN

RR HEATER

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95A00

LH11,20,30

L=1260

 1
87245-95A08

RH20,30

L=1700

 1
87245-95A08

RH11,20,30..ARL,EUR,GEN

L=1700

 1
99552-32000

RH11,20,30..ARL,EUR,GEN

*H,L=1720

 1
87245-95A17

LH11,20,30

 1
99552-32000

RH20,30..BUS

*H,L=1220,W/RR HEATER

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95A00

LH11,20,30

L=1260

 1
87245-95A08

RH20,30

L=1700

 1
87245-95A08

RH11,20,30..ARL,EUR,GEN

L=1700

 1
99552-32000

RH11,20,30..ARL,EUR,GEN

*H,L=1720

 1
87245-95A17

LH11,20,30

 1
99552-32000

RH20,30..BUS

*H,L=1220,W/RR HEATER

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95A00

LH11,20,30

L=1260

 1
87245-95A08

RH20,30

L=1700

 1
87245-95A08

RH11,20,30..ARL,EUR,GEN

L=1700

 1
99552-32000

RH11,20,30..ARL,EUR,GEN

*H,L=1720

 1
87245-95A17

LH11,20,30

 1
99552-32000

RH20,30..BUS

*H,L=1220,W/RR HEATER

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99552-22000

LH20,30,RH2#,3#,42..BUS

*H,L=1180

 1
99552-23000

RH20..LHD..BUS

*H,L=3000

 1
99552-23000

RH20..LHD..(09S,12S)

*H,L=2400

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99552-22000

LH20,30,RH2#,3#,42..BUS

*H,L=1180

 1
99552-23000

RH20..LHD..BUS

*H,L=3000

 1
99552-23000

RH20..LHD..(09S,12S)

*H,L=2400

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99552-22000

LH20,30,RH2#,3#,42..BUS

*H,L=1180

 1
99552-23000

RH20..LHD..BUS

*H,L=3000

 1
99552-23000

RH20..LHD..(09S,12S)

*H,L=2400

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-95A06

RH20,22,3#..LHD..(BUS,WG)

 1
99552-20200

RH2#,3#..BUS

*H,L=110

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-95A06

RH20,22,3#..LHD..(BUS,WG)

 1
99552-20200

RH2#,3#..BUS

*H,L=110

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-20100

RH2#,3#..BUS

*H,L=70

 1
87245-95A06

RH20,22,3#..LHD..(BUS,WG)

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-20100

RH2#,3#..BUS

*H,L=70

 1
87245-95A06

RH20,22,3#..LHD..(BUS,WG)

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-20100

RH2#,3#..BUS

*H,L=70

 1
87245-95A06

RH20,22,3#..LHD..(BUS,WG)

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-20100

RH2#,3#..BUS

*H,L=70

 1
87245-95A06

RH20,22,3#..LHD..(BUS,WG)

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99552-23000

RH20..LHD..(09S,12S)

*H,L=2400

 1
99552-23000

RH20..LHD..BUS

*H,L=3000

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99552-30500

RH20,30..BUS,WG

*H,L=310

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99552-30500

RH20,30..BUS,WG

*H,L=310

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99552-30500

RH20,30..BUS,WG

*H,L=310

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-95A00

RH20,22,3#..BUS

4WAY TYPE,W/RR HEATER

 1
87248-95A00

RH20,30..BUS,WG

3WAY TYPE,W/RR HEATER

 1
87265-60030

RH11,20,30..ARL,GEN,IDN

2WAY TYPE,W/COOLER

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-95A00

RH20,22,3#..BUS

4WAY TYPE,W/RR HEATER

 1
87248-95A00

RH20,30..BUS,WG

3WAY TYPE,W/RR HEATER

 1
87265-60030

RH11,20,30..ARL,GEN,IDN

2WAY TYPE,W/COOLER

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-95A00

RH20,22,3#..BUS

4WAY TYPE,W/RR HEATER

 1
87248-95A00

RH20,30..BUS,WG

3WAY TYPE,W/RR HEATER

 1
87265-60030

RH11,20,30..ARL,GEN,IDN

2WAY TYPE,W/COOLER

 1
Common parts
71691-95A11
90460-22073
90460-24039
90461-08202
90461-08205
90461-08258
90461-08827
90461-10507
90461-10623
90464-00108
90480-26004
90480-26010
91651-40625
91651-40816
93580-16016
94110-40600
94110-40800
94612-10601
96112-10220
Linked diagrams
8202
