RH11RP-JRQ (1982)

Toyota Hiace

Production Nov 1982 - Jul 1985
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

Click highlighted areas on diagram

diagram 8271112200 9046108183 9046108535 9046110247 9046110311 9046110441 9046112684 9046210051 9046308124 9098901004 9161140820 9161140820 9161140820 9161140820 9165140820 9411040800 9411040800
Part # Description Qty Price
Common parts
82711-12200
90461-08183
90461-08535
90461-10247
90461-10311
90461-10441
90461-12684
90462-10051
90463-08124
90989-01004
91611-40820
91651-40820
94110-40800

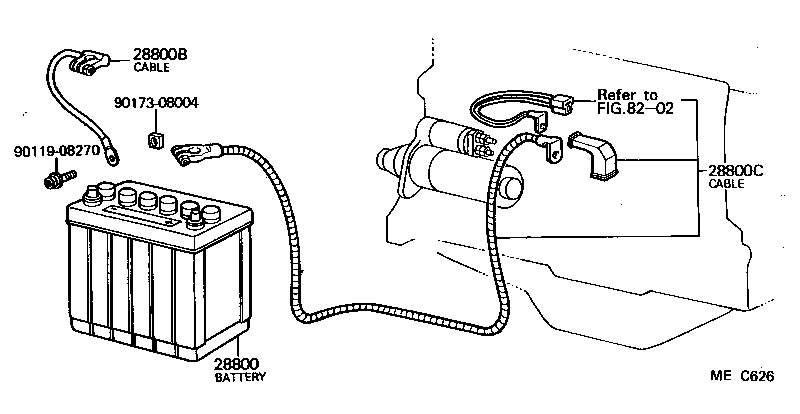

(8211- )RH11

Click highlighted areas on diagram

diagram 28800 28800B 28800C 8202 9011908270 9017308004
Part # Description Qty Price
28800 - BATTERY
28800-12060

12R..RH11

50D20R,50D20R(12V 50AH-20HR)

 1
28800B - CABLE, BATTERY TO GROUND
90982-02019

12R..RH11

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-95A01

12R..RH11

50D 20R

 1
Common parts
90119-08270
90173-08004
Linked diagrams
8202
