RH11R-JRY (1977)
Toyota Hiace
(7702- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-26040 |
LH11,20,30,RH11,20,22,3#,42..RHD..4H |
1 | ||
| 33503 - LEVER SUB-ASSY, SHIFT(FOR COLUMN SHIFT) | ||||
| 33503-26040 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 33504 - KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33504-30110 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 90303-17005 |
LH11,20,30,RH11,2#,3#,42 |
2 | ||
| 33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER | ||||
| 33513-36011 |
RH11,2#,3#,42 |
1 | ||
| 33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) | ||||
| 90501-14395 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33517 - RETAINER, CONTROL SHAFT UPPER SPRING | ||||
| 33517-30010 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33518 - BUSH, UPPER CONTROL SHAFT PIECE | ||||
| 33518-36010 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33518A - WASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 33515-30010 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 90523-06019 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT) | ||||
| 33522-35010 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 90249-07001 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33523E - RING, E (FOR SHIFT LEVER PIN) | ||||
| 96160-00500 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT) | ||||
| 33541-26030 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 33535 - LEVER, CONTROL SELECT (FOR COLUMN SHIFT) | ||||
| 33535-26012 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 33535A - BUSH (FOR CONTROL SELECT LEVER) | ||||
| 90386-13007 |
LH11,20,30,RH11,2#,3#,42 |
2 | ||
| 33536 - SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT) | ||||
| 33536-25010 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33571 - BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT) | ||||
| 33571-26012 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) | ||||
| 33572-36010 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33574 - RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 33574-25010 |
LH11,20,30,RH11,2#,3#,42 |
2 | ||
| 33602 - LEVER SUB-ASSY, SELECT (FOR COLUMN SHIFT) | ||||
| 33602-26040 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 33643 - LEVER, GEAR SELECTING | ||||
| 33641-26040 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 33670 - SUPPORT ASSY, CONTROL ROD (FOR COLUMN SHIFT) | ||||
| 33670-26130 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 33670A - BUSH (FOR CONTROL ROD SUPPORT) | ||||
| 90386-15082 |
LH11,20,30,RH11,20,22,3#,42..RHD |
4 | ||
| 33670A - BUSH (FOR CONTROL ROD SUPPORT) | ||||
| 90386-15082 |
LH11,20,30,RH11,20,22,3#,42..RHD |
4 | ||
| 33686 - COVER, CONTROL LEVER DUST (FOR COLUMN SHIFT) | ||||
| 33686-26010 |
LH11,20,30,RH11,2#,3#,42 |
2 | ||
| 33711 - LEVER, CONTROL SHAFT (FOR COLUMN SHIFT) | ||||
| 33527-26030 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 33711G - BOLT, CONTROL SHAFT LEVER LOCK | ||||
| 33218-35010 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) | ||||
| 33723-10020 |
LH11,20,30,RH11,2#,3#,42 |
2 | ||
| 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) | ||||
| 33723-10020 |
LH11,20,30,RH11,2#,3#,42 |
2 | ||
| 33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
LH11,20,30,RH11,2#,3#,42 |
3 | ||
| 33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
LH11,20,30,RH11,2#,3#,42 |
3 | ||
| 33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
LH11,20,30,RH11,2#,3#,42 |
3 | ||
| 33723B - GROMMET (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
LH11,20,30,RH11,2#,3#,42 |
3 | ||
| 33723B - GROMMET (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
LH11,20,30,RH11,2#,3#,42 |
3 | ||
| 33723B - GROMMET (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
LH11,20,30,RH11,2#,3#,42 |
3 | ||
| 33731 - ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33720-26012 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33741 - ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33710-26040 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 33744 - LEVER, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33744-26040 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33775-27011 |
LH11,20,30,RH11,20,22,3#,42..RHD |
4 | ||
| 33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33775-27011 |
LH11,20,30,RH11,20,22,3#,42..RHD |
4 | ||
| Common parts | ||||
| 90201-06543 | ||||
| 90201-08084 | ||||
| 90468-16012 | ||||
| 90560-10017 | ||||
| 90580-14002 | ||||
| 91121-50840 | ||||
| 91611-40814 | ||||
| 91651-40614 | ||||
| 91651-40818 | ||||
| 91651-40825 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| 96451-00600 | ||||

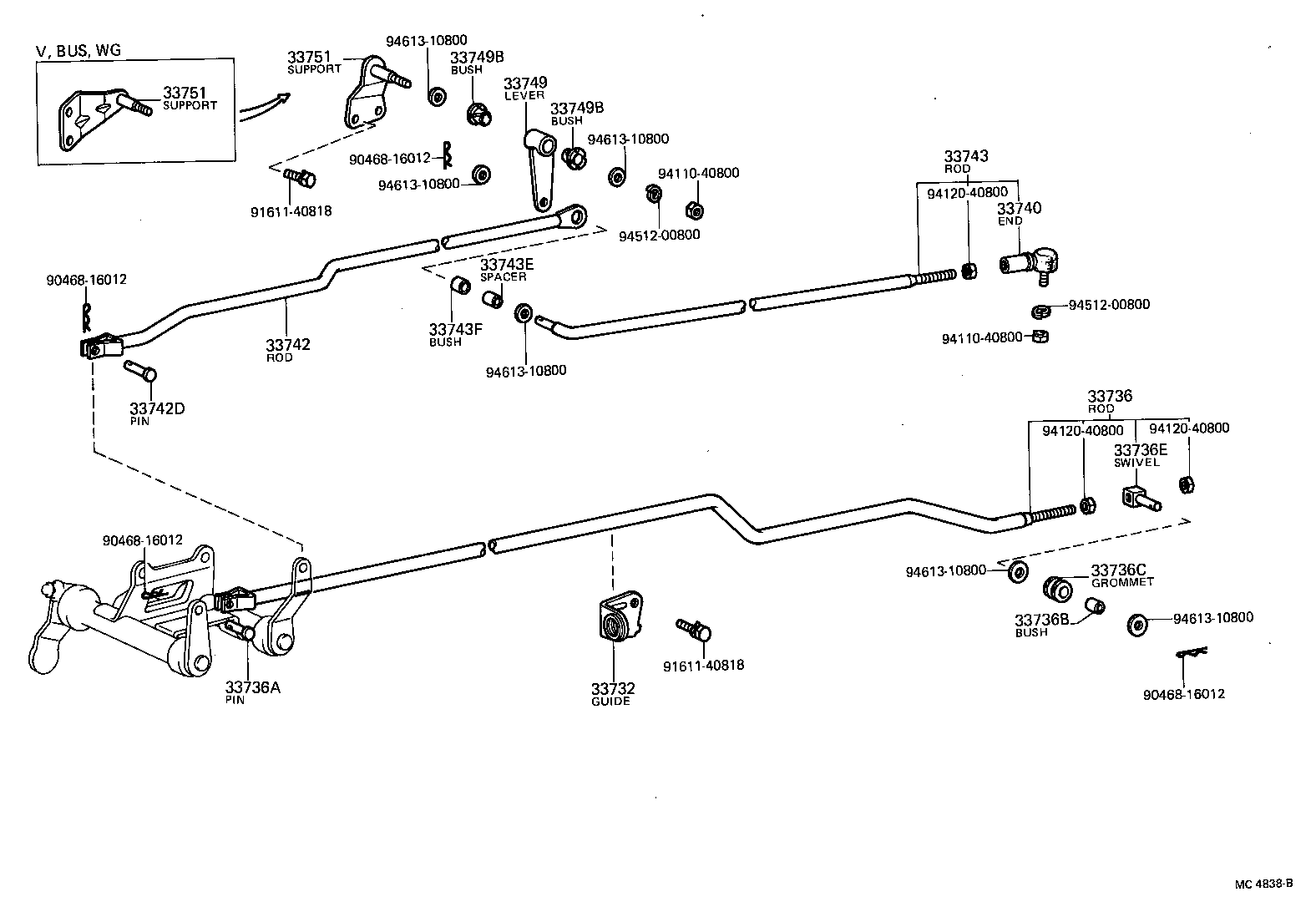

(7702- )4H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33732 - GUIDE, SELECTING ROD | ||||
| 33732-26013 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33736 - ROD, GEAR SELECTING, NO.2(FOR COLUMN SHIFT) | ||||
| 33790-26060 |
RH11,2#,3#,42 |
1 | ||
| 33736A - PIN, W/HOLE | ||||
| 90240-08094 |
LH11,20,30,RH11,2#,3#,42..4H |
1 | ||
| 33736B - BUSH(FOR GEAR SELECTING ROD, NO.2) | ||||
| 90387-08071 |
LH11,20,30,RH11,2#,3#,42..4H |
1 | ||
| 33736C - GROMMET(FOR GEAR SELECTING ROD, NO.2) | ||||
| 90480-17254 |
LH11,20,30,RH11,2#,3#,42..4H |
1 | ||
| 33736E - SWIVEL, CONNECTING ROD | ||||
| 33723-26010 |
LH11,20,30,RH11,2#,3#,42..4H |
1 | ||
| 33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT) | ||||
| 33740-35011 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33742 - ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT) | ||||
| 33742-26013 |
RH11,2#,3#,42 |
1 | ||
| 33742D - PIN, W/HOLE | ||||
| 90240-08094 |
LH11,20,30,RH11,2#,3#,42..4H |
1 | ||
| 33743 - ROD, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT) | ||||
| 33840-26023 |
LH11,20,30,RH11,2#,3#,42..4H |
1 | ||
| 33743E - SPACER(FOR SHIFTING) | ||||
| 90560-08366 |
LH11,20,30,RH11,2#,3#,42..4H |
1 | ||
| 33743F - BUSH(FOR SHIFTING) | ||||
| 90385-10063 |
LH11,20,30,RH11,2#,3#,42..4H |
1 | ||
| 33749 - LEVER, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT) | ||||
| 33749-26023 |
LH11,20,30,RH11,2#,3#,42..4H |
1 | ||
| 33749B - BUSH (FOR COLUMN SHIFT GEAR SHIFTING LEVER) | ||||
| 90386-13007 |
LH11,20,30,RH11,2#,3#,42..4H |
2 | ||
| 33749B - BUSH (FOR COLUMN SHIFT GEAR SHIFTING LEVER) | ||||
| 90386-13007 |
LH11,20,30,RH11,2#,3#,42..4H |
2 | ||
| 33751 - SUPPORT, GEAR SHIFT LINK LEVER (FOR COLUMN SHIFT) | ||||
| 33705-26040 |
LH20,30,RH2#,3#,42..4H |
1 | ||
| 33705-26012 |
LH11,RH11,25..4H |
1 | ||
| 33751 - SUPPORT, GEAR SHIFT LINK LEVER (FOR COLUMN SHIFT) | ||||
| 33705-26040 |
LH20,30,RH2#,3#,42..4H |
1 | ||
| 33705-26012 |
LH11,RH11,25..4H |
1 | ||
| Common parts | ||||
| 90468-16012 | ||||
| 91611-40818 | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94613-10800 | ||||
