RH11R-JRY (1977)
Toyota Hiace
Production
Feb 1977
-
Oct 1981
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7702- )12R#,18R

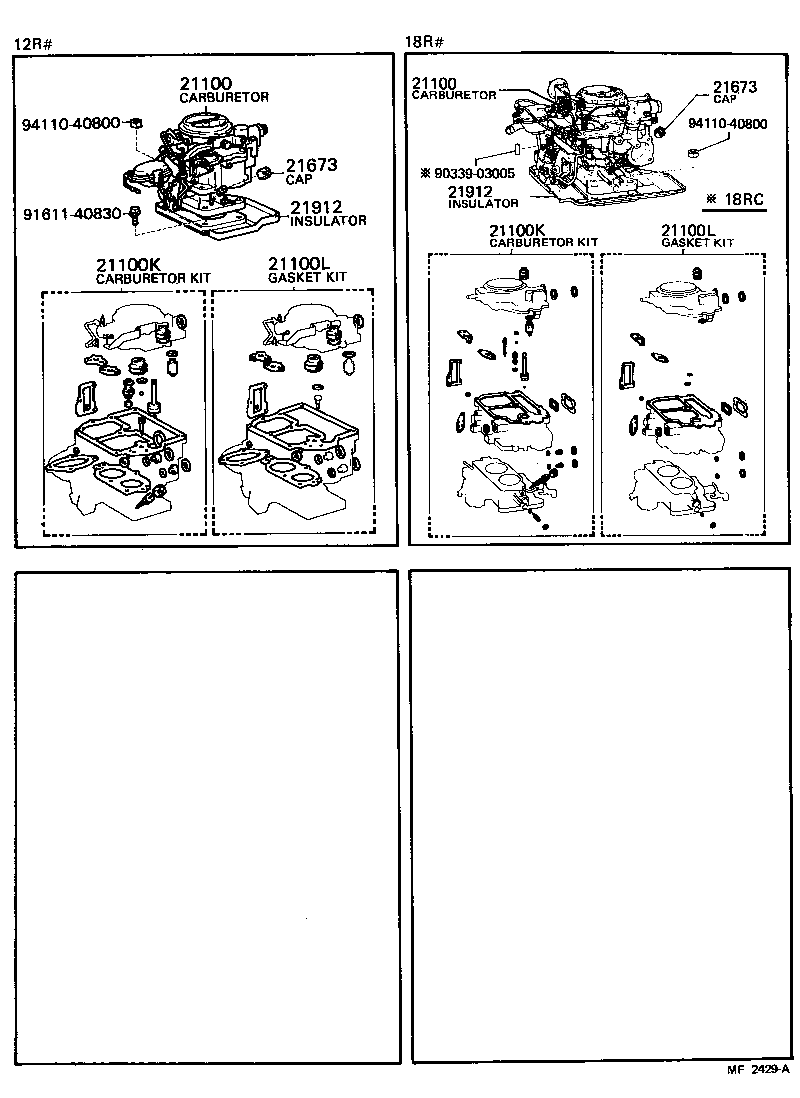

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21100 - CARBURETOR ASSY | ||||
| 21100-31330 |
12R..RH11,20,30..RHD HONG KONG SPEC |
1 | ||
| 21100-31291 |
12R..RH11,20,30..ARL,GEN,IDN |
1 | ||
| 21100-31450 |
12R..RH11,20,30..RHD HONG KONG SPEC |
1 | ||
| 21100-31470 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 21100 - CARBURETOR ASSY | ||||
| 21100-31330 |
12R..RH11,20,30..RHD HONG KONG SPEC |
1 | ||
| 21100-31291 |
12R..RH11,20,30..ARL,GEN,IDN |
1 | ||
| 21100-31450 |
12R..RH11,20,30..RHD HONG KONG SPEC |
1 | ||
| 21100-31470 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 21100K - CARBURETOR KIT | ||||
| 04211-31250 |
12R..RH11,20,30..ARL,GEN,IDN |
1 | ||
| 04211-31200 |
12R..RH11,20,30..RHD HONG KONG SPEC |
1 | ||
| 21100K - CARBURETOR KIT | ||||
| 04211-31250 |
12R..RH11,20,30..ARL,GEN,IDN |
1 | ||
| 04211-31200 |
12R..RH11,20,30..RHD HONG KONG SPEC |
1 | ||
| 21100L - GASKET KIT, CARBURETOR | ||||
| 04212-31060 |
12R#..RH11,20,30 |
1 | ||
| 04212-31070 |
12R#..RH11,20,30 |
1 | ||
| 21100L - GASKET KIT, CARBURETOR | ||||
| 04212-31060 |
12R#..RH11,20,30 |
1 | ||
| 04212-31070 |
12R#..RH11,20,30 |
1 | ||
| 21912 - INSULATOR, CARBURETOR HEAT | ||||
| 21912-31041 |
12R..RH11,20,30 |
1 | ||
| 21912 - INSULATOR, CARBURETOR HEAT | ||||
| 21912-31041 |
12R..RH11,20,30 |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 91611-40830 | ||||
| 94110-40800 | ||||
