RH11R-JRY (1977)

Toyota Hiace

Production Feb 1977 - Oct 1981
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702-7808)12R#

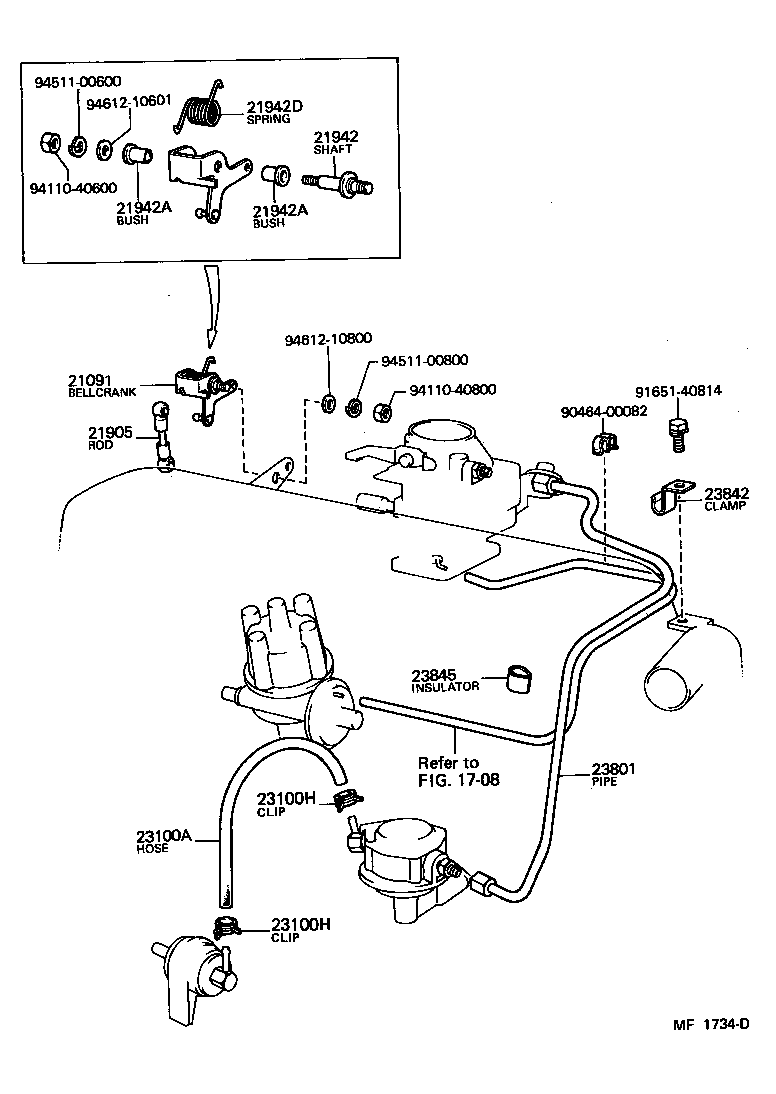

Click highlighted areas on diagram

diagram 1708 21091 21905 21942 21942A 21942A 21942D 23100A 23100H 23100H 23801 23842 23845 9046400082 9165140814 9411040600 9411040800 9451100600 9451100800 9461210601 9461210800
Part # Description Qty Price
21091 - BELLCRANK SUB-ASSY, ACCELERATOR
21091-95A00

12R#..RH11,20,30

 1
21905 - ROD SUB-ASSY, ACCELERATOR CONNECTING
78104-20041

12R#..RH11,20,30

 1
21942 - SHAFT, ACCELERATOR LINK
21941-31010

12R#..RH11,20,30

 1
21942A - BUSH(FOR ACCELERATOR LINK SHAFT)
90386-08024

12R#..RH11,20,30

 1
21942A - BUSH(FOR ACCELERATOR LINK SHAFT)
90386-08024

12R#..RH11,20,30

 1
21942D - SPRING(FOR ACCELERATOR LINK SHAFT)
90508-20001

12R#..RH11,20,30

 1
23100A - HOSE, FUEL
95332-06080

12R,18R..RH2#,3#,42

*H,L=700

 1
95331-06040

12R..RH11

L=400

 1
95331-06070

12R,18R..RH2#,3#,42

L=700

 1
23271-31010

12R#,18R..RH2#,3#,42

L=600

 1
95332-06070

12R#,18R..RH2#,3#,42

L=700

 1
95332-06060

12R,18R..RH20,22,3#,42

L=600

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

12R#..RH11,20,30

 4
23100H - CLIP(FOR FUEL HOSE)
96132-30600

12R#..RH11,20,30

 4
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23801-31042

12R..RH11,20,30

 1
23811-31061

12R#..RH11,20,30

 1
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
23842-31010

12R..RH11,20,30

 1
Common parts
90464-00082
91651-40814
94110-40600
94110-40800
94511-00600
94511-00800
94612-10601
94612-10800
Linked diagrams
1708

(7808- )12R#

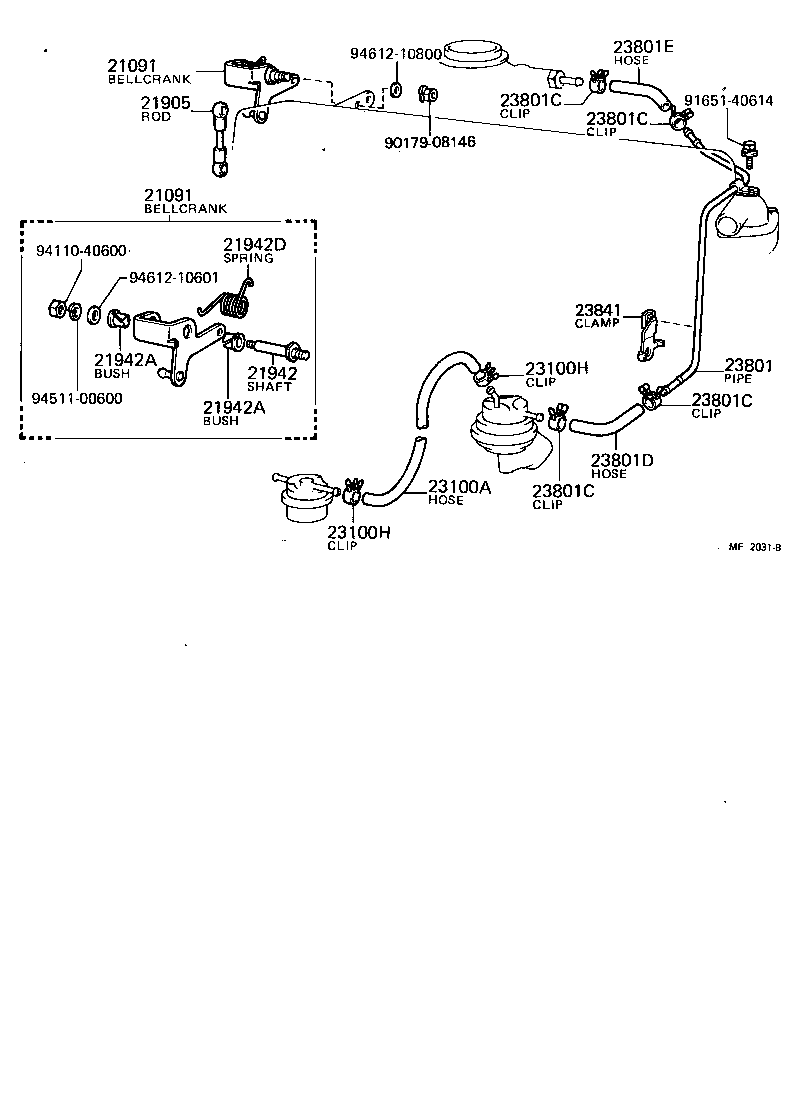

Click highlighted areas on diagram

diagram 21091 21091 21905 21942 21942A 21942A 21942D 23100A 23100H 23100H 23801 23801C 23801C 23801C 23801C 23801D 23801E 23841 9017908146 9165140614 9411040600 9451100600 9461210601 9461210800
Part # Description Qty Price
21091 - BELLCRANK SUB-ASSY, ACCELERATOR
21091-95A00

12R#..RH11,20,30

 1
21091 - BELLCRANK SUB-ASSY, ACCELERATOR
21091-95A00

12R#..RH11,20,30

 1
21905 - ROD SUB-ASSY, ACCELERATOR CONNECTING
78104-20041

12R#..RH11,20,30

 1
21942 - SHAFT, ACCELERATOR LINK
21941-31010

12R#..RH11,20,30

 1
21942A - BUSH(FOR ACCELERATOR LINK SHAFT)
90386-08024

12R#..RH11,20,30

 1
21942A - BUSH(FOR ACCELERATOR LINK SHAFT)
90386-08024

12R#..RH11,20,30

 1
21942D - SPRING(FOR ACCELERATOR LINK SHAFT)
90508-20001

12R#..RH11,20,30

 1
23100A - HOSE, FUEL
95332-06080

12R,18R..RH2#,3#,42

*H,L=700

 1
95331-06040

12R..RH11

L=400

 1
95331-06070

12R,18R..RH2#,3#,42

L=700

 1
23271-31010

12R#,18R..RH2#,3#,42

L=600

 1
95332-06070

12R#,18R..RH2#,3#,42

L=700

 1
95332-06060

12R,18R..RH20,22,3#,42

L=600

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

12R#..RH11,20,30

 4
23100H - CLIP(FOR FUEL HOSE)
96132-30600

12R#..RH11,20,30

 4
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23801-31042

12R..RH11,20,30

 1
23811-31061

12R#..RH11,20,30

 1
Common parts
90179-08146
91651-40614
94110-40600
94511-00600
94612-10601
94612-10800
