RH11R-JRW3 (1977)
Toyota Hiace

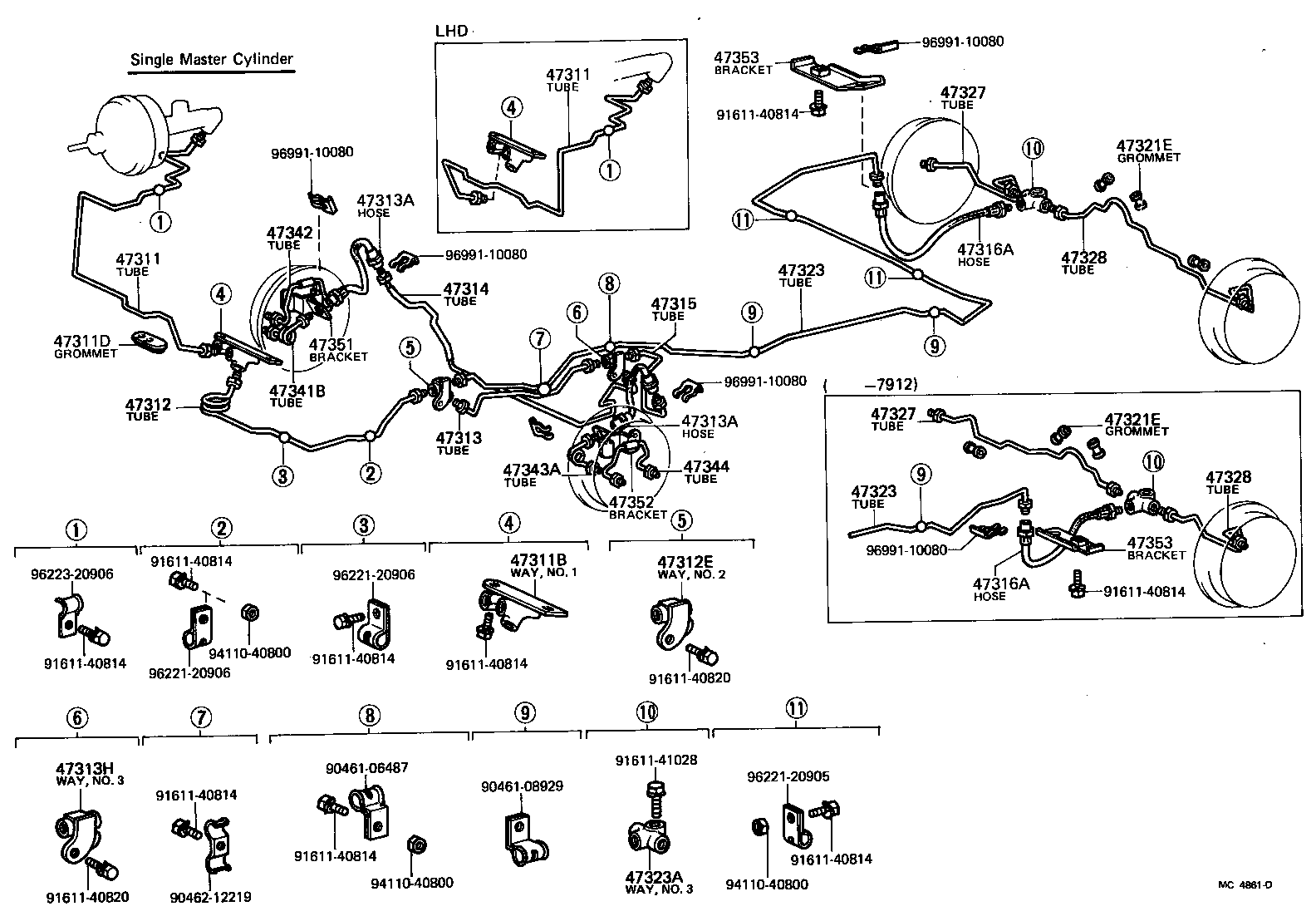

(7702- )LH11,RH11
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-26090 |
LH11,20,30,RH11,20,22,3#,42..RHD..(ARL,EUR,GEN,SA) TANDEM MASTER CYLINDER |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-26090 |
LH11,20,30,RH11,20,22,3#,42..RHD..(ARL,EUR,GEN,SA) TANDEM MASTER CYLINDER |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10028 |
LH11,RH11,25..ARL,EUR,GEN TANDEM MASTER CYLINDER |
1 | ||
| 90412-10029 |
LH20,30,RH20,22,3#,42 TANDEM MASTER CYLINDER |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-01030 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA TANDEM MASTER CYLINDER |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-26090 |
LH11,RH11..ARL,EUR,GEN TANDEM MASTER CYLINDER |
1 | ||
| 47312-26110 |
LH20,30,RH20,22,3#,42 TANDEM MASTER CYLINDER |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02350 |
LH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,IDN,PHL FR DRUM BRAKE |
2 | ||
| 90947-02348 |
RH32..RHD..EUR;RH32..LHD..06S..EUR;RH32..V5D..03S..EUR;LH11,20,30,RH11,2#,30..EUR,SA FR DISC BRAKE |
2 | ||
| 90947-02348 |
LH11,20,30,RH11,2#,3#..EUR,SA FR DISC BRAKE |
2 | ||
| 90947-02348 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR FR DISC BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02350 |
LH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,IDN,PHL FR DRUM BRAKE |
2 | ||
| 90947-02348 |
RH32..RHD..EUR;RH32..LHD..06S..EUR;RH32..V5D..03S..EUR;LH11,20,30,RH11,2#,30..EUR,SA FR DISC BRAKE |
2 | ||
| 90947-02348 |
LH11,20,30,RH11,2#,3#..EUR,SA FR DISC BRAKE |
2 | ||
| 90947-02348 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR FR DISC BRAKE |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90413-10030 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 90413-10013 |
LH11,RH11 |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47313-26030 |
LH11,RH11 |
1 | ||
| 47313-26040 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47314-26030 |
LH11,RH11 |
1 | ||
| 47314-26040 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47314-26041 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96910-31363 |
LH20,RH11,2#,3#,42 |
1 | ||
| 96910-33605 |
LH20,30,RH11,2#,3#,42 |
1 | ||
| 96910-33805 |
LH11,RH11,25 |
1 | ||
| 96910-33605 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96910-31363 |
LH20,RH11,2#,3#,42 |
1 | ||
| 96910-33605 |
LH20,30,RH11,2#,3#,42 |
1 | ||
| 96910-33805 |
LH11,RH11,25 |
1 | ||
| 96910-33605 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47321E - GROMMET(FOR REAR BRAKE TUBE) | ||||
| 90480-08343 |
LH11,20,30,RH11,2#,3#,42 |
3 | ||
| 47321E - GROMMET(FOR REAR BRAKE TUBE) | ||||
| 90480-08343 |
LH11,20,30,RH11,2#,3#,42 |
3 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26010 |
LH11,RH11..ARL,EUR,GEN W/LSPV |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26010 |
LH11,RH11..ARL,EUR,GEN W/LSPV |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-10031 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47318-26021 |
RH11 |
1 | ||
| 47325-26050 |
LH11,RH11 |
1 | ||
| 47325-26030 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47325-26090 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47318-26021 |
RH11 |
1 | ||
| 47325-26050 |
LH11,RH11 |
1 | ||
| 47325-26030 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47325-26090 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47326-26010 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47319-26011 |
RH11 |
1 | ||
| 47326-26030 |
LH11,RH11 |
1 | ||
| 47326-26070 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47326-26010 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47319-26011 |
RH11 |
1 | ||
| 47326-26030 |
LH11,RH11 |
1 | ||
| 47326-26070 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-26020 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-26010 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-26010 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-26010 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-26030 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V FR DRUM BRAKE |
1 | ||
| 47351-26042 |
LH11,20,30,RH11,20,25,3#..EUR FR DISC BRAKE |
1 | ||
| 47351-26042 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR FR DISC BRAKE |
1 | ||
| 47351-26040 |
RH11,20,3#..EUR;RH22..RHD..09S..GEN FR DISC BRAKE |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-26030 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V FR DRUM BRAKE |
1 | ||
| 47352-26040 |
RH11,20,3#..EUR;RH22..RHD..09S..GEN FR DISC BRAKE |
1 | ||
| 47352-26042 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR FR DISC BRAKE |
1 | ||
| 47352-26042 |
LH11,20,30,RH11,20,25,3#..EUR FR DISC BRAKE |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47355-26030 |
LH11,RH11,25 |
1 | ||
| 47355-26010 |
RH11 |
1 | ||
| 47355-26020 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47355-26030 |
LH11,RH11,25 |
1 | ||
| 47355-26010 |
RH11 |
1 | ||
| 47355-26020 |
LH20,30,RH20,22,3#,42 |
1 | ||
| Common parts | ||||
| 90461-06487 | ||||
| 90461-08929 | ||||
| 90462-12219 | ||||
| 91611-40814 | ||||
| 91611-40820 | ||||
| 91611-41028 | ||||
| 94110-40800 | ||||
| 96221-20905 | ||||
| 96221-20906 | ||||
| 96223-20906 | ||||
| 96991-10080 | ||||

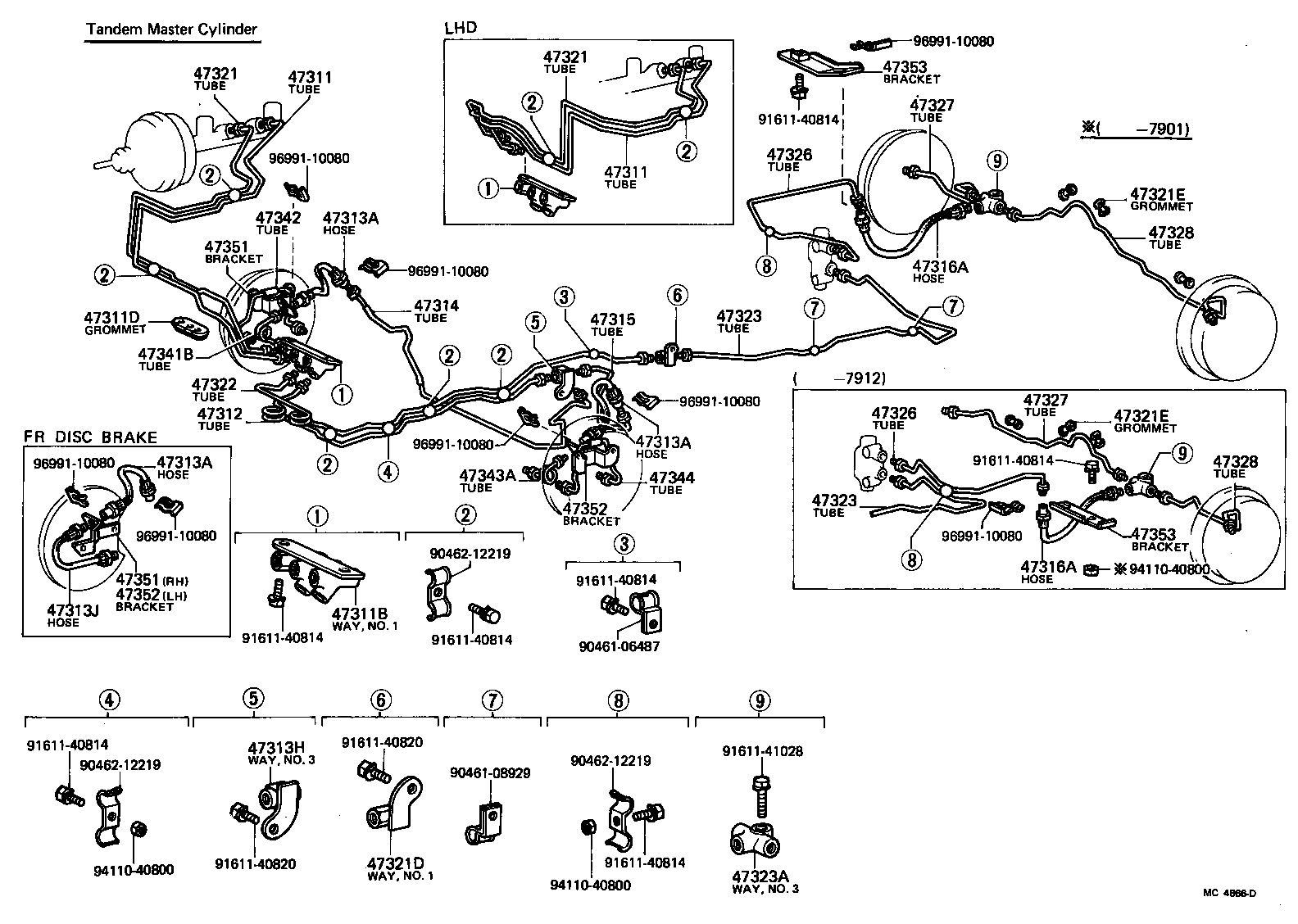

(7702- )BUS,V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-26090 |
LH11,20,30,RH11,20,22,3#,42..RHD..(ARL,EUR,GEN,SA) TANDEM MASTER CYLINDER |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-26090 |
LH11,20,30,RH11,20,22,3#,42..RHD..(ARL,EUR,GEN,SA) TANDEM MASTER CYLINDER |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10028 |
LH11,RH11,25..ARL,EUR,GEN TANDEM MASTER CYLINDER |
1 | ||
| 90412-10029 |
LH20,30,RH20,22,3#,42 TANDEM MASTER CYLINDER |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-01030 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA TANDEM MASTER CYLINDER |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-26090 |
LH11,RH11..ARL,EUR,GEN TANDEM MASTER CYLINDER |
1 | ||
| 47312-26110 |
LH20,30,RH20,22,3#,42 TANDEM MASTER CYLINDER |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02350 |
LH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,IDN,PHL FR DRUM BRAKE |
2 | ||
| 90947-02348 |
RH32..RHD..EUR;RH32..LHD..06S..EUR;RH32..V5D..03S..EUR;LH11,20,30,RH11,2#,30..EUR,SA FR DISC BRAKE |
2 | ||
| 90947-02348 |
LH11,20,30,RH11,2#,3#..EUR,SA FR DISC BRAKE |
2 | ||
| 90947-02348 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR FR DISC BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02350 |
LH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,IDN,PHL FR DRUM BRAKE |
2 | ||
| 90947-02348 |
RH32..RHD..EUR;RH32..LHD..06S..EUR;RH32..V5D..03S..EUR;LH11,20,30,RH11,2#,30..EUR,SA FR DISC BRAKE |
2 | ||
| 90947-02348 |
LH11,20,30,RH11,2#,3#..EUR,SA FR DISC BRAKE |
2 | ||
| 90947-02348 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR FR DISC BRAKE |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90413-10030 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 90413-10013 |
LH11,RH11 |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47313-26030 |
LH11,RH11 |
1 | ||
| 47313-26040 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47314-26030 |
LH11,RH11 |
1 | ||
| 47314-26040 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47314-26041 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96910-31363 |
LH20,RH11,2#,3#,42 |
1 | ||
| 96910-33605 |
LH20,30,RH11,2#,3#,42 |
1 | ||
| 96910-33805 |
LH11,RH11,25 |
1 | ||
| 96910-33605 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10003 |
LH11,RH11,25..ARL,EUR,GEN TANDEM MASTER CYLINDER |
1 | ||
| 90412-10003 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47321E - GROMMET(FOR REAR BRAKE TUBE) | ||||
| 90480-08343 |
LH11,20,30,RH11,2#,3#,42 |
3 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-26010 |
LH11,RH11..ARL,EUR,GEN TANDEM MASTER CYLINDER |
1 | ||
| 47322-26020 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47322-26011 |
LH11,RH11..ARL,EUR,GEN TANDEM MASTER CYLINDER |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26010 |
LH11,RH11..ARL,EUR,GEN W/LSPV |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-10031 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47318-26021 |
RH11 |
1 | ||
| 47325-26050 |
LH11,RH11 |
1 | ||
| 47325-26030 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47325-26090 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47326-26010 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47319-26011 |
RH11 |
1 | ||
| 47326-26030 |
LH11,RH11 |
1 | ||
| 47326-26070 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-26020 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-26010 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-26010 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-26010 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-26030 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V FR DRUM BRAKE |
1 | ||
| 47351-26042 |
LH11,20,30,RH11,20,25,3#..EUR FR DISC BRAKE |
1 | ||
| 47351-26042 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR FR DISC BRAKE |
1 | ||
| 47351-26040 |
RH11,20,3#..EUR;RH22..RHD..09S..GEN FR DISC BRAKE |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-26030 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V FR DRUM BRAKE |
1 | ||
| 47352-26040 |
RH11,20,3#..EUR;RH22..RHD..09S..GEN FR DISC BRAKE |
1 | ||
| 47352-26042 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR FR DISC BRAKE |
1 | ||
| 47352-26042 |
LH11,20,30,RH11,20,25,3#..EUR FR DISC BRAKE |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47355-26030 |
LH11,RH11,25 |
1 | ||
| 47355-26010 |
RH11 |
1 | ||
| 47355-26020 |
LH20,30,RH20,22,3#,42 |
1 | ||
| Common parts | ||||
| 90462-12219 | ||||
| 90464-00032 | ||||
| 91611-40814 | ||||
| 91611-41028 | ||||
| 94110-40800 | ||||
| 96221-20905 | ||||
| 96223-20906 | ||||
| 96991-10080 | ||||
(7702- )LH11,RH11
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-26090 |
LH11,20,30,RH11,20,22,3#,42..RHD..(ARL,EUR,GEN,SA) TANDEM MASTER CYLINDER |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-26090 |
LH11,20,30,RH11,20,22,3#,42..RHD..(ARL,EUR,GEN,SA) TANDEM MASTER CYLINDER |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10028 |
LH11,RH11,25..ARL,EUR,GEN TANDEM MASTER CYLINDER |
1 | ||
| 90412-10029 |
LH20,30,RH20,22,3#,42 TANDEM MASTER CYLINDER |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-01030 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA TANDEM MASTER CYLINDER |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-26090 |
LH11,RH11..ARL,EUR,GEN TANDEM MASTER CYLINDER |
1 | ||
| 47312-26110 |
LH20,30,RH20,22,3#,42 TANDEM MASTER CYLINDER |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02350 |
LH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,IDN,PHL FR DRUM BRAKE |
2 | ||
| 90947-02348 |
RH32..RHD..EUR;RH32..LHD..06S..EUR;RH32..V5D..03S..EUR;LH11,20,30,RH11,2#,30..EUR,SA FR DISC BRAKE |
2 | ||
| 90947-02348 |
LH11,20,30,RH11,2#,3#..EUR,SA FR DISC BRAKE |
2 | ||
| 90947-02348 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR FR DISC BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02350 |
LH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,IDN,PHL FR DRUM BRAKE |
2 | ||
| 90947-02348 |
RH32..RHD..EUR;RH32..LHD..06S..EUR;RH32..V5D..03S..EUR;LH11,20,30,RH11,2#,30..EUR,SA FR DISC BRAKE |
2 | ||
| 90947-02348 |
LH11,20,30,RH11,2#,3#..EUR,SA FR DISC BRAKE |
2 | ||
| 90947-02348 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR FR DISC BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02350 |
LH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,IDN,PHL FR DRUM BRAKE |
2 | ||
| 90947-02348 |
RH32..RHD..EUR;RH32..LHD..06S..EUR;RH32..V5D..03S..EUR;LH11,20,30,RH11,2#,30..EUR,SA FR DISC BRAKE |
2 | ||
| 90947-02348 |
LH11,20,30,RH11,2#,3#..EUR,SA FR DISC BRAKE |
2 | ||
| 90947-02348 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR FR DISC BRAKE |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90413-10030 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 90413-10013 |
LH11,RH11 |
1 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 96960-32205 |
RH32..RHD..EUR;RH32..LHD..06S..EUR;RH32..V5D..03S..EUR;LH11,20,30,RH11,2#,30..EUR,SA FR DISC BRAKE |
2 | ||
| 90947-02311 |
LH11,20,RH11,20,3#..EUR FR DISC BRAKE |
2 | ||
| 96960-32205 |
LH11,20,30,RH11,2#,3#..EUR,SA FR DISC BRAKE |
2 | ||
| 96960-32205 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR FR DISC BRAKE |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47313-26030 |
LH11,RH11 |
1 | ||
| 47313-26040 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47314-26030 |
LH11,RH11 |
1 | ||
| 47314-26040 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47314-26041 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96910-31363 |
LH20,RH11,2#,3#,42 |
1 | ||
| 96910-33605 |
LH20,30,RH11,2#,3#,42 |
1 | ||
| 96910-33805 |
LH11,RH11,25 |
1 | ||
| 96910-33605 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96910-31363 |
LH20,RH11,2#,3#,42 |
1 | ||
| 96910-33605 |
LH20,30,RH11,2#,3#,42 |
1 | ||
| 96910-33805 |
LH11,RH11,25 |
1 | ||
| 96910-33605 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-26020 |
LH11,20,30,RH11,20,22,3#,42..RHD..(ARL,EUR,GEN,SA) TANDEM MASTER CYLINDER |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-26020 |
LH11,20,30,RH11,20,22,3#,42..RHD..(ARL,EUR,GEN,SA) TANDEM MASTER CYLINDER |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10003 |
LH11,RH11,25..ARL,EUR,GEN TANDEM MASTER CYLINDER |
1 | ||
| 90412-10003 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47321E - GROMMET(FOR REAR BRAKE TUBE) | ||||
| 90480-08343 |
LH11,20,30,RH11,2#,3#,42 |
3 | ||
| 47321E - GROMMET(FOR REAR BRAKE TUBE) | ||||
| 90480-08343 |
LH11,20,30,RH11,2#,3#,42 |
3 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-26010 |
LH11,RH11..ARL,EUR,GEN TANDEM MASTER CYLINDER |
1 | ||
| 47322-26020 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47322-26011 |
LH11,RH11..ARL,EUR,GEN TANDEM MASTER CYLINDER |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26010 |
LH11,RH11..ARL,EUR,GEN W/LSPV |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26010 |
LH11,RH11..ARL,EUR,GEN W/LSPV |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-10031 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47324-26010 |
RH11..ARL,EUR,GEN |
1 | ||
| 47324-26020 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47324-26040 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47324-26010 |
RH11..ARL,EUR,GEN |
1 | ||
| 47324-26020 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47324-26040 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47318-26021 |
RH11 |
1 | ||
| 47325-26050 |
LH11,RH11 |
1 | ||
| 47325-26030 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47325-26090 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47318-26021 |
RH11 |
1 | ||
| 47325-26050 |
LH11,RH11 |
1 | ||
| 47325-26030 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47325-26090 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47326-26010 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47319-26011 |
RH11 |
1 | ||
| 47326-26030 |
LH11,RH11 |
1 | ||
| 47326-26070 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47326-26010 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47319-26011 |
RH11 |
1 | ||
| 47326-26030 |
LH11,RH11 |
1 | ||
| 47326-26070 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-26020 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-26010 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-26010 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-26010 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-26030 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V FR DRUM BRAKE |
1 | ||
| 47351-26042 |
LH11,20,30,RH11,20,25,3#..EUR FR DISC BRAKE |
1 | ||
| 47351-26042 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR FR DISC BRAKE |
1 | ||
| 47351-26040 |
RH11,20,3#..EUR;RH22..RHD..09S..GEN FR DISC BRAKE |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-26030 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V FR DRUM BRAKE |
1 | ||
| 47351-26042 |
LH11,20,30,RH11,20,25,3#..EUR FR DISC BRAKE |
1 | ||
| 47351-26042 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR FR DISC BRAKE |
1 | ||
| 47351-26040 |
RH11,20,3#..EUR;RH22..RHD..09S..GEN FR DISC BRAKE |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-26030 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V FR DRUM BRAKE |
1 | ||
| 47352-26040 |
RH11,20,3#..EUR;RH22..RHD..09S..GEN FR DISC BRAKE |
1 | ||
| 47352-26042 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR FR DISC BRAKE |
1 | ||
| 47352-26042 |
LH11,20,30,RH11,20,25,3#..EUR FR DISC BRAKE |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-26030 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V FR DRUM BRAKE |
1 | ||
| 47352-26040 |
RH11,20,3#..EUR;RH22..RHD..09S..GEN FR DISC BRAKE |
1 | ||
| 47352-26042 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR FR DISC BRAKE |
1 | ||
| 47352-26042 |
LH11,20,30,RH11,20,25,3#..EUR FR DISC BRAKE |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47355-26030 |
LH11,RH11,25 |
1 | ||
| 47355-26010 |
RH11 |
1 | ||
| 47355-26020 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47355-26030 |
LH11,RH11,25 |
1 | ||
| 47355-26010 |
RH11 |
1 | ||
| 47355-26020 |
LH20,30,RH20,22,3#,42 |
1 | ||
| Common parts | ||||
| 90461-06487 | ||||
| 90461-08929 | ||||
| 90462-12219 | ||||
| 91611-40814 | ||||
| 91611-40820 | ||||
| 91611-41028 | ||||
| 94110-40800 | ||||
| 96991-10080 | ||||
(7702- )BUS,V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-26090 |
LH11,20,30,RH11,20,22,3#,42..RHD..(ARL,EUR,GEN,SA) TANDEM MASTER CYLINDER |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-26090 |
LH11,20,30,RH11,20,22,3#,42..RHD..(ARL,EUR,GEN,SA) TANDEM MASTER CYLINDER |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10028 |
LH11,RH11,25..ARL,EUR,GEN TANDEM MASTER CYLINDER |
1 | ||
| 90412-10029 |
LH20,30,RH20,22,3#,42 TANDEM MASTER CYLINDER |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-01030 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA TANDEM MASTER CYLINDER |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-26090 |
LH11,RH11..ARL,EUR,GEN TANDEM MASTER CYLINDER |
1 | ||
| 47312-26110 |
LH20,30,RH20,22,3#,42 TANDEM MASTER CYLINDER |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02350 |
LH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,IDN,PHL FR DRUM BRAKE |
2 | ||
| 90947-02348 |
RH32..RHD..EUR;RH32..LHD..06S..EUR;RH32..V5D..03S..EUR;LH11,20,30,RH11,2#,30..EUR,SA FR DISC BRAKE |
2 | ||
| 90947-02348 |
LH11,20,30,RH11,2#,3#..EUR,SA FR DISC BRAKE |
2 | ||
| 90947-02348 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR FR DISC BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02350 |
LH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,IDN,PHL FR DRUM BRAKE |
2 | ||
| 90947-02348 |
RH32..RHD..EUR;RH32..LHD..06S..EUR;RH32..V5D..03S..EUR;LH11,20,30,RH11,2#,30..EUR,SA FR DISC BRAKE |
2 | ||
| 90947-02348 |
LH11,20,30,RH11,2#,3#..EUR,SA FR DISC BRAKE |
2 | ||
| 90947-02348 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR FR DISC BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02350 |
LH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,IDN,PHL FR DRUM BRAKE |
2 | ||
| 90947-02348 |
RH32..RHD..EUR;RH32..LHD..06S..EUR;RH32..V5D..03S..EUR;LH11,20,30,RH11,2#,30..EUR,SA FR DISC BRAKE |
2 | ||
| 90947-02348 |
LH11,20,30,RH11,2#,3#..EUR,SA FR DISC BRAKE |
2 | ||
| 90947-02348 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR FR DISC BRAKE |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90413-10030 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 90413-10013 |
LH11,RH11 |
1 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 96960-32205 |
RH32..RHD..EUR;RH32..LHD..06S..EUR;RH32..V5D..03S..EUR;LH11,20,30,RH11,2#,30..EUR,SA FR DISC BRAKE |
2 | ||
| 90947-02311 |
LH11,20,RH11,20,3#..EUR FR DISC BRAKE |
2 | ||
| 96960-32205 |
LH11,20,30,RH11,2#,3#..EUR,SA FR DISC BRAKE |
2 | ||
| 96960-32205 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR FR DISC BRAKE |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47313-26030 |
LH11,RH11 |
1 | ||
| 47313-26040 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47314-26030 |
LH11,RH11 |
1 | ||
| 47314-26040 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47314-26041 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96910-31363 |
LH20,RH11,2#,3#,42 |
1 | ||
| 96910-33605 |
LH20,30,RH11,2#,3#,42 |
1 | ||
| 96910-33805 |
LH11,RH11,25 |
1 | ||
| 96910-33605 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-26020 |
LH11,20,30,RH11,20,22,3#,42..RHD..(ARL,EUR,GEN,SA) TANDEM MASTER CYLINDER |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-26020 |
LH11,20,30,RH11,20,22,3#,42..RHD..(ARL,EUR,GEN,SA) TANDEM MASTER CYLINDER |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10003 |
LH11,RH11,25..ARL,EUR,GEN TANDEM MASTER CYLINDER |
1 | ||
| 90412-10003 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47321E - GROMMET(FOR REAR BRAKE TUBE) | ||||
| 90480-08343 |
LH11,20,30,RH11,2#,3#,42 |
3 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-26010 |
LH11,RH11..ARL,EUR,GEN TANDEM MASTER CYLINDER |
1 | ||
| 47322-26020 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47322-26011 |
LH11,RH11..ARL,EUR,GEN TANDEM MASTER CYLINDER |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26010 |
LH11,RH11..ARL,EUR,GEN W/LSPV |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26010 |
LH11,RH11..ARL,EUR,GEN W/LSPV |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-10031 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47324-26010 |
RH11..ARL,EUR,GEN |
1 | ||
| 47324-26020 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47324-26040 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47318-26021 |
RH11 |
1 | ||
| 47325-26050 |
LH11,RH11 |
1 | ||
| 47325-26030 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47325-26090 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47326-26010 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47319-26011 |
RH11 |
1 | ||
| 47326-26030 |
LH11,RH11 |
1 | ||
| 47326-26070 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-26020 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-26010 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-26010 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-26010 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-26030 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V FR DRUM BRAKE |
1 | ||
| 47351-26042 |
LH11,20,30,RH11,20,25,3#..EUR FR DISC BRAKE |
1 | ||
| 47351-26042 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR FR DISC BRAKE |
1 | ||
| 47351-26040 |
RH11,20,3#..EUR;RH22..RHD..09S..GEN FR DISC BRAKE |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-26030 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V FR DRUM BRAKE |
1 | ||
| 47351-26042 |
LH11,20,30,RH11,20,25,3#..EUR FR DISC BRAKE |
1 | ||
| 47351-26042 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR FR DISC BRAKE |
1 | ||
| 47351-26040 |
RH11,20,3#..EUR;RH22..RHD..09S..GEN FR DISC BRAKE |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-26030 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V FR DRUM BRAKE |
1 | ||
| 47352-26040 |
RH11,20,3#..EUR;RH22..RHD..09S..GEN FR DISC BRAKE |
1 | ||
| 47352-26042 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR FR DISC BRAKE |
1 | ||
| 47352-26042 |
LH11,20,30,RH11,20,25,3#..EUR FR DISC BRAKE |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-26030 |
LH11,20,30,RH11,20,22,3#,42..BUS,TR,V FR DRUM BRAKE |
1 | ||
| 47352-26040 |
RH11,20,3#..EUR;RH22..RHD..09S..GEN FR DISC BRAKE |
1 | ||
| 47352-26042 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR FR DISC BRAKE |
1 | ||
| 47352-26042 |
LH11,20,30,RH11,20,25,3#..EUR FR DISC BRAKE |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47355-26030 |
LH11,RH11,25 |
1 | ||
| 47355-26010 |
RH11 |
1 | ||
| 47355-26020 |
LH20,30,RH20,22,3#,42 |
1 | ||
| Common parts | ||||
| 90462-12219 | ||||
| 90464-00032 | ||||
| 91611-40814 | ||||
| 91611-41028 | ||||
| 94110-40800 | ||||
| 96221-20905 | ||||
| 96991-10080 | ||||
(7702- )ARL,EUR,GEN,PHL,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-26010 |
LH11,RH11,25..ARL,EUR,GEN |
1 | ||
| 47910-27010 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-26010 |
LH11,RH11,25..ARL,EUR,GEN |
1 | ||
| 47920-26020 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA |
2 | ||
| 47920K - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-35010 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-26010 |
LH11,RH11,25..ARL,EUR,GEN |
1 | ||
| 47931-26030 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-26010 |
LH11,RH11,25..ARL,EUR,GEN |
1 | ||
| 47931-26030 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-26010 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35010 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35010 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-26010 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA |
1 | ||
| Common parts | ||||
| 91111-50820 | ||||
| 91131-50840 | ||||
| 91611-60816 | ||||
| 91651-60816 | ||||
| 93385-15010 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94115-40500 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
