RH11R-JRW3 (1977)
Toyota Hiace
Production
Feb 1977
-
Nov 1982
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

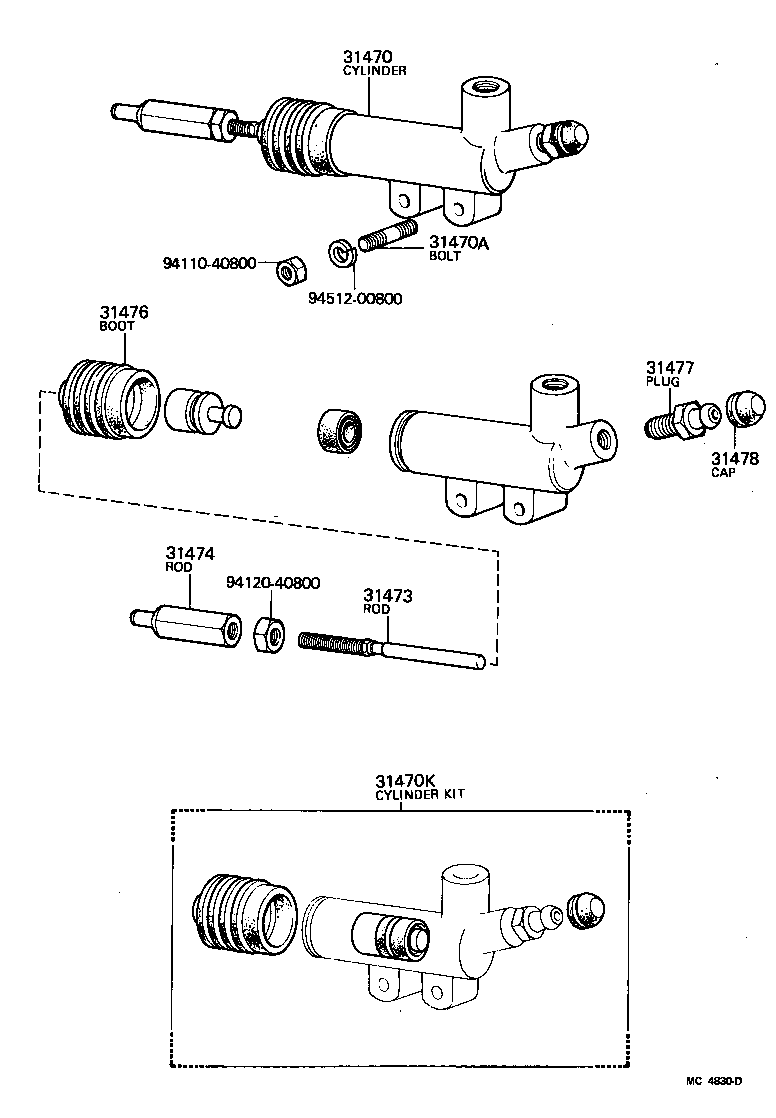

(7711- )RH11,20,30
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31470 - CYLINDER ASSY, CLUTCH RELEASE | ||||
| 31470-35030 |
RH11,20,30 |
1 | ||
| 31470-26010 |
RH11,20,30 |
1 | ||
| 31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING) | ||||
| 90116-08018 |
RH11,20,30 |
2 | ||
| 90116-08043 |
RH11,20,30 |
2 | ||
| 31470K - CYLINDER KIT, CLUTCH RELEASE | ||||
| 04313-35030 |
RH11,20,30 |
1 | ||
| 04313-30042 |
RH11,20,30 |
1 | ||
| 31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1 | ||||
| 31473-35010 |
RH11,20,30 |
1 | ||
| 31473-35030 |
RH11,20,30 |
1 | ||
| 31474 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.2 | ||||
| 31771-20010 |
RH11,20,30 |
1 | ||
| 31475-35010 |
RH11,20,30 |
1 | ||
| 31476 - BOOT, CLUTCH RELEASE CYLINDER | ||||
| 31476-35020 |
RH11,20,30 |
1 | ||
| 31476-20030 |
RH11,20,30 |
1 | ||
| 31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER) | ||||
| 31477-30010 |
RH11,20,30 |
1 | ||
| 47547-12010 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER) | ||||
| 31478-30010 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||

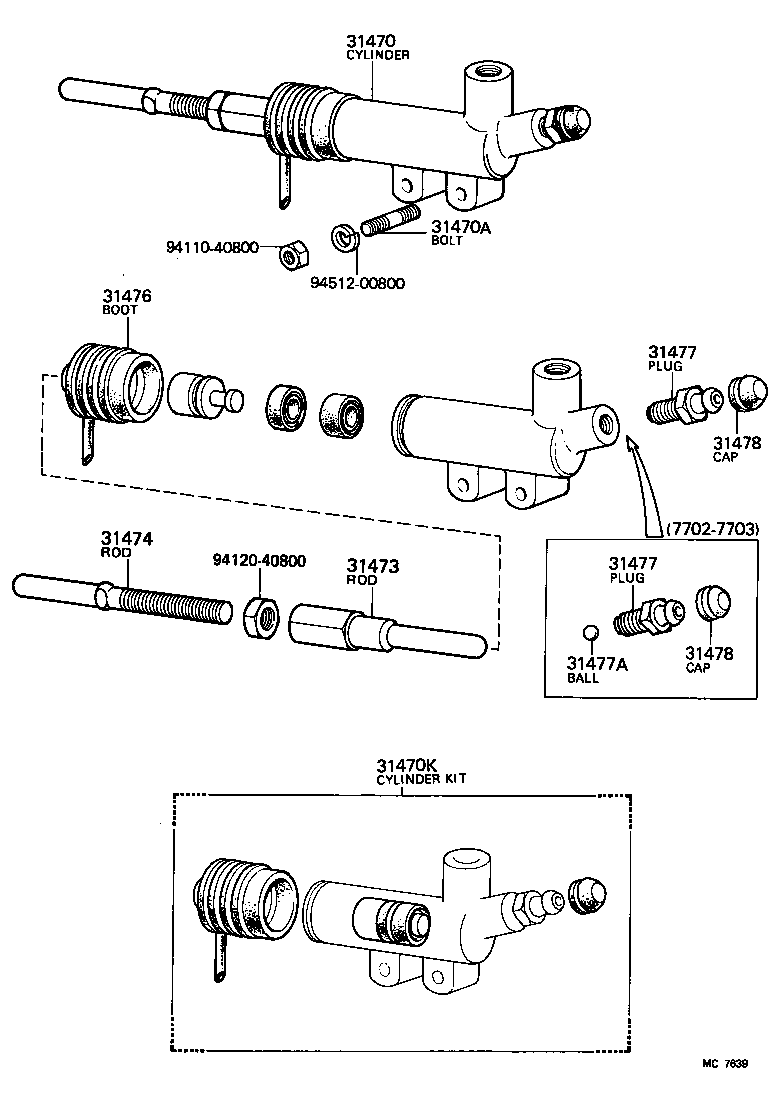

(7702-7711)RH11,20,30
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31470 - CYLINDER ASSY, CLUTCH RELEASE | ||||
| 31470-35030 |
RH11,20,30 |
1 | ||
| 31470-26010 |
RH11,20,30 |
1 | ||
| 31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING) | ||||
| 90116-08018 |
RH11,20,30 |
2 | ||
| 90116-08043 |
RH11,20,30 |
2 | ||
| 31470K - CYLINDER KIT, CLUTCH RELEASE | ||||
| 04313-35030 |
RH11,20,30 |
1 | ||
| 04313-30042 |
RH11,20,30 |
1 | ||
| 31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1 | ||||
| 31473-35010 |
RH11,20,30 |
1 | ||
| 31473-35030 |
RH11,20,30 |
1 | ||
| 31474 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.2 | ||||
| 31771-20010 |
RH11,20,30 |
1 | ||
| 31475-35010 |
RH11,20,30 |
1 | ||
| 31476 - BOOT, CLUTCH RELEASE CYLINDER | ||||
| 31476-35020 |
RH11,20,30 |
1 | ||
| 31476-20030 |
RH11,20,30 |
1 | ||
| 31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER) | ||||
| 31477-30010 |
RH11,20,30 |
1 | ||
| 47547-12010 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER) | ||||
| 31477-30010 |
RH11,20,30 |
1 | ||
| 47547-12010 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 31477A - BALL(FOR RELEASE CYLINDER BLEEDER PLUG) | ||||
| 90360-05006 |
RH11,20,30 |
1 | ||
| 31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER) | ||||
| 31478-30010 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER) | ||||
| 31478-30010 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
