RH11R-JRW3 (1982)

Toyota Hiace

Production Nov 1982 - Jul 1985
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

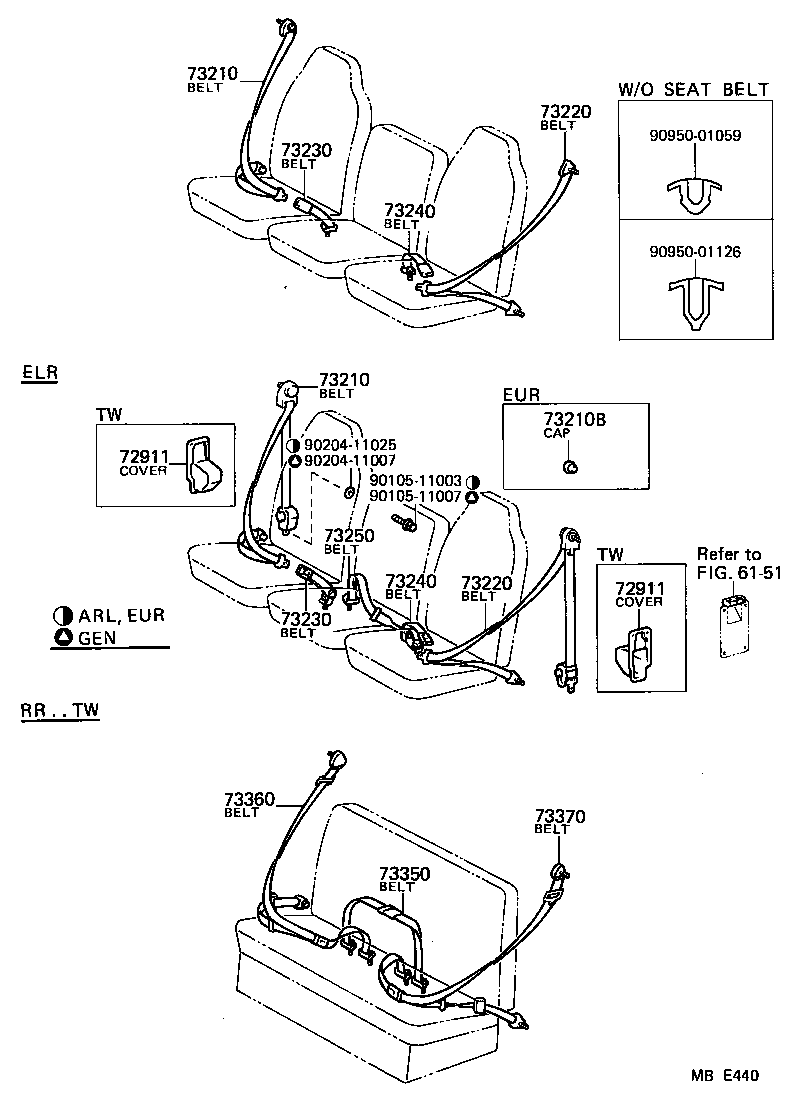

Click highlighted areas on diagram

diagram 6151 72911 72911 73210 73210 73210B 73220 73220 73230 73230 73240 73240 73250 73350 73360 73370 9010511003 9010511007 9020411007 9020411025 9095001059 9095001126
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
72901-95A20

LH11,RH11..EUR

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
72901-95A20

LH11,RH11..EUR

 1
73210B - CAP (FOR FRONT SEAT OUTER BELT)
73178-1201011

LH11,RH11..EUR

BLACK

 2
73220 - BELT ASSY, FRONT SEAT OUTER, LH
72901-95A20

LH11,RH11..EUR

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
72901-95A20

LH11,RH11..EUR

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
72902-95A20

LH11,RH11..RHD..EUR

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
72902-95A20

LH11,RH11..RHD..EUR

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
72903-95A23

LH11,RH11..RHD..EUR

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
72903-95A23

LH11,RH11..RHD..EUR

 1
Common parts
90105-11003
90105-11007
90204-11007
90204-11025
90950-01059
90950-01126
Linked diagrams
6151
