RH11R-JRQ3 (1982)

Toyota Hiace

Production Nov 1982 - Jul 1985
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )4H

Click highlighted areas on diagram

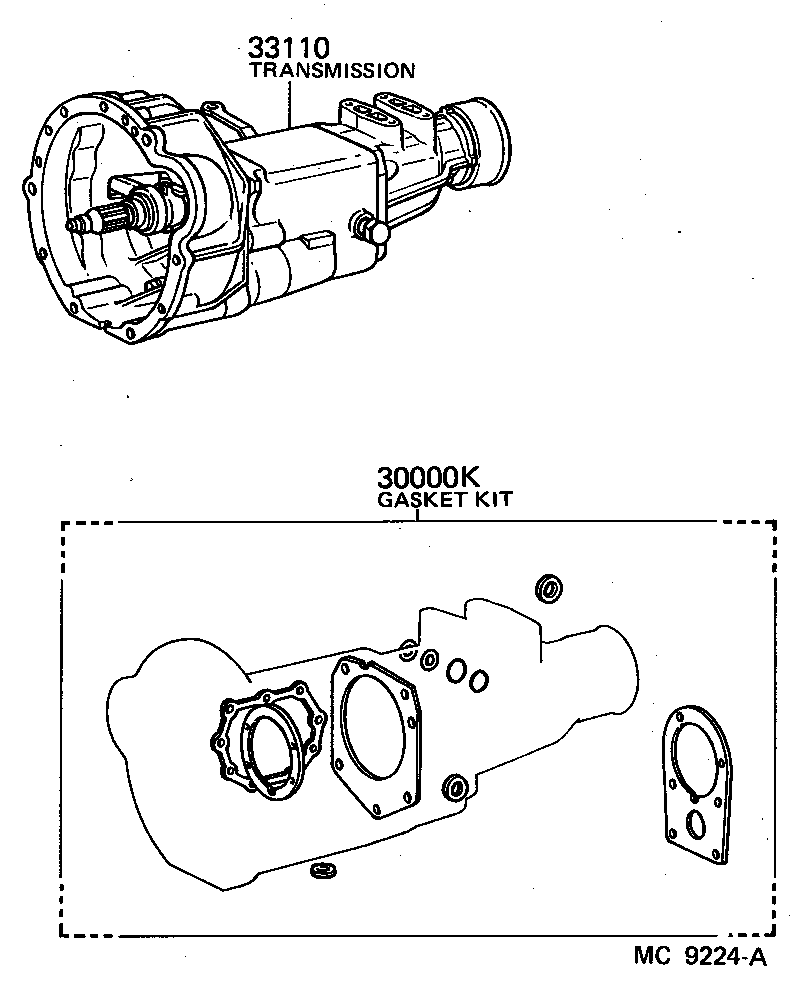

diagram 30000K 33110
Part # Description Qty Price
30000K - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-26010

LH11,RH11..4H

 1
33110 - TRANSMISSION ASSY, MANUAL
33030-26040

RH11..ARL

*NSW & VICTORIA SPEC

 1
33030-26030

RH11..ARL

 1
