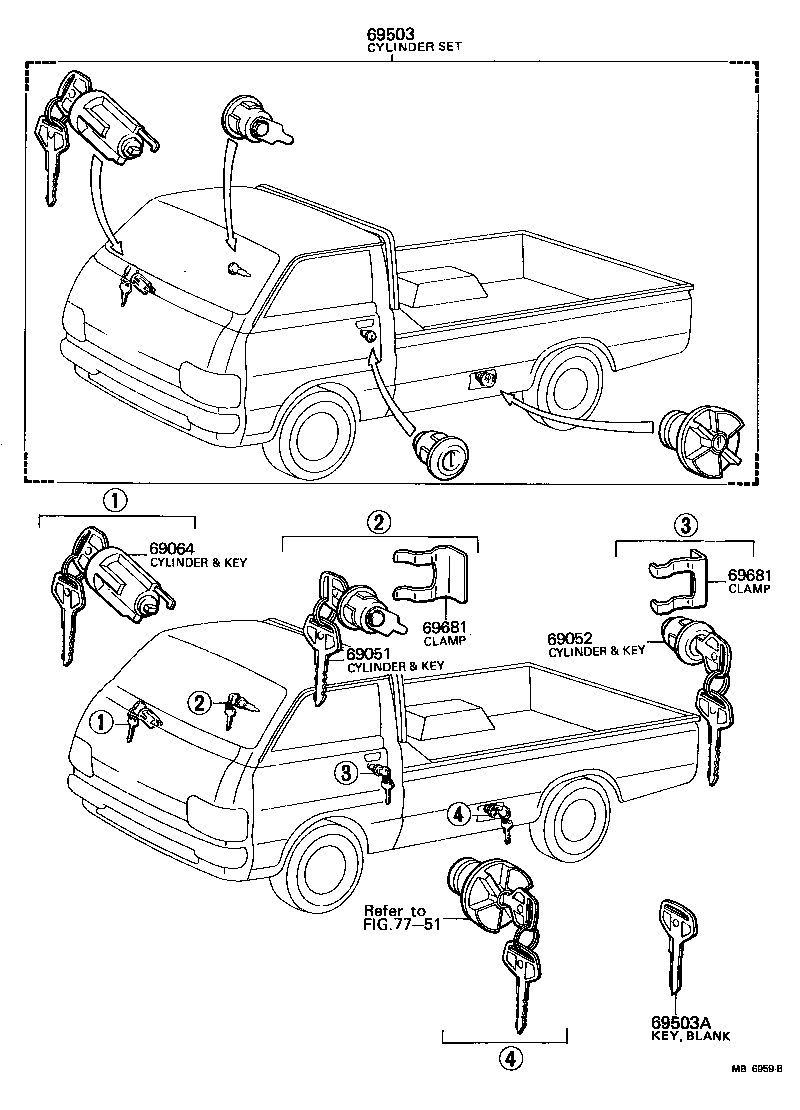

RH11R-JRQ (1977)
Toyota Hiace
(7702- )LH11,RH11,25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-20010 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69503-95A13 |
RH11..RHD W/FUEL LOCK |
1 | ||
| 69503-95A01 |
LH11,RH11..RHD |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00066 |
LH11,20,30,RH11,20,22,3#,42 MASTER KEY |
1 | ||
| 69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE | ||||
| 69681-20040 |
LH11,20,30,RH11,2#,3#,42 |
4 | ||
| 69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE | ||||
| 69681-20040 |
LH11,20,30,RH11,2#,3#,42 |
4 | ||
| Linked diagrams | ||||
| 7751 | ||||
(7702- )LH20,30,RH20,22,3#,42
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66480 - CYLINDER ASSY, FUEL DOOR | ||||
| 69560-95A00 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 69054 - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-95A00 |
LH20,30,RH2#,3#,42 |
1 | ||
| 69055-95A01 |
LH20,30,RH2#,3#,42 W/BACK DOOR INSIDE LOCK |
1 | ||
| 69055 - CYLINDER & KEY SET, REAR DOOR LOCK, LH | ||||
| 69054-95A00 |
LH20,30,RH20,22,3#,42..RHD |
1 | ||
| 69058 - CYLINDER & KEY SET, FUEL FILLER LID | ||||
| 69059-95A00 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 69058 - CYLINDER & KEY SET, FUEL FILLER LID | ||||
| 69059-95A00 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-20010 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69503-95A13 |
RH11..RHD W/FUEL LOCK |
1 | ||
| 69503-95A01 |
LH11,RH11..RHD |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00066 |
LH11,20,30,RH11,20,22,3#,42 MASTER KEY |
1 | ||
| 69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE | ||||
| 69681-20040 |
LH11,20,30,RH11,2#,3#,42 |
4 | ||
| 69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE | ||||
| 69681-20040 |
LH11,20,30,RH11,2#,3#,42 |
4 | ||
| 69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE | ||||
| 69681-20040 |
LH11,20,30,RH11,2#,3#,42 |
4 | ||
| 69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE | ||||
| 69681-20040 |
LH11,20,30,RH11,2#,3#,42 |
4 | ||
| 69682 - RETAINER, LOCK CYLINDER | ||||
| 69682-95A00 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 69683 - CLAMP, FUEL LOCK CYLINDER | ||||
| 69681-20010 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 69681-95402 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 69683 - CLAMP, FUEL LOCK CYLINDER | ||||
| 69681-20010 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 69681-95402 |
LH20,30,RH20,22,3#,42 |
1 | ||
