RH11R-JRBW (1982)

Toyota Hiace

Production Nov 1982 - Jul 1985
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )RH11

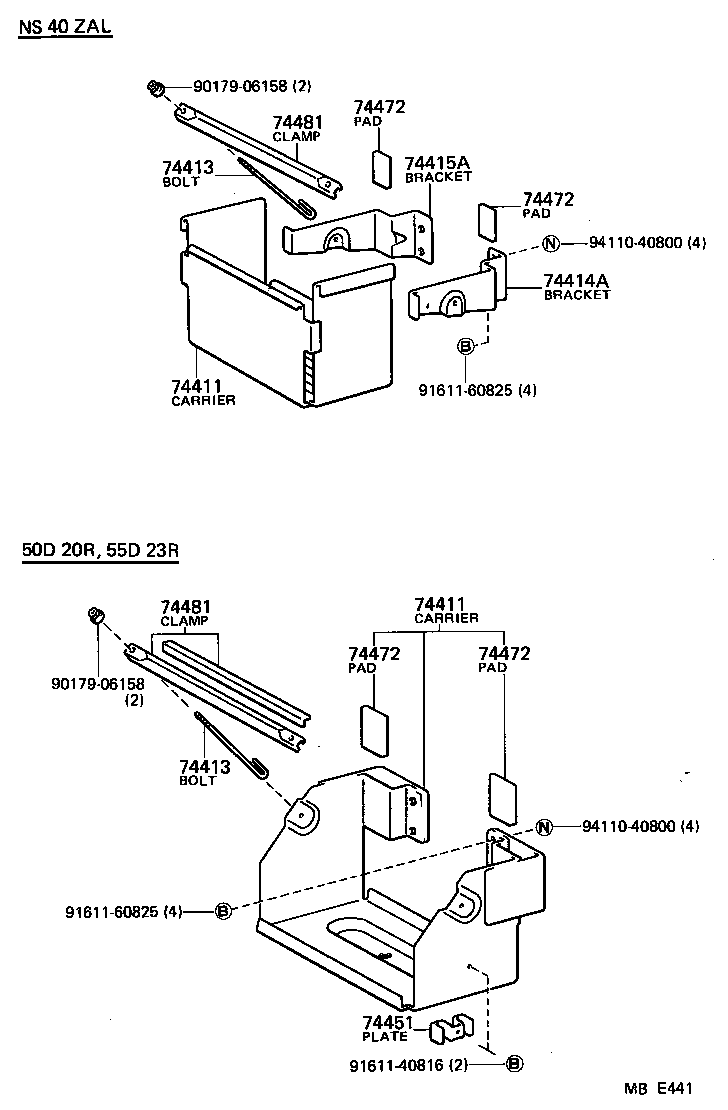

Click highlighted areas on diagram

diagram 74411 74411 74413 74413 74414A 74415A 74451 74472 74472 74472 74472 74481 74481 9017906158 9017906158 9161140816 9161160825 9161160825 9411040800 9411040800
Part # Description Qty Price
74411 - CARRIER, BATTERY
74421-25020

RH11

50D20R,55D23R

 1
74411 - CARRIER, BATTERY
74421-25020

RH11

50D20R,55D23R

 1
74413 - BOLT, BATTERY CLAMP
74451-25020

RH11

50D20R,55D23R,NS40ZAL

 2
74413 - BOLT, BATTERY CLAMP
74451-25020

RH11

50D20R,55D23R,NS40ZAL

 2
74451 - PLATE, BATTERY CARRIER SUPPORT
74451-25060

RH11..EUR

55D23R

 2
74451-25050

RH11

50D20R

 2
74472 - PAD, BATTERY SIDE
74472-25020

LH11,RH11

50D20R,55D23R,N70Z

 2
74472 - PAD, BATTERY SIDE
74472-25020

LH11,RH11

50D20R,55D23R,N70Z

 2
74472 - PAD, BATTERY SIDE
74472-25020

LH11,RH11

50D20R,55D23R,N70Z

 2
74472 - PAD, BATTERY SIDE
74472-25020

LH11,RH11

50D20R,55D23R,N70Z

 2
74481 - CLAMP, BATTERY HOLD DOWN
74404-25010

RH11

50D20R,55D23R

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-25010

RH11

50D20R,55D23R

 1
Common parts
90179-06158
91611-40816
91611-60825
94110-40800
