RH11R-JRBW (1982)

Toyota Hiace

Production Nov 1982 - Jul 1985
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

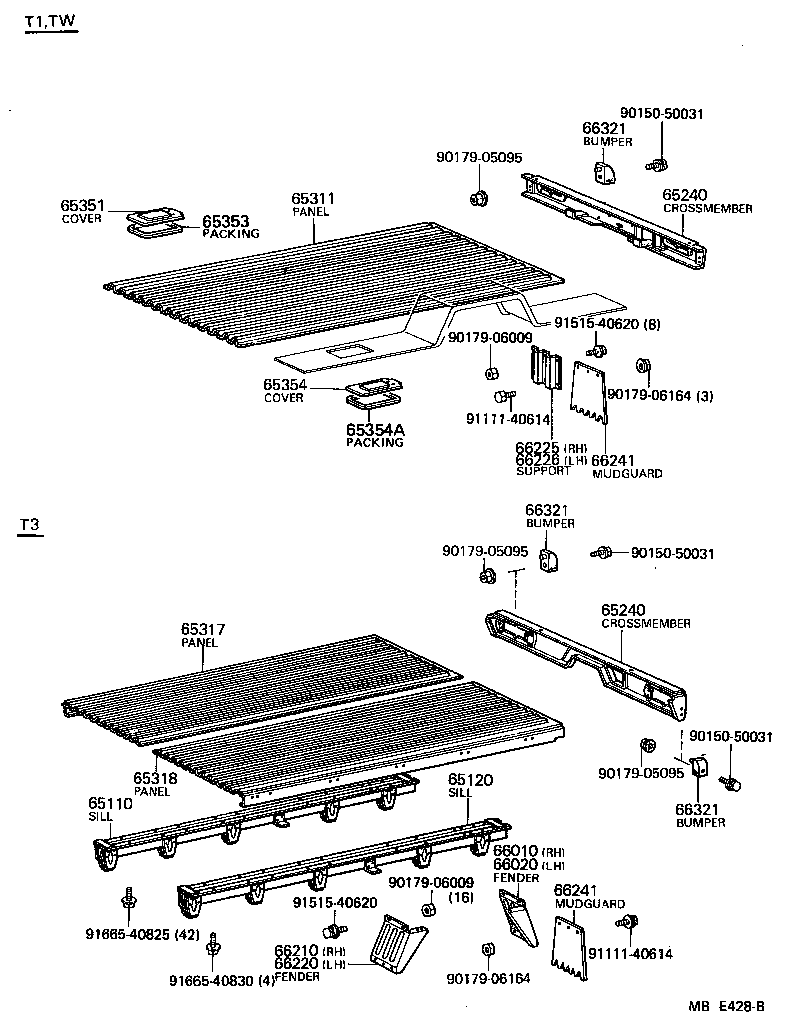

Click highlighted areas on diagram

diagram 65110 65120 65240 65240 65311 65317 65318 65351 65353 65354 65354A 66010 66020 66210 66220 66225 66226 66241 66241 66321 66321 66321 9015050031 9015050031 9015050031 9017905095 9017905095 9017905095 9017906009 9017906009 9017906164 9017906164 9111140614 9111140614 9151540620 9151540620 9166540825 9166540830
Part # Description Qty Price
65110 - SILL ASSY, MAIN, RH
65120-95A00

LH11,RH11..T3

 1
65120 - SILL ASSY, MAIN, LH
65120-95A00

LH11,RH11..T3

 1
65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL
65204-95011

LH11,RH11..T3

 1
65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL
65204-95011

LH11,RH11..T3

 1
65317 - PANEL, FLOOR SIDE, RH
65317-95A00

LH11,RH11..T3

 1
65318 - PANEL, FLOOR SIDE, LH
65318-95A00

LH11,RH11..T3

 1
66010 - FENDER ASSY, REAR BODY, REAR RH
66233-95011

LH11,RH11..T3

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66234-95011

LH11,RH11..T3

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66231-95011

LH11,RH11..T3

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66232-95011

LH11,RH11..T3

 1
66241 - MUDGUARD, REAR
66241-95600

LH11,RH11

 2
66241 - MUDGUARD, REAR
66241-95600

LH11,RH11

 2
66321 - BUMPER, GATE RUBBER
66331-95010

LH11,RH11..T3

SIDE

 4
66321-95010

LH11,RH11..T3

TAIL

 2
66321 - BUMPER, GATE RUBBER
66331-95010

LH11,RH11..T3

SIDE

 4
66321-95010

LH11,RH11..T3

TAIL

 2
66321 - BUMPER, GATE RUBBER
66331-95010

LH11,RH11..T3

SIDE

 4
66321-95010

LH11,RH11..T3

TAIL

 2
Common parts
90150-50031
90179-05095
90179-06009
90179-06164
91111-40614
91515-40620
91665-40825
91665-40830
