RH11R-JRBW (1982)

Toyota Hiace

Production Nov 1982 - Jul 1985
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )12R

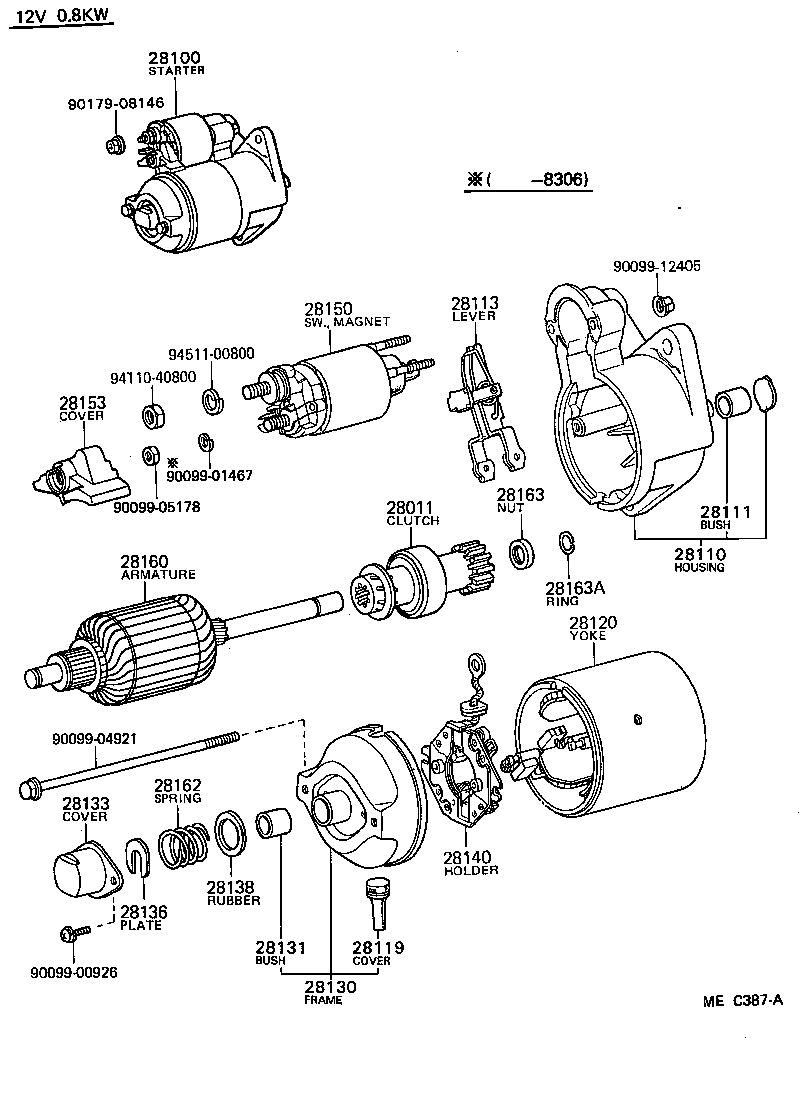

Click highlighted areas on diagram

diagram 28011 28100 28110 28111 28113 28119 28120 28130 28131 28133 28136 28138 28140 28150 28153 28160 28162 28163 28163A 9009900926 9009901467 9009904921 9009905178 9009912405 9017908146 9411040800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-15010

12R..RH11

12V 0.8KW

 1
28100 - STARTER ASSY
28100-31021

12R..RH11

12V 0.8KW,12V 0.8KW

 1
28100-31020

12R..RH11

12V 0.8KW,12V 0.8KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-31020

12R..RH11

12V 0.8KW

 1
28111 - BUSH(FOR STARTER HOUSING)
28111-51011

12R..RH11

12V 0.8KW

 1
28113 - LEVER, STARTER PINION DRIVE
28113-15011

12R..RH11

12V 0.8KW

 1
28119 - COVER, STARTER END FRAME
28199-77090

12R..RH11

12V 0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-15010

12R..RH11

12V 0.8KW

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-13020

12R..RH11

12V 0.8KW

 1
28131 - BUSH, COMMUTATOR END FRAME
90099-10134

12R..RH11

12V 0.8KW

 1
28133 - COVER, BEARING(FOR END FRAME)
28132-15010

12R..RH11

12V 0.8KW

 1
28136 - PLATE, STARTER LOCK
28136-15010

12R..RH11

12V 0.8KW

 1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-15010

12R..RH11

12V 0.8KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-15010

12R..RH11

12V 0.8KW

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-15012

12R..RH11

12V 0.8KW

 1
28150-37010

12R..RH11

12V 0.8KW

 1
28153 - COVER, MAGNET SWITCH
28159-15010

12R..RH11

12V 0.8KW

 1
28160 - ARMATURE ASSY, STARTER
28160-15010

12R..RH11

12V 0.8KW

 1
28162 - SPRING, STARTER BRAKE
28162-15010

12R..RH11

12V 0.8KW

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

12R..RH11

12V 0.8KW

 1
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07047

12R..RH11

12V 0.8KW

 1
Common parts
90099-00926
90099-01467
90099-04921
90099-05178
90099-12405
90179-08146
94110-40800
94511-00800
