RH11R-JRB (1982)

Toyota Hiace

Production Nov 1982 - Jul 1985
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )12R

Click highlighted areas on diagram

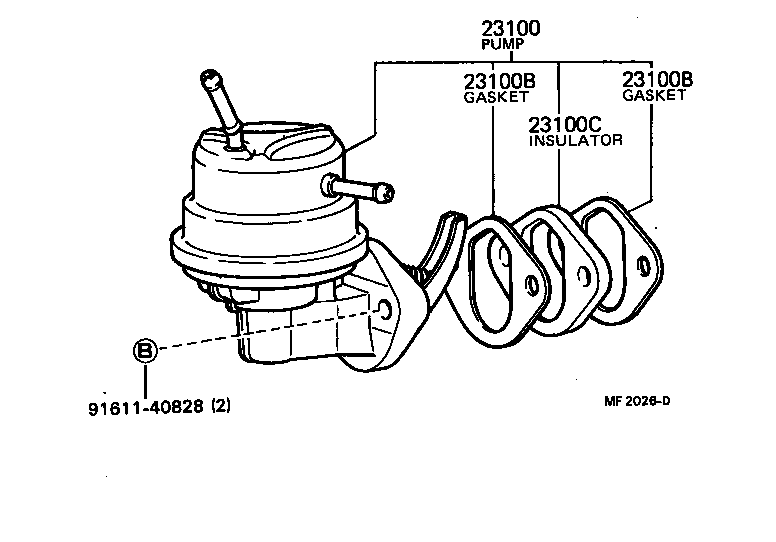

diagram 23100 23100B 23100B 23100C 9161140828
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-39256

12R..RH11

 1
23100B - GASKET, FUEL PUMP
90923-05005

12R..RH11

 2
23100B - GASKET, FUEL PUMP
90923-05005

12R..RH11

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

12R..RH11

 1
Common parts
91611-40828
