RH11R-JRB (1982)
Toyota Hiace
Production
Nov 1982
-
Jul 1985
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8211- )12R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-31351 |
12R..RH11..GEN CYCLONE TYPE |
1 | ||
| 17710-34291 |
12R..RH11 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
12R..RH11 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06230 |
12R..RH11 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-34221 |
12R..RH11 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-64030 |
12R..RH11..GEN CYCLONE TYPE |
1 | ||
| 17801-23020 |
12R..RH11 |
1 | ||
| 17805A - GASKET & WASHER, SEAL | ||||
| 90210-09026 |
12R..RH11 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-63187 |
12R..RH11 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-31081 |
12R..RH11..GEN CYCLONE TYPE |
1 | ||
| 17861-31071 |
12R..RH11 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-31050 |
12R..RH11 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
12R..RH11 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
12R..RH11 |
2 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90179-06012 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 1709 | ||||

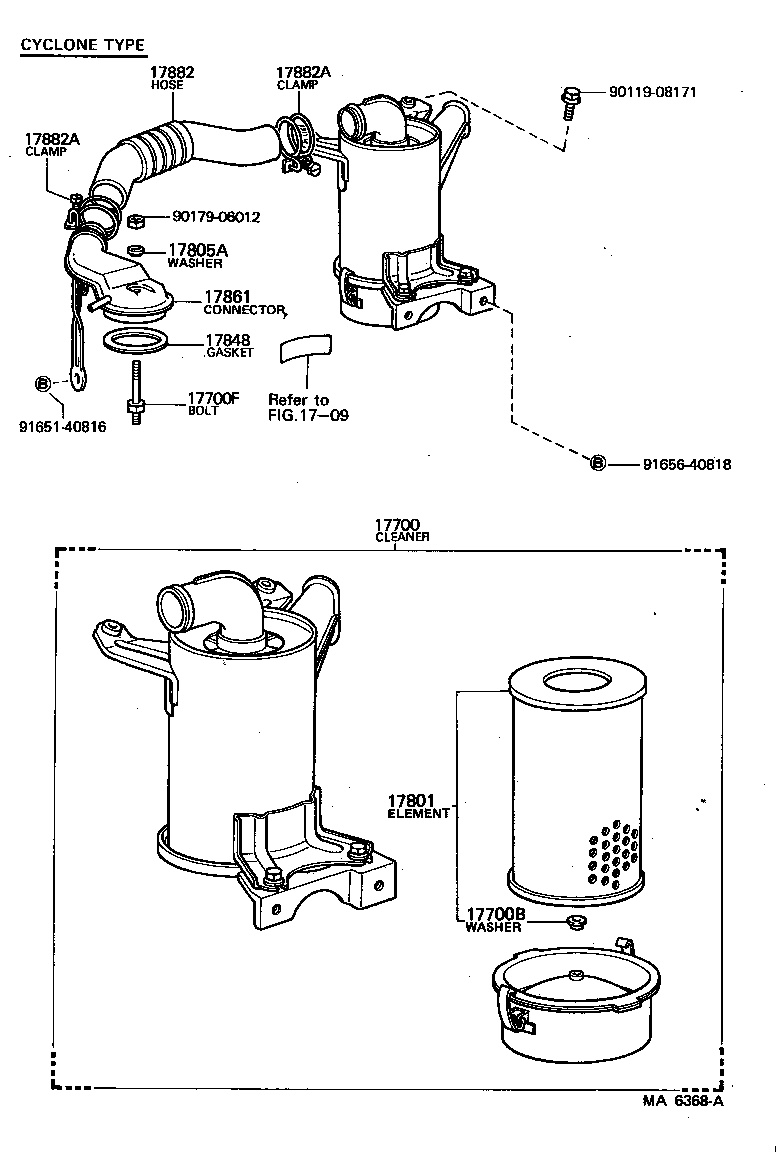

(8211- )12R..GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-31351 |
12R..RH11..GEN CYCLONE TYPE |
1 | ||
| 17710-34291 |
12R..RH11 |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-08024 |
12R..RH11..GEN CYCLONE TYPE |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06230 |
12R..RH11 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-64030 |
12R..RH11..GEN CYCLONE TYPE |
1 | ||
| 17801-23020 |
12R..RH11 |
1 | ||
| 17805A - GASKET & WASHER, SEAL | ||||
| 90210-09026 |
12R..RH11 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-63187 |
12R..RH11 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-31081 |
12R..RH11..GEN CYCLONE TYPE |
1 | ||
| 17861-31071 |
12R..RH11 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-34080 |
12R..RH11..GEN CYCLONE TYPE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10690 |
12R..RH11..GEN CYCLONE TYPE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10690 |
12R..RH11..GEN CYCLONE TYPE |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90179-06012 | ||||
| 91651-40816 | ||||
| 91656-40818 | ||||
| Linked diagrams | ||||
| 1709 | ||||
